AI-Enabled A3 Colour Multifunction Printer Series
Canon imageFORCE C5100 Series
Canon’s imageFORCE C5100 Series - four A3 colour multifunctionals sharing one chassis, one toner range and one security platform, separated only by speed: 40, 50, 60 or 70 pages per minute. Choose the model that matches your volume and everything else stays the same.
Quick Glance
Key Features
Four Speeds, One Machine
C5140 at 40 ppm, C5150 at 50, C5160 at 60 and C5170 at 70 - all A4, colour and mono alike, at 4,800 x 2,400 dpi. Paper handling, finishing, toner and security are identical across the four, so you size the machine to your volume without giving anything up.
Outstanding, AI-Recommended Security
TLS 1.3, IPSec and IEEE 802.1X on the network side; FIPS 140-3 SSD encryption, TPM 2.0, startup integrity verification and Trellix runtime intrusion detection on the device itself. Authentication covers card, PIN, picture, Microsoft Entra ID and two-factor login.
Unparalleled Reliability
Single-pass duplex scanning with multi-sheet feed detection, a 10.1" touch panel, and a four-second quick start. Built for shared, all-day use in a busy print room rather than occasional desk work.
Detailed Specifications
Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.
Need-to-Know
- Fax is optional and requires the Super G3 FAX Board-AX2 - it is not fitted as standard.
- Stapling, hole-punching and booklet-making require an optional finisher (Staple Finisher-AB3 or Paper Folding/Booklet Finisher-A2).
- The maximum 6,350-sheet capacity needs the optional High Capacity Cassette Feeding Unit-F1 plus Paper Deck Unit-F2; the machine ships with 1,200 sheets.

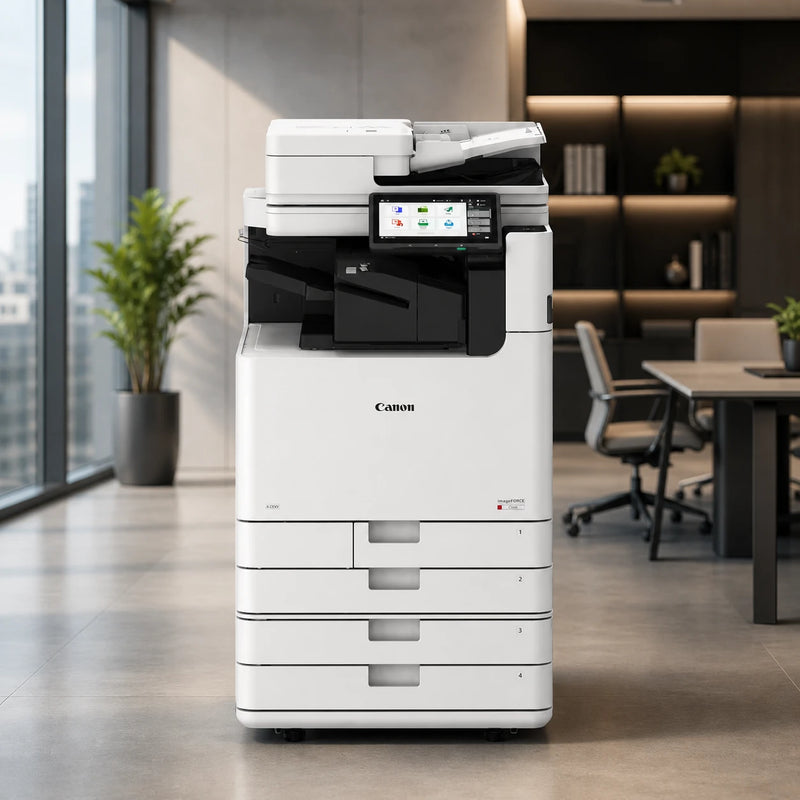

Best For / Customer Benefits
Customer Benefits
- Print and scan at high volume without slowing down - 40 to 70 ppm print and copy, and up to 270 ipm 2-sided scanning
- AI-recommended security settings protect the device, network and data with minimal extra IT effort
- Automatic system recovery and smart sensors maximise uptime and reduce unplanned service calls
- Recycled materials, low energy consumption and quiet operation support your sustainability goals

Best For
Gallery
Official & Recommended Options
Don't see the accessory you need? Contact us — we carry the full range of official Canon accessories and can help you find the right fit.
Learn More About the imageFORCE C5100 Series
Frequently Asked Questions
All four models use Canon’s C-EXV 1001 range, listed on Canon’s own specification as Toner 1001 BK/C/M/Y. Black is rated at approximately 63,000 pages and each colour at 54,500 pages at 5% coverage. There is also a lower-capacity colour set, C-EXV 1001L, at 24,000 pages per colour; black is a single capacity across both. Each colour is a separate cartridge, so you replace only the one that runs out.
Speed is the only real difference. The C5140 runs at 40 ppm, the C5150 at 50, the C5160 at 60 and the C5170 at 70, with first-copy-out falling from about 4.1 seconds on the C5140 to 2.7 on the C5170. Every other specification on this page - 1,200-sheet standard paper capacity, the same finishers and cassettes, the same C-EXV 1001 toner, the same security platform, the same 105 kg chassis - is shared across all four. Pick on monthly volume and how much queueing your team will tolerate, and tell us the number; we will size it with you.
No - fax is optional on every model in the range. The machines come with print, copy, scan, send and store as standard, and adding fax means fitting the Super G3 FAX Board-AX2, with IP Fax available as a further option. Up to two connection lines and Super G3 at 33.6 kbps are supported once fitted.
The same on all four models. On the network: TLS 1.3, IPSec, IEEE 802.1X, SNMP v3.0 and IP/MAC address filtering, with the fax line and USB port separable from the LAN. On the device: FIPS 140-3 SSD encryption, SSD lock, NIST 800-88 purge-level initialisation, TPM 2.0, startup integrity verification with automatic recovery to NIST SP800-193, and Trellix Embedded Control runtime intrusion detection. Users can log in by card, PIN, picture, username and password, or Microsoft Entra ID, with two-factor authentication available.
Not sure which speed you need?
Tell us your monthly volume, the finishing you need and whether fax matters, and our UAE team will tell you which of the four models fits - then configure and quote it as one machine, cassettes, finisher and toner included.
Compare
How it compares
Up to 4 models side by side
| Swipe to compare | This product
Canon imageFORCE C5100 Series
Price on request
Request a quote
|
Canon imageFORCE C3026
Price on request
Request a quote
|
Canon imageFORCE C3100 Series
Price on request
Request a quote
|
Canon imageFORCE C7165
Price on request
Request a quote
|
|---|---|---|---|---|
| Main Unit | ||||
| Control Panel | 10.1" TFT LCD WSVGA colour touch panel | 7" TFT LCD WVGA Colour Touch Panel | 10.1" TFT LCD WSVGA colour touch panel | 10.1" TFT LCD WSVGA Colour Touch Panel |
| Standard Functions | Print, Copy, Scan, Send and Store - Fax optional | Print, Copy, Scan, Send, Store, Optional Fax | Print, Copy, Scan, Send and Store - Fax optional | Print, Copy, Scan, Send, Store, Optional Fax |
| Memory | 6 GB RAM | Standard 3.0GB RAM | 5 GB RAM | Standard RAM: 6.0GB |
| Eco Labels | Blue Angel | — | Blue Angel | Blue Angel |
| Processor | 1.8 GHz dual-core | 1.6GHz Dual Core | 1.8 GHz dual-core | 1.8GHz Dual Core Processor |
| Storage | 256 GB SSD standard, 1 TB SSD optional | Standard 64GB eMMC (256GB SSD optional) | 256 GB SSD standard, 1 TB SSD optional | Standard (SSD) 256GB · Optional (SSD) 1TB |
| Dimensions (W×D×H) | 620 x 722 x 937 mm | 565 × 712 × 862 mm | 565 x 745 x 897 mm with Single Pass DADF-E1 · 565 x 745 x 862 mm with Single Pass DADF-F1 | 723 × 722 × 937 mm |
| Weight | Approx. 105 kg | Approx. 78 kg | Approx. 91 kg with Single Pass DADF-E1 · approx. 84 kg with Single Pass DADF-F1 | Approx. 115 kg |
| Recommended Monthly Volume | — | 8,000 pages | — | 40,000 pages |
| Print & Copy | ||||
| Print Speed | C5140 up to 40 ppm · C5150 50 ppm · C5160 60 ppm · C5170 70 ppm (A4, colour and mono) | Up to 26 ppm A4 · 15 ppm A3 · 15 ppm A4R | C3122 up to 22 ppm · C3126 26 ppm · C3130 30 ppm · C3135 35 ppm · C3150 50 ppm (A4, colour and mono, 1- and 2-sided) | Up to 65 ppm (A4, A5*, A5R, A6R*) · 33 ppm (A3) · 42 ppm (A4R) · up to 70 ppm with 1st Cassette + Paper Deck Unit-F2 + High Capacity Cassette Feeding Unit-F1 (*1-sided only) |
| Print Resolution | 4,800 x 2,400 dpi | 4,800 × 2,400 dpi | 4,800 x 2,400 dpi | 4,800 × 2,400 dpi |
| Duplex Printing | Standard, automatic | Standard, automatic 2-sided — same speed as 1-sided | Standard, automatic - at the same speed as single-sided | Standard, automatic two-sided printing |
| First Copy Out | C5140 approx. 4.1 / 6.1 s · C5150 3.4 / 4.9 s · C5160 2.9 / 4.2 s · C5170 2.7 / 3.7 s | Approx. 7.0 / 8.7 seconds or less | C3150 approx. 4.2 / 5.5 s · C3135 5.5 / 7.4 s · C3130, C3126 and C3122 6.1 / 8.4 s | Approx. 2.7 / 3.7 seconds or less (BW/CL) |
| Scan & Send | ||||
| Scan Resolution | 600 x 600 dpi | 600 × 600 dpi | 600 x 600 dpi | 600 × 600 dpi |
| Scan Speed | 135/135 ipm single-sided · 270/270 ipm double-sided (300 dpi, send) | Up to 80 ipm (1-sided) · 120 ipm (2-sided), at 300 × 300 dpi | Single Pass DADF-E1: 135 ipm single-sided, 270 ipm double-sided · Single Pass DADF-F1: 80 ipm and 120 ipm (300 dpi, send) | Up to 135 ipm (1-sided) · 270 ipm (2-sided) at 300 × 300 dpi (send); 80/160-90 ipm at 600 × 600 dpi (copy) |
| Scanner Type | Single-pass duplexing automatic document feeder (DADF) with multi-sheet feed detection | Colour scanner, single-pass duplexing ADF (100 sheets) | Colour platen as standard - optional Single Pass DADF-E1 (200 sheets, multi-sheet feed detection) or Single Pass DADF-F1 (100 sheets) | Single-pass Duplexing Automatic Document Feeder, up to 200 sheets [2-sided to 2-sided (Automatic)] |
| Scan Destinations | Email and Internet Fax (SMTP), SMB3.0, FTP, WebDAV, Mail Box, Advanced Space, USB memory key and mobile devices - Super G3 Fax and IP Fax optional | E-mail · Internet FAX (SMTP) · SMB · FTP · SFTP · FTPS · WebDAV | Email and Internet Fax (SMTP, with OAuth 2.0 for Microsoft Exchange Online and Google Workspace), SMB 3.1.1, FTP, SFTP, FTPS, WebDAV, Mail Box, Advanced Space, USB memory key, mobile devices and cloud via uniFLOW Online - Super G3 Fax and IP Fax optional | Scan to Box · Advanced Space · Network · USB Memory Key · Mobile devices · Cloud (uniFLOW Online / Cloud Connector, optional) |
| Scanned File Formats | PDF (compact, searchable, PDF/A-1b, encrypted, device and user signature), XPS, TIFF (MMR), JPEG, Office Open XML (Word, PowerPoint) | TIFF · JPEG · PDF (incl. Searchable/PDF-A/Encrypted) · XPS · Office Open XML | PDF (compact, searchable, PDF/A-1a through PDF/A-3u, trace and smooth, encrypted, device and user signature), XPS (compact, searchable), TIFF (MMR), JPEG, Office Open XML (Word, PowerPoint) | TIFF (MMR) · JPEG · PDF (Compact, Searchable, Encrypted, PDF/A-1b, etc.) · XPS · Office Open XML (PowerPoint, Word) |
| Paper Handling | ||||
| Standard Paper Input | 1,200 sheets - 2 x 550-sheet cassettes plus a 100-sheet multi-purpose tray | 1,200 sheets (100-sheet multi-purpose tray + 2× 550-sheet cassettes) | 1,200 sheets - 2 x 550-sheet cassettes plus a 100-sheet multi-purpose tray | 1,200 sheets (100-sheet multi-purpose tray + 2× 550-sheet cassettes) |
| Max Paper Input (Optional) | 6,350 sheets with High Capacity Cassette Feeding Unit-F1 and Paper Deck Unit-F2 | 2,300 sheets (with Cassette Feeding Unit-BB1) | 6,350 sheets with High Capacity Cassette Feeding Unit-G1 and Paper Deck Unit-F3 | 6,350 sheets (with High Capacity Cassette Feeding Unit-F1 + Paper Deck Unit-F2) |
| Compatible Paper Sizes | SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R | SRA3 · A3 · A4 · A4R · A5 · A5R · A6R · B4 · B5 · B5R | SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R | SRA3 · A3 · A4 · A4R · A5 · A5R · A6R · B4 · B5 · B5R |
| Custom Paper Size | 98.0 x 139.7 mm to 320.0 x 457.2 mm - long sheet to 1,300 mm with Long Sheet Feeding Tray-B1 | 98.4 × 139.7 mm to 320.0 × 457.2 mm (multi-purpose tray) | 98.4 x 139.7 mm to 320.0 x 457.2 mm from the multi-purpose tray | 98.0 × 139.7 mm to 320.0 × 457.2 mm; long sheet 98.0 × 457.3 mm to 320.0 × 1,300.0 mm (multi-purpose tray, requires Long Sheet Feeding Tray-B1 for long sheet) |
| Envelope Sizes | COM10 No.10, Monarch, DL, ISO-C5 | COM10 No.10 · Monarch · DL · ISO-C5 (custom 98.0×98.0mm to 320.0×457.2mm) | COM10 No.10, Monarch, DL, ISO-C5 | COM10 No.10 · Monarch · DL · ISO-C5 (custom 98.0 × 90.0 mm to 320.0 × 457.2 mm) |
| Media Types | Thin, plain, recycled, eco, colour, heavy, coated, tracing, bond, transparency, label, pre-punched, letterhead, tab, envelope and water-resistant | Thin · Plain · Recycled · Colour · Heavy · Coated · Tracing · Bond · Transparency · Label · Pre-punched · Letterhead · Envelope | Thin, plain, recycled, colour, heavy, coated, tracing, bond, transparency, label, pre-punched, letterhead and envelope | Thin · Plain · Recycled · Eco · Colour · Heavy · Coated · Tracing · Bond · Transparency · Label · Pre-punched · Letterhead · Tab · Envelope · Water Resistant |
| Media Weight | 52 to 300 gsm (multi-purpose tray and lower cassette) · 52 to 256 gsm duplex | 52–300 gsm (multi-purpose tray) · 52–256 gsm (cassettes) · 52–220 gsm (duplex) | 52 to 300 gsm (multi-purpose tray) · 52 to 256 gsm (cassettes) · 52 to 220 gsm duplex | 52–300 gsm (multi-purpose tray) · 52–256 gsm (upper cassette) · 52–300 gsm (lower cassette) · 52–256 gsm (duplex) |
| Optional Accessories | Cassette Feeding Unit-AY1, High Capacity Cassette Feeding Unit-F1, Paper Deck Unit-F2, Staple Finisher-AB3, Paper Folding/Booklet Finisher-A2, Long Sheet Feeding Tray-B1 | Cassette Feeding Unit-BB1 · Inner Finisher-N1 · Inner 2/4 Hole Puncher-D1 · Copy Tray-T2 · Inner 2way Tray-M1 | Cassette Feeding Unit-BB1 (C3122 to C3135) or Cassette Feeding Unit-AZ1 (C3150), High Capacity Cassette Feeding Unit-G1, Paper Deck Unit-F3, Inner Finisher-N1, Staple Finisher-AH1, Booklet Finisher-AH1, 2/4 and 4 Hole Puncher Units | Cassette Feeding Unit-AY1 · High Capacity Cassette Feeding Unit-F1 · Paper Deck Unit-F2 · Inner Finisher-N1 · Staple Finisher-AB3 · Paper Folding/Booklet Finisher-A2 · imagePASS-T1 Fiery Print Controller |
| Cartridge | ||||
| Toner Cartridges | C-EXV 1001 BK/C/M/Y · C-EXV 1001L C/M/Y | Toner 1008 BK/C/M/Y | C-EXV 1007 BK/C/M/Y | Toner 3001 BK/C/M/Y |
| Page Yield | BK: approx. 63,000 pages · C/M/Y: approx. 54,500 pages each · 1001L C/M/Y: approx. 24,000 pages each (estimated @ 5% coverage) | BK: approx. 15,500 pages · C/M/Y: approx. 8,500 pages each (estimated @ 5% coverage) | BK: approx. 36,000 pages · C/M/Y: approx. 19,000 pages each (estimated @ 5% coverage) | BK: approx. 37,500 pages · C/M/Y: approx. 27,500 pages each (estimated @ 8.5% coverage) |
| Connection | ||||
| Connection Type | 1000Base-T / 100Base-TX / 10Base-T Ethernet · USB 2.0 host, USB 3.0 host and USB 2.0 device | 1000Base-T/100Base-TX/10Base-T Ethernet | 1000Base-T / 100Base-TX / 10Base-T Ethernet · USB 2.0 host, USB 3.0 host and USB 2.0 device | 1000Base-T/100Base-TX/10Base-T Ethernet · USB 2.0 (Host) x1 · USB 3.0 (Host) x1 · USB 2.0 (Device) x1 |
| Wireless Printing | Optional Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) | Wi-Fi 802.11 b/g/n | Optional Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) with WPA3 | Optional Wireless LAN (IEEE 802.11a/b/g/n/ac/ax), up to WPA3 |
| Mobile Printing | AirPrint, Mopria, Canon PRINT Business, Canon PRINT and Universal Print by Microsoft - uniFLOW Online and Cloud Connector optional | AirPrint · Mopria · IPP Everywhere · Canon PRINT · Universal Print | AirPrint, Mopria, IPP Everywhere, Canon PRINT and Universal Print by Microsoft - uniFLOW Online and Cloud Connector optional | AirPrint · Mopria · IPP Everywhere · Canon PRINT · uniFLOW Online · Universal Print by Microsoft · Cloud Connector |
| Fleet Management | iW Enterprise Management Console, Remote Distribution & Management Service, uniFLOW Online reporting and the MEAP application platform | uniFLOW Online | iW Enterprise Management Console, Remote Distribution & Management Service, Monitoring Service, uniFLOW Online reporting and the MEAP application platform | uniFLOW Online · iW Enterprise Management Console · Remote Distribution & Management Service |
| Security | ||||
| Authentication | User authentication by picture, PIN, card, username and password, function level or mobile login; Department ID authentication; Microsoft Entra ID; two-factor authentication at the panel and Remote UI; Access Management System | Picture Login · Card Login · Username/Password · Microsoft Entra ID · Google Workspace · Department ID | User authentication by picture, PIN, card, username and password, function level or mobile login; Department ID authentication; Microsoft Entra ID and Google Workspace login; two-factor authentication at the panel and Remote UI; Access Management System | Picture Login · Card Login* · Username/Password · Department ID · uniFLOW/uniFLOW Online · Microsoft Entra ID · Two-Factor Authentication at LUI/RUI |
| Network Security | TLS 1.3, IPSec, IEEE 802.1X, SNMP v3.0, IP and MAC address filtering firewall, dual network support, and separation of the G3 fax line and USB port from the LAN | TLS 1.3 · IPSec · IEEE802.1X · SNMPv3 · WPA3 · Firewall (IP/MAC Filtering) | TLS 1.3 and IPSec (both FIPS 140-3), IEEE 802.1X, SNMP v3.0, IP and MAC address filtering firewall, dual network support, WPA3 over Wi-Fi, and separation of the G3 fax line and USB port from the LAN | TLS 1.3 · IPSec · IEEE802.1X · SNMP V3.0 · Firewall (IP/MAC Filtering) · Dual Network Support · up to WPA3 |
| Device Security | SSD data encryption (FIPS 140-3) and SSD lock, NIST 800-88 purge-level initialisation, TPM 2.0, verify system at startup and automatic recovery (NIST SP800-193), and Trellix Embedded Control runtime intrusion detection | Automatic System Recovery · Runtime Intrusion Detection (Trellix Embedded Control) · Storage Initialize | SSD data encryption (FIPS 140-3) and SSD lock, NIST 800-88 purge-level initialisation, TPM 2.0, verify system at startup and automatic recovery (NIST SP800-193), job log conceal, and Trellix Embedded Control runtime intrusion detection | SSD Data Encryption (FIPS140-3) · SSD Lock · Trusted Platform Module (TPM 2.0) · NIST SP800-193 Verify/Recovery · Trellix Embedded Control runtime intrusion detection |
