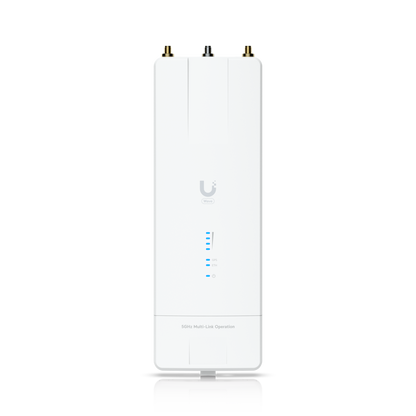

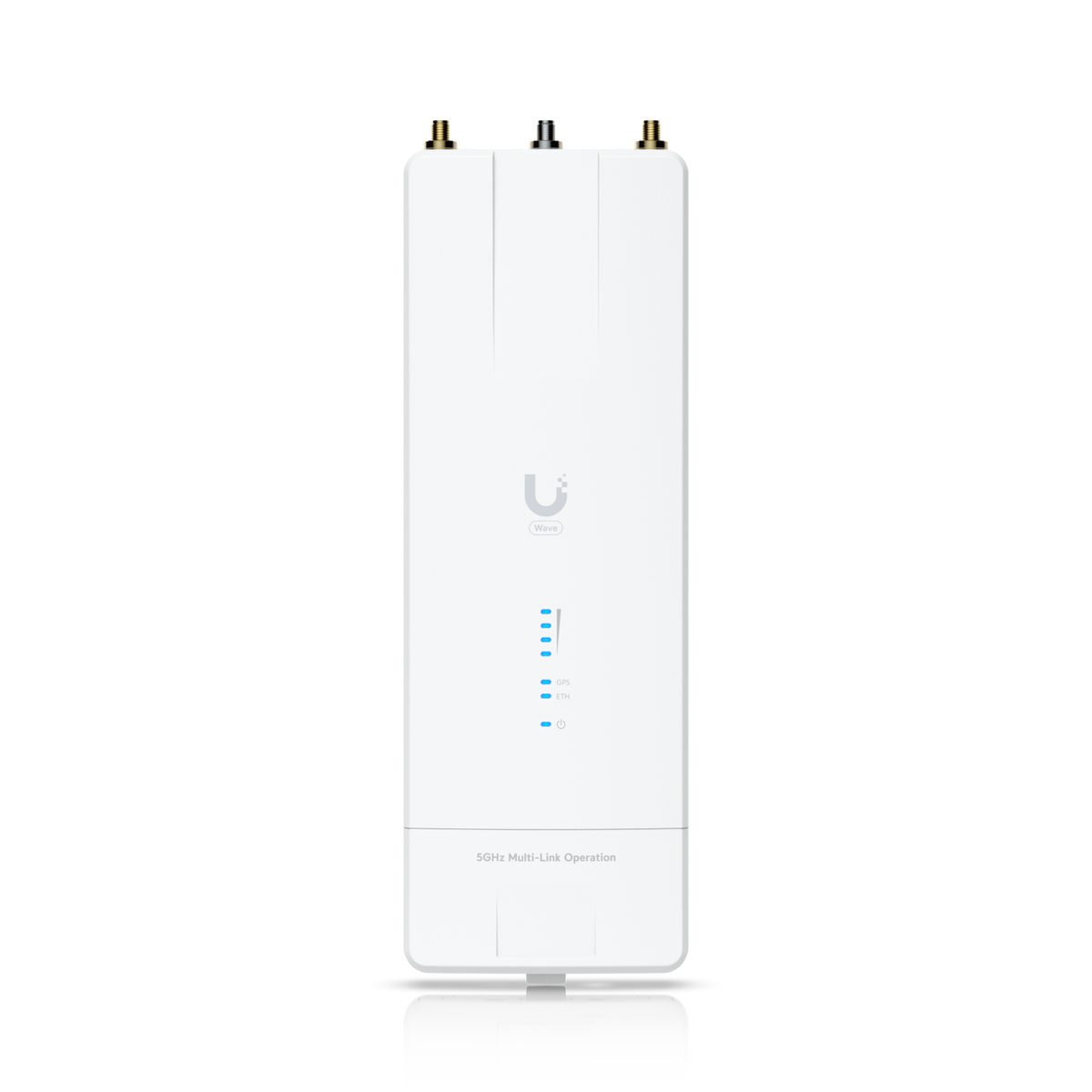

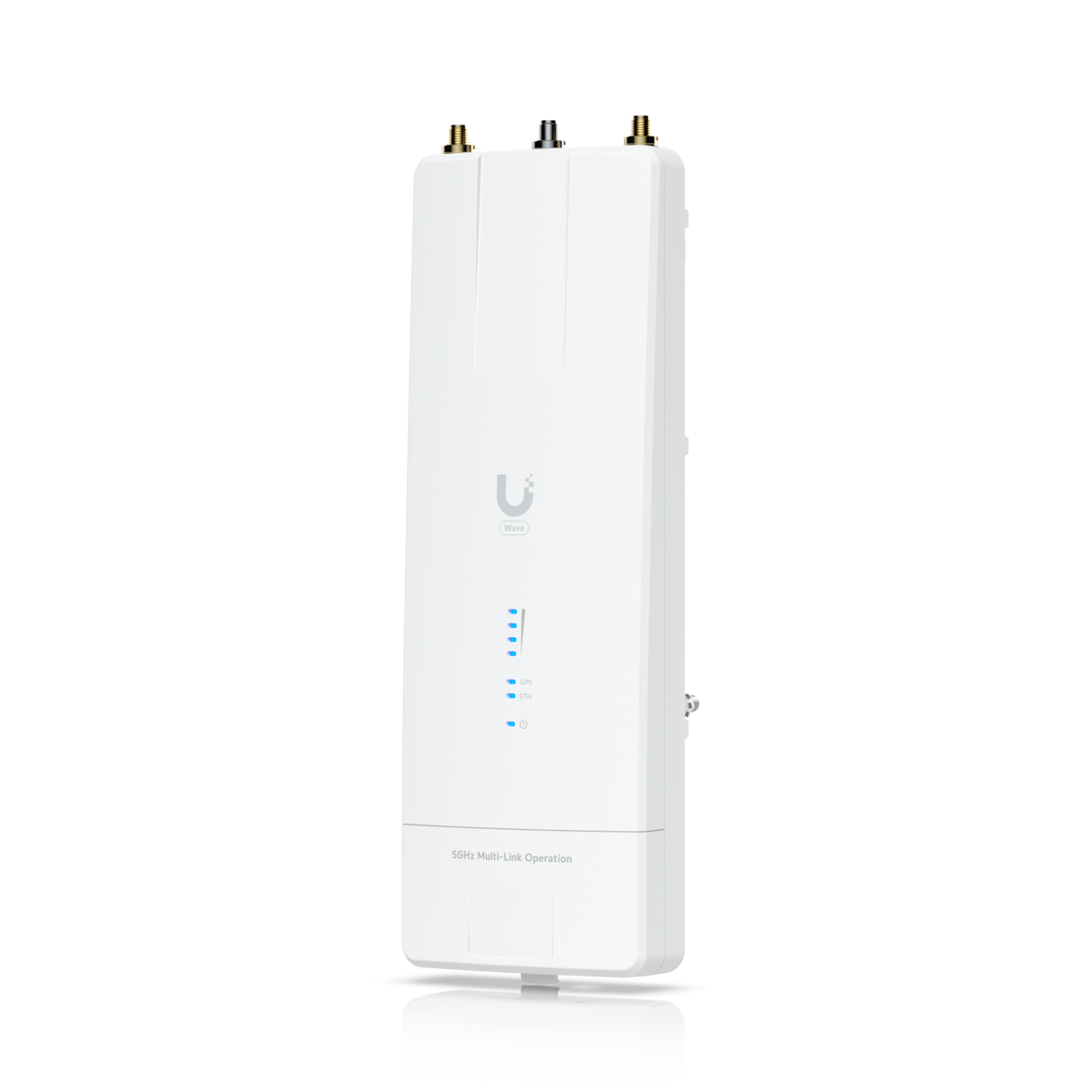

Ubiquiti Wave MLO5, Dual 5 GHz WiFi 7-Based PtP Radio with MLO, 5+ Gbps, 100 km Range, 10 GbE and SFP+

Wave-MLO5

Condition: NEW

Dhs. 1,971.59(exc. Vat)
(exc. Vat)
Dhs. 1,971.59(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti Wave MLO5, Dual 5 GHz WiFi 7-Based PtP Radio with MLO, 5+ Gbps, 100 km Range, 10 GbE and SFP+ atomoffice
    Ubiquiti Wave MLO5, Dual 5 GHz WiFi 7-Based PtP Radio with MLO, 5+ Gbps, 100 km Range, 10 GbE and SFP+ atomoffice
    Ubiquiti Wave MLO5, Dual 5 GHz WiFi 7-Based PtP Radio with MLO, 5+ Gbps, 100 km Range, 10 GbE and SFP+ atomoffice
    Ubiquiti Wave MLO5, Dual 5 GHz WiFi 7-Based PtP Radio with MLO, 5+ Gbps, 100 km Range, 10 GbE and SFP+ atomoffice

    UISP Wave | 5 GHz PtP Radio

    Ubiquiti Wave MLO5 Dual 5 GHz Point-to-Point Radio (Wave-MLO5)

    The Ubiquiti Wave MLO5 is a point-to-point radio with dual 5 GHz WiFi 7-based radios and Multi-Link Operation (MLO) for enhanced throughput and reliable connectivity. Ubiquiti rates it at 5+ Gbps total throughput and up to 100 km link range. It has one 10 GbE RJ45 port and one 10G SFP+ port, a dedicated spectral analysis radio, GPS and integrated Bluetooth, and connects to an external airMAX, airFiber X, UISP Dish or UISP Horn antenna.

    Quick Glance

    Wireless Standard
    Dual 5 GHz WiFi 7-based radios
    Max Speed
    5+ Gbps total throughput
    Coverage
    Up to 100 km PtP link range
    Power Type
    Passive PoE, adapter included
    Form Factor
    Outdoor pole mount, IPX6

    Key Features

    Dual 5 GHz radios with Multi-Link Operation

    Two 5 GHz WiFi 7-based radios, each 2 x 2 MIMO, combined with Multi-Link Operation (MLO) for enhanced throughput and reliable connectivity. Ubiquiti rates total throughput at 5+ Gbps and link range at 100+ km. MLO operation is currently limited to 20 km; Ubiquiti says longer ranges are coming via future firmware updates.

    10 GbE and SFP+ uplinks, quad-core processing

    One 10 GbE RJ45 port and one 10G SFP+ port carry the link into the wired network. Inside are a quad-core IPQ5322 at 1.5 GHz and 1 GB DDR4. A dedicated spectral analysis radio, channel puncturing, GPS and integrated Bluetooth support planning and keeping the link clean.

    Built for the mast, with your choice of antenna

    An aluminium alloy and UV-resistant polycarbonate enclosure rated IPX6, pole mounting on 1-2" (25.4-50.8 mm) poles and an operating range of -40 to 60° C. Two waterproof RP-SMA RF connections take an airMAX, airFiber X, UISP Dish or UISP Horn antenna. Powered by passive PoE from the included 54V 10 GbE PoE adapter.

    Detailed Specifications

    ProductWave MLO5
    Part NumberWave-MLO5
    Operating ModesPtP
    NetworkBridge Mode
    Total Throughput5+ Gbps
    Max. Range100 km (62.1 mi) (Throughput and range values may vary depending on the environmental conditions)
    EncryptionWPA3-PSK (AES)
    Compatible AntennasairMAX antenna, airFiber X antenna, UISP Dish and UISP Horn
    MIMO / 5 GHz(2) 2 x 2
    Max. TX Power / 5 GHz24 dBm (Depends on regulatory region)
    Operating Frequency / Worldwide5180 – 5320 MHz; 5500 – 5700 MHz; 5745 – 5825 MHz (Depends on regulatory region)
    Channel BandwidthRadio 1: 20, 40, 80, 160 MHz; Radio 2: 20, 40, 80, 160, 240 MHz
    ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)

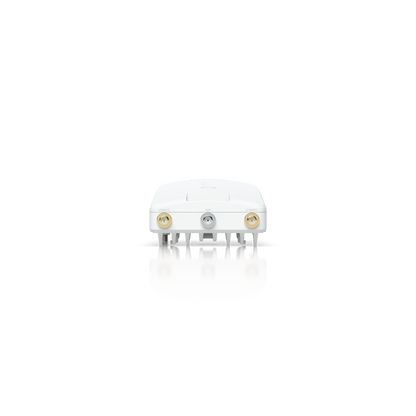

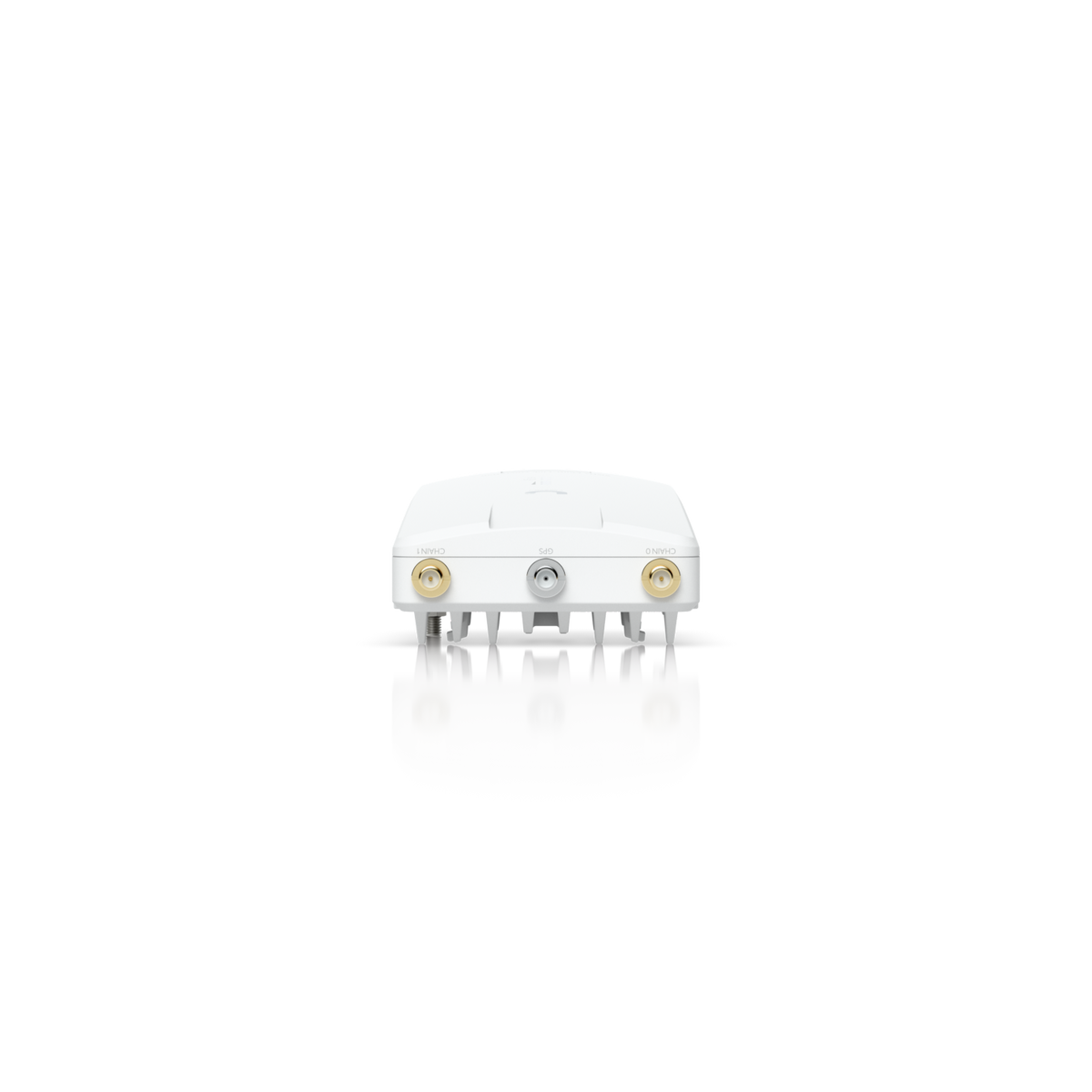

    RF Connections(2) RP-SMA (Waterproof), (1) GPS (Waterproof)
    GPSYes
    ProcessorQuad-core IPQ5322 at 1.5 GHz
    MemoryDDR4 1 GB

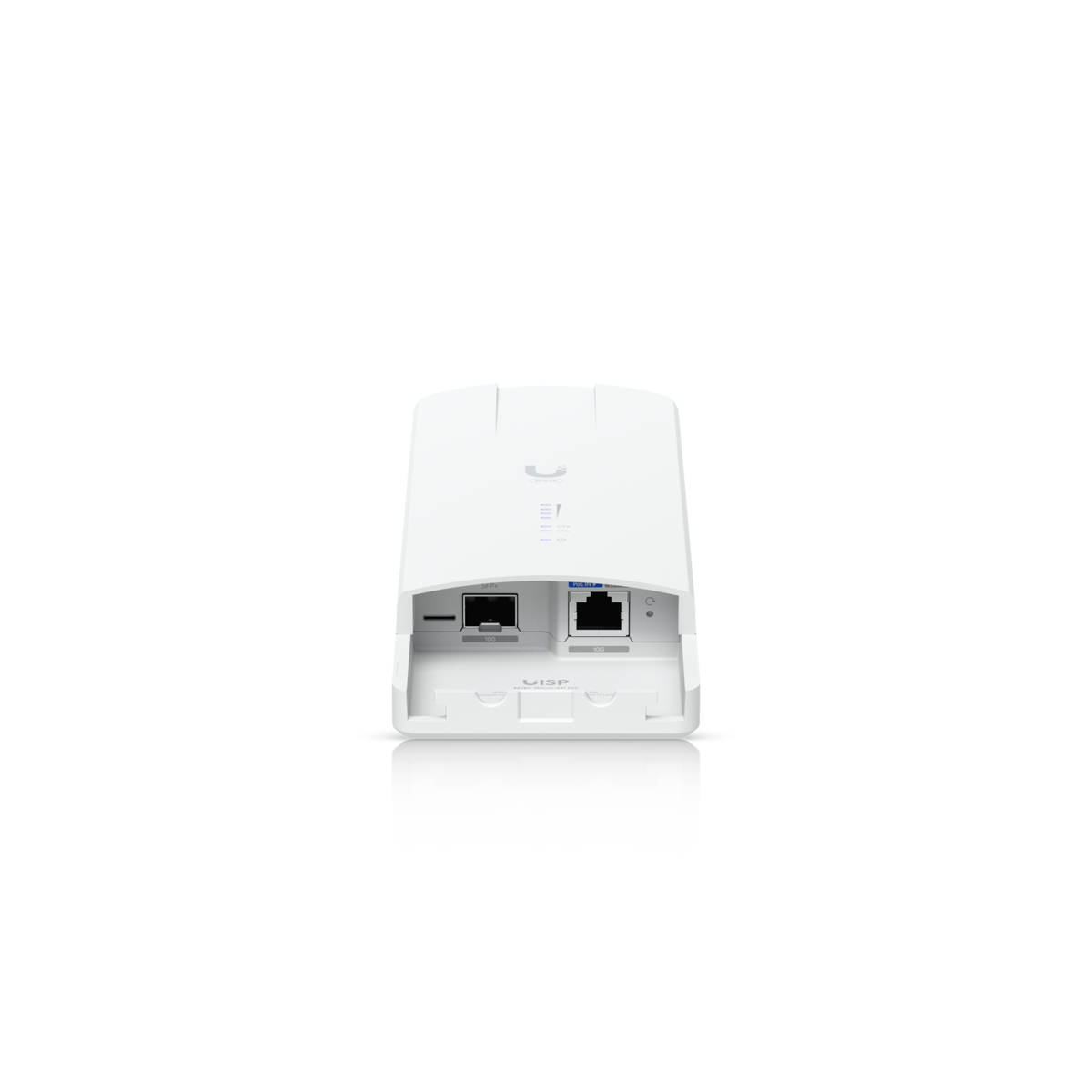

    Networking Interface(1) 10 GbE RJ45 port, (1) 10G SFP+ port
    Buttons(1) Factory reset
    LEDsPower: (1) Blue; Ethernet: (1) Blue; GPS: (1) Blue; Signal Strength: (4) Blue
    NDAA CompliantYes
    CertificationsFCC, IC, CE
    Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Supported Voltage Range44–54V DC; 22–27V DC
    Power Supply54V DC, 0.56A, 10 GbE PoE adapter (Included)
    Max. Power Consumption20W
    Dimensions249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
    Weight575 g (1.3 lb)
    Enclosure MaterialAluminum alloy, UV-resistant polycarbonate
    Mount MaterialStrap: stainless steel; Universal bracket: UV-resistant polycarbonate (on pipe outer diameter)
    MountingPole Mount
    Pole Mount Diameter1—2" (25.4—50.8 mm)
    WeatherproofingIPX6
    Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
    Ambient Operating Humidity5 to 95% noncondensing
    Services / UISPYes
    Services / Ping WatchdogYes
    Services / NTP ClientYes
    Utilities / Antenna AlignmentYes
    Utilities / PingYes
    Utilities / Site SurveyYes
    Utilities / Speed TestYes
    Utilities / TracerouteYes
    Utilities / Discovery UtilityYes

    All specifications are Ubiquiti's own, from its official tech specs and store pages. Throughput and range vary with environmental conditions; operating frequencies and TX power depend on the regulatory region. MLO operation is currently limited to 20 km.

    Need-to-Know

    • The Wave MLO5 is a connectorised radio: Ubiquiti lists two waterproof RP-SMA RF connections and no antenna gain. Ubiquiti states it is compatible with airMAX, airFiber X, UISP Dish and UISP Horn antennas; an antenna is not listed as included, so plan one for each end of the link.
    • MLO operation is limited to 20 km today. Ubiquiti states that longer MLO ranges are coming via future firmware updates; the 100 km figure is the radio's maximum link range.
    • Throughput and range values may vary depending on environmental conditions. Operating frequencies and maximum TX power depend on the regulatory region.
    • Ubiquiti lists one operating mode, PtP, in bridge mode. A point-to-point link needs a radio at each end.
    • Power comes from the included 54V DC, 0.56A 10 GbE PoE adapter over passive PoE. Ubiquiti also lists a 22–27V DC supported voltage range.

    Best For / Customer Benefits

    Customer Benefits

    • 5+ Gbps total throughput from dual 5 GHz WiFi 7-based radios with Multi-Link Operation
    • Up to 100 km link range, with MLO currently limited to 20 km
    • 10 GbE RJ45 and 10G SFP+ ports so the wired side keeps up with the link
    • Works with airMAX, airFiber X, UISP Dish and UISP Horn antennas
    • IPX6 outdoor enclosure rated from -40 to 60° C, PoE adapter included

    Best For

    Linking two buildings or sites without trenching fibre
    Wireless ISPs building high-capacity 5 GHz backhaul
    Campuses, farms and industrial sites needing long-range bridges
    Installers already using airMAX, airFiber X or UISP antennas

    Frequently Asked Questions

    It is a point-to-point radio for linking two sites over 5 GHz, running in bridge mode. Ubiquiti rates it at 5+ Gbps total throughput and up to 100 km link range, with dual 5 GHz WiFi 7-based radios and Multi-Link Operation for enhanced throughput and reliable connectivity.

    Not yet. Ubiquiti states that MLO operation is limited to 20 km, with longer ranges coming via future firmware updates. The 100 km figure is the radio's maximum link range, and Ubiquiti notes that throughput and range vary with environmental conditions.

    Ubiquiti does not list an antenna as included. The radio has two waterproof RP-SMA RF connections and one GPS connection, and Ubiquiti states it is compatible with airMAX antennas, airFiber X antennas, UISP Dish and UISP Horn. Tell us the link distance and we can help you choose.

    By passive PoE from the included 54V DC, 0.56A 10 GbE PoE adapter, with a maximum power consumption of 20W. Data connects through one 10 GbE RJ45 port or one 10G SFP+ port.

    Ubiquiti lists UISP support together with Ping Watchdog and an NTP client, plus built-in utilities for antenna alignment, site survey, speed test, ping, traceroute and discovery. A dedicated spectral analysis radio and channel puncturing help with planning and interference.

    Planning a 5 GHz point-to-point link?

    Tell us the distance between the two sites, the throughput you need and the mounting points, and we will help you pick the radios and antennas.
