Ubiquiti UISP Wave AP Wave-AP, 60 GHz PtMP Access Point, 5.4 Gbps, 30° Sector, 10G SFP+

Wave-AP

Condition: NEW

Dhs. 1,747.47(exc. Vat)
(exc. Vat)
Dhs. 1,747.47(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti Wave Access Point Wave-AP view 1 atomoffice
    Ubiquiti Wave Access Point Wave-AP view 2 atomoffice
    Ubiquiti Wave Access Point Wave-AP view 3 atomoffice
    Ubiquiti Wave Access Point Wave-AP view 4 atomoffice

    UISP Wave 60 GHz PtMP Access Point

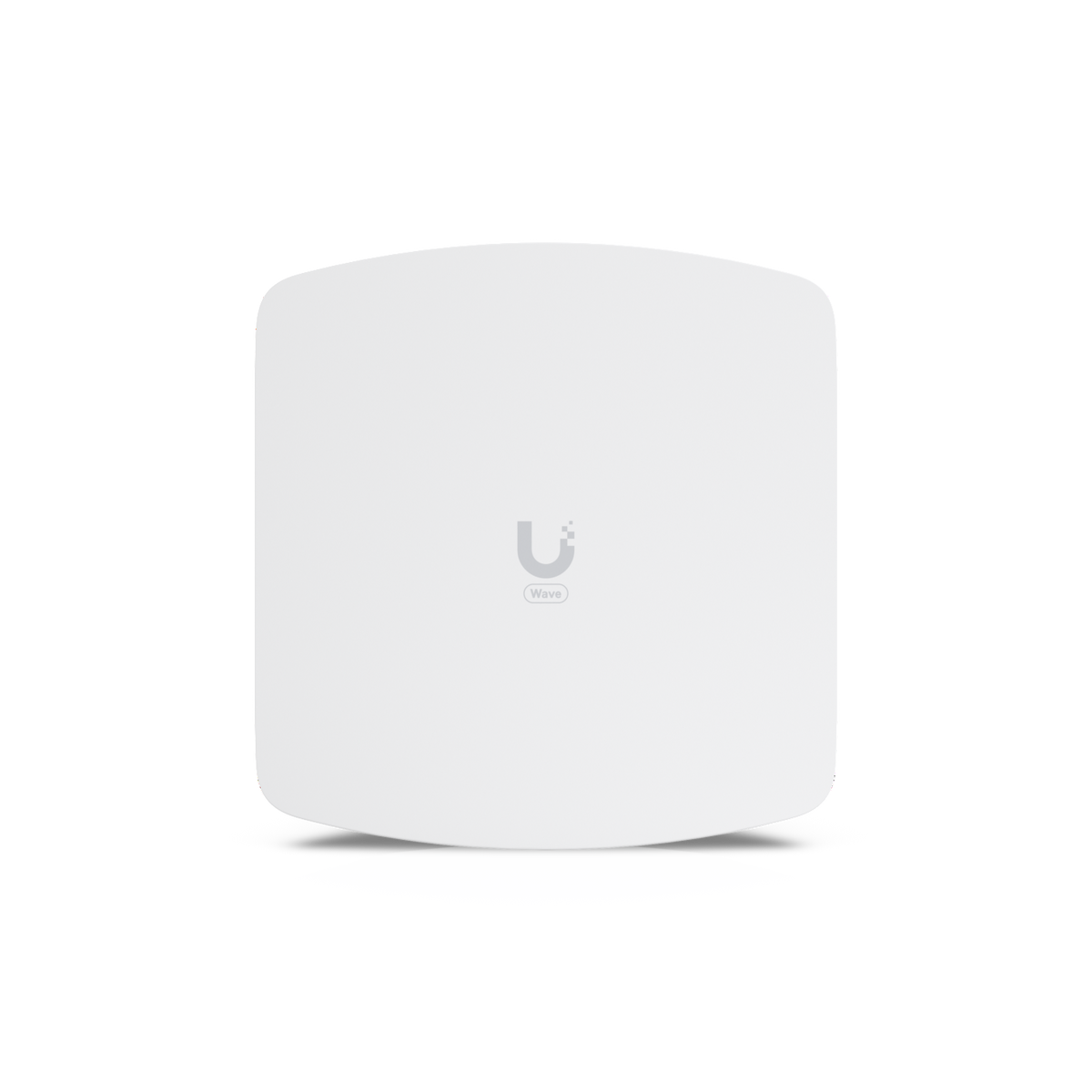

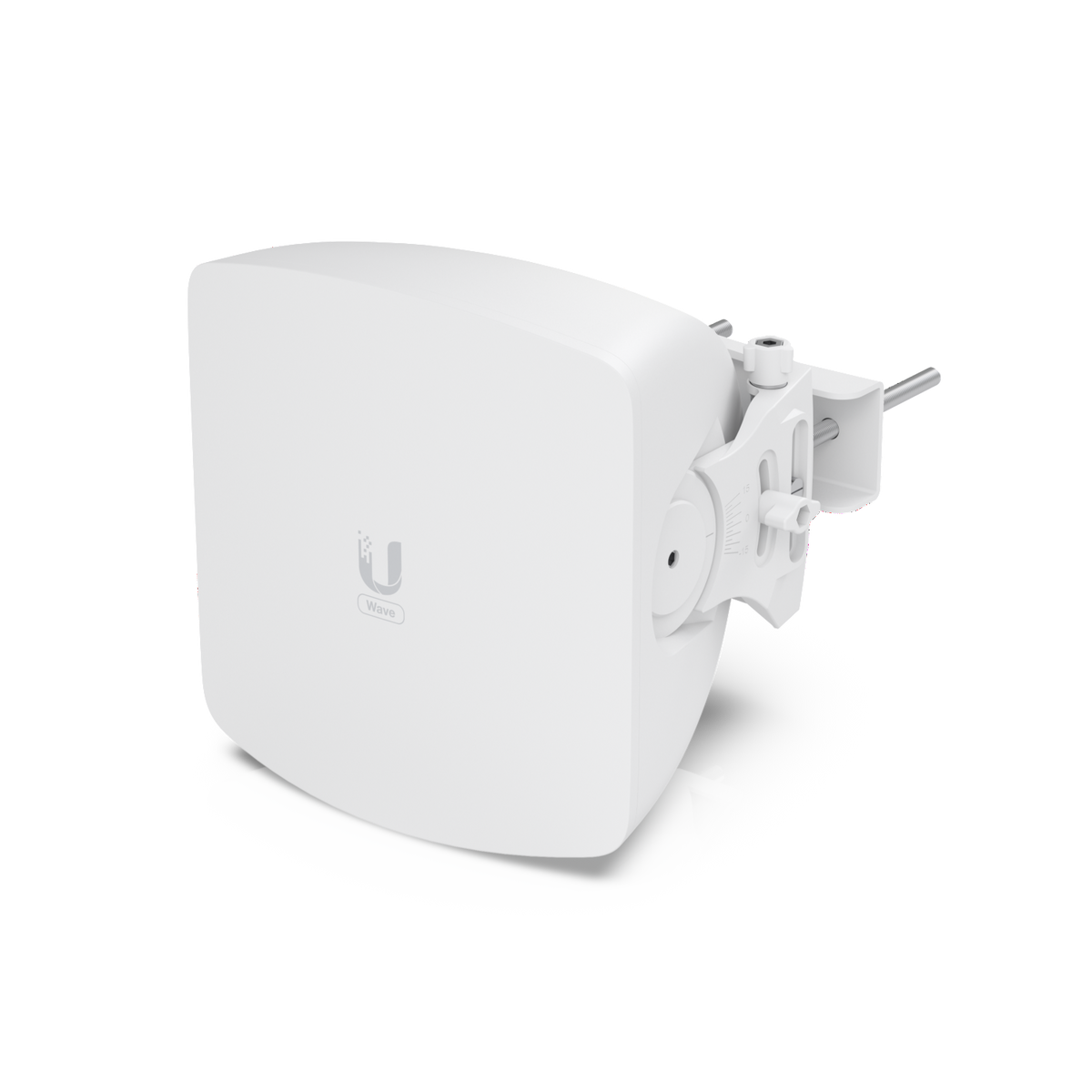

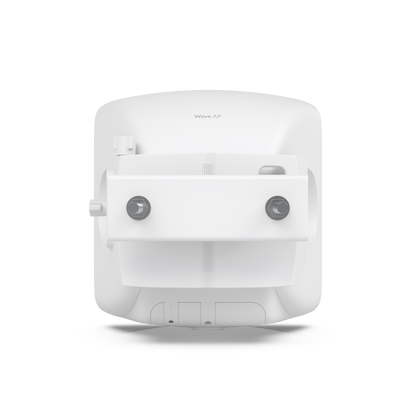

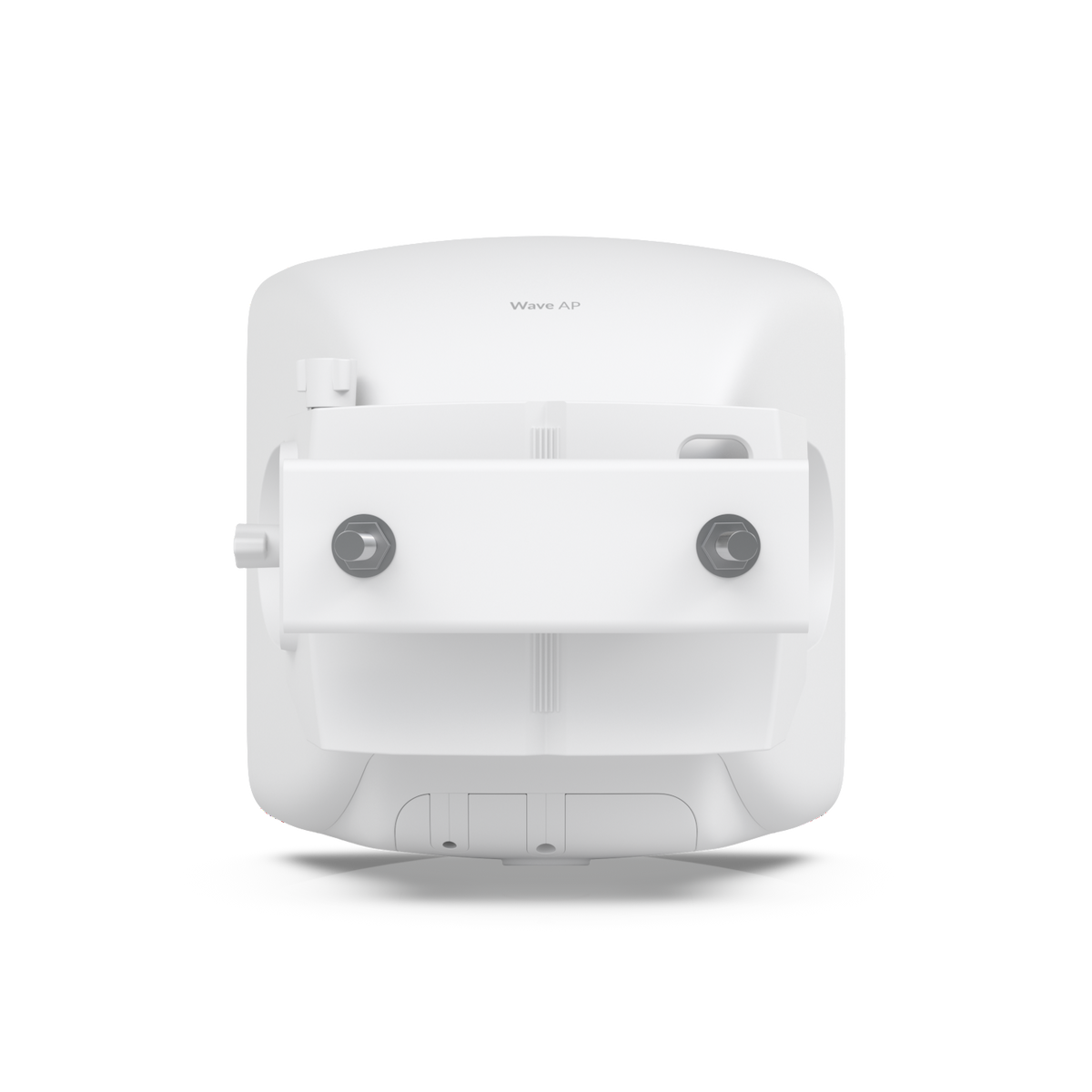

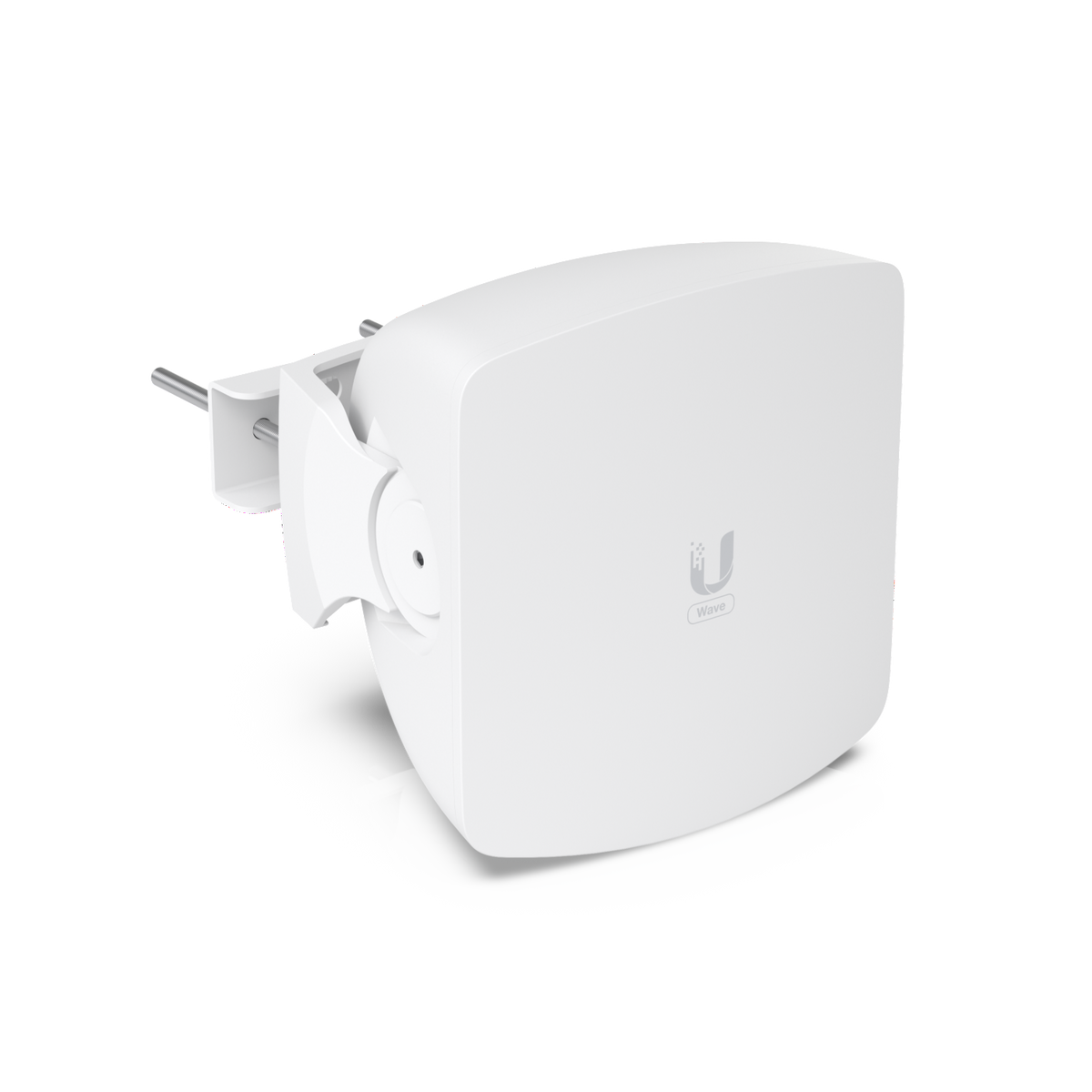

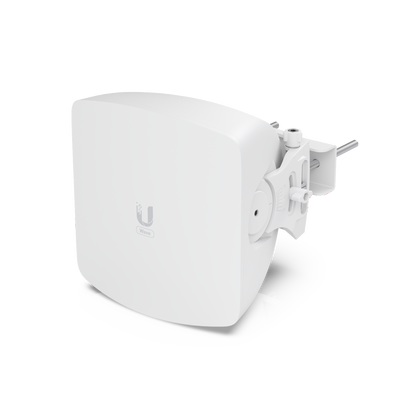

    Ubiquiti UISP Wave Access Point (Wave-AP)

    The Ubiquiti Wave AP is a 60 GHz point-to-multipoint access point powered by Wave Technology. It delivers up to 5.4 Gbps total throughput across a 30° sector, serves up to 31 Wave clients (firmware 3.4.0 and later) at link ranges up to 8 km, and has a 5 GHz backup radio, a 10G SFP+ port, a 2.5GbE port, integrated GPS and Bluetooth. Managed with UISP; PoE adapter included.

    Quick Glance

    Max Speed
    5.4 Gbps total throughput
    Coverage
    30° sector, links up to 8 km
    Client Capacity
    31 clients (FW 3.4.0 and later)
    Uplink Interface
    (1) 10G SFP+, (1) 2.5GbE RJ45
    Power Type
    Passive PoE, 24W, adapter included

    Key Features

    60 GHz PtMP with Wave Technology

    A 60 GHz point-to-multipoint access point with a 24 dBi antenna and a 30° azimuth beamwidth, operating at 57–71 GHz (firmware 3.3.0 and later). Ubiquiti rates total throughput at 5.4 Gbps, and a 5 GHz 802.11ax (WiFi 6) backup radio, with up to 800 Mbps maximum throughput, gives a second, backup path.

    Up to 31 Wave clients at up to 8 km

    Supports 31 clients with firmware 3.4.0 and later. Ubiquiti gives maximum range by client: up to 8 km (5 mi) to a Wave Pro or Wave Long-Range, up to 5 km (3.1 mi) to a Wave Nano and up to 1.3 km (0.8 mi) to a Wave Pico. Encryption is WPA2-PSK (AES).

    10G SFP+ and 2.5GbE, managed with UISP

    One 10G SFP+ port and one 2.5GbE RJ45 port; the RJ45 port is active only when the SFP+ port is down. Powered by passive PoE (24W max.) with a 48V DC, 0.65A 2.5GbE PoE adapter included. Integrated GPS and Bluetooth, Wave AI, antenna alignment and site survey tools, managed with UISP 1.5.7 and later.

    Detailed Specifications

    ProductWave Access Point
    Part NumberWave-AP
    Operating ModesPtMP access point
    NetworkBridge mode
    Total Throughput5.4 Gbps
    Supported Clients31 (FW version 3.4.0 and later.)
    Max. RangeConnecting to a Wave Pro: up to 8 km (5 mi); Wave Long-Range: up to 8 km (5 mi); Wave Nano: up to 5 km (3.1 mi); Wave Pico: up to 1.3 km (0.8 mi)
    5 GHz Backup RadioMax. throughput: 800 Mbps
    EncryptionWPA2-PSK (AES)
    60 GHz / Operating Frequency (Worldwide)57–71 GHz (FW version 3.3.0 and later.)
    60 GHz / Channel Bandwidth2160, 1080, 540 MHz (540 MHz require FW version 3.3.0 and later)
    60 GHz / Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz (Depends on regulatory region. 70560 MHz require FW version 3.3.0 and later)
    60 GHz / Modulation16QAM, QPSK
    60 GHz / Antenna Gain24 dBi
    60 GHz / PolarizationVertically-Linear
    60 GHz / BeamwidthAzimuth: 3 dB 30°; Elevation: 3 dB 3°
    60 GHz / Electrical Downtilt0°
    5 GHz / WiFi Standard802.11ax (WiFi 6)
    5 GHz / Operating Frequency (US/CA)U-NII-1 5150 - 5250 MHz; U-NII-2A 5250 - 5350 MHz; U-NII-2C 5470 - 5725 MHz; U-NII-3 5725 - 5850 MHz
    5 GHz / Operating Frequency (Worldwide)5150 - 5875 MHz (Depends on regulatory region.)
    5 GHz / Channel Bandwidth20, 40, 80 MHz
    5 GHz / Antenna Gain12 dBi
    5 GHz / Polarization and BeamwidthDual-Linear; Azimuth: 3 dB 35°, Elevation: 3 dB 60°; Cross-Pol Isolation 10 dB; Electrical Downtilt 0°
    5 GHz / ModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
    Networking Interface(1) 2.5GbE RJ45 port (100/1000/2500); (1) 10G SFP+ port (1/10) (2.5GbE RJ45 is active only when SFP+ port is down.)
    GPSYes
    BluetoothIntegrated
    Buttons(1) Factory reset
    LEDs / PowerFlashing white: bootup in progress; White: not connected to UISP application; Blue: connected to UISP application; Flashing blue: locate in progress; Blue/white: firmware upgrade in progress
    LEDs / EthernetFlashing white: Ethernet traffic detected; Flashing blue: SFP+ traffic detected
    LEDs / GPSBlue: receiving at least (4) GPS satellite signal
    Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Supported Voltage Range44–54V DC; 22–27V DC
    Power Supply48V DC, 0.65A 2.5GbE PoE adapter (Included)
    Max. Power Consumption24W
    Application Requirements / UISPVersion 1.5.7 and later
    ServicesUISP, Ping Watchdog, NTP Client, SNMP
    Discovery ProtocolYes
    ToolsCable Test (requires FW 3.3.0 or later), Wave AI, Wave Technology
    UtilitiesAntenna Alignment, Ping, Site Survey (requires FW 3.3.0 or later), Speed Test, Traceroute, Discovery Utility
    ProcessorQuad-core ARM® Cortex®-A53 at 1.4 GHz
    Memory512 MB
    Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
    Ambient Operating Humidity5 to 95% noncondensing
    NDAA CompliantYes
    CertificationsFCC, IC, CE
    Dimensions212 x 205 x 187 mm (8.3 x 8.1 x 7.4")
    Weight2.3 kg (5.1 lb)
    Enclosure MaterialAluminum alloy, UV stabilized polycarbonate
    Pole Mount Diameter⌀ 25 to 76 mm (1 to 3") (on pipe outer diameter)
    Wind Loading98 N at 200 km/h (22 lbf at 125 mph)
    WeatherproofingIPX6

    All specifications are Ubiquiti's own, from its official tech specs and store pages for the Wave AP (Wave-AP). Range and throughput are Ubiquiti's maximum figures; client capacity and some features depend on firmware version.

    Need-to-Know

    • The 31-client capacity needs firmware 3.4.0 or later. Some 60 GHz features, including the 57–71 GHz range, 540 MHz channels, cable test and site survey, need firmware 3.3.0 or later.
    • Ubiquiti lists Wave Pro, Wave Long-Range, Wave Nano and Wave Pico as the clients it connects to, with the range depending on which one is used. Clients are sold separately.
    • The 2.5GbE RJ45 port is active only when the SFP+ port is down. An SFP+ module or cable for the 10G port is not listed as included.
    • 60 GHz operating channels and 5 GHz frequencies depend on the regulatory region, per Ubiquiti. Check local rules before planning channels.
    • This is a UISP product, managed with the UISP application version 1.5.7 or later, not a UniFi Network device. Ubiquiti does not state the included PoE adapter's plug type.

    Best For / Customer Benefits

    Customer Benefits

    • One sector access point serving up to 31 Wave clients
    • 5.4 Gbps total throughput with a 5 GHz backup radio
    • 10G SFP+ uplink for fibre-fed towers and rooftops
    • PoE adapter included, with IPX6 weatherproofing for outdoor mounting

    Best For

    Wireless ISPs delivering multi-gigabit links to subscribers
    Campus and estate networks serving several buildings from one point
    Operators already running UISP and Wave client radios

    Frequently Asked Questions

    Ubiquiti lists the Wave Pro and Wave Long-Range at up to 8 km (5 mi), the Wave Nano at up to 5 km (3.1 mi) and the Wave Pico at up to 1.3 km (0.8 mi). It supports 31 clients with firmware 3.4.0 and later. Real range depends on line of sight and weather.

    Ubiquiti rates total throughput at 5.4 Gbps on 60 GHz, shared across the connected clients. The 5 GHz backup radio has a maximum throughput of 800 Mbps.

    By passive PoE, 4-pair or 2-pair, with a maximum power consumption of 24W. Ubiquiti includes a 48V DC, 0.65A 2.5GbE PoE adapter. Ubiquiti does not state the adapter's plug type.

    No. Ubiquiti states the 2.5GbE RJ45 port is active only when the SFP+ port is down, so the 10G SFP+ port is the main uplink and the RJ45 port takes over when it is not in use. An SFP+ module or cable is not listed as included.

    With the UISP application, version 1.5.7 and later. Ubiquiti lists SNMP, NTP client, Ping Watchdog, Wave AI, antenna alignment, site survey and speed test tools, plus integrated GPS and Bluetooth.
