Ubiquiti UniFi Switch Enterprise Campus 24 PoE, 24 PoE+++ Ports, 10 GbE and 25G SFP28, Layer 3

ECS-24-PoE

Condition: NEW

Dhs. 12,209.96(exc. Vat)
(exc. Vat)
Dhs. 12,209.96(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti UniFi Switch Enterprise Campus 24 PoE, 24 PoE+++ Ports, 10 GbE and 25G SFP28, Layer 3 atomoffice
    Ubiquiti UniFi Switch Enterprise Campus 24 PoE, 24 PoE+++ Ports, 10 GbE and 25G SFP28, Layer 3 atomoffice
    Ubiquiti UniFi Switch Enterprise Campus 24 PoE, 24 PoE+++ Ports, 10 GbE and 25G SFP28, Layer 3 atomoffice
    Ubiquiti UniFi Switch Enterprise Campus 24 PoE, 24 PoE+++ Ports, 10 GbE and 25G SFP28, Layer 3 atomoffice

    UniFi Switching | Enterprise Campus

    Ubiquiti UniFi Switch Enterprise Campus 24 PoE (ECS-24-PoE)

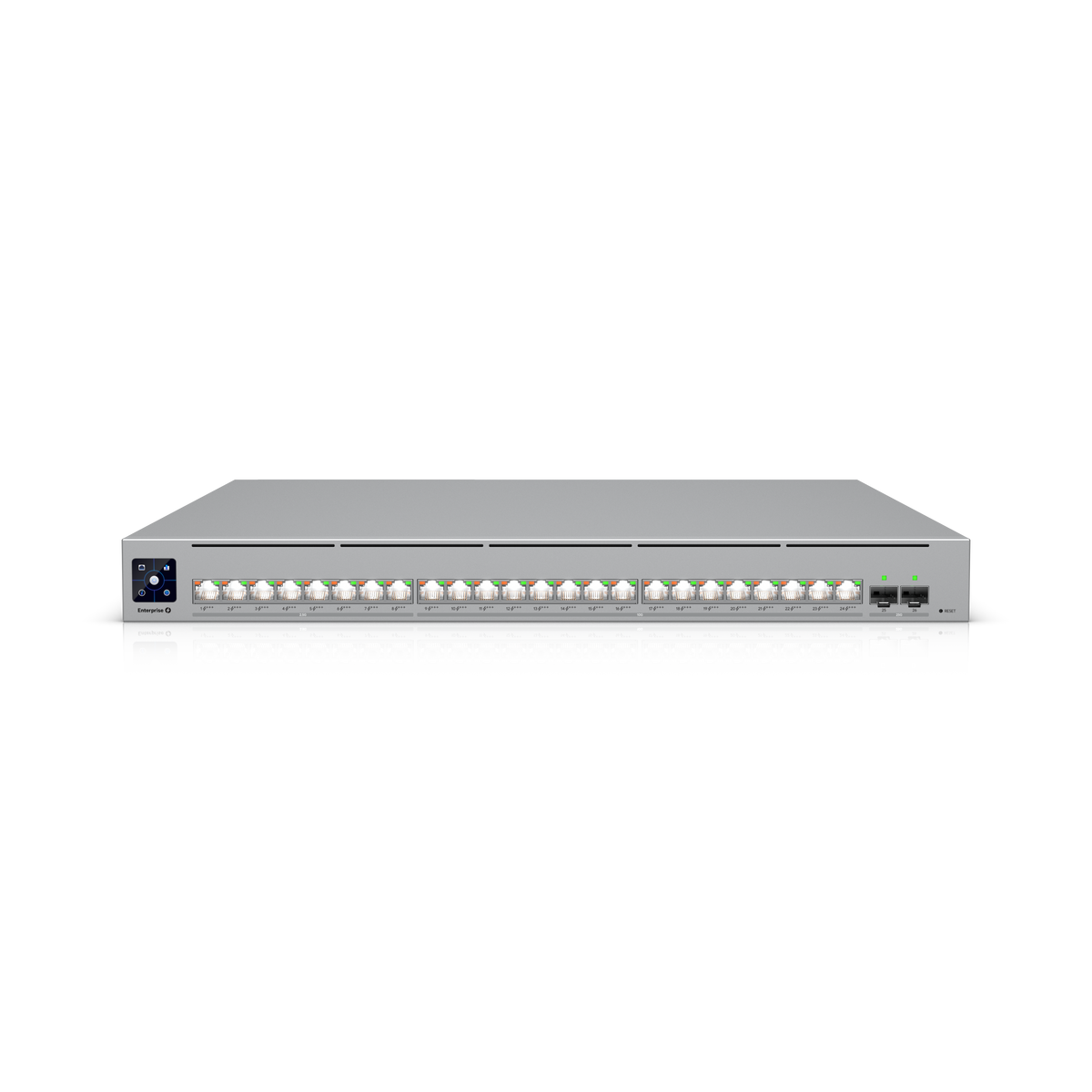

    An enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch built for high availability. Sixteen 10 GbE and eight 2.5 GbE RJ45 ports all deliver PoE+++ at up to 90W per port, with two 25G SFP28 uplinks, 460 Gbps switching capacity, two hot-swappable power supplies and four hot-swappable fans. It is a 1U full-depth rack switch, managed in UniFi Network 9.0.114 and later, and Ubiquiti recommends pairing it with the Enterprise Campus Aggregation.

    Quick Glance

    Network Ports
    16 x 10 GbE + 8 x 2.5 GbE RJ45
    Uplink Speed
    2 x 25G SFP28
    Switching Capacity
    460 Gbps
    PoE Budget
    Up to 1,050W with 600W modules
    Form Factor
    1U rack mount, full-depth

    Key Features

    PoE+++ on all 24 RJ45 ports

    Every RJ45 port delivers up to PoE+++ (802.3bt Type 4, Class 8), at up to 90W per port. With the two 600W power modules, total PoE availability is 1,050W in shared mode or 450W in redundant mode at 100-240V AC; with optional 1,200W modules (sold separately) it rises to as much as 2,250W at 200-240V AC.

    10 GbE access, 25G SFP28 uplinks and Layer 3

    Sixteen 10 GbE and eight 2.5 GbE RJ45 ports plus two 25G SFP28 ports, with 460 Gbps switching capacity, 230 Gbps non-blocking throughput and a 342 Mpps forwarding rate. Layer 3 features include a DHCP server and relay, inter-VLAN routing and up to 512 IPv4 static routes, plus Pro AV profiles for Dante, Q-SYS, NDI and more.

    High availability hardware with Etherlighting

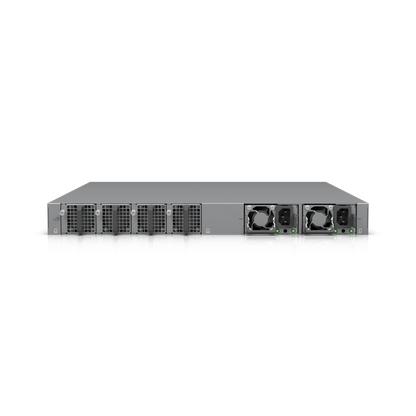

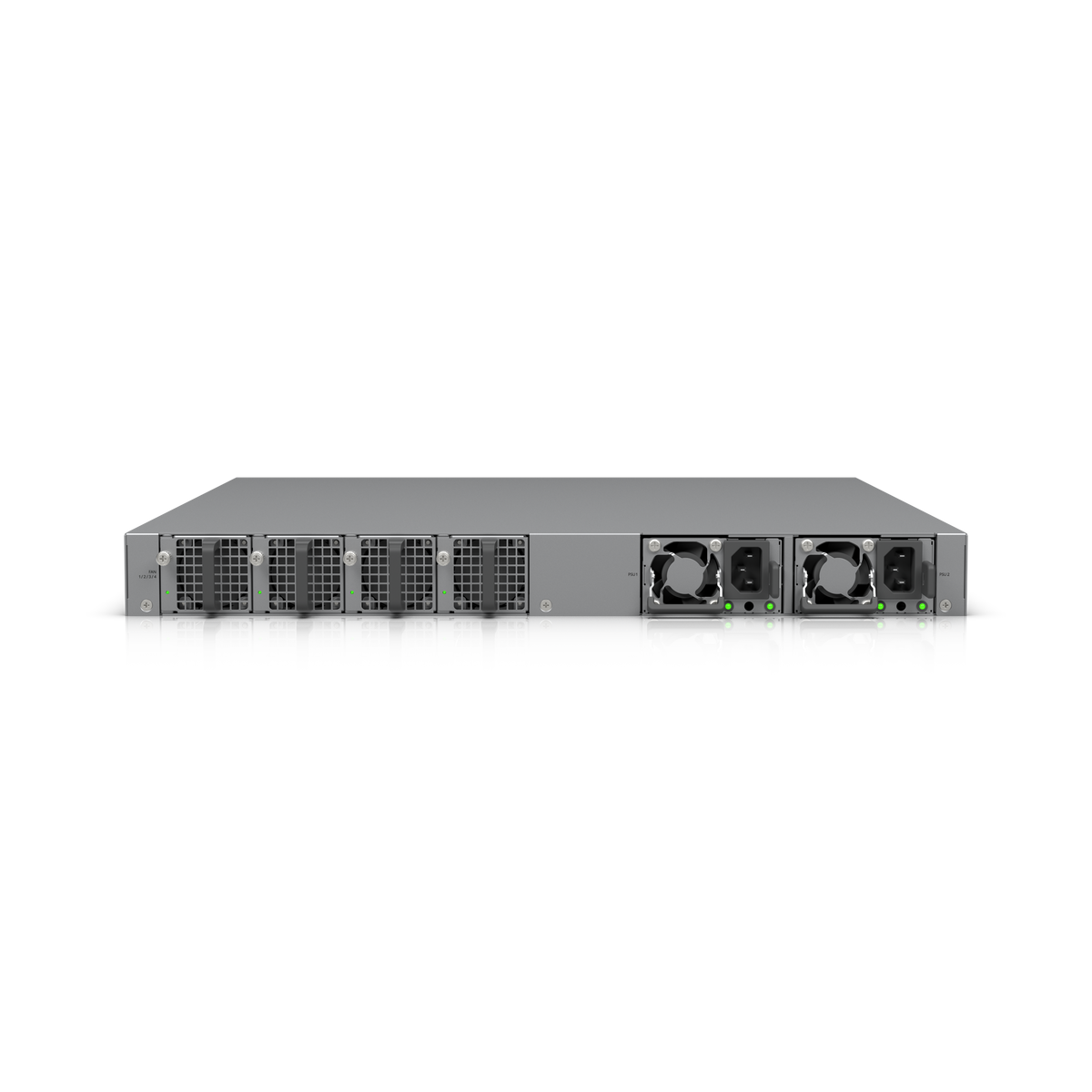

    Two hot-swappable power supplies and four hot-swappable fan modules running with 3 + 1 redundancy keep the switch up through a component swap. Etherlighting on the Ethernet and SFP28 ports, a 1.3" touchscreen and an SGCC steel 1U full-depth chassis that needs a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks.

    Detailed Specifications

    ProductSwitch Enterprise Campus 24 PoE
    Part NumberECS-24-PoE
    Layer 3Yes
    Etherlighting™Yes
    Form FactorRack Mount (1U, Full-Depth) (Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support)
    Redundancy(2) Hot-Swappable PSUs, (4) Hot-Swappable Fans
    LCM Display1.3" touchscreen
    ManagementEthernet, AR
    Application Requirements (UniFi Network)Version 9.0.114 and later
    10 GbE RJ4516 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
    2.5 GbE RJ458 (All PoE+++) (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
    25G SFP282 (25G/10G/1G)
    PoE+++ Ports24
    Max. PoE OutputUp to PoE+++ (802.3bt Type 4, Class 8)
    Max. PoE Wattage per Port by PSE (PoE)15.4W
    Max. PoE Wattage per Port by PSE (PoE+)30W
    Max. PoE Wattage per Port by PSE (PoE++)60W
    Max. PoE Wattage per Port by PSE (PoE+++)90W
    Switching Capacity460 Gbps
    Total Non-Blocking Throughput230 Gbps
    Forwarding Rate342 Mpps
    Supported VLANs1,000
    MAC Address Table Size32,000
    IPv4 Static Routes512
    Packet Buffer Size8 MB
    DHCP Server (Local Networks)Yes
    DHCP RelayYes
    Inter-VLAN Routing (Local Networks)Yes
    Static Routing (Local Networks)Yes
    LACP Port AggregationYes
    STP & RSTPYes
    QoS (DSCP)Yes
    Pro AV ProfilesYes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
    IGMP Snooping and Advanced IGMP ConfigurationYes (Querier, Fast Leave, Router Port)
    Egress Rate LimitYes
    Flow ControlYes
    Port MirroringYes
    Jumbo FramesYes
    LLDP-MED and Voice VLANYes
    Virtual Network OverrideYes
    802.1X ControlYes
    MAC-Based ACLs & Device IsolationYes
    IP-Based ACLs & Network IsolationYes
    Access Lists (IPv4)256
    Access Lists (MAC)256
    DHCP Snooping & GuardingYes
    MAC Address BlockingYes
    MAC-Based Port RestrictionYes
    Port IsolationYes
    Loop ProtectionYes
    Storm ControlYes
    Multicast & Broadcast Rate LimitingYes
    Power Supply(2) Hot-swappable AC/DC 600W power modules
    Power Method(2) Universal input, 100–240V AC, 50/60 Hz
    Power Input Method(2) AC input, Hot-swappable power modules
    Supported Voltage Range100–240V AC
    Total PoE, 100-240V AC Shared Mode, (2) 600W modules1,050W
    Total PoE, 100-240V AC Redundant Mode, (2) 600W modules450W
    Total PoE, 200-240V AC Shared Mode, (2) 1,200W modules2,250W (1,200W modules sold separately)
    Total PoE, 100-120V AC Shared Mode, (2) 1,200W modules1,850W (1,200W modules sold separately)
    Total PoE, 200-240V AC Redundant Mode, (2) 1,200W modules1,050W (1,200W modules sold separately)
    Total PoE, 100-120V AC Redundant Mode, (2) 1,200W modules850W (1,200W modules sold separately)
    Max. Power Consumption150W (Excluding PoE Output), 2,400W (Including PoE Output)
    Heat Dissipation512 BTU/hr (Excluding PoE Output)
    Dimensions442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
    WeightWithout mounting brackets: 9.46 kg (20.9 lb); with mounting brackets: 9.56 kg (21.1 lb)
    Enclosure MaterialSGCC steel
    Supported Rack Depth482.6 mm (19") four-post racks, post depths ranging from 650 to 1,000 mm (25.6–39.4")
    Fan Method(4) hot-swappable fan modules (Fan modules operate with 3 + 1 redundancy)
    Etherlighting™Ethernet, SFP28
    LEDsEthernet, System
    ESD ProtectionAir: ± 30kV, contact: ± 30kV
    Ambient Operating Temperature-5 to 40° C (23 to 104° F)
    Ambient Operating Humidity10 to 90% noncondensing
    NDAA CompliantYes
    CertificationsCE, FCC, IC, Anatel: 06181-25-08356

    Specifications are from Ubiquiti's official technical specifications and store listing for the Switch Enterprise Campus 24 PoE (ECS-24-PoE). Total PoE depends on the power modules fitted, the input voltage and whether the supplies run in shared or redundant mode.

    Need-to-Know

    • Ubiquiti lists the power supply as two hot-swappable 600W modules. With them, total PoE is 1,050W in shared mode or 450W in redundant mode. The higher PoE figures need 1,200W modules, which Ubiquiti states are sold separately.
    • The chassis is 1U full-depth: Ubiquiti requires a 4-post rack (post depths 650 to 1,000 mm), or a center-mount bracket or cantilever shelf on 2-post racks, for optimal support.
    • Ubiquiti recommends pairing this switch with the Enterprise Campus Aggregation. It needs UniFi Network 9.0.114 and later.
    • 10/100M half-duplex is not supported on the RJ45 ports, per Ubiquiti's port layout.
    • Layer 3 features listed are DHCP server and relay, inter-VLAN routing and static routing (512 IPv4 static routes). Ubiquiti's specification lists no dynamic routing protocol for this switch.
    • Ubiquiti rates the ambient operating temperature at -5 to 40° C. Plan rack cooling accordingly in UAE server rooms. Ubiquiti does not state the power cord plug type.

    Best For / Customer Benefits

    Customer Benefits

    • Expert help sizing the PoE budget and choosing between 600W and 1,200W power modules.
    • Hot-swappable power supplies and fans for sites that cannot afford downtime.
    • Multi-gigabit RJ45 on every port, so faster access points and devices are not held back.
    • VAT invoice issued with every order for UAE business buyers.

    Best For

    Enterprise and campus access layers with many PoE devices
    Powering high-draw PoE+++ devices at up to 90W per port
    Wi-Fi access point deployments that need multi-gigabit uplinks
    Pro AV installs using Dante, Q-SYS, NDI or AES67

    Frequently Asked Questions

    With the two 600W power modules Ubiquiti lists, total PoE availability is 1,050W in shared mode or 450W in redundant mode at 100-240V AC. With two 1,200W modules (sold separately) it is up to 2,250W shared at 200-240V AC, or 1,850W shared at 100-120V AC. Each port delivers up to 90W PoE+++.

    Sixteen 10 GbE RJ45 ports and eight 2.5 GbE RJ45 ports, all PoE+++, plus two 25G SFP28 ports that also run at 10G or 1G. The RJ45 ports do not support 10/100M half-duplex.

    Yes. Ubiquiti lists Layer 3 with a DHCP server and DHCP relay, inter-VLAN routing and static routing for local networks, with up to 512 IPv4 static routes. No dynamic routing protocol is listed in Ubiquiti's specification.

    The switch has two hot-swappable power supplies and four hot-swappable fan modules, which operate with 3 + 1 redundancy. In redundant power mode the total PoE availability is lower: 450W with the 600W modules.

    It is a 1U, full-depth rack switch measuring 442.4 x 43.7 x 496 mm. Ubiquiti requires a 4-post rack with post depths from 650 to 1,000 mm, or a center-mount bracket or cantilever shelf on 2-post racks, for optimal support.

    Designing an enterprise UniFi network?

    Tell us how many PoE devices you need to power, their wattage and your uplink plan, and we will confirm whether the ECS-24-PoE and its power modules fit.
