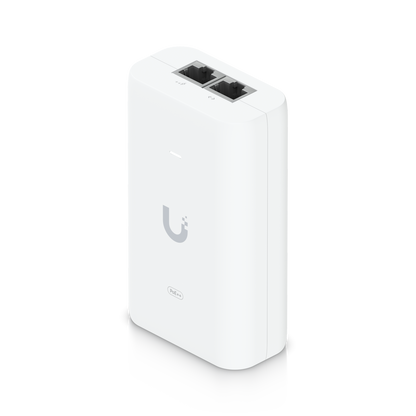

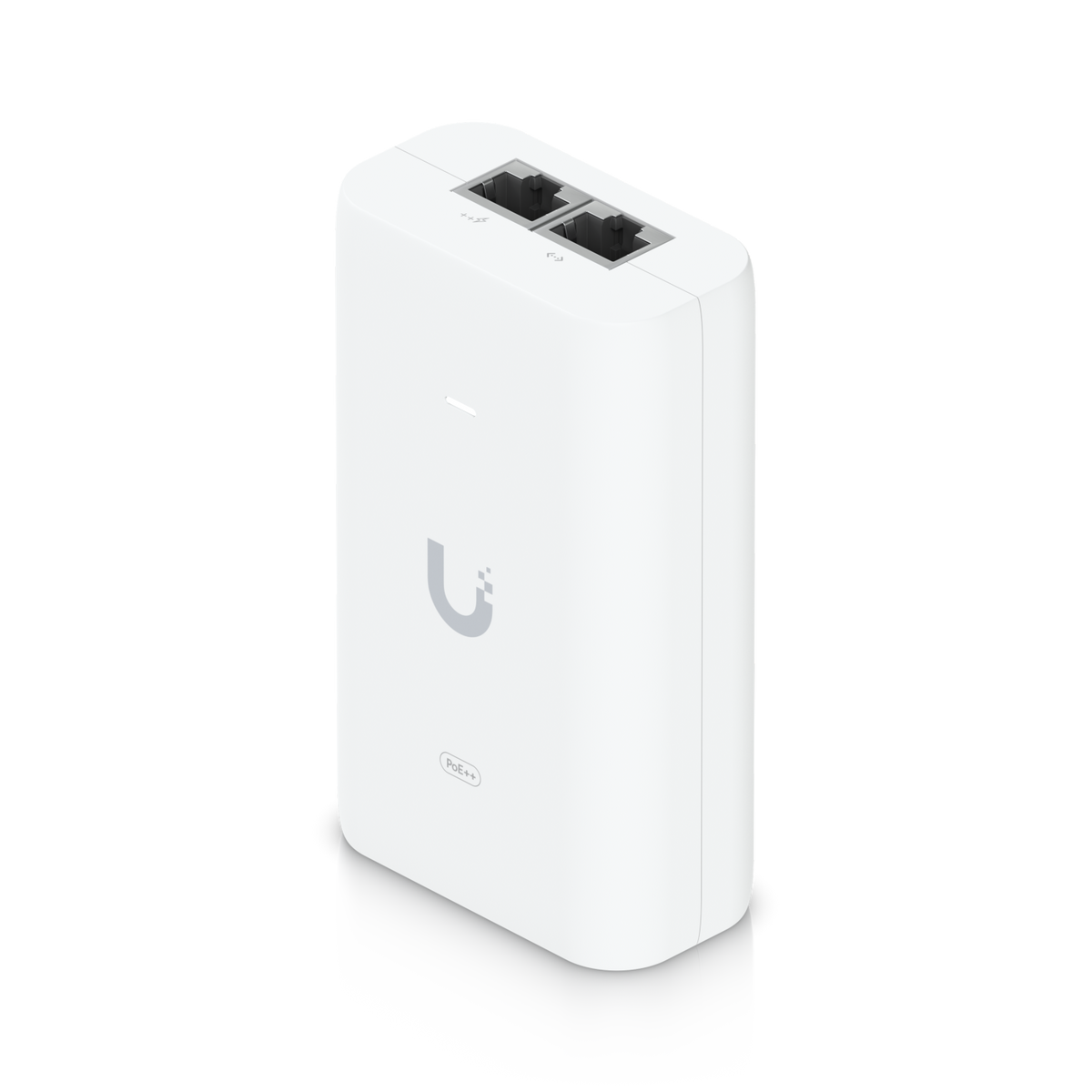

• Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 1 atomoffice

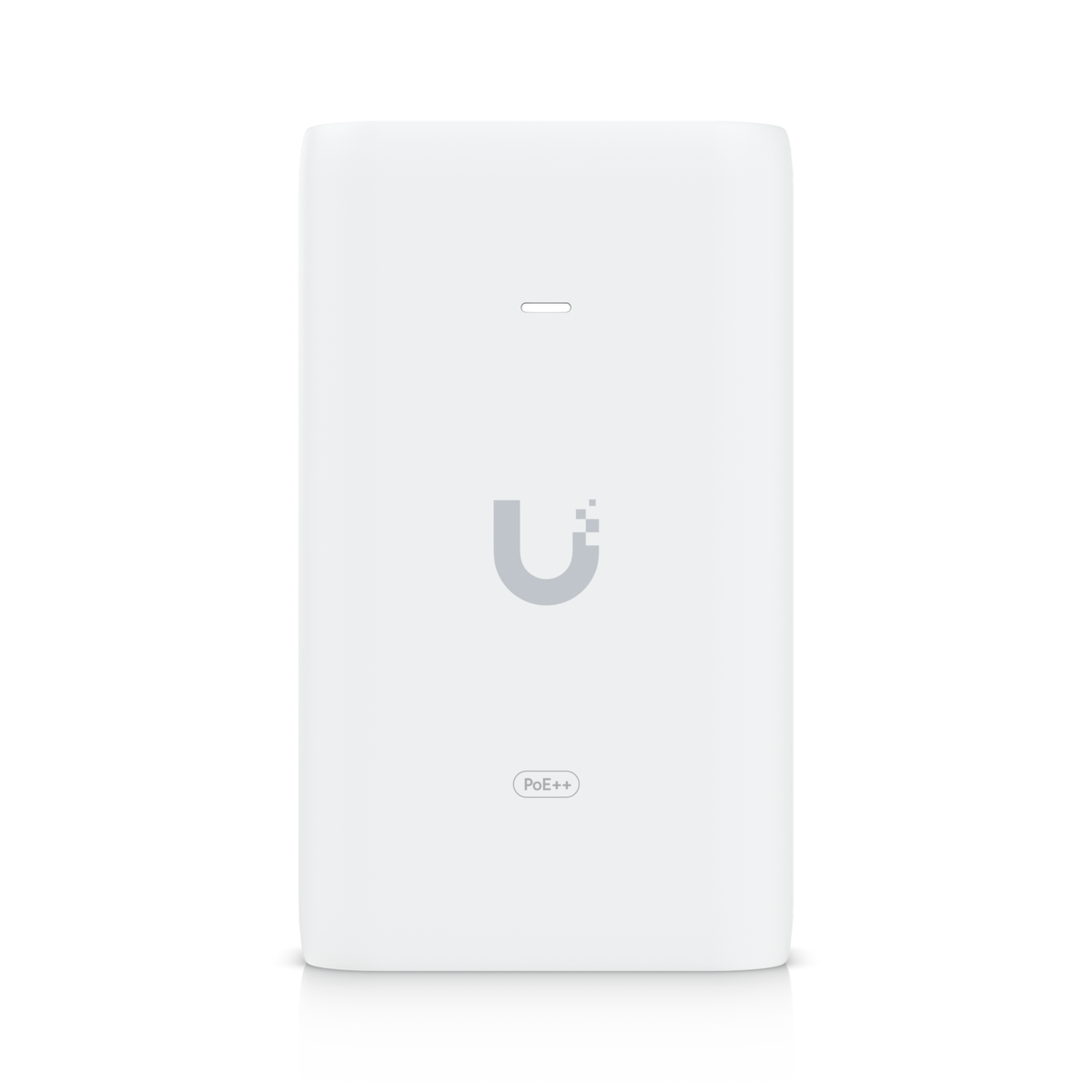

  • Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 2 atomoffice

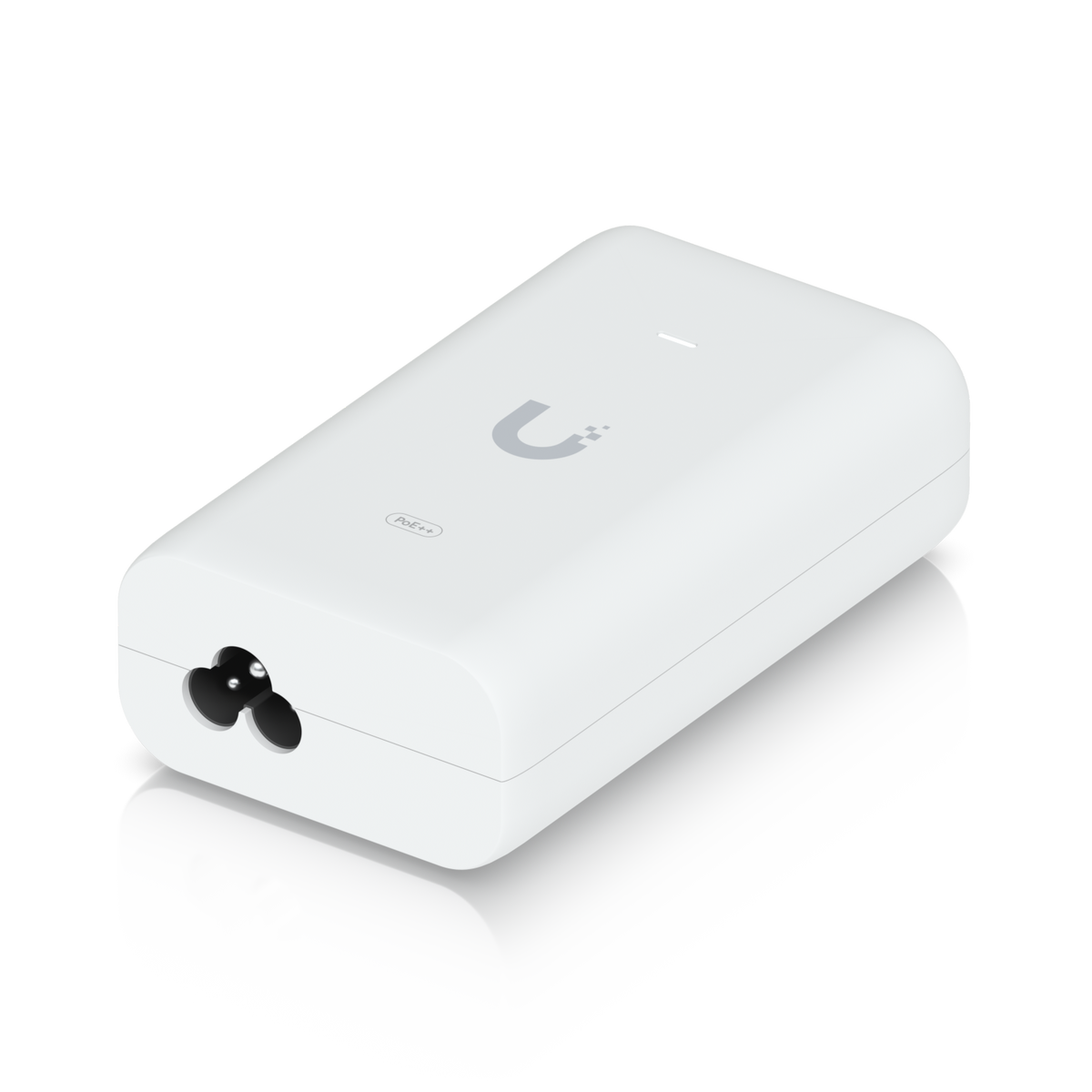

  • Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 3 atomoffice

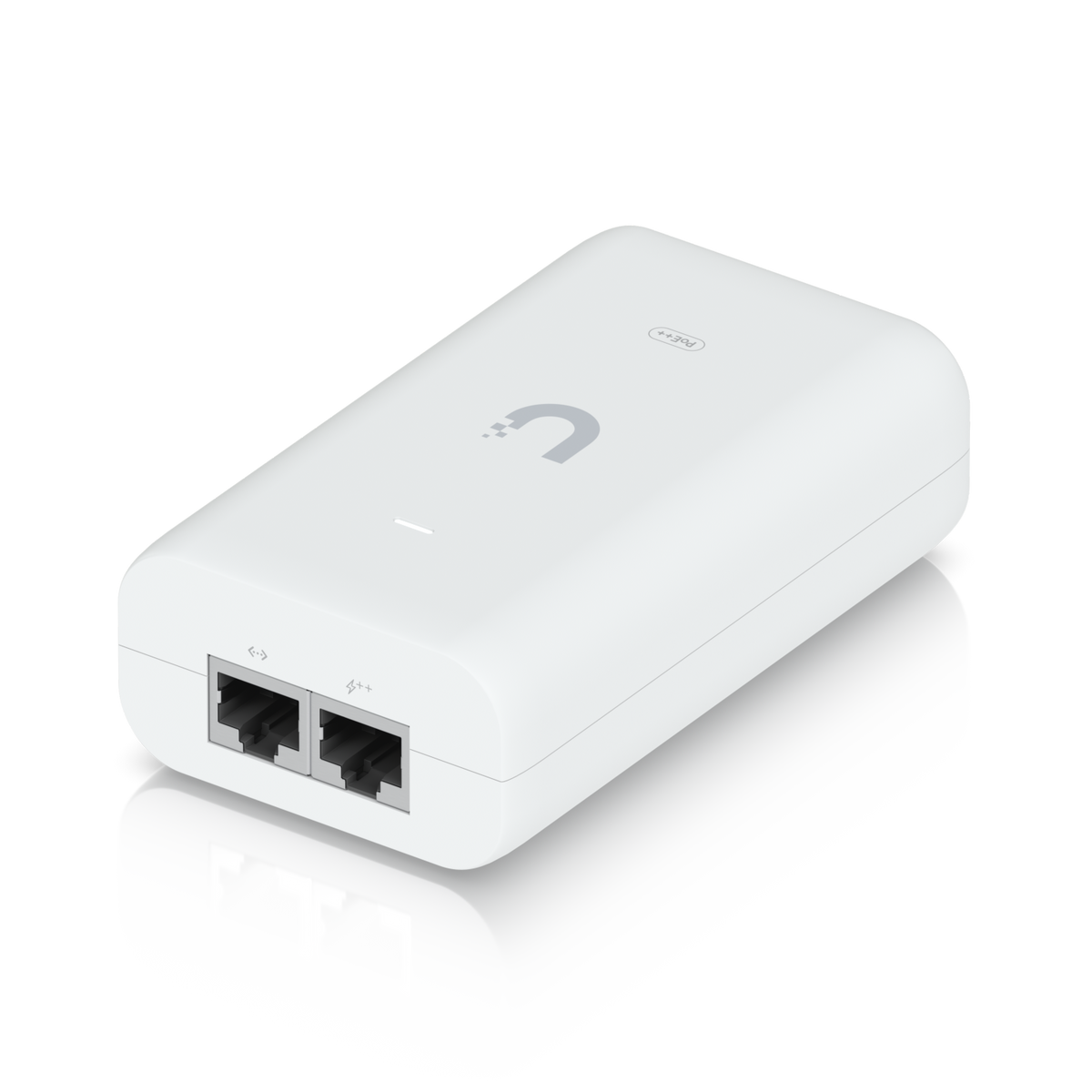

  • Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 4 atomoffice
1 4

Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++, Gigabit LAN, 48V DC Output, Surge Protected

U-PoE++

Condition: NEW

Dhs. 166.01(exc. Vat)
(exc. Vat)
Dhs. 166.01(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 1 atomoffice
    Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 2 atomoffice
    Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 3 atomoffice
    Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++ view 4 atomoffice

    Ubiquiti UniFi PoE++ Adapter

    Ubiquiti UniFi PoE++ Adapter (60W) U-PoE++

    The Ubiquiti UniFi PoE++ Adapter (U-PoE++) powers a UniFi PoE++ device over its network cable and provides a Gigabit LAN connection at the same time. It delivers up to 60W of PoE++ at 48V DC over 4-pair powering, takes 100–240V AC mains input through an IEC-320 C6 connector, and adds surge, peak pulse and overcurrent protection. Use it where a switch port has no PoE++, or to reduce dependency on PoE switch power.

    Quick Glance

    Power Output
    Up to 60W PoE++ (48V DC)
    Port Speed
    Gigabit LAN
    Device Type
    PoE++ adapter
    Network Interface
    RJ45 data in, PoE++ out
    Operating Temperature
    0 to 40°C

    Key Features

    Up to 60W of PoE++ power

    Ubiquiti rates the adapter at 48V DC at 1.25A output, delivering up to 60W of PoE++ over 4-pair powering on pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-). It runs from a universal 100–240V AC, 50/60 Hz input with 85+% efficiency, and can power UniFi PoE++ devices while reducing dependency on PoE switch power.

    Surge and overcurrent protection

    Surge, peak pulse and overcurrent protection are built in. Ubiquiti lists difference and common mode surge protection, a maximum surge discharge of 1500A (8/20 μs) on power, a peak pulse current of 36A (10/1000 μs) on data and a response time under 1 ns.

    Gigabit data, earthed AC cable, status LED

    An RJ45 shielded socket takes data in and the PoE++ output carries data and power to the device over a Gigabit LAN connection. The AC cable has an earth ground, a power cable is included, and an LED indicator shows the adapter's status for monitoring.

    Detailed Specifications

    Output Voltage48V DC at 1.25A
    Max. PoE+ Wattage per Port by PSE60W
    Power MethodUniversal AC input, 100–240V AC, 50/60 Hz
    Power SupplyAC/DC
    Input Current1.3A @ 120V AC
    Inrush Current<100A peak @ 120V AC, <200A peak @ 230V AC
    Efficiency85+%
    4-pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
    Switching Frequency65 kHz
    Output Ripple1% Max.
    Line Regulation≤ 1%
    Load Regulation≤ 3%
    AC ConnectorIEC-320 C6
    Power CableIncluded
    Gigabit LAN PortYes
    Data In / PoERJ45 Shielded Socket
    Status IndicatorLED indicator for status monitoring
    Surge ProtectionDifference and common mode
    Max. Surge Discharge1500A (8/20 μs) power
    Peak Pulse Current36A (10/1000 μs) data
    Clamping Protection11V Data, 60V power
    Response Time<1 ns
    Shunt Capacitance<5 pF data
    Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
    Weight210 g (7.4 oz)
    Ambient Operating Temperature0 to 40° C (32 to 104° F)
    Ambient Operating Humidity10 to 95% noncondensing
    Ambient Storage Temperature-30 to 70°C (-22 to 158° F)
    CertificationsCE, FCC, IC, UKCA, KC, CCC, RoHS
    NDAA CompliantYes

    Specifications are taken from Ubiquiti's official technical specifications and store listing for the UniFi PoE++ Adapter (60W), U-PoE++. Ubiquiti does not state the mains plug type of the included power cable; ask AtomOffice before ordering.

    Need-to-Know

    • Mains plug: Ubiquiti states that a power cable is included and that the adapter's AC input is an IEC-320 C6 connector, but it does not state which mains plug the included cable carries. Ask AtomOffice which plug is supplied before you order.
    • Ubiquiti's official store lists this part as the EU-region SKU U-PoE++-EU. AtomOffice lists it as U-PoE++.
    • The adapter is rated for an ambient operating temperature of 0 to 40°C and 10 to 95% noncondensing humidity. Ubiquiti does not state an outdoor rating for it.
    • Ubiquiti's specification for the U-PoE++ names no IEEE PoE standard; it lists 48V DC output over 4-pair powering. Ubiquiti describes it as able to power UniFi PoE++ devices; check your device's power draw against the 60W maximum.

    Best For / Customer Benefits

    Customer Benefits

    • One network cable to the device carries Gigabit data and up to 60W of PoE++ power.
    • Surge, peak pulse and overcurrent protection on both the power and data sides.
    • Universal 100–240V AC, 50/60Hz input with an earthed AC cable.
    • LED indicator for status monitoring at the point of installation.

    Best For

    Powering a UniFi PoE++ device from a switch port without PoE++
    Reducing dependency on PoE switch power
    Adding a single high-power PoE device to an existing network

    Frequently Asked Questions

    Ubiquiti rates the U-PoE++ at 48V DC at 1.25A output and says it delivers up to 60W of PoE++, over 4-pair powering. It runs from 100–240V AC at 50/60Hz mains input, draws 1.3A @ 120V AC and is 85+% efficient.

    Yes. Ubiquiti lists a Gigabit LAN port: data comes in on an RJ45 shielded socket and leaves on the PoE++ output together with power, so a single network cable to the device carries both.

    Ubiquiti states that a power cable is included and that the adapter's AC input is an IEC-320 C6 connector, with an AC cable that has an earth ground. It does not state the plug type in its text, and its official store lists this part as the EU-region SKU U-PoE++-EU. Ask AtomOffice which plug is supplied before ordering.

    Ubiquiti lists surge, peak pulse and overcurrent protection, difference and common mode surge protection, a maximum surge discharge of 1500A (8/20 μs) on power, a peak pulse current of 36A (10/1000 μs) on data, clamping at 11V data and 60V power, and a response time under 1 ns.

    Ubiquiti rates the U-PoE++ for an ambient operating temperature of 0 to 40°C and 10 to 95% noncondensing humidity, and does not state an outdoor or weatherproof rating. Plan to install it indoors, for example in a network cabinet or beside the switch.

    Need a UniFi PoE++ Adapter for your network?

    Tell us which UniFi device you need to power and we will confirm the 60W adapter suits it, and which mains plug is supplied, before you order.
