Ubiquiti UniFi Dream Wall UDW, 3.5 Gbps IDS/IPS, 10G SFP+, Built-in WiFi 6, 420W PoE Switch

UDW

Condition: NEW

Dhs. 3,718.69(exc. Vat)
(exc. Vat)
Dhs. 3,718.69(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti Dream Wall UDW view 1 atomoffice
    Ubiquiti Dream Wall UDW view 2 atomoffice
    Ubiquiti Dream Wall UDW view 3 atomoffice
    Ubiquiti Dream Wall UDW view 4 atomoffice

    UniFi Cloud Gateway | Wall-mounted

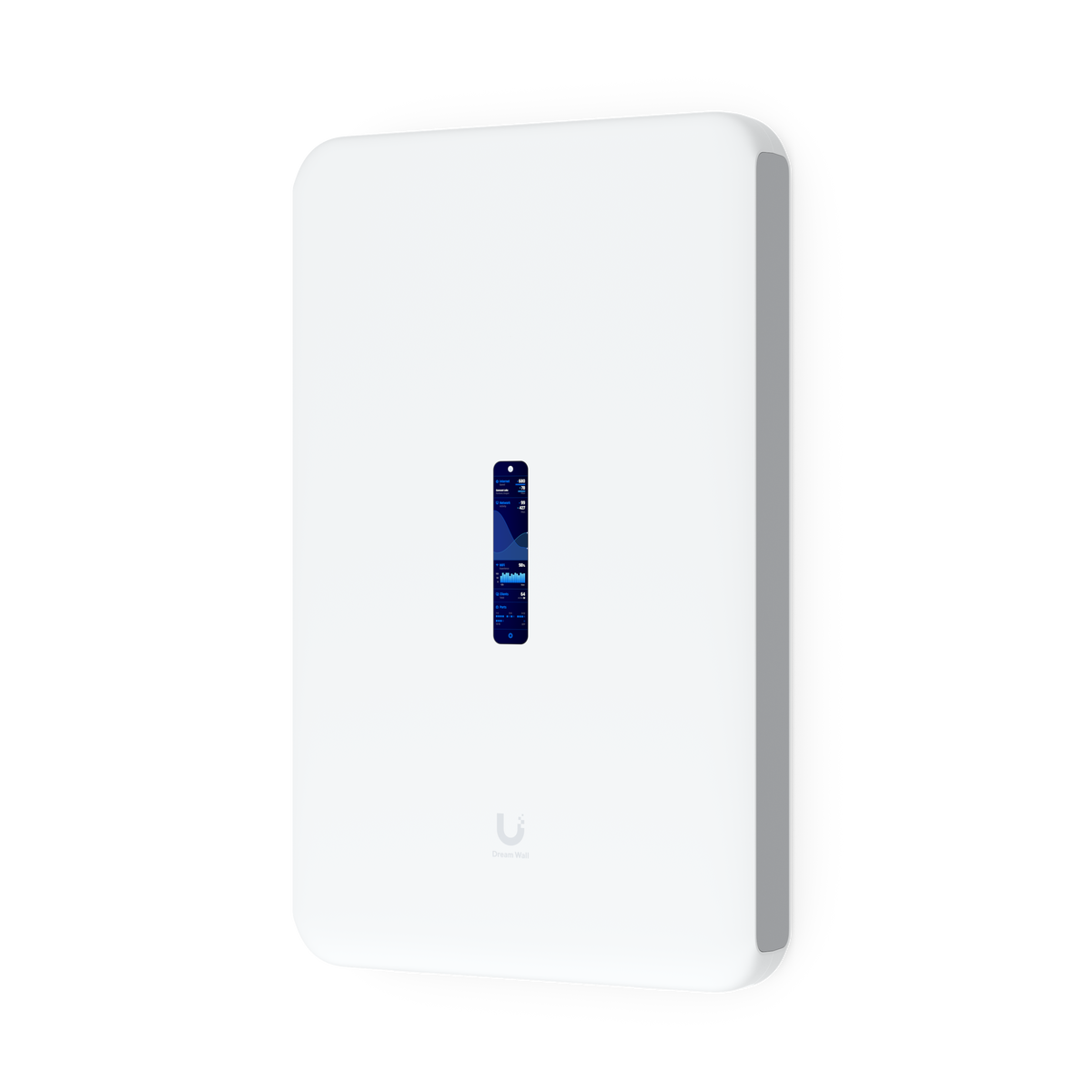

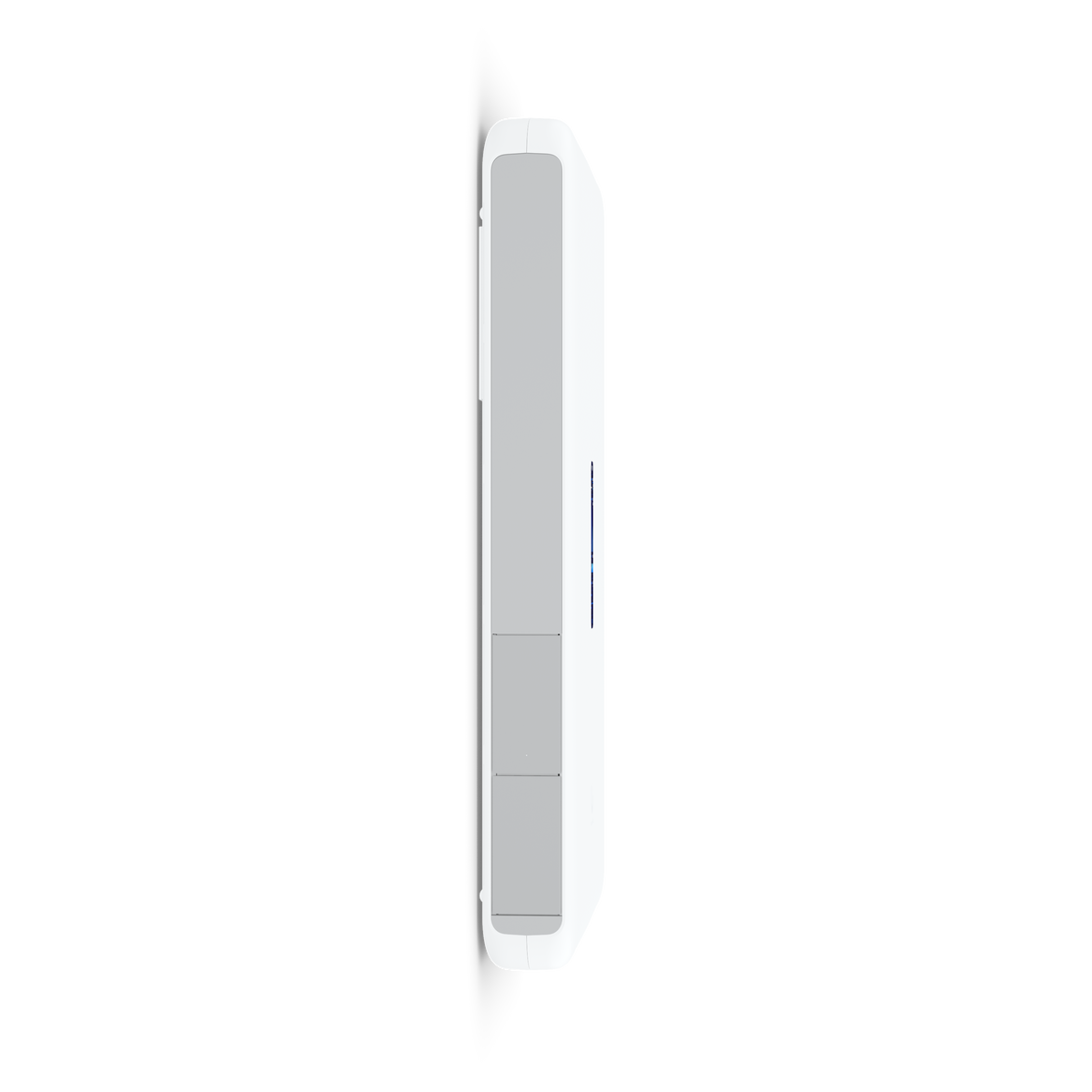

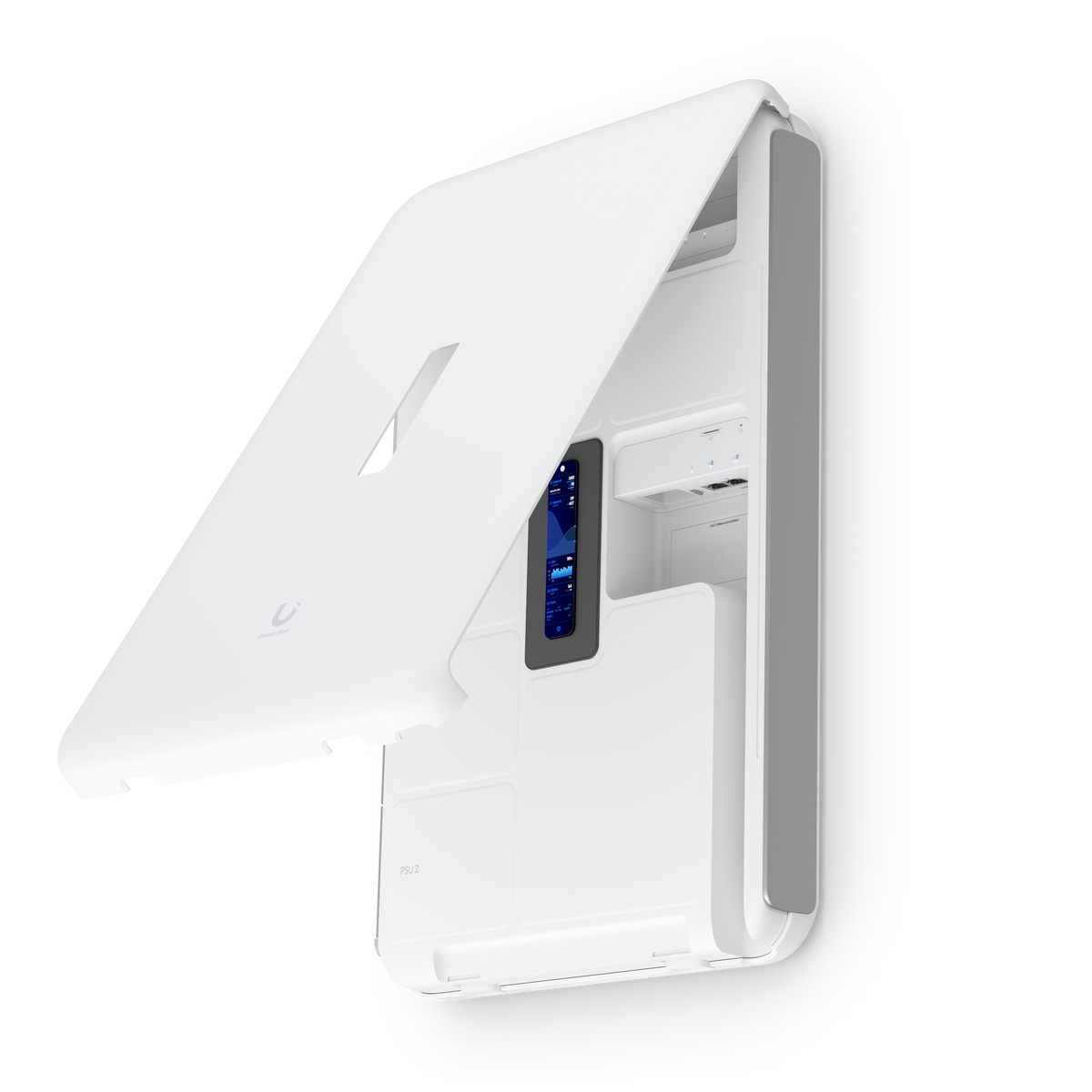

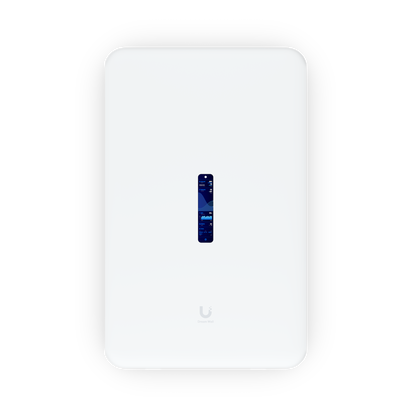

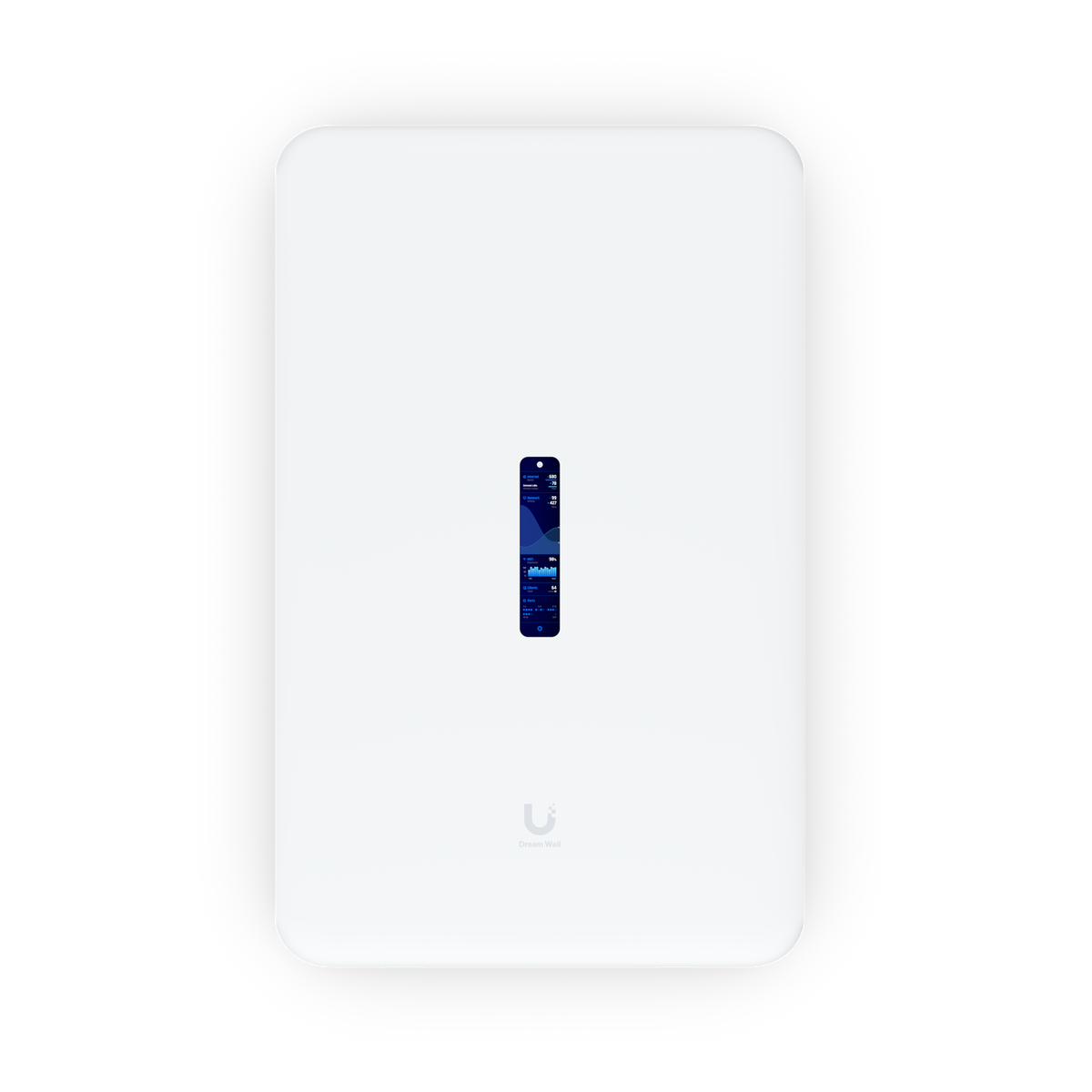

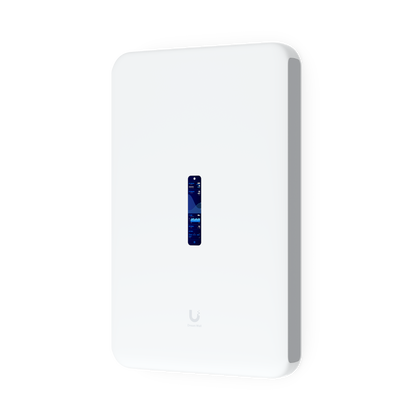

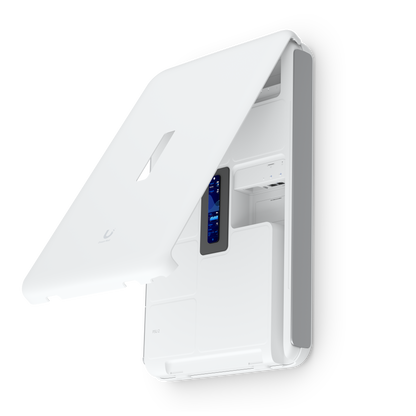

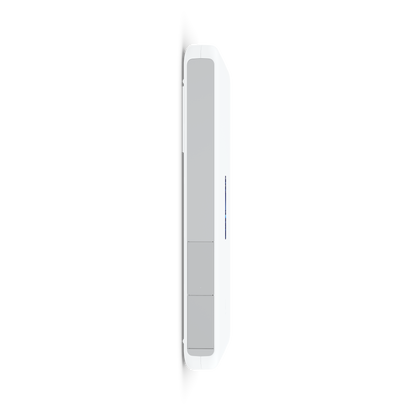

    Ubiquiti UniFi Dream Wall (UDW)

    A wall-mounted 10G Cloud Gateway that combines a router, a built-in WiFi 6 access point, a 17-port GbE PoE switch and the full UniFi application suite in one unit. It routes at 3.5 Gbps with IDS/IPS, manages 100+ UniFi devices and 300+ users, records cameras to a pre-installed 512 GB microSD card, and runs from hot-swappable 550W power supplies with a 420W PoE budget.

    Quick Glance

    Routing Speed
    3.5 Gbps with IDS/IPS
    Managed Devices
    100+ UniFi devices, 300+ users
    WAN Interface
    10G SFP+ and 2.5 GbE RJ45
    Processor
    Quad-core ARM Cortex-A57, 1.7 GHz
    Form Factor
    Wall-mounted

    Key Features

    3.5 Gbps IDS/IPS routing with 10G WAN and multi-WAN

    Ubiquiti rates IDS/IPS throughput at 3.5 Gbps. Default WAN is one 10G SFP+ port and one 2.5 GbE RJ45 port, with up to 8 WAN ports in total for multi-WAN load balancing. It adds a stateful and Layer 7 firewall, content filtering, ad blocking, license-free SD-WAN, site-to-site VPN and WireGuard, OpenVPN and L2TP VPN servers.

    Built-in WiFi 6 and a 420W PoE switch

    Seventeen GbE RJ45 LAN ports, including 4 PoE++, 4 PoE+ and 4 PoE ports, share a 420W PoE budget, with up to 60W per PoE++ port. A built-in WiFi 6 access point (4 x 4 on 5 GHz, 2 x 2 on 2.4 GHz) gives up to 2.4 Gbps on 5 GHz and Ubiquiti quotes coverage of 140 m² (1,500 ft²).

    Full UniFi suite, local storage and hot-swappable power

    Runs UniFi Network, Protect, Access, Talk and Connect. Camera recordings go to a pre-installed 512 GB microSD card, with an integrated 128 GB SSD for detection recordings. A 4.7" touchscreen handles management, and the unit takes (2) hot-swappable 550W AC/DC PSUs, with (1) pre-installed.

    Detailed Specifications

    ProductDream Wall
    Part NumberUDW
    UniFi Application SuiteNetwork, Protect, Access, Talk, Connect
    Managed UniFi Devices100+
    Managed Cameras(12) HD (7) 2K (4) 4K
    Simultaneous Users Connected300+
    IDS/IPS Throughput3.5 Gbps
    Form FactorWall-mounted
    Redundancy(2) Hot-Swappable PSUs
    Coverage Area140 m² (1,500 ft²)
    Dimensions549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
    Weight8.6 kg (19 lb)
    Enclosure / Mount MaterialPolycarbonate, galvanized steel, aluminum alloy / Stainless steel
    Ambient Operating Temperature-10 to 40° C (14 to 104° F)
    Ambient Operating Humidity5 to 95% noncondensing
    Default WAN Ports(1) 2.5 GbE RJ45, (1) 10G SFP+
    Max. WAN Port Count8
    1 GbE RJ4517 (4 PoE++; 4 PoE+; 4 PoE) (1G/100M/10M)
    2.5 GbE RJ451 (2.5G/1G/100M)
    10G SFP+2 (10G/1G)
    PoE Budget420W
    Max. PoE Wattage per Port / PoE15.4W
    Max. PoE Wattage per Port / PoE+30W
    Max. PoE Wattage per Port / PoE++60W
    Voltage Range PoE ModePoE: 44-57V; PoE+/PoE++: 50-57V
    LEDsEthernet, SFP+
    WiFi Standard802.11a/b/g/n/ac/ax (WiFi 6)
    Throughput5 GHz: 2.4 Gbps; 2.4 GHz: 300 Mbps
    MIMO5 GHz: 4 x 4 (DL/UL MU-MIMO); 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
    Antenna Gain5 GHz: 6 dBi; 2.4 GHz: 5.9 dBi
    Max. TX Power5 GHz: 26 dBm; 2.4 GHz: 23 dBm
    Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    Max. BSSIDs8 per Radio
    Data Rates / 802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    Data Rates / 802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    Data Rates / 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Data Rates / 802.11a/g6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Data Rates / 802.11b1, 2, 5.5, 11 Mbps
    Stateful FirewallYes
    Application-Aware Layer 7 FirewallYes
    DPI & Traffic IdentificationYes
    Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)Yes
    Content FilteringYes
    Intrusion Prevention (IPS/IDS)Yes
    IDS/IPS Signatures55,000+ with CyberSecure
    Ad BlockingYes
    VLAN/Subnet-based Traffic SegmentationYes
    VLAN802.1Q
    Guest Traffic IsolationYes
    License-Free SD-WANYes
    Site-to-Site VPNSite Magic, IPsec, OpenVPN
    VPN Server / Identity Endpoint One-Click VPNYes
    VPN Server / Teleport Zero-Configuration VPNYes
    VPN Server / WireGuardYes
    VPN Server / OpenVPNYes
    VPN Server / L2TPYes
    VPN ClientOpenVPN, WireGuard
    Multi-WAN Load BalancingYes
    Policy-based WAN and VPN RoutingYes
    Dynamic RoutingOSPF, BGP
    Advanced QoSYes
    Multicast DNS (mDNS)Yes
    Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)Yes
    Integrated RADIUS ServerYes
    RADIUS over TLS (RadSec)Yes
    Additional Internet Failover with UniFi LTE BackupYes
    Internet Quality and Outage ReportingYes
    MAC Address Table Size8,000
    Customizable DHCP ServerYes
    IPv6 ISP SupportYes
    IGMP ProxyYes
    Virtual Network OverrideYes
    All Traffic FlowsYes
    ProcessorQuad-core ARM® Cortex®-A57 at 1.7 GHz
    System Memory4 GB
    On-board Storage16 GB eMMC; integrated 128 GB SSD; pre-installed 512 GB microSD card
    NVR StoragePre-installed 512 GB microSD for NVR; built-in 128 GB SSD for detection recordings
    Expansion SlotMicroSD Card (Supports Micro SDXC, speed class 10/U1. Requires a memory card with at least 128 GB of storage. Max. capacity 1TB.)
    LCM Display4.7" touchscreen
    ManagementEthernet, Bluetooth
    Button(1) Factory reset
    ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
    Power MethodUniversal AC input 100–240V AC, 7A Max., 50/60Hz
    Power Supply(2) Hot-Swappable AC/DC 550W PSU, (1) Pre-installed PSU
    Max. Power Consumption532W (Including PoE Output)
    Heat Dissipation382 BTU/hr (Excluding PoE Output)
    NDAA CompliantYes
    CertificationsCE, FCC, IC, Anatel: 18314-23-08356

    Specifications are from Ubiquiti's official technical specifications for the UniFi Dream Wall (UDW). Device, user and camera counts are Ubiquiti's guidance figures; real capacity depends on the traffic, cameras and features in use.

    Need-to-Know

    • Ubiquiti lists (2) hot-swappable 550W AC/DC PSUs with (1) pre-installed PSU. It does not state that a second PSU is included, so confirm with us before relying on power redundancy.
    • There are two 10G SFP+ ports: one is a default WAN port and one is a LAN port. Ubiquiti recommends pairing them with an official SFP+ module or SFP+ to RJ45 adapter and lists no module with the unit.
    • Camera capacity is given by Ubiquiti as (12) HD, (7) 2K or (4) 4K cameras. Recordings use the pre-installed 512 GB microSD card; the microSD slot takes cards of at least 128 GB, up to 1TB.
    • The unit runs on universal AC input (100–240V AC, 50/60Hz). Ubiquiti does not state the power cord or plug type supplied.
    • The built-in access point is WiFi 6 on 2.4 GHz and 5 GHz. Ubiquiti quotes its coverage area as 140 m² (1,500 ft²); larger sites need additional UniFi access points.

    Best For / Customer Benefits

    Customer Benefits

    • Replaces a separate router, firewall, PoE switch, access point and NVR with one wall-mounted unit.
    • Runs UniFi Network, Protect, Access, Talk and Connect without a separate controller.
    • Local camera storage from the start, with a pre-installed 512 GB microSD card and an integrated 128 GB SSD.
    • Hot-swappable 550W PSUs and a 4.7" touchscreen for on-site management.

    Best For

    Offices that want gateway, WiFi, PoE switching and NVR in one wall unit
    Sites with UniFi cameras, door access and phones on one system
    Businesses with a 10G fibre or multiple internet lines
    Comms rooms where hot-swappable power matters

    Frequently Asked Questions

    A Cloud Gateway with 3.5 Gbps IDS/IPS routing, a built-in WiFi 6 access point, a 17-port GbE switch with 4 PoE++, 4 PoE+ and 4 PoE ports on a 420W PoE budget, and the full UniFi application suite: Network, Protect, Access, Talk and Connect.

    Ubiquiti rates the UDW for 100+ managed UniFi devices and 300+ simultaneously connected users. For UniFi Protect it lists (12) HD, (7) 2K or (4) 4K cameras, recording to the pre-installed 512 GB microSD card.

    The default WAN ports are one 10G SFP+ and one 2.5 GbE RJ45, and Ubiquiti lists a maximum WAN port count of 8 with multi-WAN load balancing, policy-based WAN and VPN routing, and additional internet failover with the separate UniFi LTE Backup.

    The UDW takes (2) hot-swappable 550W AC/DC power supplies and Ubiquiti lists (1) pre-installed PSU. Ubiquiti does not state that the second PSU is included, so ask us before ordering if you need redundancy from day one.

    The PoE budget is 420W. Ubiquiti lists a maximum of 15.4W per PoE port, 30W per PoE+ port and 60W per PoE++ port. Maximum power consumption is 532W including PoE output.
