Ubiquiti UniFi Access G3 Gate Access Starter Kit UA-G3-SK-Gate, Gate Hub, G3 Intercom, PoE++ Adapter, 2-Wire Extenders

UA-G3-SK-Gate

Condition: NEW

Dhs. 3,756.26(exc. Vat)
(exc. Vat)
Dhs. 3,756.26(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti G3 Gate Access Starter Kit UA-G3-SK-Gate view 1 atomoffice
    Ubiquiti G3 Gate Access Starter Kit UA-G3-SK-Gate view 2 atomoffice
    Ubiquiti G3 Gate Access Starter Kit UA-G3-SK-Gate view 3 atomoffice
    Ubiquiti G3 Gate Access Starter Kit UA-G3-SK-Gate view 4 atomoffice

    UniFi Access Gate Starter Kit

    Ubiquiti UniFi Access G3 Gate Access Starter Kit UA-G3-SK-Gate

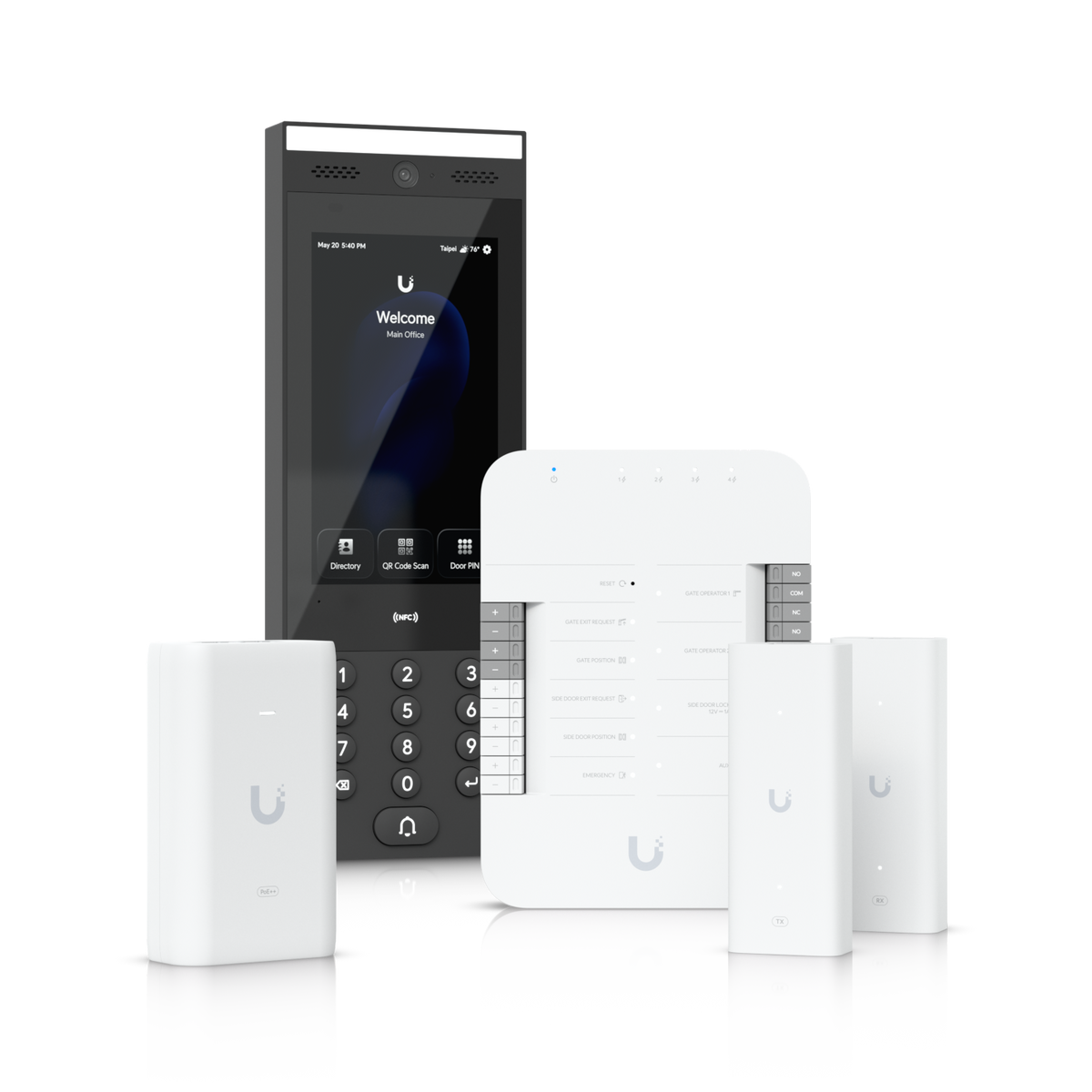

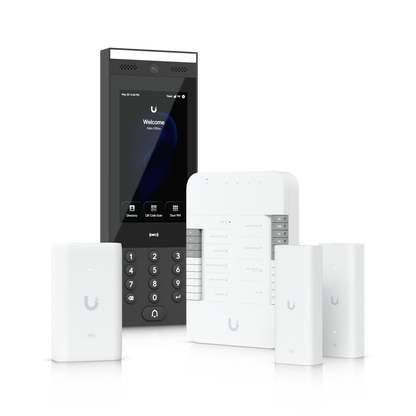

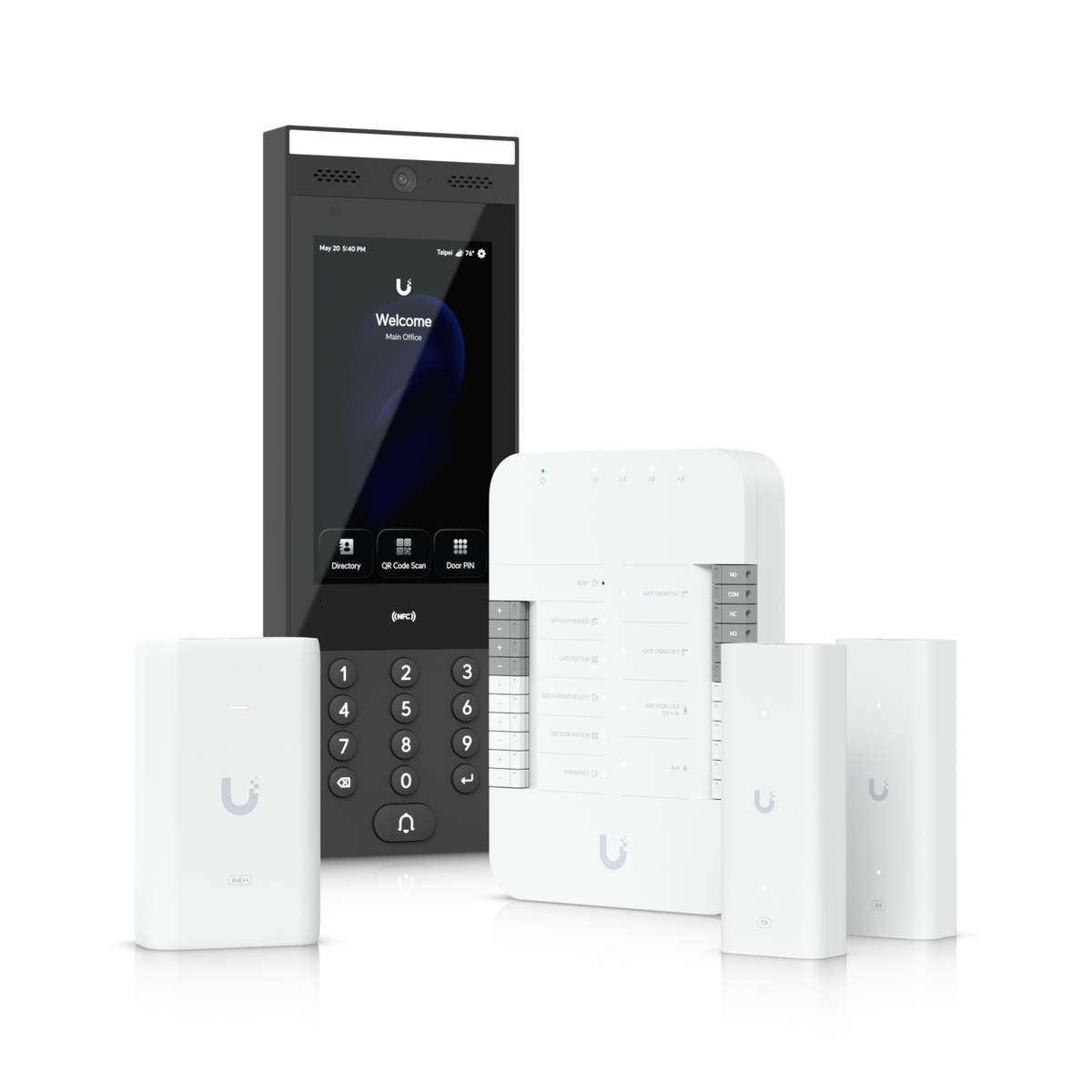

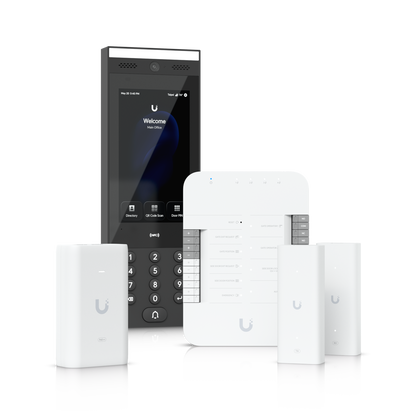

    The G3 Gate Access Starter Kit provides access control at a single gate with Touch Pass support. It contains a Gate Hub, a G3 Intercom, a PoE++ adapter and two 2-wire Retrofit Extenders for PoE++ over twisted pair. The IP65 G3 Intercom has a 7" touch display, camera, two-way intercom and NFC, PIN, face, mobile and Wallet unlock, and the Gate Hub controls one gate plus one side door, with operator relays, a side-door lock output and up to 6,000 users.

    Quick Glance

    Device Type
    Gate access starter kit
    Supported Credentials
    NFC, PIN, face, mobile, Wallet
    Network Interface
    Hub: (5) 10/100/1000 Base-T
    Operating Temperature
    Hub and intercom -30 to 60° C
    Form Factor
    DIN-rail hub, IP65 intercom

    Key Features

    Gate Hub: one gate, one side door, 6,000 users

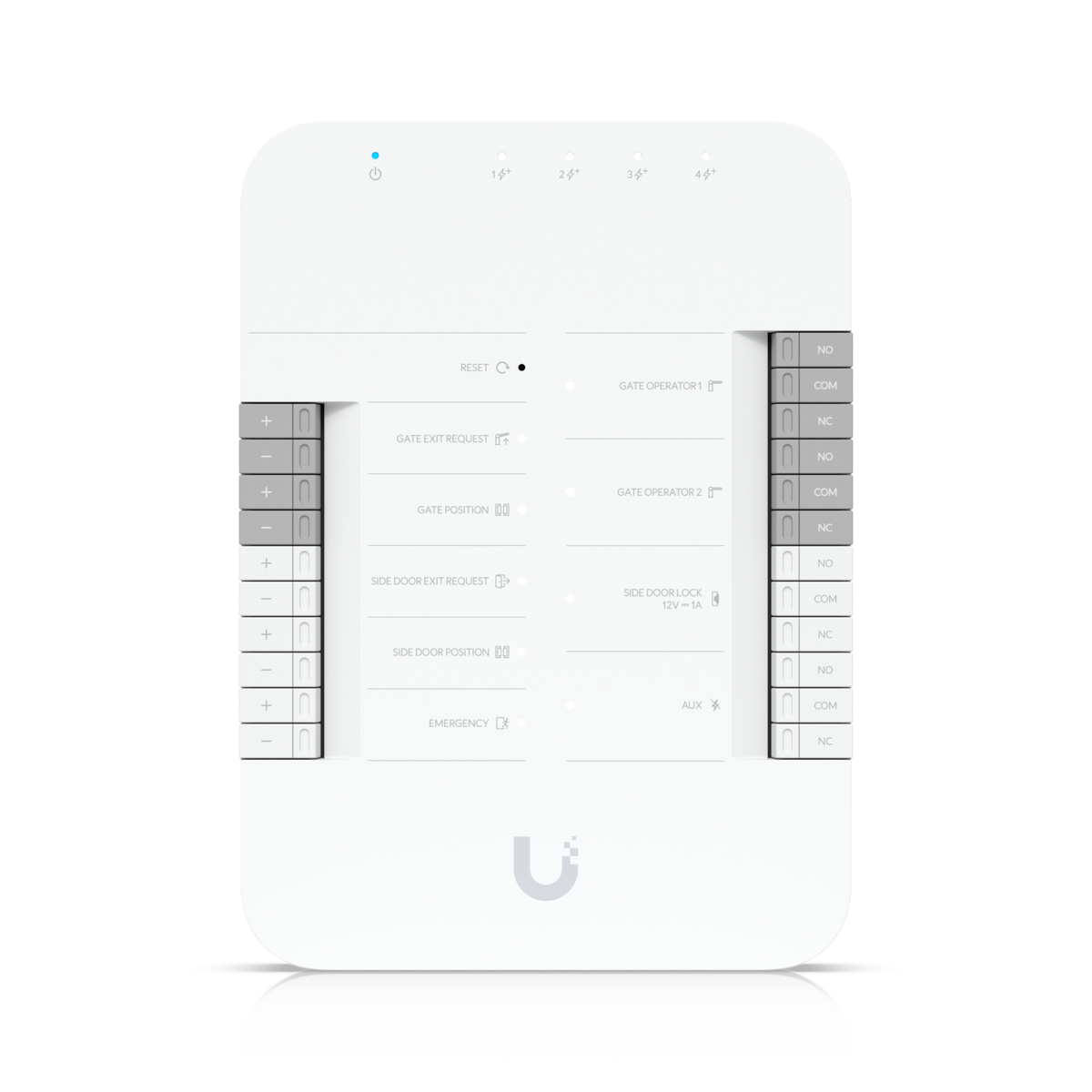

    The Gate Hub supports one gate and one side door and up to 6,000 users. Two dry operator relays and one Aux relay (30V DC, up to 1A) drive the gate operator, a 12V DC, 1A powered output drives the side-door lock, and inputs cover gate and side-door exit request and position plus an emergency input. It takes a PoE++ input and has four PoE outputs, 30W per port, 55W aggregated.

    G3 Intercom with 7" display and IP65 housing

    The G3 Intercom unlocks with NFC card or keyfob, PIN, face unlock, mobile unlock and Apple/Google Wallet, and gives two-way intercom and doorbell access. It has a 177 mm (7") capacitive multi-touch display up to 1000 nits, an 8 MP camera streaming 2MP video at 30 FPS, and an IP65 aluminium and polycarbonate housing with a gooseneck pedestal adapter included.

    PoE++ adapter and 2-wire extenders included

    A PoE++ adapter (U-PoE++, 48V DC @ 1.25A, 100–240V AC input) and two 2-wire Retrofit Extenders for PoE++ over twisted pair are in the box. The extenders have a 10/100 MbE port, HomePlug AV and a BNC coaxial connector, take PoE++ in and give PoE+ out. 10 free Touch Passes are included, each valid for a year.

    Detailed Specifications

    In the Box(1) Gate Hub, (1) G3 Intercom, (1) PoE++ adapter, (2) 2-wire Retrofit Extenders
    Supported Doors (Gate Hub)1 gate, 1 side door
    Maximum User Count (Gate Hub)6,000
    Touch Pass10 free Touch Passes included, each valid for a year
    Management ApplicationUniFi Access
    Certifications (Gate Hub, G3 Intercom)CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    Certifications (Retrofit Extender)CE, FCC, IC
    Certifications (PoE++ Adapter)CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
    UL 294 Level (Gate Hub, G3 Intercom)Destructive attack: Level I; Line security: Level I; Endurance: Level I; Standby power: Level I
    NDAA CompliantYes (all four components)
    G3 Intercom: CredentialsNFC card & keyfob, PIN, face unlock, mobile unlock, Apple/Google Wallet
    G3 Intercom: Two-Way Intercom & Doorbell AccessYes
    NFC Frequency13.56 MHz
    NFC Read Range< 30 mm (1.18")
    NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFire; Sony FeliCa (ID only); NFC Forum tags T1T, T2T, T3T, T4T and T5T; ECP 2.0
    Gate Hub: Input Terminals(1) Gate exit request, (1) Gate position, (1) Side door exit, (1) Side door position, (1) Emergency
    Gate Hub: Dry Output Relay(2) Operator: rated 30V DC, up to 1A; (1) Aux: rated 30V DC, up to 1A
    Gate Hub: Powered Output RelaySide door lock: 12V DC, up to 1A
    Side-door lock cable, other locks (1A)24 AWG: 9 m (30 ft); 22 AWG: 15 m (49 ft); 20 AWG: 24 m (79 ft); 18 UACC-Cable-DoorLockRelay: 36 m (118 ft)
    G3 Intercom: Integrated CameraYes
    Optics Resolution8 MP (2448 × 3264)
    Optics Field of ViewH: 79.4°, V: 97.5°, D: 118.2°
    Video Resolution2MP 1200 x 1600 (3:4)
    Video Max. Frame Rate30 FPS
    Display177 mm (7") diagonal, capacitive multi-touch, 1024 x 600 px, max. 1000 nits (typical)
    Audio and SensorsMicrophone; (1) 2W speaker; proximity sensor; ALS sensor
    Gate Hub: Networking Interface(5) 10/100/1000 Base-T
    G3 Intercom: Networking Interface(1) GbE RJ45 port
    G3 Intercom: ConnectivityBLE 4.2, NFC
    Retrofit Extender: Networking Interface(1) 10/100 MbE, (1) HomePlug AV
    Retrofit Extender: Coaxial ConnectorBNC female
    PoE++ Adapter: PortsGigabit LAN; Data In / PoE: RJ45 shielded socket; AC connector IEC-320 C6
    LEDsGate Hub: W/B; G3 Intercom: Amber; Retrofit Extender: White
    Buttons(1) Factory reset on the Gate Hub and G3 Intercom
    Gate Hub: PoE Interface(1) PoE++ input, 50V DC, 1A; (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated)
    Gate Hub: Max. Power Consumption22W (without PoE output); 60W (with PoE output)
    G3 Intercom: PowerPoE, 48V DC, 13W max.
    Retrofit Extender: PoE InterfacePoE in: (1) PoE++, 50V DC, 1.2A; PoE out: (1) PoE+, 48V DC, 0.6A; 3W max. (without PoE output)
    PoE++ Adapter (U-PoE++): Output48V DC @ 1.25A; max. PoE+ wattage per port by PSE 60W
    PoE++ Adapter: Input100–240V AC at 50/60Hz; 1.3A @ 120V AC, 0.75A @ 230V AC; 85+% efficiency
    PoE++ Adapter: ProtectionDifference and common mode surge protection; 1500A (8/20 μs) power surge discharge; 36A (10/1000 μs) data peak pulse current
    PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. Minimum conductor gauge between the PSE or power injector and the device: 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
    Gate Hub175 x 126 x 26 mm (6.9 x 5 x 1"); 460 g (1 lb); polycarbonate; DIN-rail mount (included)
    G3 Intercom324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1"); device 965 g (2.1 lb), bracket 445 g (1 lb)
    G3 Intercom: MaterialsAluminium alloy, UV-stabilised polycarbonate, glass; powder-coated stainless steel mount
    G3 Intercom: MountingWall mount, adapter to the gooseneck pedestal (included); surface angle, flush mount, sunshield kit (optional)
    Retrofit ExtenderPoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1"), 77 g / 79 g; adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2"), 140 g
    PoE++ Adapter106 x 63 x 34 mm (4.2 x 2.5 x 1.3"); 210 g (7.4 oz)
    Gate Hub: LocationIndoor only: device itself. Outdoor: with waterproof junction box
    Gate Hub: Operating-30 to 60° C (-22 to 140° F); 5 to 90% noncondensing
    G3 IntercomIndoor and outdoor, IP65; device -30 to 60° C (-22 to 140° F), display -25 to 60° C (-13 to 140° F); 5 to 90% noncondensing
    Retrofit Extender-10 to 40° C (14 to 104° F); 5 to 90% noncondensing
    PoE++ Adapter0 to 40° C (32 to 104° F); 10 to 95% noncondensing
    Display NoteThe G3 Intercom display turns off outside its operating temperature; other functions remain functional.

    Specifications are taken from Ubiquiti's official technical specification and store listing for the G3 Gate Access Starter Kit, which lists each component separately. Ubiquiti publishes no total kit weight and does not state the mains plug of the PoE++ adapter.

    Need-to-Know

    • The Gate Hub is rated indoor only as a device; Ubiquiti states it can be used outdoors in a waterproof junction box, which is not in the kit.
    • Mains plug: Ubiquiti states the PoE++ adapter's AC input is an IEC-320 C6 connector but does not state which mains plug its cable carries. Ubiquiti's official store lists this kit as the EU-region SKU UA-G3-SK-Gate-EU. Ask AtomOffice which plug is supplied before you order.
    • The PoE++ adapter and the Retrofit Extenders are rated 0 to 40° C and -10 to 40° C, narrower than the hub and intercom. Install them in a protected indoor location.
    • Ubiquiti publishes a weight for each item in the kit but no total kit weight.
    • The 10 free Touch Passes Ubiquiti includes are each valid for a year.

    Best For / Customer Benefits

    Customer Benefits

    • One kit covers a gate: hub, IP65 video intercom, PoE++ adapter and 2-wire extenders.
    • Controls a gate operator and a side-door lock from one hub, with up to 6,000 users.
    • NFC, PIN, face, mobile and Apple/Google Wallet unlock plus two-way intercom at the gate.
    • Gate Hub and G3 Intercom are UL 294 and CAN/ULC-60839-11-1 listed and NDAA compliant.

    Best For

    Vehicle and pedestrian gates at villas, compounds and car parks
    Gates where PoE++ must run over twisted-pair cabling
    Gates with a side door that needs its own controlled lock

    Frequently Asked Questions

    One Gate Hub, one G3 Intercom, one PoE++ adapter and two 2-wire Retrofit Extenders, as Ubiquiti lists in the kit specification. Ubiquiti also includes 10 free Touch Passes, each valid for a year.

    The Gate Hub supports one gate and one side door, with up to 6,000 users. It has two dry operator relays and an Aux relay for the gate operator, a 12V DC, 1A powered output for the side-door lock, and exit-request, position and emergency inputs.

    Ubiquiti describes them as a PoE++ over twisted pair extender. Each has a 10/100 MbE port, HomePlug AV and a BNC female coaxial connector; the PoE in side takes PoE++ (50V DC, 1.2A) and the PoE out side delivers PoE+ (48V DC, 0.6A). Ubiquiti does not publish a maximum extension distance in this specification.

    Yes. The G3 Intercom is IP65-rated for indoor and outdoor use from -30 to 60° C, with a powder-coated stainless steel mount and an adapter for a gooseneck pedestal included. Its display operates from -25 to 60° C and turns off outside that range while other functions keep working.

    Ubiquiti states the adapter takes 100–240V AC through an IEC-320 C6 connector but does not state the plug type, and its official store lists this kit as the EU-region SKU UA-G3-SK-Gate-EU. Ask AtomOffice which plug is supplied before ordering.

    Planning UniFi Access at a gate?

    Tell us about the gate operator, the side door and the existing cabling, and we will confirm the kit suits the site and which plug is supplied.
