    UniFi Access Starter Kit

    Ubiquiti UniFi Access G2 Starter Kit (UA-G2-SK)

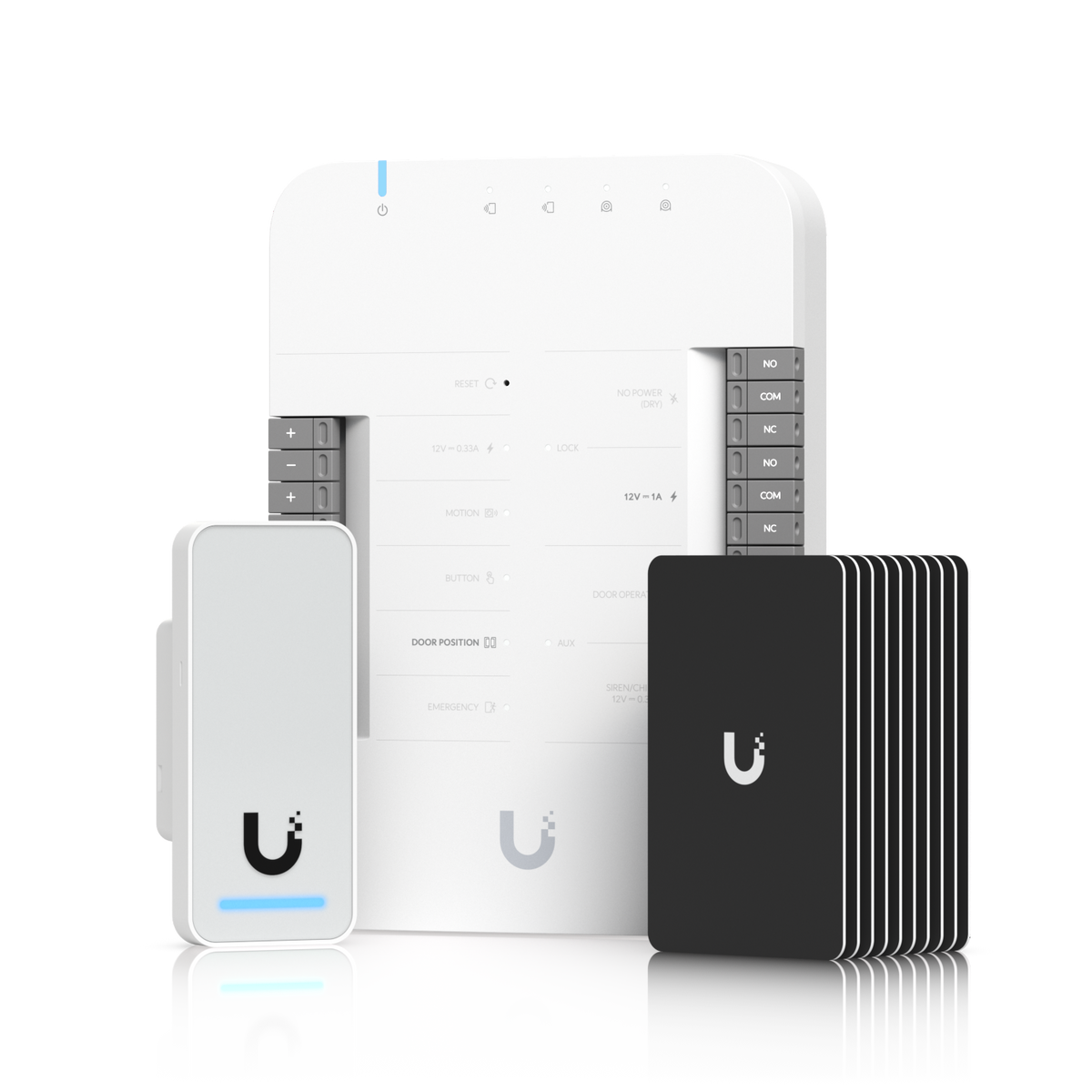

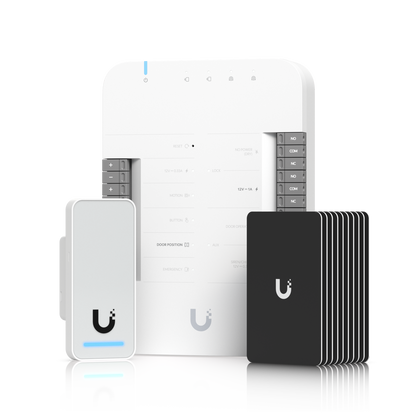

    The Ubiquiti Access G2 Starter Kit is a simple, all-in-one UniFi Access kit designed to manage a single door with one reader. Ubiquiti lists one Door Hub, one G2 Reader and ten Access Cards in the box. The G2 Reader supports NFC card and keyfob access, mobile unlock and handwave request to exit, and is IP55-rated for indoor and outdoor use. The Door Hub is DIN-rail mounted and managed in UniFi Access.

    Quick Glance

    Device Type
    Starter kit for 1 door, 1 reader
    Supported Credentials
    NFC card / keyfob, mobile unlock
    Network Interface
    Hub: 5 x GbE, PoE++ in, 4 PoE out
    Operating Temperature
    Reader -30 to 45° C; hub 0 to 40° C
    Form Factor
    DIN-rail hub, in-wall reader

    Key Features

    Door Hub, G2 Reader and ten cards in one box

    Ubiquiti's kit contains one Door Hub, one G2 Reader and ten Access Cards, designed to manage a single door with one reader. The cards are ISO 7810 ID-1 NFC cards at 13.56 MHz using MIFARE DESFire and the UniFi Access Proprietary Security Protocol. Everything is managed in the UniFi Access application.

    Compact G2 Reader with NFC and mobile unlock

    The G2 Reader opens the door with NFC cards and keyfobs or mobile unlock, and supports handwave request to exit through its proximity sensor. It reads at 13.56 MHz with a range under 30 mm, has BLE 4.1, a 0.7W speaker and R/G/B/W LEDs, and is IP55-rated for indoor and outdoor use from -30 to 45° C.

    One PoE++ input powers the hub and reader

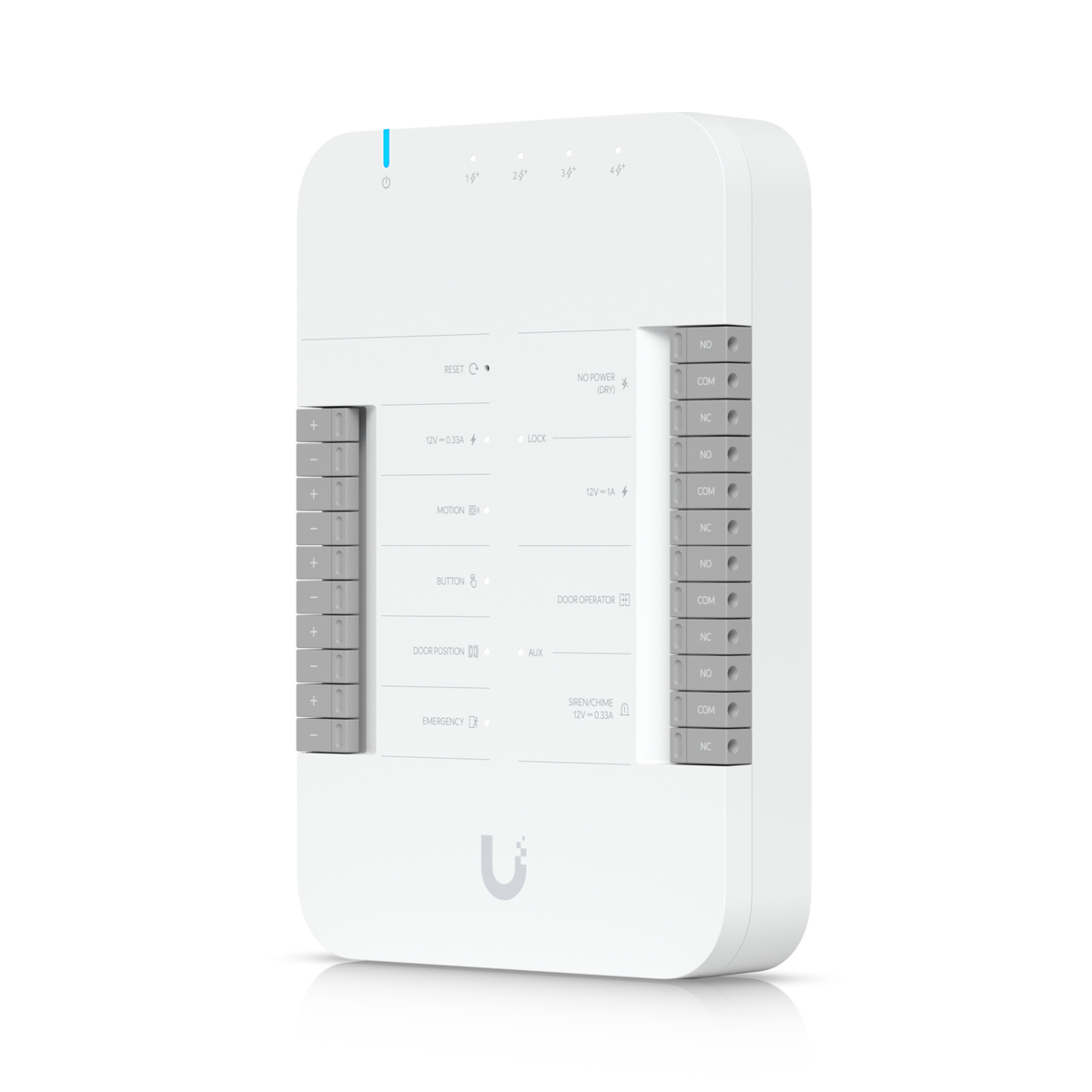

    The Door Hub takes a single PoE++ input (50V DC, 1A) and has five 10/100/1000 Base-T ports, including four PoE outputs at up to 30W per port and 45W aggregated, to power the reader. Lock and AUX relays, two exit request inputs, a door position input and an emergency input cover the door hardware.

    Detailed Specifications

    In the Box(1) Door Hub, (1) G2 Reader, (10) Access Cards
    Supported Doors1
    Management ApplicationUniFi Access
    NDAA CompliantYes (hub, reader and cards)
    Reader: NFC Card & Keyfob AccessYes
    Reader: Mobile UnlockYes
    Reader: Handwave Request to ExitYes
    Reader: NFC Frequency / Read Range13.56 MHz; < 30 mm (1.18")
    Reader: NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFire; Sony FeliCa (ID only); NFC Forum tags T1T, T2T, T3T, T4T and T5T
    Access CardsISO 7810 ID-1; 13.56 MHz; ISO/IEC 14443 Type A MIFARE DESFire; UniFi Access Proprietary Security Protocol
    Hub: Input Terminals(2) Door exit request, (1) Door position, (1) Emergency
    Hub: Digital InputRequest to exit, request to enter, remote release, door position sensor
    Hub: Dry Output RelayLock: 30V DC, 1A; Aux: 30V DC, 1A
    Hub: Powered Output RelayLock: 12V DC, 1A; Aux: 12V DC, 0.33A
    Max. Cable Length, UA-Lock-Electric (400mA)24 AWG: 25 m; 22 AWG: 42 m; 20 AWG: 66 m; 18 UACC-Cable-DoorLockRelay: 100 m
    Max. Cable Length, UA-Lock-Magnetic-540kg (500mA)24 AWG: 20 m; 22 AWG: 32 m; 20 AWG: 51 m; 18 UACC-Cable-DoorLockRelay: 80 m
    Max. Cable Length, UA-Lock-Magnetic-270kg (800mA)24 AWG: 12 m; 22 AWG: 20 m; 20 AWG: 30 m; 18 UACC-Cable-DoorLockRelay: 46 m
    Max. Cable Length, other locks (1A)24 AWG: 9 m; 22 AWG: 15 m; 20 AWG: 24 m; 18 UACC-Cable-DoorLockRelay: 36 m
    Hub: Networking Interface(5) 10/100/1000 Base-T
    Hub: PoE Interface(1) PoE++ input, 50V DC, 1A; (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
    Hub: LEDs / ButtonB/W; (1) Factory reset
    Reader: Networking Interface(1) 10/100 MbE RJ45 port
    Reader: ConnectivityBLE 4.1, NFC
    Reader: Sensors / Speaker / LEDsProximity sensor; (1) 0.7W speaker; R/G/B/W LEDs
    PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. Minimum conductor gauge between the PSE or power injector and the PD: 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
    Hub: Power MethodPoE++; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
    Hub: Max. Power Consumption30W (without PoE output); 50W (with PoE output)
    Reader: Power MethodPoE; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU
    Reader: Max. Power Consumption5W
    Reader: Supported Voltage Range48V DC
    Hub: Dimensions / Weight174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3"); 363 g (12.8 oz)

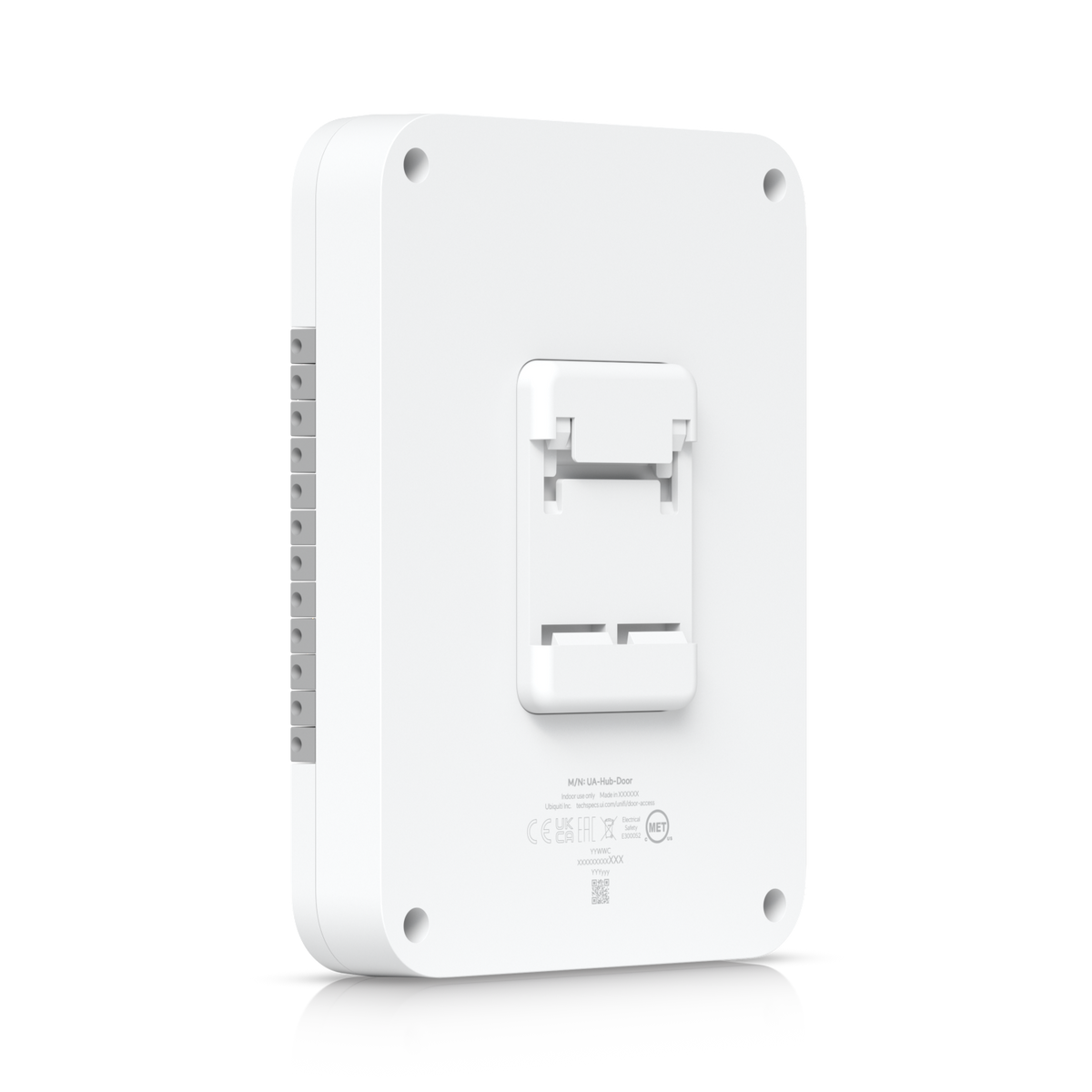

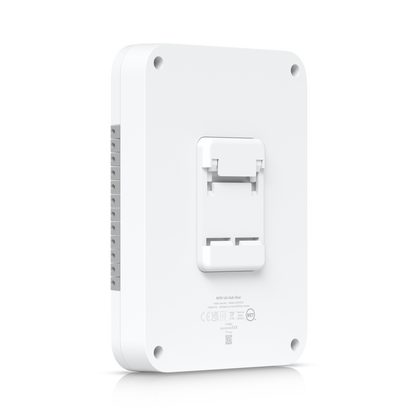

    Hub: Materials / MountingPolycarbonate enclosure and mount; DIN-rail (included)
    Reader: Dimensions / Weight93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4"); 82 g (2.9 oz)
    Reader: MaterialsPolycarbonate, glass enclosure; aluminum alloy mount
    Reader: MountingIn-wall, gang box (included); junction box (optional)
    Access Card: Dimensions / Weight85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03"); 5 g (0.18 oz)
    Hub: Operating Temperature / Humidity0 to 40° C (32 to 104° F); 5 to 95% noncondensing
    Reader: Indoor and Outdoor UseYes; IP55
    Reader: Operating Temperature / Humidity-30 to 45° C (-22 to 113° F); 5 to 90% noncondensing
    Reader: ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
    Certifications (hub and reader)CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
    UL 294 Level (hub and reader)Destructive attack: Level I; Line security: Level I; Endurance: Level I; Standby power: Level I
    CAN/ULC-60839-11-1 GradeGrade assignment: I
    UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.

    Specifications are Ubiquiti's own, from its technical specification and store pages for the Access G2 Starter Kit, which lists the Door Hub, G2 Reader and Access Card separately. Locks, door sensors and the PoE++ power source are not listed in the box. Ubiquiti publishes no weight for the complete kit.

    Need-to-Know

    • Ubiquiti lists the box contents as one Door Hub, one G2 Reader and ten Access Cards. A lock, door sensors and the PoE++ power source for the hub are not listed and are chosen separately.
    • The Door Hub is powered by a PoE++ input (50V DC, 1A) and is rated for 0 to 40° C, so it belongs indoors, typically on a DIN rail in a cabinet. The G2 Reader is the part rated for outdoor use (IP55).
    • The hub's four PoE outputs share a 45W aggregated budget, with up to 30W on any one port.
    • Ubiquiti publishes maximum lock cable lengths by lock type and wire gauge, from 9 m for other 1A locks on 24 AWG up to 100 m for the UA-Lock-Electric on UACC-Cable-DoorLockRelay. Plan lock cable runs against those figures.
    • Ubiquiti publishes no weight for the complete kit. Its component weights are 363 g for the hub, 82 g for the reader and 5 g for each card.

    Best For / Customer Benefits

    Customer Benefits

    • Everything for one door in one box: Door Hub, G2 Reader and ten Access Cards.
    • NFC card, keyfob and mobile unlock, with handwave request to exit.
    • One PoE++ input powers the hub, and the hub powers the reader over PoE.
    • UL 294 and CAN/ULC-60839-11-1 listed, and NDAA compliant.

    Best For

    A single office, server room or store-room door on UniFi Access
    First UniFi Access installation before adding more doors
    Outdoor entrances that need an IP55 card reader

    Frequently Asked Questions

    Ubiquiti lists one Door Hub, one G2 Reader and ten Access Cards. The kit is designed to manage a single door with one reader, and is managed in the UniFi Access application. Locks, door sensors and a PoE++ power source are not listed in the box.

    With NFC cards and keyfobs, including the ten included Access Cards, or with mobile unlock. It also supports handwave request to exit using its proximity sensor. The reader works at 13.56 MHz with a read range under 30 mm.

    The Door Hub takes a single PoE++ input at 50V DC, 1A, and powers the reader from one of its four PoE outputs (up to 30W per port, 45W aggregated). The reader draws up to 5W. The hub draws up to 30W without PoE output and 50W with it.

    Yes. Ubiquiti rates the G2 Reader for indoor and outdoor use, IP55, from -30 to 45° C. The Door Hub is rated 0 to 40° C and mounts on a DIN rail, so it should be installed indoors.

    The hub has lock and AUX outputs as dry relays (30V DC, 1A) or powered relays (lock 12V DC, 1A; AUX 12V DC, 0.33A). Ubiquiti publishes cable length limits for its UA-Lock-Electric and UA-Lock-Magnetic locks and for other 1A locks.
