Ubiquiti UISP Fiber Nano GPON CPE, SC/APC GPON Port, GbE LAN, 24V Passive PoE, LED Display

UF-Nano

Condition: NEW

Dhs. 280.85(exc. Vat)
(exc. Vat)
Dhs. 280.85(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more

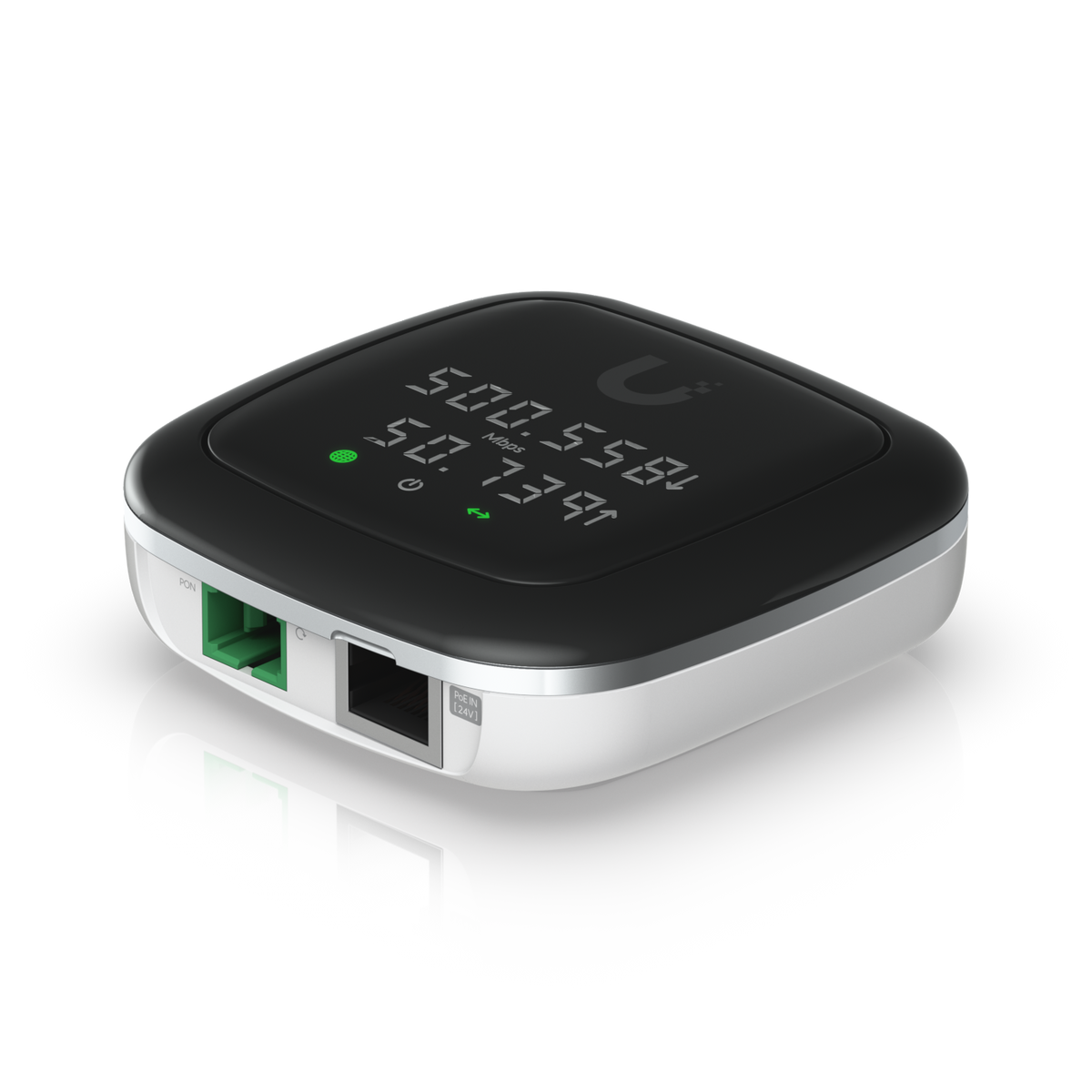

    Ubiquiti Fiber Nano UF-Nano view 1 atomoffice

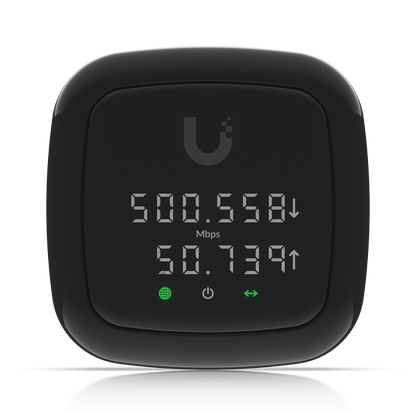

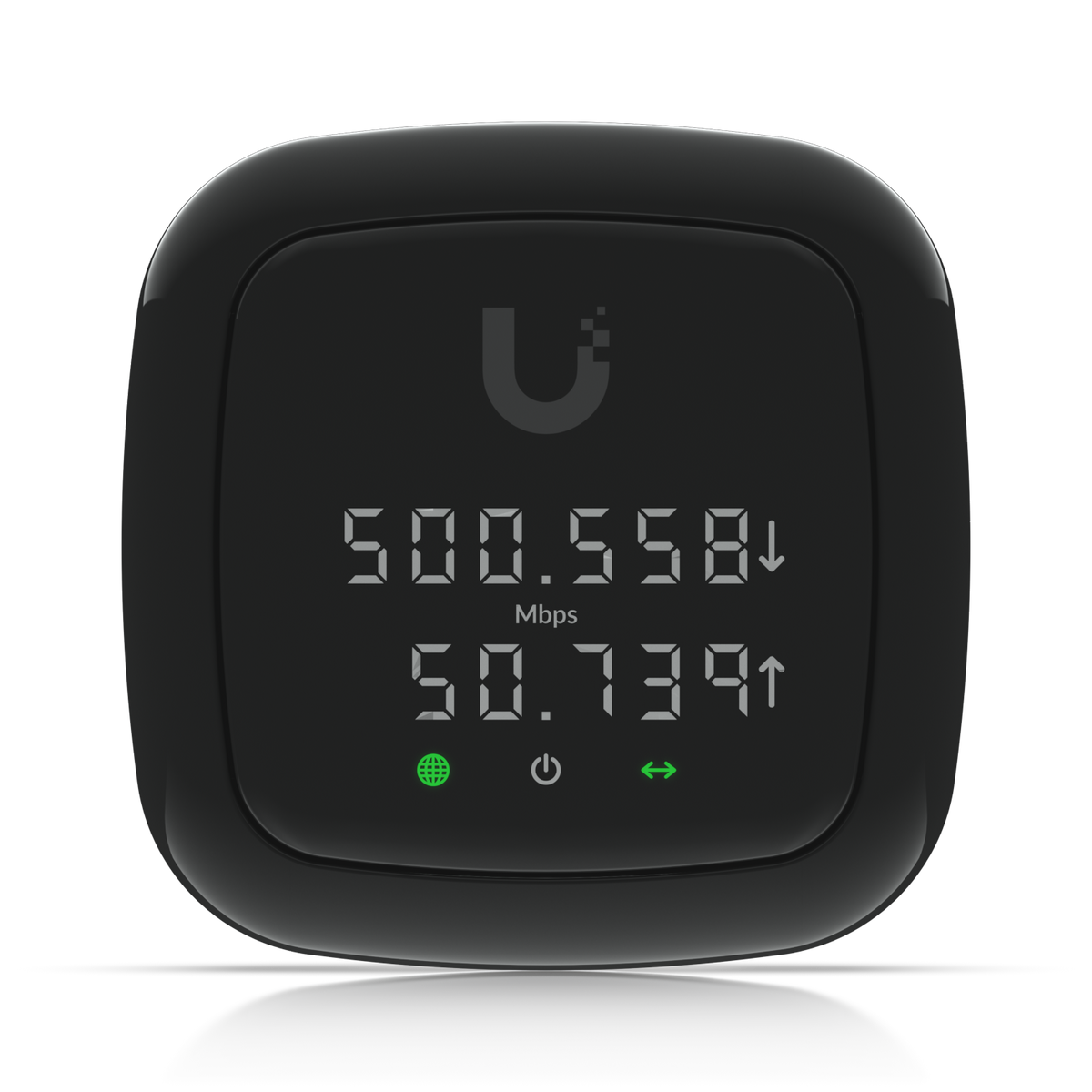

    Ubiquiti Fiber Nano UF-Nano view 2 atomoffice

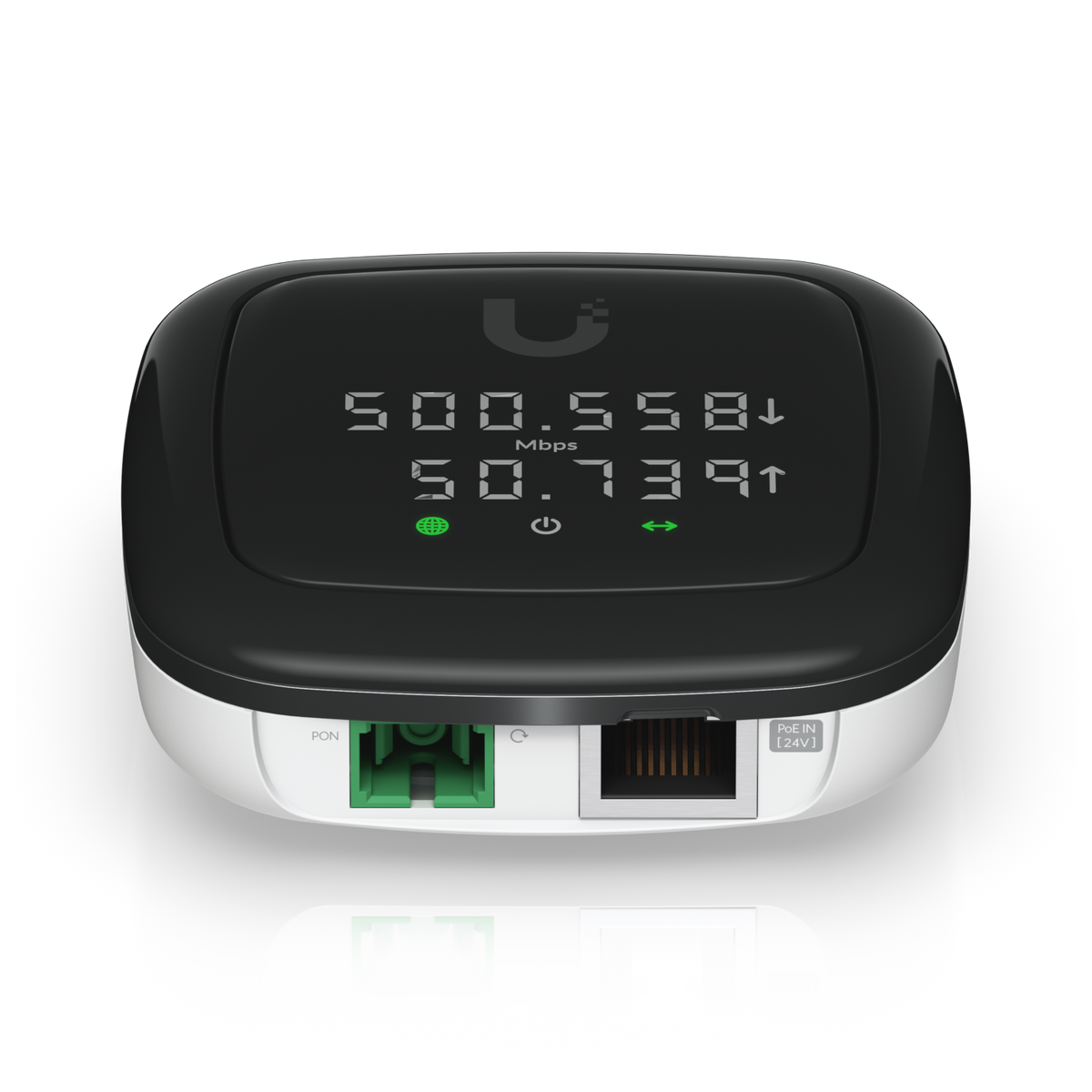

    Ubiquiti Fiber Nano UF-Nano view 3 atomoffice

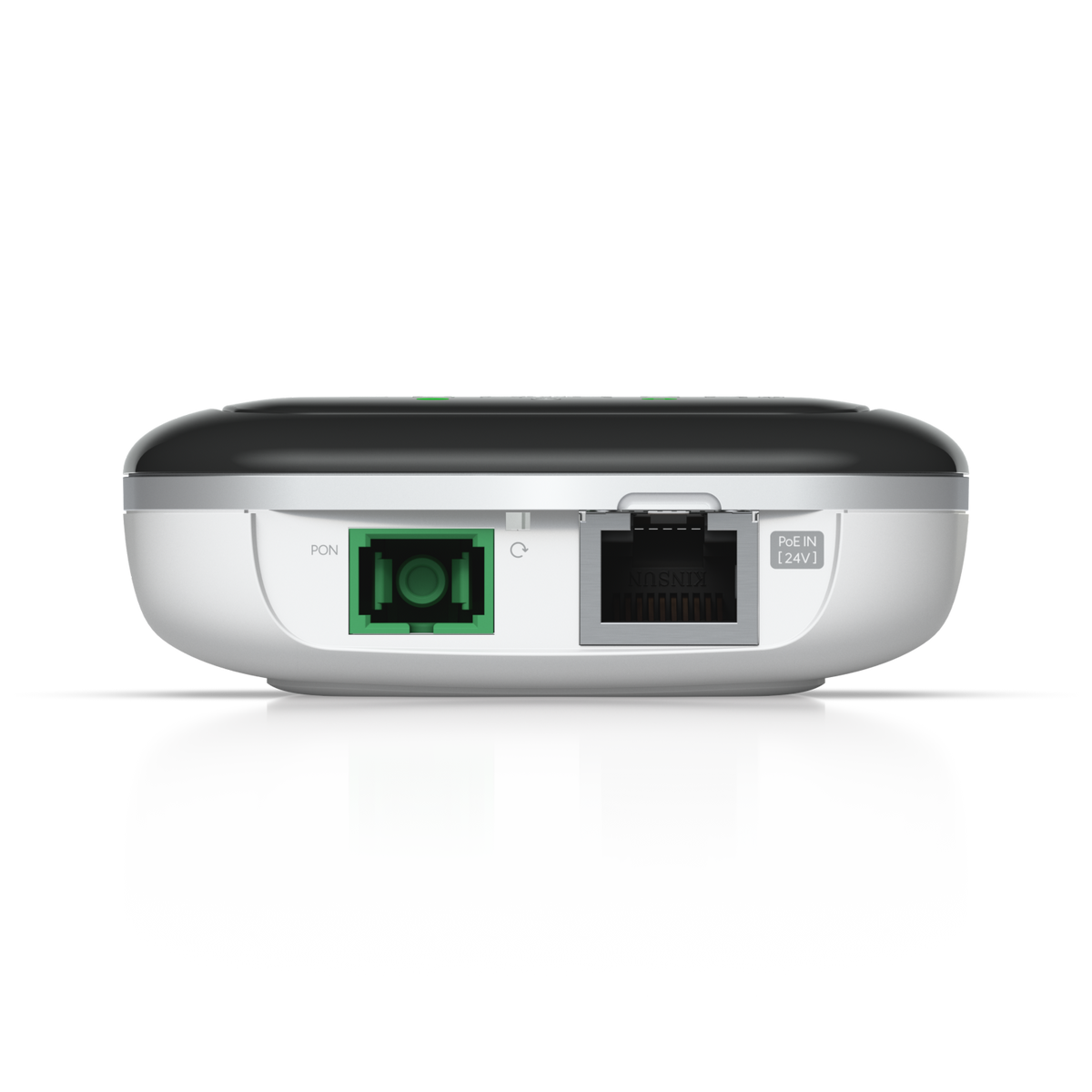

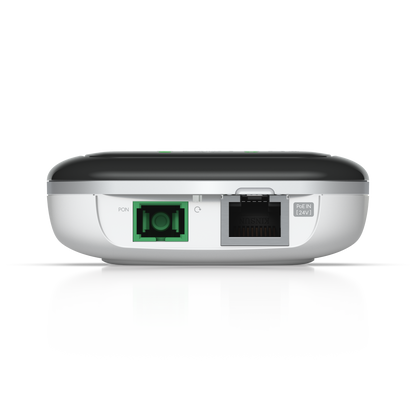

    Ubiquiti Fiber Nano UF-Nano view 4 atomoffice

    UISP Fiber GPON CPE

    Ubiquiti UISP Fiber Nano GPON CPE UF-Nano

    The Fiber Nano (UF-Nano) is Ubiquiti's GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring. It has one SC/APC ITU-G.984 GPON WAN port and one GbE RJ45 LAN port, is powered by 24V passive PoE, and runs as an ONU/ONT layer 2/3 Ethernet switch. Ubiquiti designed it to be used with its Fiber OLT and states that third-party OLTs may not be compatible or may be unable to reliably connect to the ONU.

    Quick Glance

    Device Type
    GPON CPE (ONU/ONT)
    Network Interface
    1x SC/APC GPON, 1x GbE RJ45
    Compatibility
    Ubiquiti Fiber OLT
    Form Factor
    77 x 77 x 28 mm, 110 g

    Key Features

    GPON at 2.488 Gbps down, 1.244 Gbps up

    One SC/APC ITU-G.984 GPON WAN port with a downstream line rate of 2.488 Gbps and 1.244 Gbps upstream, transmitting at 1310 nm and receiving at 1490 nm, with a physical reach of 20 km. GEM Port Encryption secures the PON link, and Ubiquiti lists dying gasp support.

    Gigabit LAN and 24V passive PoE in

    A single GbE RJ45 LAN port also takes the unit's power: 24V passive PoE on pins 4, 5 (+) and 7, 8 (-) at 0.3A, a supported range of 20–28V DC and 7W maximum consumption. Ubiquiti lists a UniFi PoE Switch as the power supply.

    LED display, remote management, UISP Mobile App

    An LED display and status LEDs show PON, Ethernet and power state. Ubiquiti lists a dashboard, monitoring, alarms and logs, remote reset, reboot and firmware upgrade, VLAN support, NAT, bridging, routing and firewall features, managed in-band over Ethernet or PON and through the UISP Mobile App.

    Detailed Specifications

    Networking Interface(1) SC/APC, ITU-G.984 GPON WAN port; (1) GbE RJ45 LAN ports
    Management InterfaceEthernet In-Band; PON
    DisplayDigital display
    Button(1) Factory reset; (1) Information
    Dying GaspSupported
    PON Status LEDSteady white: powered up; Blinking white: activity; OFF: link down; Red: no optical receive power, loss of signal
    Ethernet LEDSteady white: link up; Blinking white: activity; OFF: link down
    Power LEDWhite: ON
    Total Non-blocking Line RateDownstream: 2.488 Gbps; Upstream: 1.244 Gbps
    Operating WavelengthTX: 1310 nm; RX: 1490 nm
    Normal Range of Optical ModuleTX: 1.5 to 5 dBm; RX: -8 to -28 dBm
    Optical Interface Nominal Bit RateDownstream: 2488.32 Mbit/s; Upstream: 1244.16 Mbit/s
    Line CodeScrambled NRZ
    Physical Reach20 km
    Power Method24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A
    Power SupplyUniFi PoE Switch
    Supported Voltage Range20–28V DC
    Max. Power Consumption7W
    ModeONU/ONT layer 2/3 Ethernet switch
    ServicesWeb server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
    UtilitiesDashboard, monitoring, alarms, and logs
    OtherRemote reset, remote reboot, remote firmware upgrade, VLAN support
    SecurityGEM Port Encryption
    Ubiquiti Specific FeaturesUISP Mobile App
    Dimensions77 x 77 x 28 mm (3 x 3 x 1.1")
    Weight110 g (3.9 oz)
    Enclosure MaterialUV-stabilized polycarbonate (PC110U)
    Ambient Operating Temperature-40 to 55° C
    Ambient Operating Humidity5 to 95% noncondensing
    CertificationsFCC, IC, CE
    NDAA CompliantYes

    Specifications are taken from Ubiquiti's official technical specification and store listing for the Fiber Nano, UF-Nano. Ubiquiti designed it for use with its Fiber OLT; third-party OLTs may not be compatible.

    Need-to-Know

    • Ubiquiti designed the Fiber Nano to be used with its Fiber OLT and states that third-party OLTs may not be compatible or may be unable to reliably connect to the ONU. Check the OLT your fibre network uses before ordering.
    • Power is 24V passive PoE (20–28V DC, 7W maximum) into the RJ45 LAN port. Confirm that your PoE source supplies 24V passive PoE. Ubiquiti does not list a power adapter as included.
    • The GPON port is SC/APC. Use an SC/APC fibre patch lead to connect it.
    • Ubiquiti's official store lists this part as UF-Nano in the US store and UF-Nano-EU in the EU and UK stores.

    Best For / Customer Benefits

    Customer Benefits

    • Brings a GPON fibre connection to one Gigabit Ethernet port at the customer premises.
    • Powered over the LAN cable with 24V passive PoE, drawing 7W maximum.
    • LED display and status LEDs make on-site checks simple, with remote reset, reboot and firmware upgrade.
    • GEM Port Encryption on the PON link and dying gasp support.

    Best For

    Fibre-to-the-home and fibre-to-the-office subscriber connections
    ISPs and building operators running a Ubiquiti Fiber OLT
    Single-port GPON drops into apartments, villas and small offices

    Frequently Asked Questions

    Ubiquiti designed it to be used with its Fiber OLT and states that third-party OLTs may not be compatible or may be unable to reliably connect to the ONU. Plan it as part of a Ubiquiti Fiber OLT network.

    By 24V passive PoE on the RJ45 LAN port (pins 4, 5 positive and 7, 8 negative, 0.3A), with a supported range of 20–28V DC and 7W maximum consumption. Ubiquiti lists a UniFi PoE Switch as the power supply and does not list a power adapter as included.

    Ubiquiti gives a total non-blocking line rate of 2.488 Gbps downstream and 1.244 Gbps upstream on the GPON port, and the LAN side is one GbE RJ45 port. The optical interface transmits at 1310 nm and receives at 1490 nm, with a physical reach of 20 km.

    Ubiquiti lists in-band management over Ethernet and PON, a dashboard with monitoring, alarms and logs, remote reset, reboot and firmware upgrade, VLAN support and the UISP Mobile App. The LED display and status LEDs show PON, Ethernet and power state on the unit.

    Ubiquiti rates the ambient operating temperature at -40 to 55° C with 5 to 95% noncondensing humidity. The enclosure is UV-stabilized polycarbonate. Ubiquiti does not publish an IP rating for it.
