Ubiquiti UniFi Building Bridge UBB 2-Pack, 60 GHz Point-to-Point Bridge, 500 m Range, 5 GHz Backup

UBB

Condition: NEW

Dhs. 2,816.96(exc. Vat)
(exc. Vat)
Dhs. 2,816.96(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti UniFi Building Bridge UBB 2-Pack, 60 GHz Point-to-Point Bridge, 500 m Range, 5 GHz Backup atomoffice
    Ubiquiti UniFi Building Bridge UBB 2-Pack, 60 GHz Point-to-Point Bridge, 500 m Range, 5 GHz Backup atomoffice
    Ubiquiti UniFi Building Bridge UBB 2-Pack, 60 GHz Point-to-Point Bridge, 500 m Range, 5 GHz Backup atomoffice
    Ubiquiti UniFi Building Bridge UBB 2-Pack, 60 GHz Point-to-Point Bridge, 500 m Range, 5 GHz Backup atomoffice

    UniFi 60 GHz Point-to-Point Bridge, 2-Pack

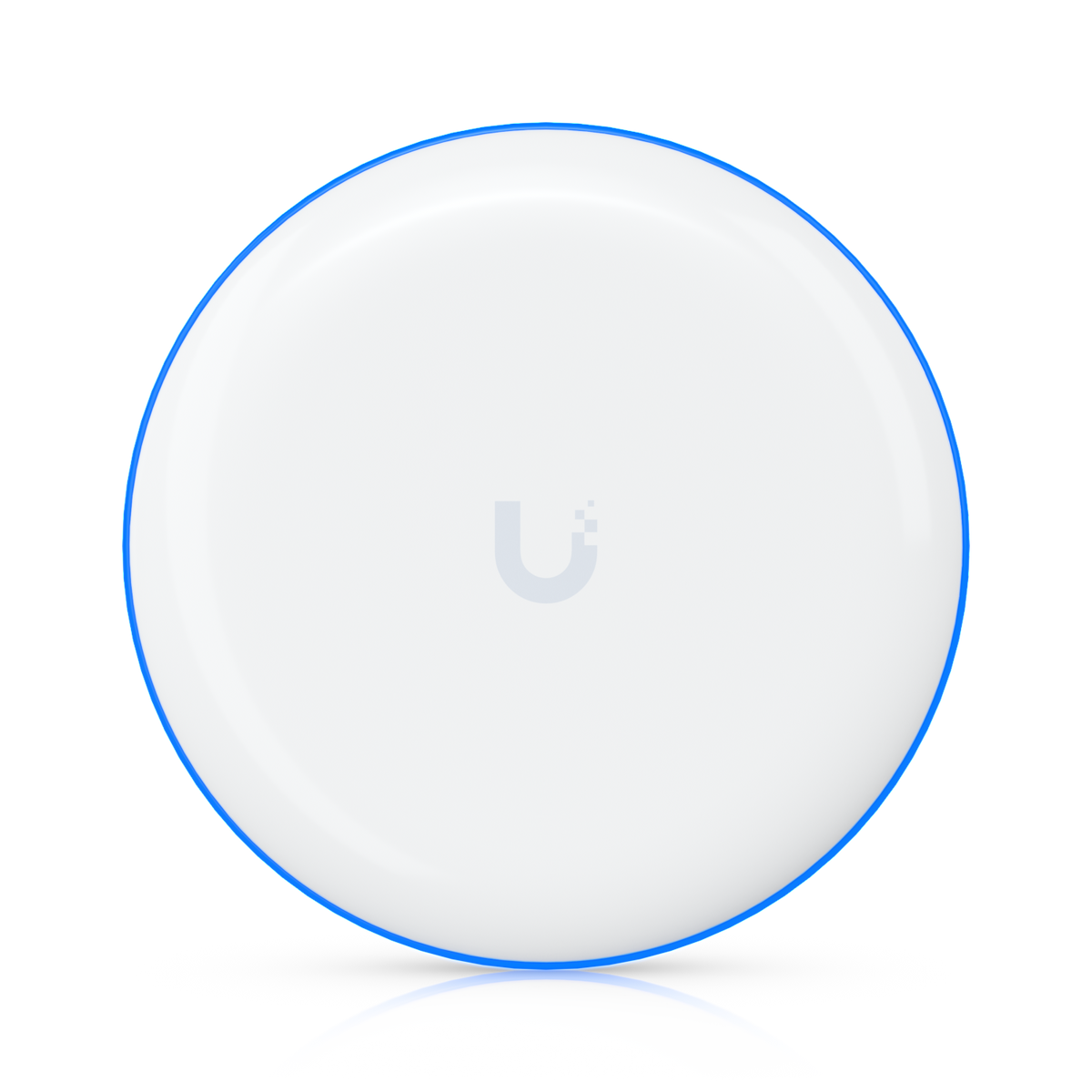

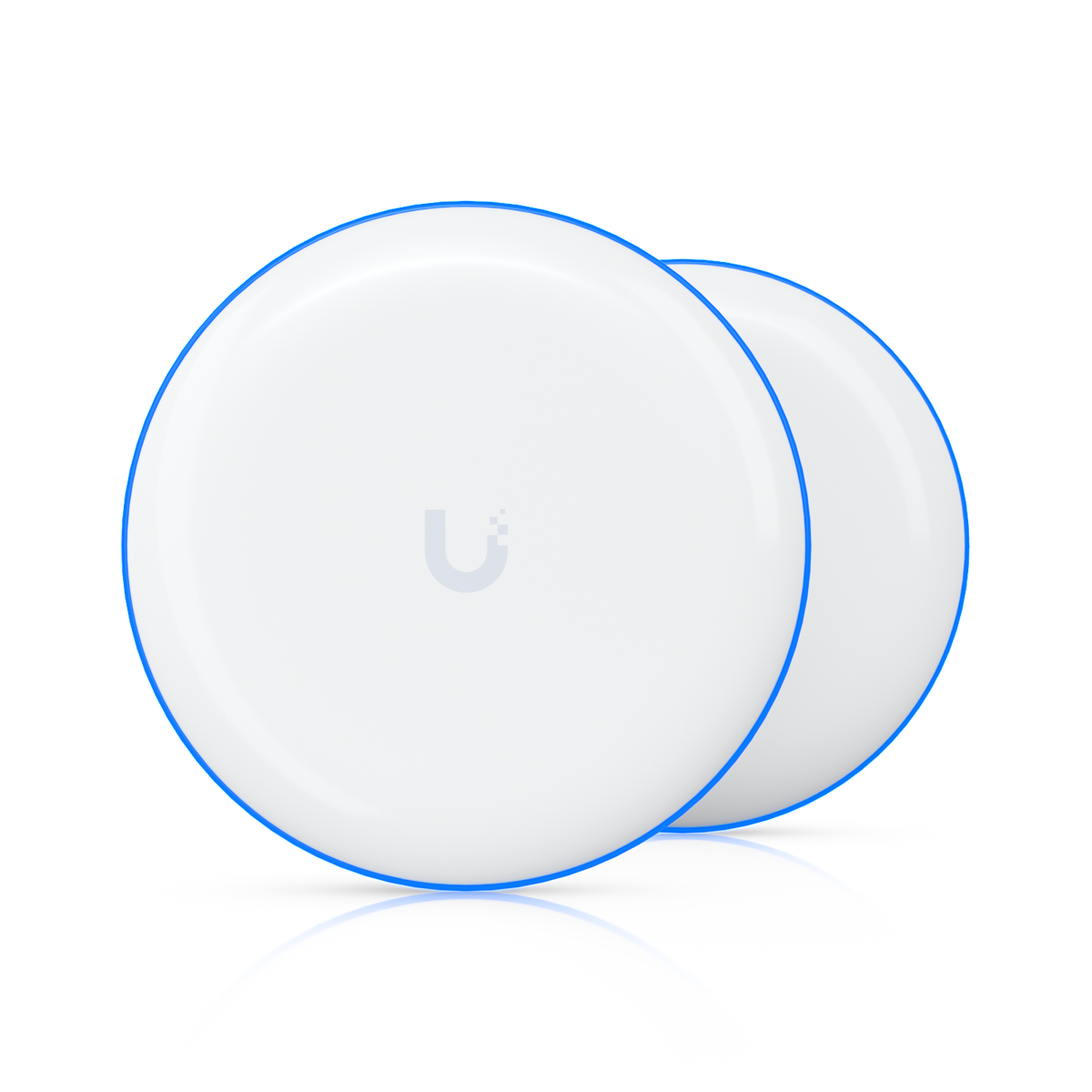

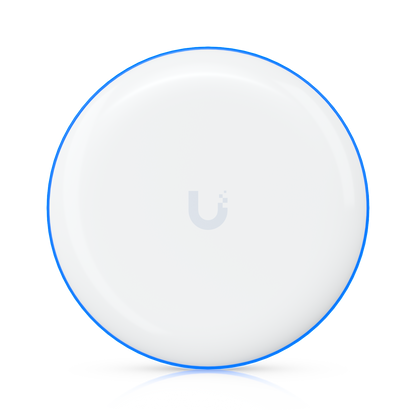

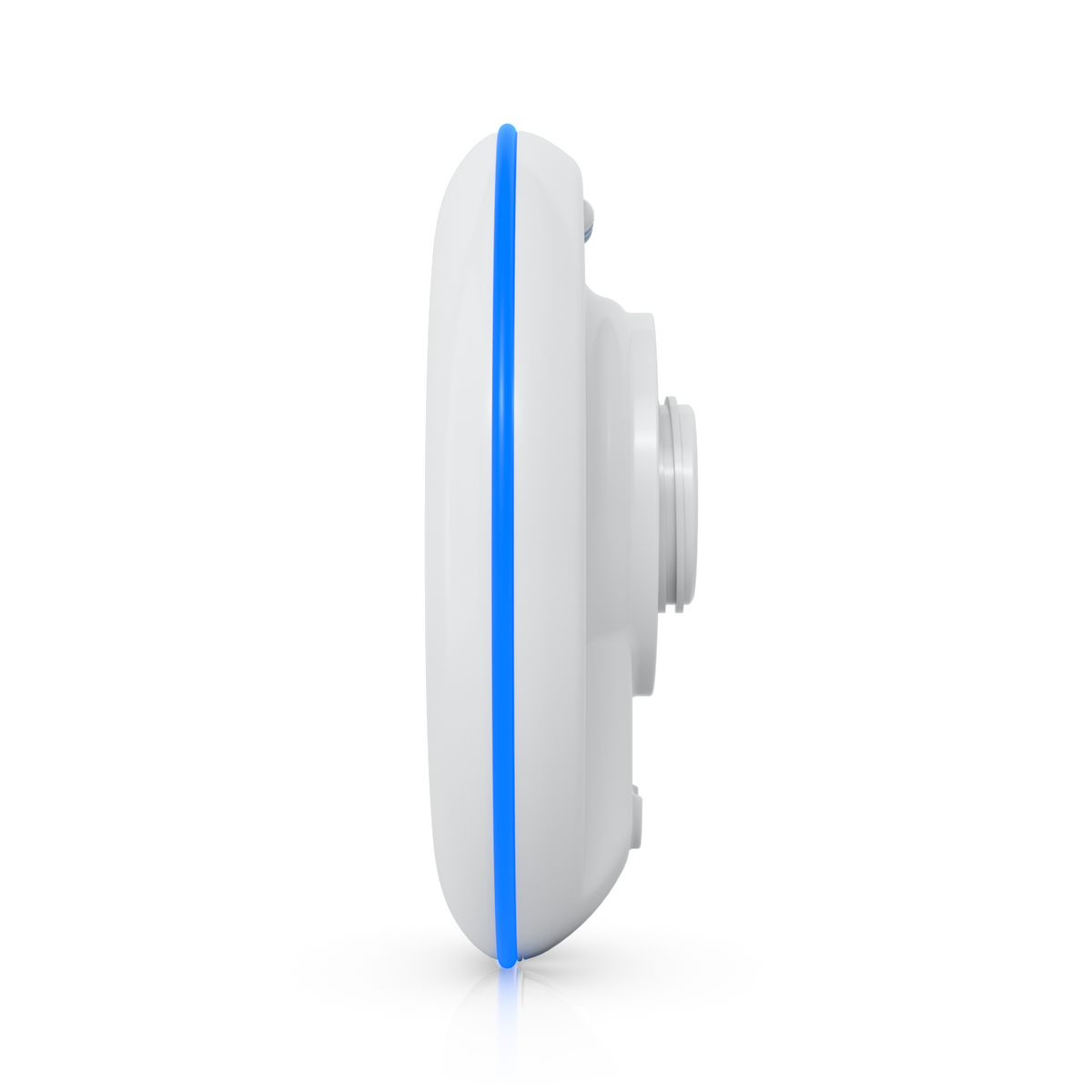

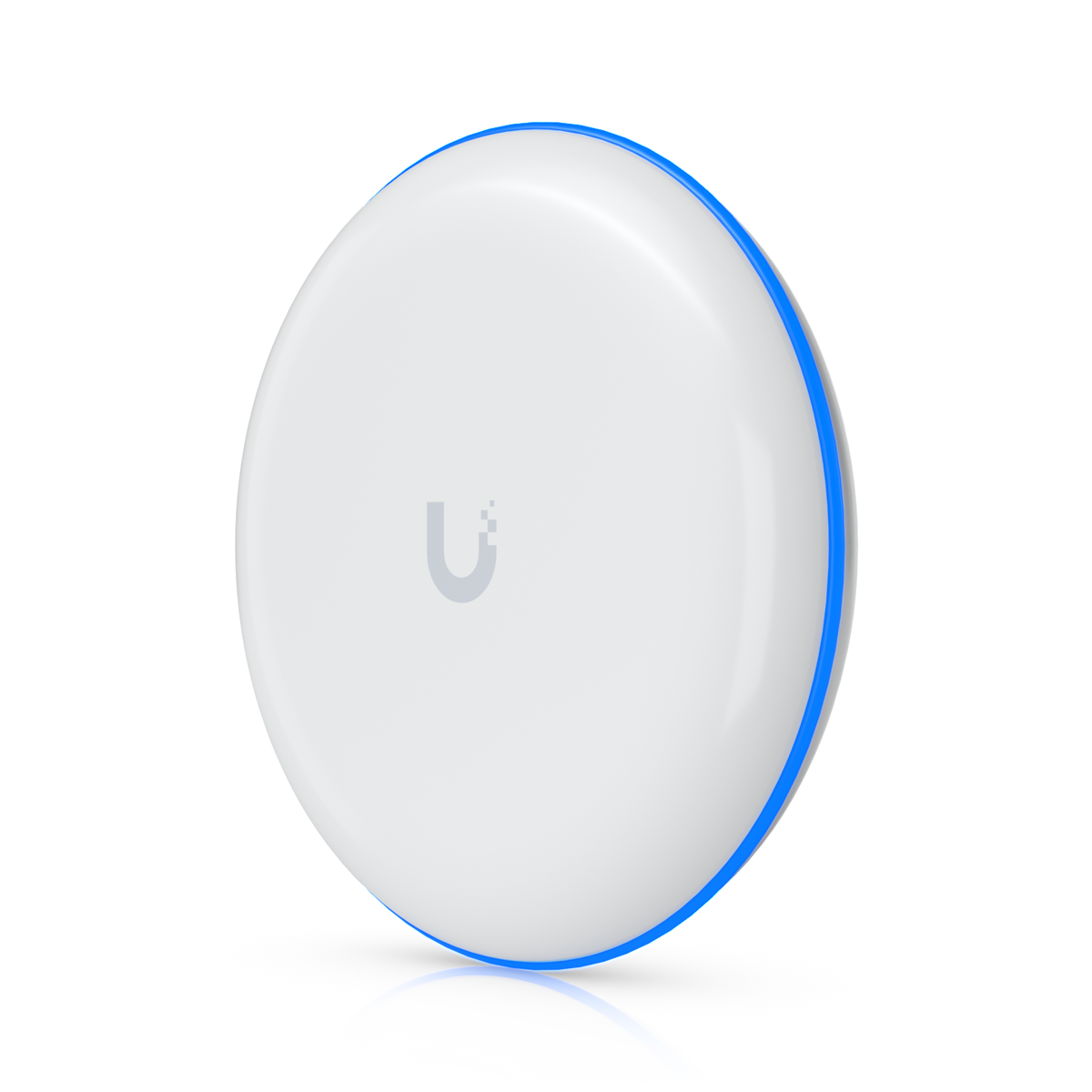

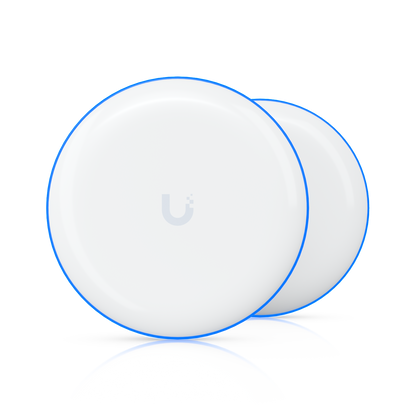

    Ubiquiti UniFi Building-to-Building Bridge, 2-Pack (UBB)

    The Ubiquiti Building-to-Building Bridge is a 60 GHz wireless point-to-point bridge with a 5 GHz backup radio, for linking two buildings without trenching cable. It reaches up to 500 m (1,640 ft), runs at up to 1.7 Gbps on 60 GHz, and is IPX6 weatherproof for wall or pole mounting. UBB is Ubiquiti's 2-pack: two bridges paired out of the box, with two PoE power adapters.

    Quick Glance

    Wireless Standard
    60 GHz, with 5 GHz (WiFi 5) backup
    Max Speed
    1.7 Gbps on 60 GHz
    Coverage
    Up to 500 m (1,640 ft) range
    Power Type
    PoE, passive 48V, 11W max.
    Form Factor
    Wall or pole mount, IPX6

    Key Features

    60 GHz link with a 5 GHz backup radio

    The main 60 GHz radio carries up to 1.7 Gbps over a point-to-point link of up to 500 m (1,640 ft). A 5 GHz WiFi 5 backup radio (2 x 2, up to 866.6 Mbps at BW80) gives dual-radio redundancy, so the link has a second path. Wireless security is WPA2 AES.

    Paired out of the box, with PoE adapters

    The UBB 2-pack contains two bridges that Ubiquiti pairs out of the box, and includes two PoE power adapters. Each bridge has one GbE RJ45 port, is powered using PoE (supports passive 48V, 44–57V DC) and draws 11W at most. Built-in LED alignment indicators help aim the two ends.

    Built for outdoor wall and pole mounting

    The UV-resistant polycarbonate enclosure is IPX6 weatherproof and rated from -40 to 70° C (-40 to 158° F) ambient. Each bridge measures ⌀140 x 90 mm, weighs 376 g and has a wind loading of 56 N at 200 km/h. Managed via UniFi Console, Official UniFi Hosting or a self-hosted UniFi Network Server, with Bluetooth for setup.

    Detailed Specifications

    ProductBuilding-to-Building Bridge, 2-Pack
    Part NumberUBB
    Operating ModesPtP
    Coverage Area500 m (1,640 ft)
    WiFi StandardWiFi 5
    Spatial Streams2
    Mounting LocationsWall, pole
    WeatherproofingIPX6
    Power MethodPoE (Supports passive 48V)
    Includes PoE AdapterYes; the 2-pack includes (2) PoE power adapters
    MIMO / 5 GHz2 x 2 (DL MU-MIMO)
    Antenna Gain / 60 GHz17.2 dBi
    Antenna Gain / 5 GHz10 dBi
    Antenna Gain / 2.4 GHz2 dBi (BLE)
    Max. TX Power / 60 GHz19 dBm
    Max. TX Power / 5 GHz25 dBm
    Channel BandwidthMain radio (60 GHz): 1,080/2,160 MHz; Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
    Operating FrequencyMain radio (60 GHz): 57 - 66 GHz. Backup radio (5 GHz): US/CA U-NII-1: 5150 - 5250 MHz; U-NII-2A: 5250 - 5350 MHz; U-NII-2C: 5470 - 5725 MHz; U-NII-3: 5725 - 5850 MHz; Worldwide 5150 - 5850 MHz (for worldwide, it depends on the regulatory region)
    Bluetooth (MHz)Worldwide: 2400 - 2483.5 MHz
    Wireless SecurityWPA2 AES
    Max. Data Rate / 60 GHz1.7 Gbps
    Max. Data Rate / 5 GHz866.6 Mbps (BW80)
    Supported Data Rates / 802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    Supported Data Rates / 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    Supported Data Rates / 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
    Networking Interface(1) GbE RJ45 port
    Max. Power Consumption11W
    Supported Voltage Range44–57V DC
    Dimensions⌀140 x 90 mm (⌀5.5 x 3.5")
    Weight (per bridge)376 g (13.3 oz)
    Enclosure MaterialUV-resistant polycarbonate
    Wind Loading56 N at 200 km/h (12.6 lbf at 125 mph)
    Button(1) Factory reset
    LEDs / SystemR/G/B
    Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
    Ambient Operating Humidity5 to 95% noncondensing
    NDAA CompliantYes
    CertificationsCE, FCC, IC
    ManagementEthernet, Bluetooth
    Managed ViaUniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server

    All specifications are Ubiquiti's own, from its official tech specs and store pages, and are per bridge. UBB is the paired 2-pack. Ubiquiti publishes no separate weight for the pack, and the 500 m range is its maximum figure.

    Need-to-Know

    • UBB is Ubiquiti's 2-pack: two bridges paired out of the box, with (2) PoE power adapters. Ubiquiti sells a single unit separately (UBB-Single) as a replacement or spare; it is not this listing.
    • Every specification on this page is per bridge. Ubiquiti gives the weight of one bridge, 376 g (13.3 oz), and publishes no separate weight for the 2-pack.
    • Each bridge is powered using PoE and supports passive 48V, with a supported voltage range of 44–57V DC. Ubiquiti does not state the PoE adapters' plug type.
    • The 500 m (1,640 ft) figure is Ubiquiti's maximum range. Ubiquiti's spec lists PtP as the only operating mode, so the two units link to each other, not to client devices.
    • Management needs a UniFi Console, Official UniFi Hosting or a self-hosted UniFi Network Server.

    Best For / Customer Benefits

    Customer Benefits

    • Two bridges paired out of the box, so the link is quick to commission
    • PoE power adapters included for both ends
    • 60 GHz main link up to 1.7 Gbps with a 5 GHz backup radio
    • IPX6 weatherproof enclosure with wall or pole mounting
    • Built-in LED alignment indicators to help aim the link

    Best For

    Linking two buildings on one site without trenching cable
    Extending a UniFi network to a warehouse, gatehouse or annex
    Outdoor links needing a 5 GHz backup path

    Frequently Asked Questions

    Two Building-to-Building Bridges that Ubiquiti pairs out of the box, plus (2) PoE power adapters, one per bridge. Ubiquiti does not state the adapters' plug type. A single unit is sold separately by Ubiquiti as a replacement or spare.

    Ubiquiti gives a maximum range of 500 m (1,640 ft) for the 60 GHz point-to-point link, with up to 1.7 Gbps on 60 GHz. Real range depends on line of sight and weather between the two ends.

    The bridge has a 5 GHz backup radio alongside the 60 GHz main radio, which Ubiquiti describes as 60 GHz and 5 GHz dual-radio redundancy. The 5 GHz radio is WiFi 5, 2 x 2, with a maximum data rate of 866.6 Mbps at BW80.

    Yes. Each bridge has an IPX6-rated, UV-resistant polycarbonate enclosure, operates from -40 to 70° C (-40 to 158° F) and mounts on a wall or pole. Ubiquiti gives a wind loading of 56 N at 200 km/h, and built-in LED alignment indicators help aim it.

    Via a UniFi Console, Official UniFi Hosting or a self-hosted UniFi Network Server. Ubiquiti lists Ethernet and Bluetooth as management interfaces.

    Linking two buildings?

    Tell us the distance between the buildings and what is in the line of sight, and we will confirm whether the Building Bridge or the Building Bridge XG suits the link.
