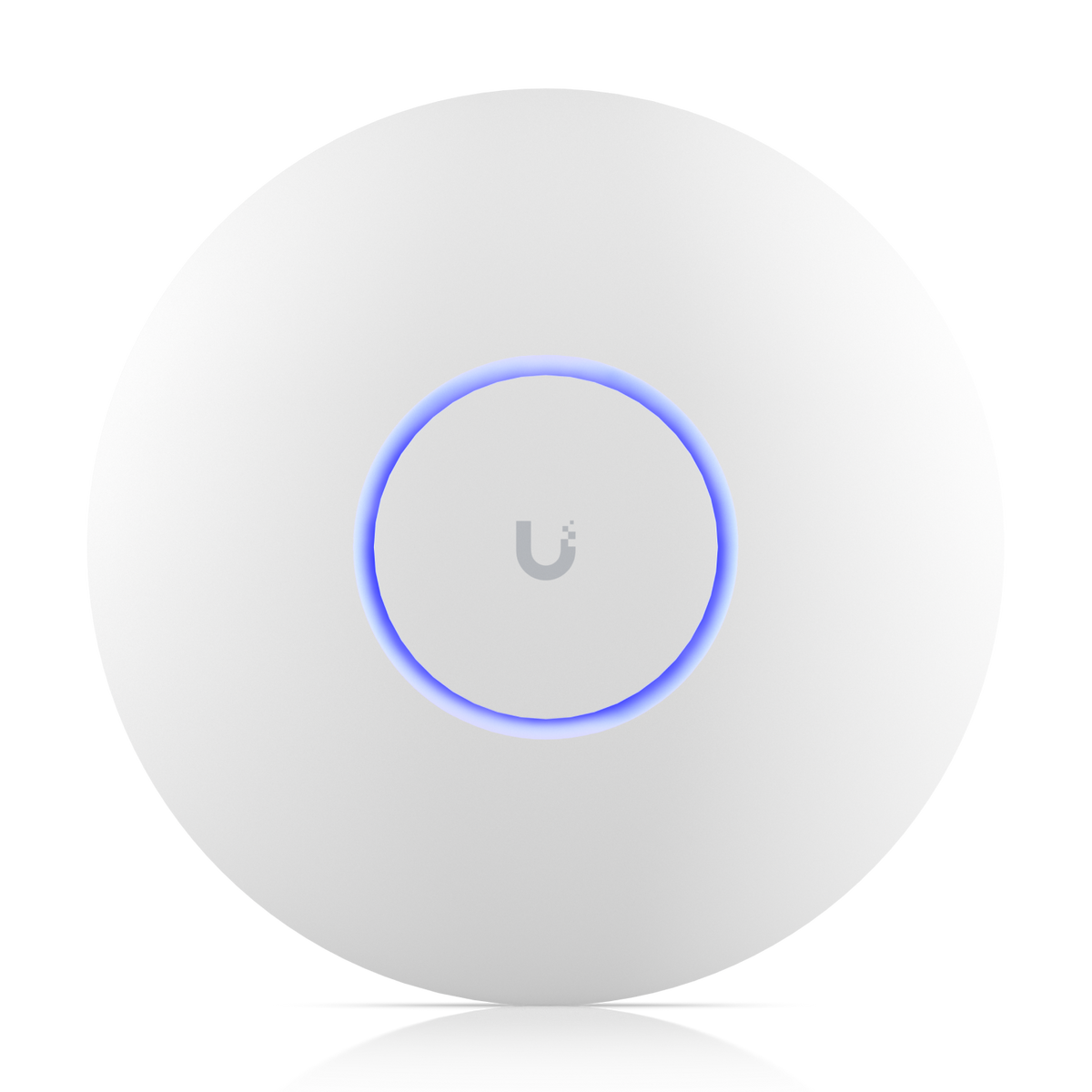

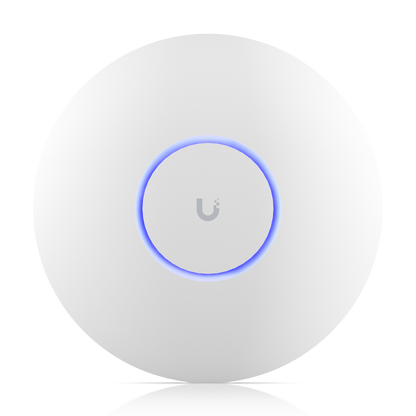

• Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 1 atomoffice

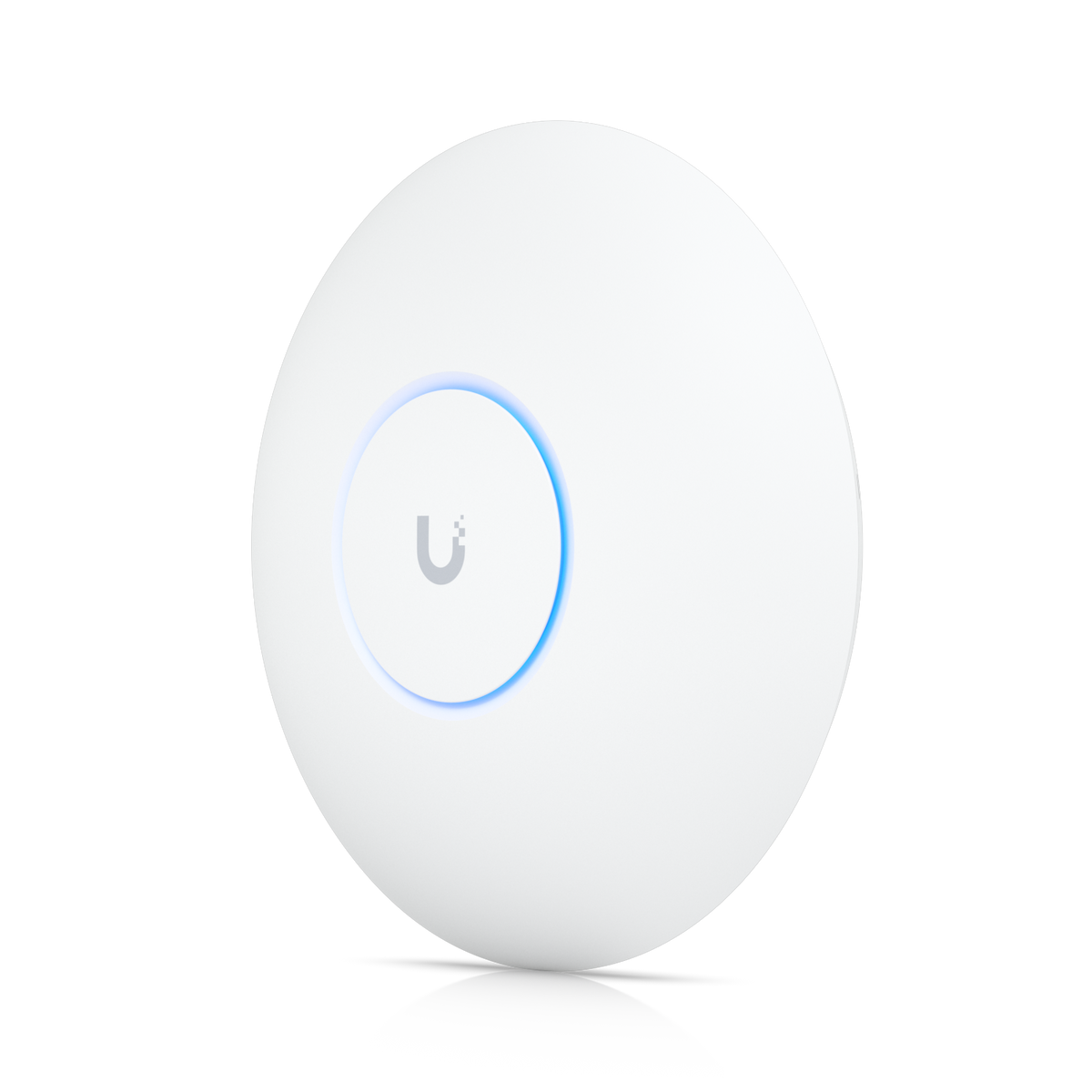

  • Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 2 atomoffice

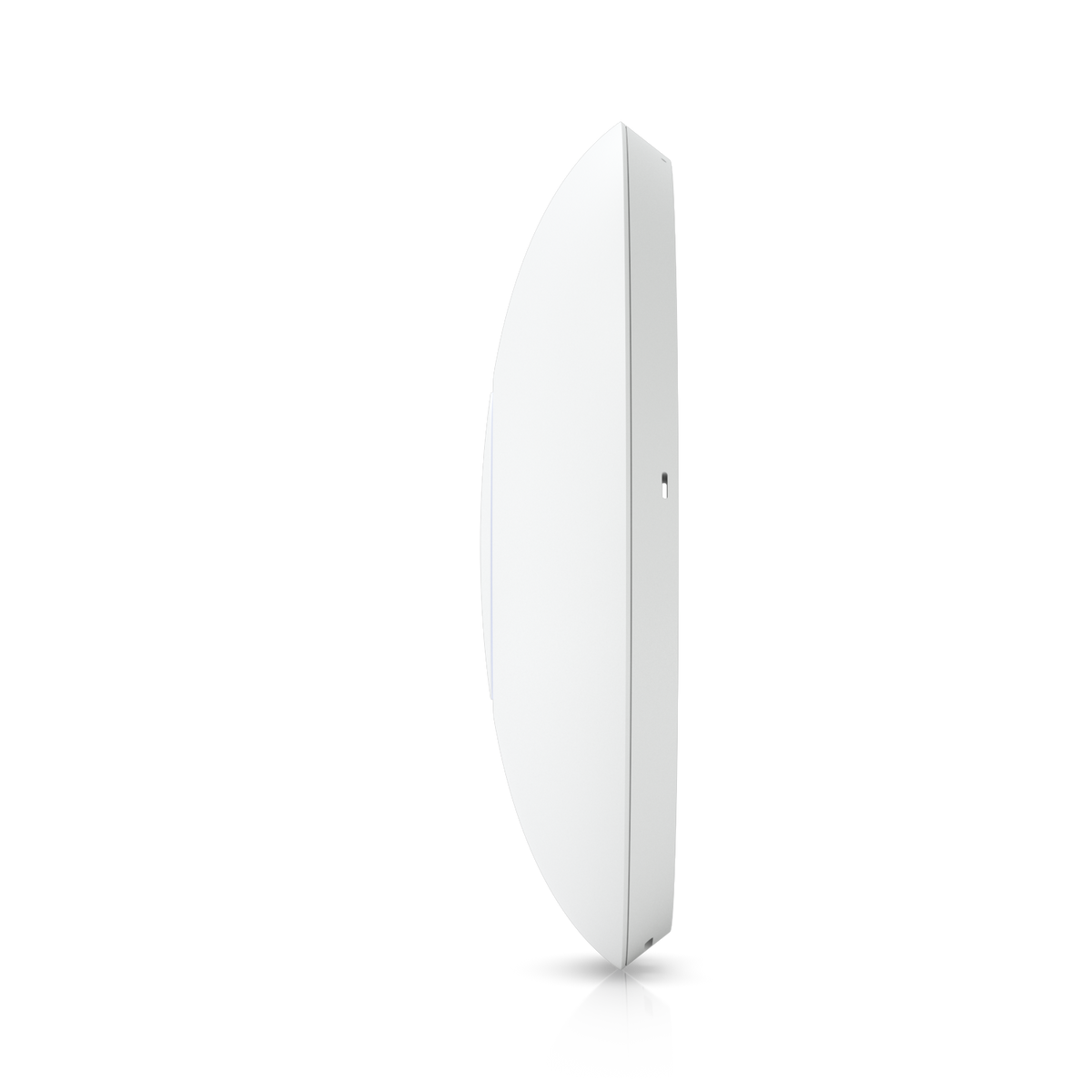

  • Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 3 atomoffice

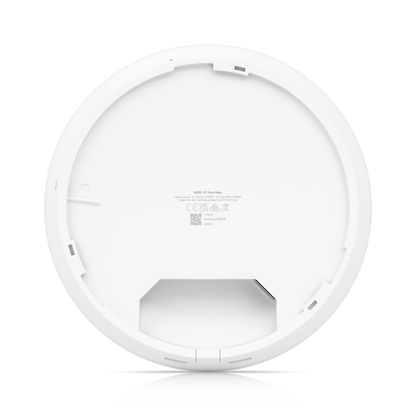

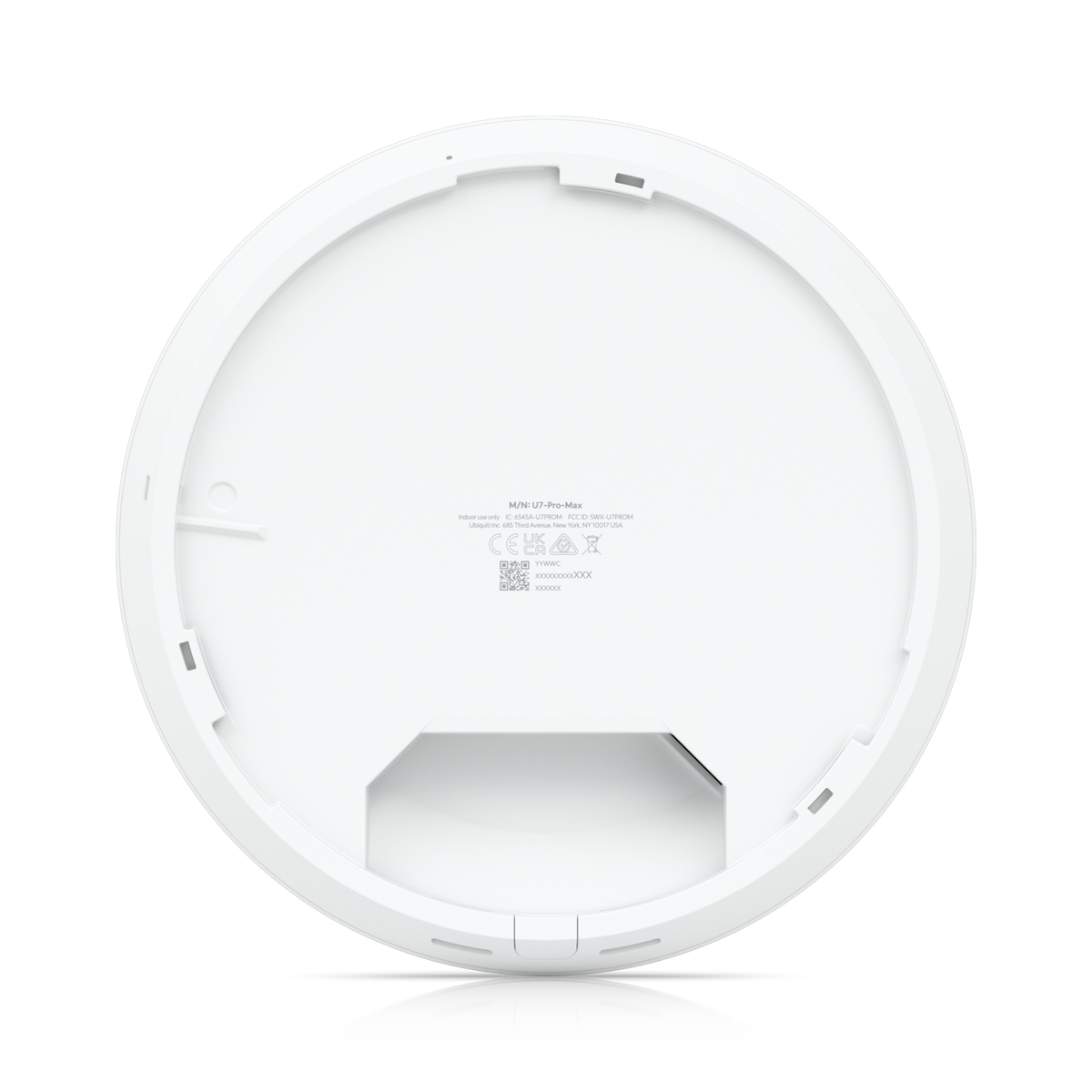

  • Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 4 atomoffice
1 4

Ubiquiti Access Point U7 Pro Max, WiFi 7 with 6 GHz, 8 Spatial Streams, 160 m² Coverage, 500+ Clients

U7-Pro-Max

Condition: NEW

Dhs. 1,089.03(exc. Vat)
(exc. Vat)
Dhs. 1,089.03(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 1 atomoffice
    Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 2 atomoffice
    Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 3 atomoffice
    Ubiquiti Access Point U7 Pro Max U7-Pro-Max view 4 atomoffice

    UniFi WiFi 7 Access Point

    Ubiquiti UniFi U7 Pro Max WiFi 7 Access Point

    The Ubiquiti U7 Pro Max is a ceiling-mounted WiFi 7 access point with 8 spatial streams, 6 GHz support and a dedicated spectral scanning engine, built for interference-free WiFi in demanding, large-scale environments. It covers up to 160 m² (1,750 ft²), handles 500+ connected devices, connects over a 2.5 GbE uplink and is powered by PoE+.

    Quick Glance

    Wireless Standard
    WiFi 7 with 6 GHz support
    Max Speed
    8.6 Gbps on 5 GHz (BW240)
    Coverage
    160 m² (1,750 ft²)
    Client Capacity
    500+ devices
    Power Type
    PoE+ (25W max.)

    Key Features

    8-stream WiFi 7 on three bands, including 6 GHz

    Eight spatial streams: 2 x 2 MU-MIMO on 6 GHz, 4 x 4 MU-MIMO on 5 GHz and 2 x 2 MU-MIMO on 2.4 GHz. Ubiquiti rates the maximum data rate at 5.8 Gbps on 6 GHz (BW320), 8.6 Gbps on 5 GHz (BW240) and 688 Mbps on 2.4 GHz (BW40). 6 GHz operation depends on the country.

    Real-time spectral analysis for cleaner channels

    A dedicated spectral scanning engine runs real-time spectral analysis for enhanced channel selection, alongside Zero-Wait DFS and advanced radio management. Ubiquiti notes that spectral analysis requires UniFi Network 8.2.93 and later.

    2.5 GbE PoE+ uplink for 500+ devices

    One 1/2.5 GbE RJ45 port carries data and PoE+ power, with a maximum power consumption of 25W and a supported voltage range of 44-57V DC. Rated for 500+ connected devices across 160 m² (1,750 ft²), with up to 8 BSSIDs per radio, fast roaming (802.11r/k/v), PPSK and RADIUS-assigned VLANs.

    Detailed Specifications

    ProductAccess Point U7 Pro Max
    Manufacturer Part NumberU7-Pro-Max
    WiFi StandardWiFi 7 (With 6 GHz support)
    Spatial Streams8
    Coverage Area160 m² (1,750 ft²)
    Max. Client Count500+
    Uplink2.5 GbE
    MountingCeiling, Wall (Pro Mount Included)
    Power MethodPoE+
    Dimensions⌀206 x 46 mm (⌀8.1 x 1.8")
    MIMO / 6 GHz2 x 2 (DL/UL MU-MIMO)
    MIMO / 5 GHz4 x 4 (DL/UL MU-MIMO)
    MIMO / 2.4 GHz2 x 2 (DL/UL MU-MIMO)
    Antenna Gain / 6 GHz5.9 dBi
    Antenna Gain / 5 GHz6 dBi
    Antenna Gain / 2.4 GHz4 dBi
    Max. TX Power / 6 GHz23 dBm
    Max. TX Power / 5 GHz29 dBm
    Max. TX Power / 2.4 GHz23 dBm
    Max. BSSIDs8 per Radio
    Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
    Operating FrequencyUS/CA: 2400 - 2472 MHz; U-NII-1: 5150 - 5250 MHz; U-NII-2A: 5250 - 5350 MHz; U-NII-2C: 5470 - 5725 MHz; U-NII-3: 5725 - 5850 MHz; U-NII-5 to U-NII-8: 5925 - 7125 MHz. Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz, 5925 - 7125 MHz (for worldwide, it depends on the regulatory region)
    Max. Data Rate / 6 GHz5.8 Gbps (BW320)
    Max. Data Rate / 5 GHz8.6 Gbps (BW240)
    Max. Data Rate / 2.4 GHz688 Mbps (BW40)
    Supported Data Rates / 802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320); 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    Supported Data Rates / 802.11ax7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    Supported Data Rates / 802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    Supported Data Rates / 802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
    Wireless MeshingYes
    Band SteeringYes
    802.11v BSS Transition ManagementYes
    802.11r Fast RoamingYes
    802.11k Radio Resource Management (RRM)Yes
    Zero-Wait DFSYes
    Advanced Radio ManagementYes
    Real-Time Spectral AnalysisYes
    Passpoint (Hotspot 2.0)Yes
    WiFi Speed LimitingYes
    WiFi SchedulesYes
    Dynamic RADIUS-assigned VLANYes
    Captive Hotspot Portal / Custom Branding Landing PageYes
    Captive Hotspot Portal / Voucher AuthenticationYes
    Captive Hotspot Portal / Payment-Based AuthenticationYes
    Captive Hotspot Portal / External Portal Server SupportYes
    Captive Hotspot Portal / Password AuthenticationYes
    Captive Hotspot Portal / Guest Network IsolationYes
    Private Pre-Shared Key (PPSK)Yes
    Client Device IsolationYes
    RADIUS over TLS (RadSec)Yes
    Networking Interface(1) 1/2.5 GbE RJ45 port
    Max. Power Consumption25W
    Supported Voltage Range44–57V DC
    Weight680 g (1.5 lb)
    Enclosure MaterialPolycarbonate, aluminum
    Mount MaterialStainless steel (SUS304), galvanized steel (SGCC)
    LEDs / SystemWhite/Blue
    Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
    Ambient Operating Humidity5 to 95% noncondensing
    NDAA CompliantYes
    CertificationsCE, FCC, IC, Anatel: 08959-24-08356
    ManagementEthernet
    Application Requirements / UniFi NetworkVersion 8.2.93 and later

    All specifications are Ubiquiti's own, from its official tech specs and store pages. 6 GHz operation depends on the country and local regulations. Real-time spectral analysis requires UniFi Network 8.2.93 and later.

    Need-to-Know

    • 6 GHz operation is supported only in the countries Ubiquiti lists, so 6 GHz availability depends on the country and its local regulations. The 2.4 GHz and 5 GHz bands are not affected by this note.
    • Ubiquiti states that Multi-Link Operation (MLO) capability is coming soon and will be provided via a software update. It is not a current feature of the U7 Pro Max.
    • The U7 Pro Max is powered by PoE+ through its single RJ45 port. Ubiquiti lists no power adapter for it, so plan a PoE+ switch port or PoE+ injector for each access point.
    • Managing the U7 Pro Max, including real-time spectral analysis, needs the UniFi Network application, version 8.2.93 or later.

    Best For / Customer Benefits

    Customer Benefits

    • 8 spatial streams on three bands, with up to 8.6 Gbps on 5 GHz and 5.8 Gbps on 6 GHz
    • Dedicated spectral scanning engine for real-time channel selection
    • Rated for 500+ connected devices and 160 m² (1,750 ft²) of coverage
    • One cable per access point: data and PoE+ power over a 2.5 GbE RJ45 port
    • Guest portals, PPSK, RadSec and RADIUS-assigned VLANs for managed networks

    Best For

    High-density offices, lecture halls and meeting spaces
    Sites with busy or congested RF that benefit from spectral analysis
    Hotels and venues with guest WiFi, captive portals and vouchers
    Large-scale UniFi deployments moving to WiFi 7

    Frequently Asked Questions

    The U7 Pro Max supports 6 GHz, but Ubiquiti limits 6 GHz operation to the countries on its own supported list, and availability depends on local regulations. Ubiquiti's spec also notes that worldwide operating frequencies depend on the regulatory region. Contact us before ordering if 6 GHz is essential to your design; the 2.4 GHz and 5 GHz bands work regardless.

    Per Ubiquiti's specifications, the U7 Pro Max has 8 spatial streams with 4 x 4 MU-MIMO on 5 GHz (up to 8.6 Gbps), covers 160 m² (1,750 ft²), handles 500+ devices and adds a dedicated spectral scanning engine for real-time spectral analysis. It draws up to 25W over PoE+ and shares the same ⌀206 x 46 mm size and 2.5 GbE uplink.

    By PoE+ over its single 1/2.5 GbE RJ45 port. Ubiquiti gives a maximum power consumption of 25W and a supported voltage range of 44-57V DC. Ubiquiti lists no power adapter for it, so each access point needs a PoE+ switch port or a PoE+ injector.

    Not yet. Ubiquiti states that MLO capability is coming soon and will be provided via a software update. Everything else on this product, including WiFi 7 data rates up to 8.6 Gbps on 5 GHz and 5.8 Gbps on 6 GHz, is available now.

    Yes. Ubiquiti lists ceiling and wall mounting, with the Pro Mount included. The mount is made of stainless steel (SUS304) and galvanized steel (SGCC), and the access point measures ⌀206 x 46 mm and weighs 680 g.
