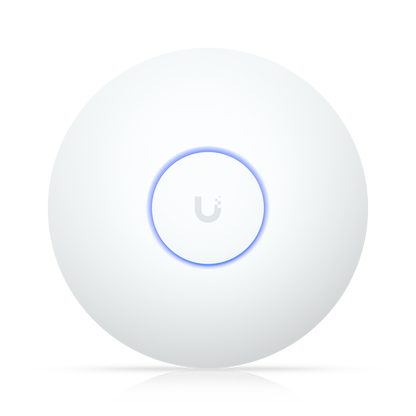

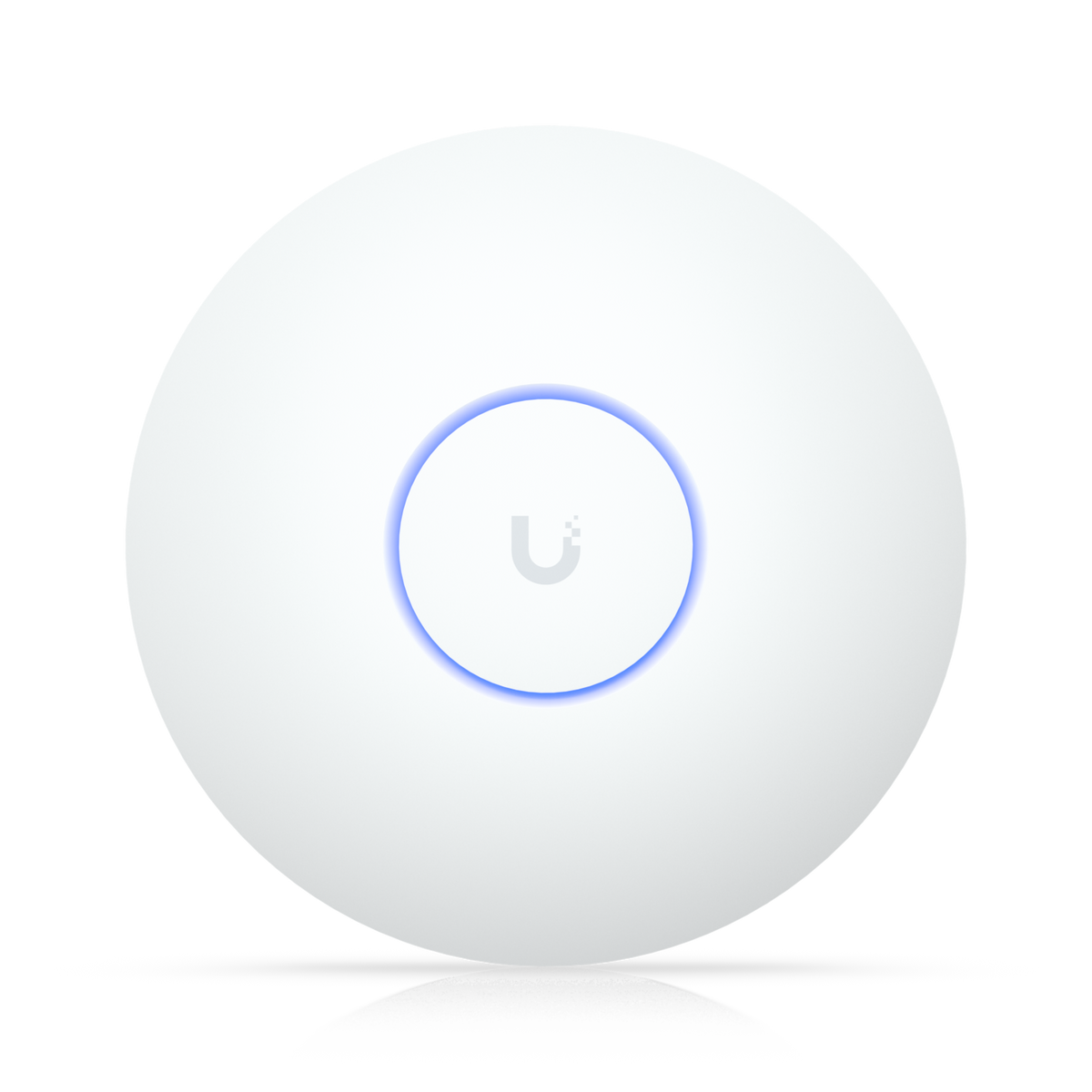

• Ubiquiti Access Point U7 Long-Range U7-LR view 1 atomoffice

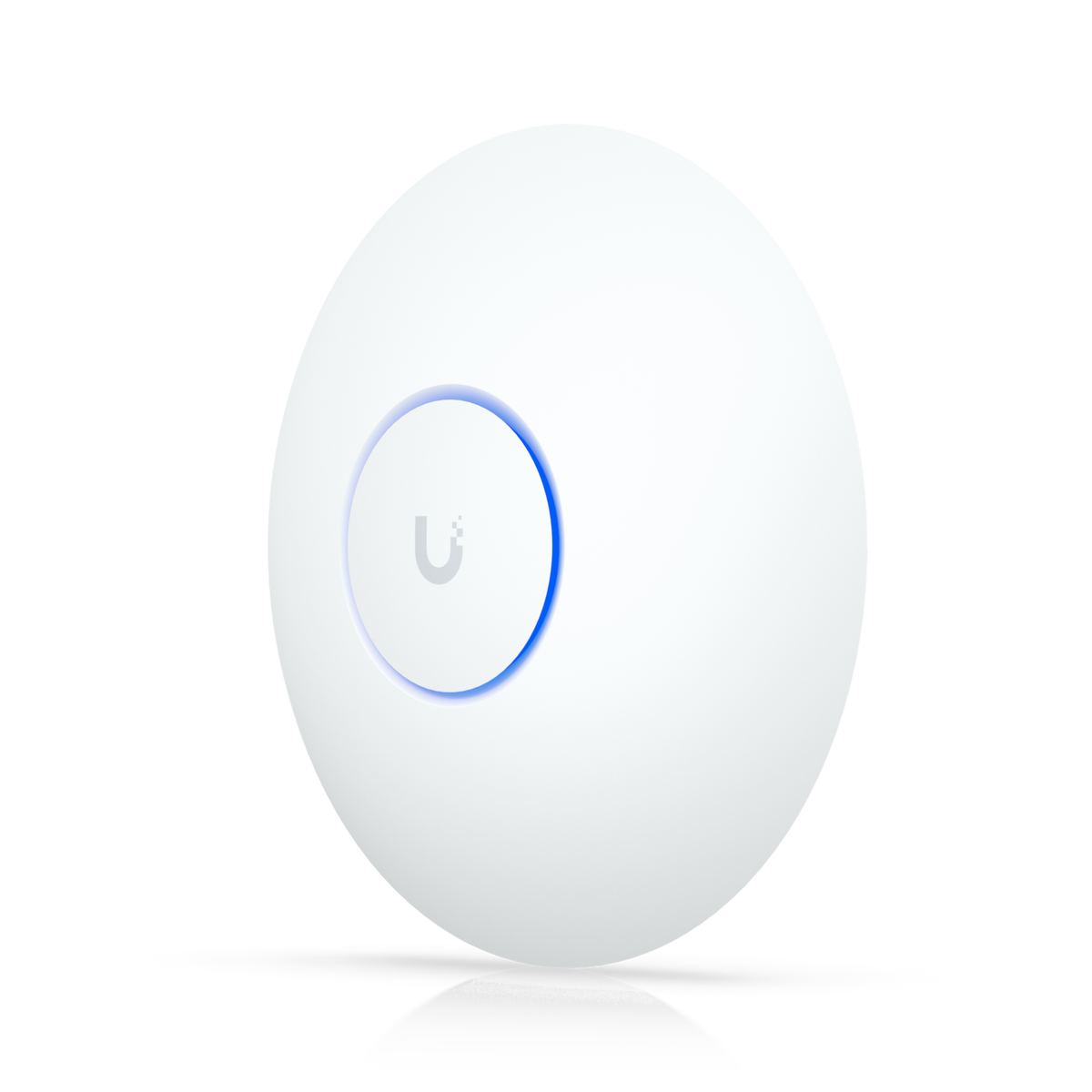

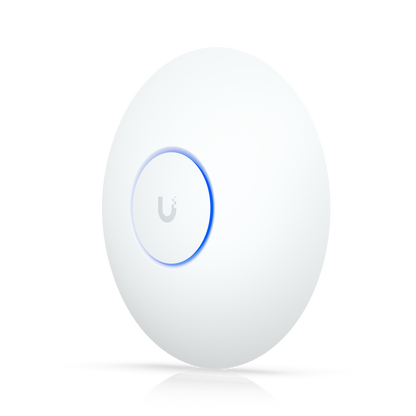

  • Ubiquiti Access Point U7 Long-Range U7-LR view 2 atomoffice

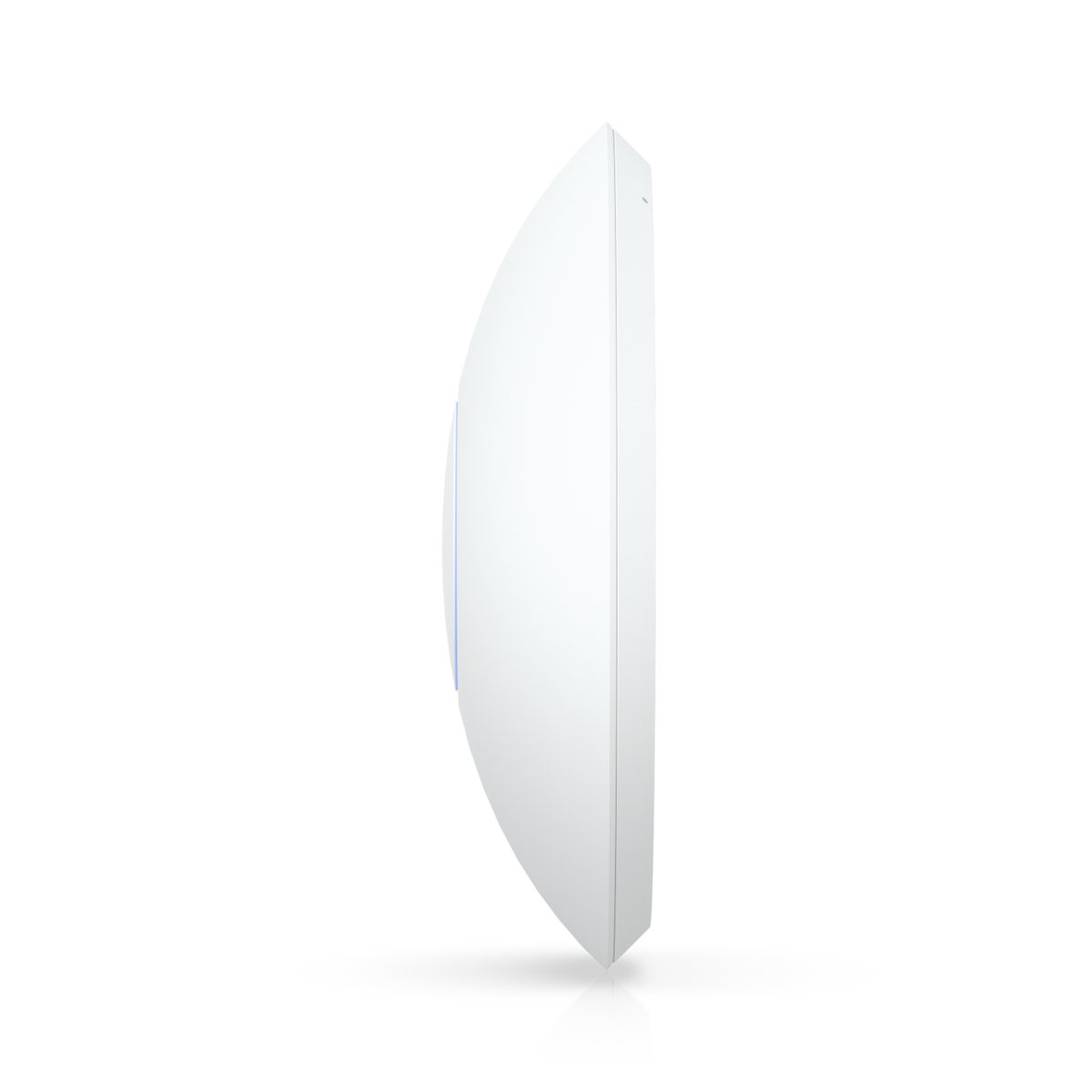

  • Ubiquiti Access Point U7 Long-Range U7-LR view 3 atomoffice

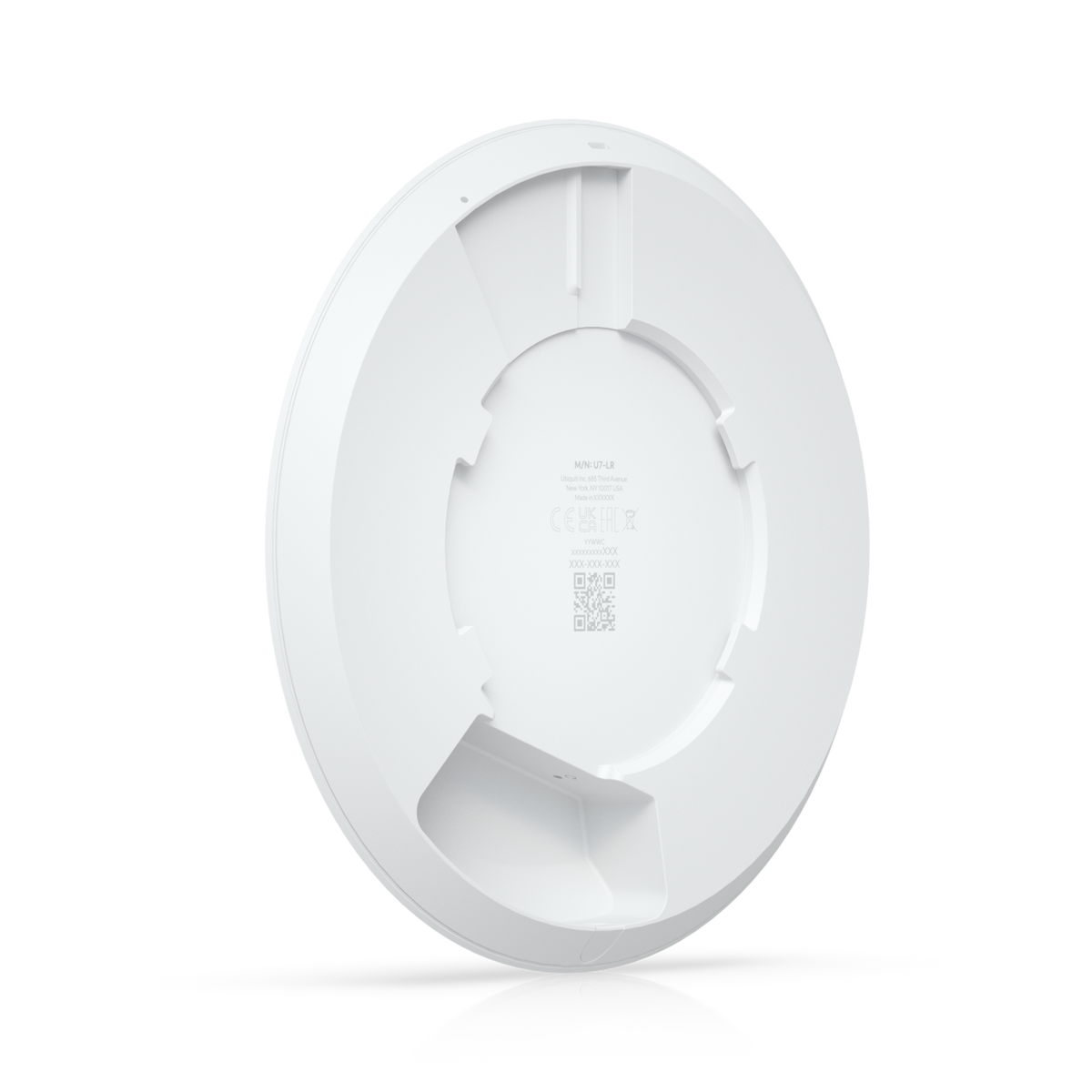

  • Ubiquiti Access Point U7 Long-Range U7-LR view 4 atomoffice
1 4

Ubiquiti Access Point U7 Long-Range, WiFi 7, 5 Spatial Streams, 160 m² Coverage, 300+ Clients

U7-LR

Condition: NEW

Dhs. 613.80(exc. Vat)
(exc. Vat)
Dhs. 613.80(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti Access Point U7 Long-Range U7-LR view 1 atomoffice
    Ubiquiti Access Point U7 Long-Range U7-LR view 2 atomoffice
    Ubiquiti Access Point U7 Long-Range U7-LR view 3 atomoffice
    Ubiquiti Access Point U7 Long-Range U7-LR view 4 atomoffice

    UniFi WiFi 7 Long-Range Access Point

    Ubiquiti UniFi U7 Long-Range WiFi 7 Access Point

    The Ubiquiti U7 Long-Range (U7-LR) is a compact, ceiling-mount WiFi 7 access point with 5 spatial streams and extended signal range. This dual-radio 2.4/5 GHz access point covers up to 160 m² (1,750 ft²), supports 300+ connected devices, connects over a 2.5 GbE uplink and is powered by PoE.

    Quick Glance

    Wireless Standard
    WiFi 7, dual-band 2.4/5 GHz
    Max Speed
    4.3 Gbps on 5 GHz (BW160)
    Coverage
    160 m² (1,750 ft²)
    Client Capacity
    300+ devices
    Power Type
    PoE (14W max.)

    Key Features

    Extended reach with 5 spatial streams

    Five spatial streams: 3 x 3 MU-MIMO on 5 GHz and 2 x 2 MU-MIMO on 2.4 GHz, with max. TX power of 27 dBm (5 GHz) and 26 dBm (2.4 GHz). Ubiquiti rates the maximum data rate at 4.3 Gbps on 5 GHz (BW160) and 688 Mbps on 2.4 GHz (BW40).

    160 m² coverage, 300+ devices

    Long-range connectivity across larger spaces: Ubiquiti rates one U7 Long-Range for 160 m² (1,750 ft²) of coverage and 300+ connected devices. Band steering, fast roaming (802.11r/k/v), meshing, guest hotspot portals, PPSK and RADIUS-assigned VLANs are all supported.

    2.5 GbE uplink, powered by PoE

    One 2.5 GbE RJ45 port carries both data and power, with multi-gig uplink capacity as client counts increase. It runs on PoE with a maximum power consumption of 14W and a supported voltage range of 42.5-57V DC, and is rated for -30 to 50° C ambient operating temperature.

    Detailed Specifications

    ProductAccess Point U7 Long-Range
    WiFi StandardWiFi 7
    Spatial Streams5
    Coverage Area160 m² (1,750 ft²)
    Max. Client Count300+
    Uplink2.5 GbE
    MountingCeiling, Wall (Plastic Mounting Plate included)
    Power MethodPoE
    Dimensions⌀175.7 x 43 mm (⌀6.9 x 1.7")
    MIMO / 5 GHz3 x 3 (DL/UL MU-MIMO)
    MIMO / 2.4 GHz2 x 2 (DL/UL MU-MIMO)
    Antenna Gain / 5 GHz6 dBi
    Antenna Gain / 2.4 GHz4 dBi
    Max. TX Power / 5 GHz27 dBm
    Max. TX Power / 2.4 GHz26 dBm
    Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
    Max. Data Rate / 5 GHz4.3 Gbps (BW160)
    Max. Data Rate / 2.4 GHz688 Mbps (BW40)
    Supported Data Rates / 802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
    Supported Data Rates / 802.11ax (WiFi 6)7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
    Supported Data Rates / 802.11ac (WiFi 5)6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
    Supported Data Rates / 802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
    Wireless MeshingYes
    Band SteeringYes
    802.11v BSS Transition ManagementYes
    802.11r Fast RoamingYes
    802.11k Radio Resource Management (RRM)Yes
    Advanced Radio ManagementYes
    Passpoint (Hotspot 2.0)Yes
    WiFi Speed LimitingYes
    WiFi SchedulesYes
    Dynamic RADIUS-assigned VLANYes
    Captive Hotspot Portal / Custom Branding Landing PageYes
    Captive Hotspot Portal / Voucher AuthenticationYes
    Captive Hotspot Portal / Payment-Based AuthenticationYes
    Captive Hotspot Portal / External Portal Server SupportYes
    Captive Hotspot Portal / Password AuthenticationYes
    Captive Hotspot Portal / Guest Network IsolationYes
    Private Pre-Shared Key (PPSK)Yes
    Client Device IsolationYes
    RADIUS over TLS (RadSec)Yes
    Networking Interface(1) 2.5 GbE RJ45 port
    Max. Power Consumption14W
    Supported Voltage Range42.5–57V DC
    Weight448 g (15.8 oz)
    Enclosure MaterialPolycarbonate, aluminum alloy
    Mount MaterialPolycarbonate, galvanized steel (SGCC)
    LEDs / SystemWhite/Blue
    Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
    Ambient Operating Humidity5 to 95% noncondensing
    NDAA CompliantYes
    CertificationsCE, FCC, IC, SRRC, Anatel: 04071-25-08356
    ManagementEthernet
    Application Requirements / UniFi NetworkVersion 9.1.120 and later
    Application Requirements / Mobile AppiOS version 10.20.2 and later; Android version 10.21.7 and later

    All specifications are Ubiquiti's own, from its official tech specs and store pages. Ubiquiti lists no weatherproofing rating and no included power adapter for the U7 Long-Range.

    Need-to-Know

    • The U7 Long-Range is a dual-radio 2.4/5 GHz access point. Ubiquiti lists only the 2.4 GHz and 5 GHz bands for it, with no 6 GHz operation.
    • Its channel bandwidth goes up to 160 MHz (EHT 20/40/80/160), and the 4.3 Gbps 5 GHz maximum is at BW160.
    • The U7 Long-Range is powered by PoE through its single RJ45 port. Ubiquiti lists no power adapter as included, so plan a PoE switch port or PoE injector for each access point.
    • Managing the U7 Long-Range needs the UniFi Network application, version 9.1.120 or later.

    Best For / Customer Benefits

    Customer Benefits

    • WiFi 7 with 5 spatial streams and up to 4.3 Gbps on 5 GHz
    • Higher transmit power for long-range coverage of 160 m² (1,750 ft²)
    • Rated for 300+ connected devices, for busy rooms and larger spaces
    • One cable per access point: data and PoE power over a 2.5 GbE RJ45 port

    Best For

    Warehouses, halls and open-plan offices
    Large rooms with 300+ connected devices
    Sites that want fewer access points over a larger area

    Frequently Asked Questions

    Ubiquiti gives it 5 spatial streams (3 x 3 on 5 GHz, 2 x 2 on 2.4 GHz) and higher transmit power, 27 dBm on 5 GHz and 26 dBm on 2.4 GHz, for long-range coverage and higher capacity. It is rated for 160 m² (1,750 ft²) and 300+ connected devices.

    By PoE over its single 2.5 GbE RJ45 port. Ubiquiti gives a maximum power consumption of 14W and a supported voltage range of 42.5-57V DC. Ubiquiti lists no power adapter as included, so each access point needs a PoE switch port or a PoE injector.

    No. Ubiquiti describes it as a dual-radio 2.4/5 GHz WiFi 7 access point. The maximum data rate is 4.3 Gbps on 5 GHz (BW160) and 688 Mbps on 2.4 GHz (BW40).

    Ubiquiti lists ceiling and wall mounting, with a plastic mounting plate included. Its spec lists no weatherproofing rating, so treat it as an indoor access point. It is rated for -30 to 50° C ambient operating temperature and 5 to 95% noncondensing humidity.
