Ubiquiti airFiber 60 Xtreme-Range AF60-XR, 60 GHz PtP Bridge, 5.4 Gbps, 15+ km Range, 5 GHz Backup Radio

AF60-XR

Condition: NEW

Dhs. 4,462.61(exc. Vat)
(exc. Vat)
Dhs. 4,462.61(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti airFiber 60 Xtreme-Range AF60-XR, 60 GHz PtP Bridge, 5.4 Gbps, 15+ km Range, 5 GHz Backup Radio atomoffice
    Ubiquiti airFiber 60 Xtreme-Range AF60-XR, 60 GHz PtP Bridge, 5.4 Gbps, 15+ km Range, 5 GHz Backup Radio atomoffice
    Ubiquiti airFiber 60 Xtreme-Range AF60-XR, 60 GHz PtP Bridge, 5.4 Gbps, 15+ km Range, 5 GHz Backup Radio atomoffice
    Ubiquiti airFiber 60 Xtreme-Range AF60-XR, 60 GHz PtP Bridge, 5.4 Gbps, 15+ km Range, 5 GHz Backup Radio atomoffice

    Ubiquiti UISP 60 GHz Wireless

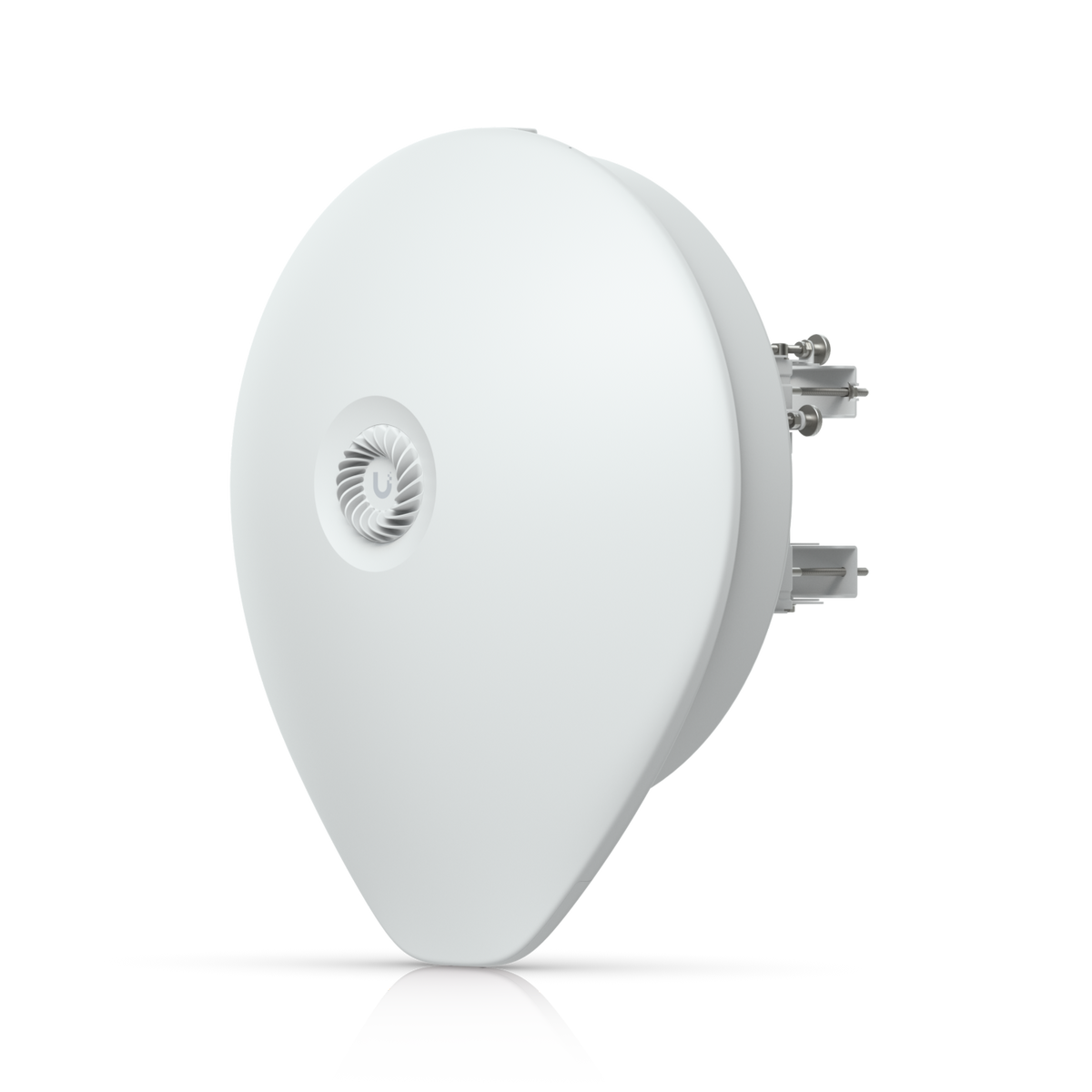

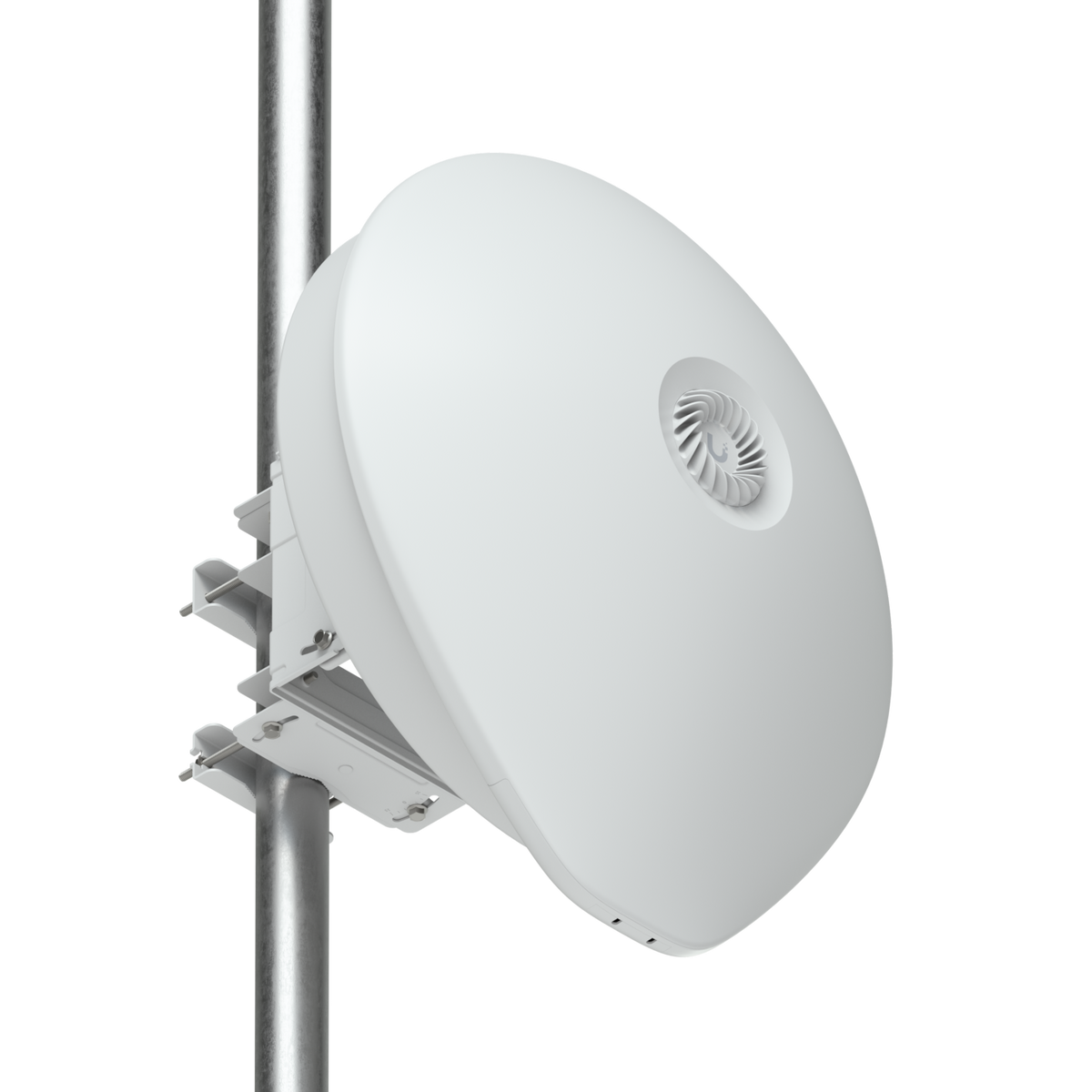

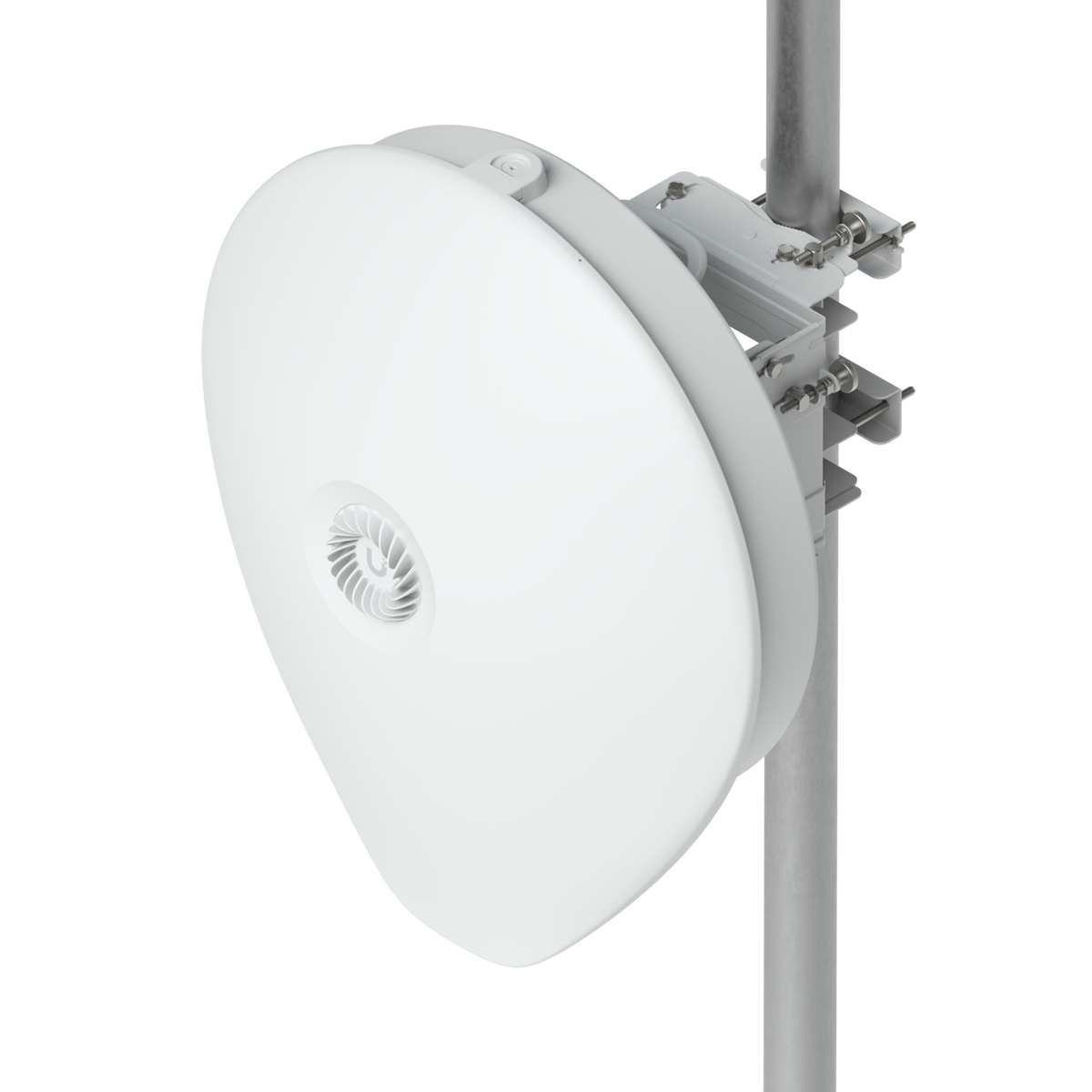

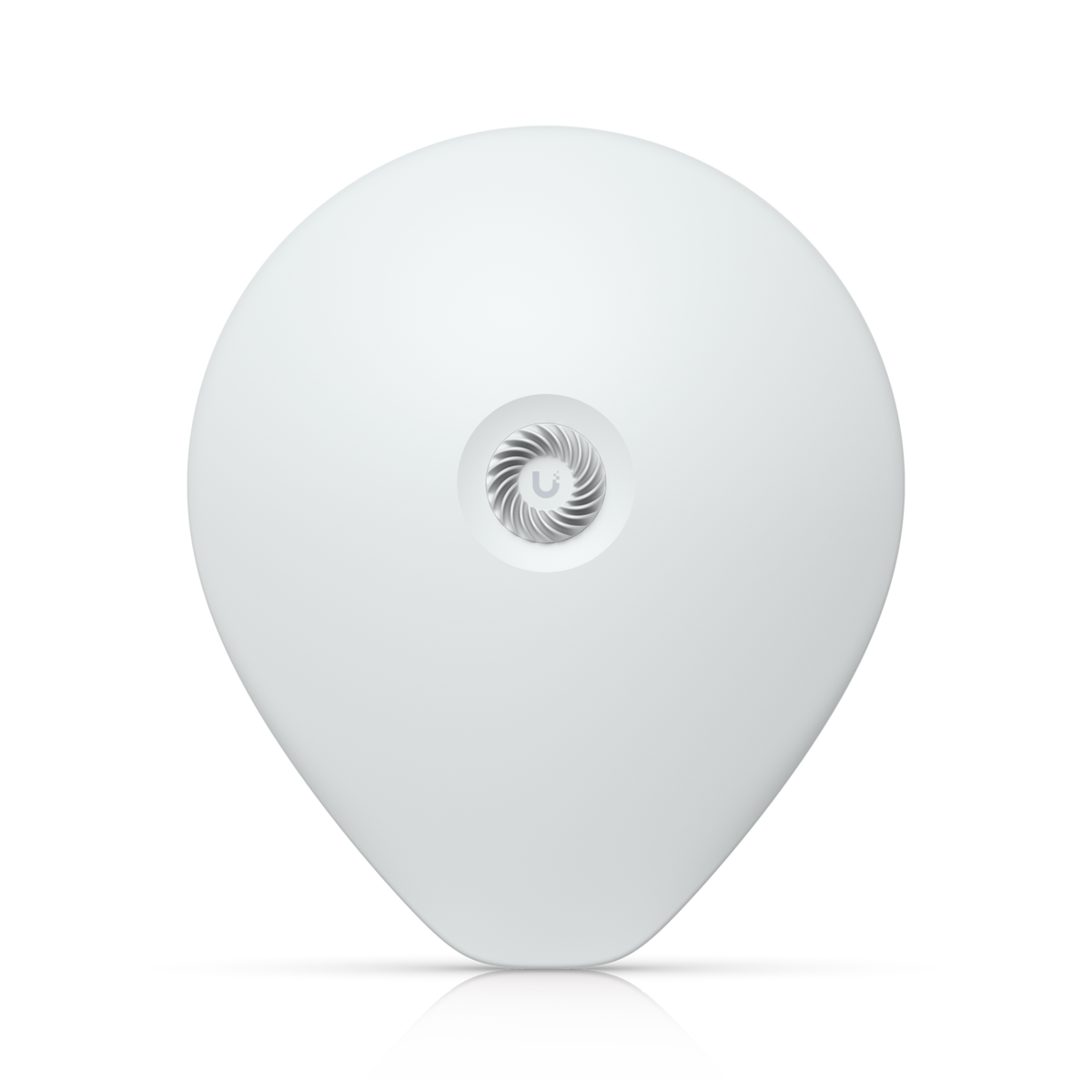

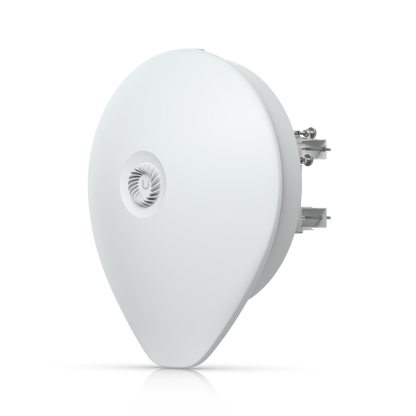

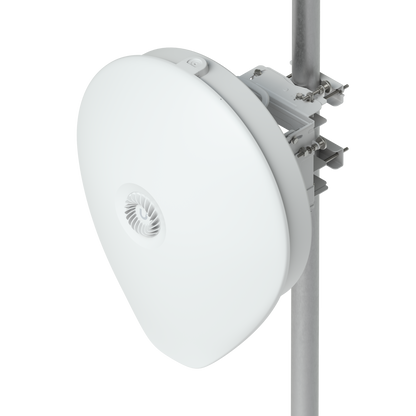

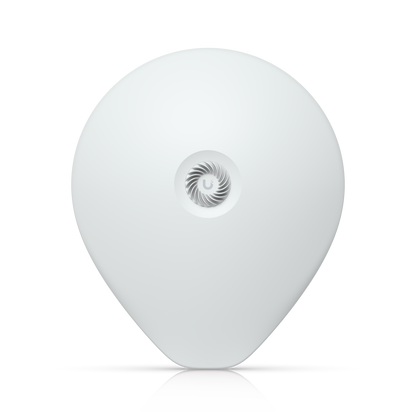

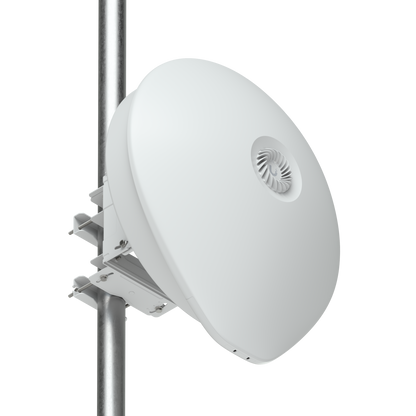

    Ubiquiti airFiber 60 Xtreme-Range (AF60-XR) 60 GHz Bridge

    The airFiber 60 Xtreme-Range is a multi-gigabit, 60 GHz point-to-point bridge from Ubiquiti, designed to create long-distance links. Ubiquiti rates it at 15+ km link range and 5.4 Gbps maximum total throughput, with a 5 GHz 800+ Mbps weather-resilient backup radio, a GbE port and a 10G SFP+ port, integrated GPS and Bluetooth, and a precision alignment mount. It is bought in pairs to form a link.

    Quick Glance

    Wireless Standard
    60 GHz PtP, 5 GHz backup radio
    Max Speed
    5.4 Gbps total throughput
    Coverage
    15+ km link range
    Power Type
    Passive PoE, adapter included
    Form Factor
    Pole mount, IPX6

    Key Features

    15+ km at up to 5.4 Gbps, with a 5 GHz backup

    An integrated 60 GHz radio with 2160, 1080 and 540 MHz channel widths gives a maximum total throughput of 5.4 Gbps duplex and a link range of 15+ km. A 5 GHz 800+ Mbps weather-resilient backup radio, with 26 dBi antenna gain and dual-linear polarization, is built in alongside it.

    GbE and 10G SFP+ ports, quad-core processor

    One GbE RJ45 port and one 1/10G SFP+ port connect the bridge to the network. Inside is a quad-core ARM Cortex-A53 at 1.4 GHz with 1 GB DDR3L memory, plus integrated GPS and Bluetooth. Power comes over passive PoE from the included 48V DC, 0.65A gigabit PoE adapter, with a maximum power consumption of 24W.

    Built for outdoor masts, aligned precisely

    The UV-stabilized polycarbonate and steel enclosure is IPX6 weatherproof, rated for -40 to 55° C ambient operation and a wind loading of 422 N at 200 km/h. The included precision alignment kit fits poles of Ø40 to 80 mm outer diameter, and UISP provides antenna alignment, speed test and other link tools.

    Detailed Specifications

    60 GHz / Operating Frequency57–71 GHz (depends on regulatory region)
    60 GHz / Channel Bandwidth2160, 1080, 540 MHz (540 MHz: FW version 1.2.0 and later)
    60 GHz / Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz (depends on regulatory region)
    60 GHz / Modulation16QAM, BPSK, QPSK
    60 GHz / PolarizationVertically linear
    60 GHz / BeamwidthAzimuth: 3 dB 1.4°; Elevation: 3 dB 1.4°
    Management Radio2400–2483.5 MHz
    5 GHz / Operating FrequencyUS/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz; Worldwide: 5150 - 5875 MHz (depends on regulatory region)
    5 GHz / Channel Bandwidth20, 40, 80 MHz
    5 GHz / ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
    5 GHz / Antenna Gain26 dBi
    5 GHz / PolarizationDual-linear
    5 GHz / BeamwidthAzimuth: 3 dB 5°; Elevation: 3 dB 5°
    5 GHz / Cross-pol Isolation14 dB
    Electrical Downtilt (60 GHz / 5 GHz)0° / 0°
    Max. Total Throughput5.4 Gbps (duplex)
    Max. Range15+ km
    Backup Radio5 GHz 800+ Mbps weather-resilient backup radio
    Operating ModePtP only
    ProcessorQuad-core ARM® Cortex®-A53 at 1.4 GHz
    Memory1 GB DDR3L
    Networking Interface(1) GbE RJ45 port; (1) 1/10G SFP+ port
    GPSYes
    BluetoothIntegrated (store listing: "Integrated GPS & Bluetooth")
    RF ConnectionsInternal
    ButtonFactory reset
    LED / PowerFlashing white: bootup in progress; White: not connected to UISP application; Blue: connected to UISP application
    LED / EthernetFlashing blue: Ethernet activity
    LED / GPSBlue: receiving at least (4) GPS satellite signals
    LED / LinkBlue: 5 GHz link; Blue: 60 GHz link
    Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-); Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
    Power Supply48V DC, 0.65A gigabit PoE adapter (included)
    Supported Voltage Range44–54V DC; 22–27V DC
    Max. Power Consumption24W
    Dimensions779 x 664 x 383 mm (30.7 x 26.1 x 15.1")
    WeightWithout mount: 8.6 kg (19 lb); With mount: 13 kg (28.7 lb)
    Enclosure MaterialUV stabilized polycarbonate, steel
    Mount MaterialGalvanized steel
    MountingPrecision alignment kit (included); Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter
    Wind Loading422 N at 200 km/h (94.86 lbf at 125 mph)
    WeatherproofingIPX6
    Ambient Operating Temperature-40 to 55° C (-40 to 131° F)
    Ambient Operating Humidity5 to 95% noncondensing
    NDAA CompliantYes
    CertificationsFCC, IC, CE
    Ubiquiti Specific FeaturesIntegrated 60 GHz radio, discovery protocol, Wave technology
    ServicesUISP, ping watchdog, NTP client, device discovery
    ToolsAntenna alignment, discovery utility, ping, trace route, speed test
    NetworkBridge mode
    EncryptionWPA2-PSK (AES)
    Management ApplicationUISP web: Version 1.4.3 and later; UISP iOS: Version 2.20 and later; UISP Android: Version 2.21.5 and later

    Specifications are Ubiquiti's own, from its official tech specs and store listing for the airFiber 60 Xtreme-Range (AF60-XR), and are per unit; a link needs two units. Operating frequencies and channels depend on the regulatory region. Ubiquiti may update specifications without notice.

    Need-to-Know

    • Ubiquiti states this product should be purchased in pairs in order to form links. One AF60-XR is one end of a point-to-point link; a working link needs two.
    • Ubiquiti states that the 60 GHz operating frequency (57–71 GHz), the 60 GHz operating channels and the 5 GHz frequencies depend on the regulatory region. Check that your link plan complies with local regulations in the UAE before ordering.
    • The 540 MHz channel bandwidth needs firmware version 1.2.0 and later. The 2160 and 1080 MHz widths are not subject to that note.
    • The included 48V DC, 0.65A gigabit PoE adapter powers the bridge over passive PoE. Ubiquiti notes that passive PoE over 2 pairs is for 44–54V DC only.
    • Ubiquiti gives the weight as 8.6 kg without the mount and 13 kg with it. Plan the mast and pole (Ø40 to 80 mm outer diameter) for the full 13 kg and the stated wind loading.

    Best For / Customer Benefits

    Customer Benefits

    • Expert help planning a link: distance, mounting and how many pairs you need.
    • 15+ km range and 5.4 Gbps maximum total throughput from one pair of units.
    • A built-in 5 GHz backup radio and an IPX6 enclosure for outdoor links.
    • Precision alignment kit and gigabit PoE adapter included, as Ubiquiti lists them.
    • VAT invoice issued with every order for UAE business buyers.

    Best For

    Long-distance building-to-building and site-to-site backhaul
    Wireless ISPs and operators building multi-gigabit PtP links
    Outdoor mast and rooftop installs managed in UISP
    Links that need a 5 GHz backup when the weather turns

    Frequently Asked Questions

    Yes. Ubiquiti states that the airFiber 60 Xtreme-Range should be purchased in pairs in order to form links. It operates in PtP (point-to-point) mode only, so each link needs one unit at each end.

    Ubiquiti rates it at a maximum range of 15+ km and a maximum total throughput of 5.4 Gbps duplex on the 60 GHz link. A 5 GHz 800+ Mbps weather-resilient backup radio is built in. Real-world results depend on the path, weather and alignment.

    Ubiquiti states that its 60 GHz operating frequency (57–71 GHz) and operating channels depend on the regulatory region, as do the 5 GHz frequencies. It does not publish a UAE-specific statement, so confirm that your link plan meets local regulations before ordering. Contact us if you need help with the plan.

    By passive PoE from the included 48V DC, 0.65A gigabit PoE adapter, with a maximum power consumption of 24W. For data it has one GbE RJ45 port and one 1/10G SFP+ port.

    With the included precision alignment kit, which fits poles with an outer diameter of Ø40 to 80 mm. UISP provides an antenna alignment tool, and the unit has integrated GPS. The enclosure is IPX6 weatherproof and rated for a wind loading of 422 N at 200 km/h.
