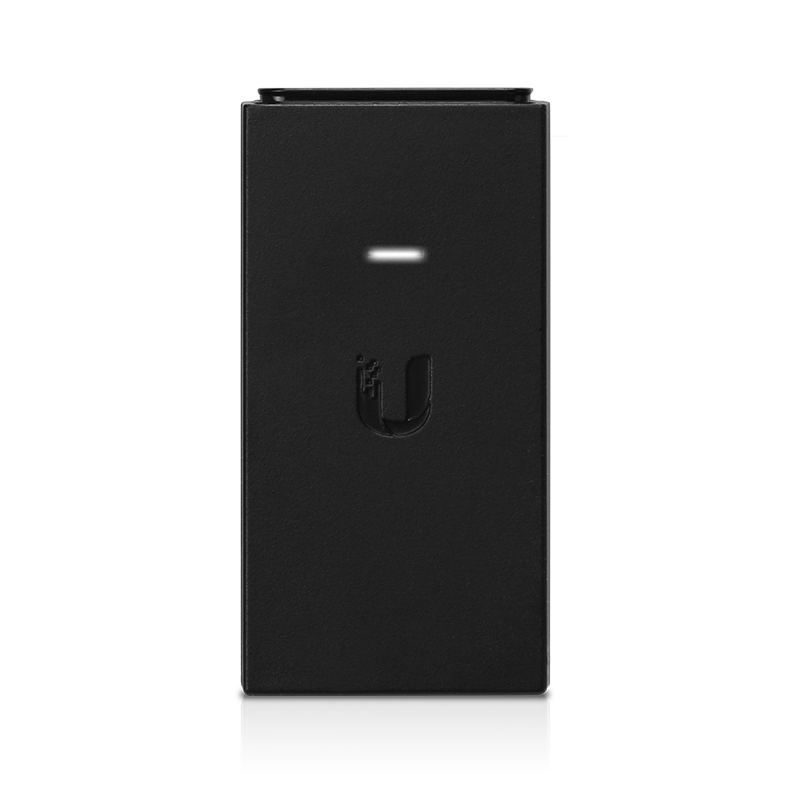

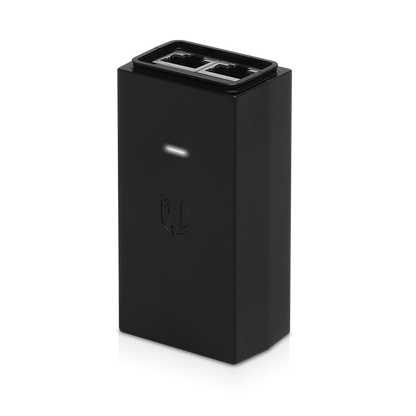

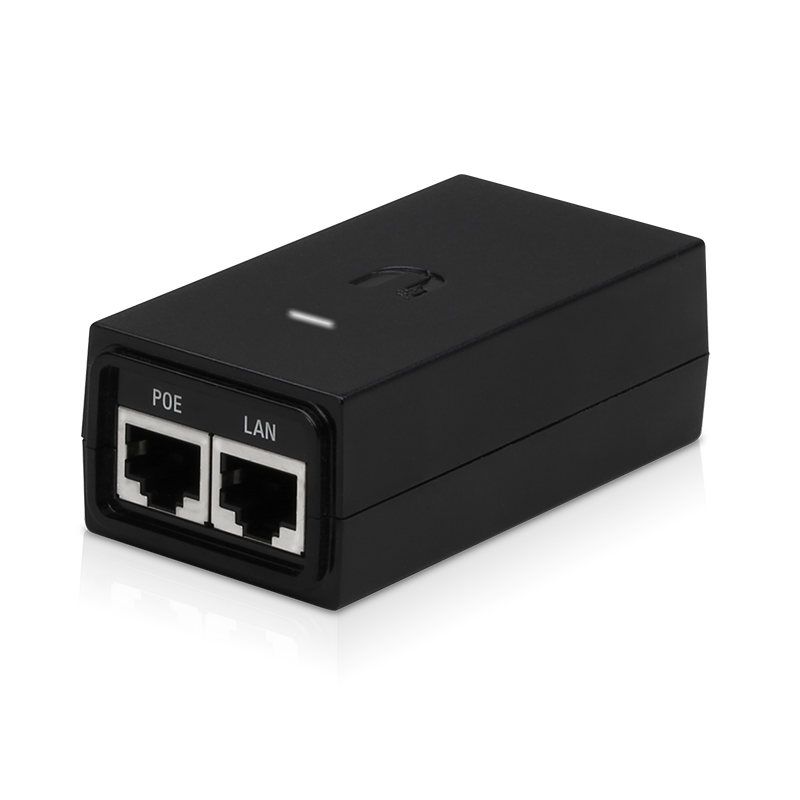

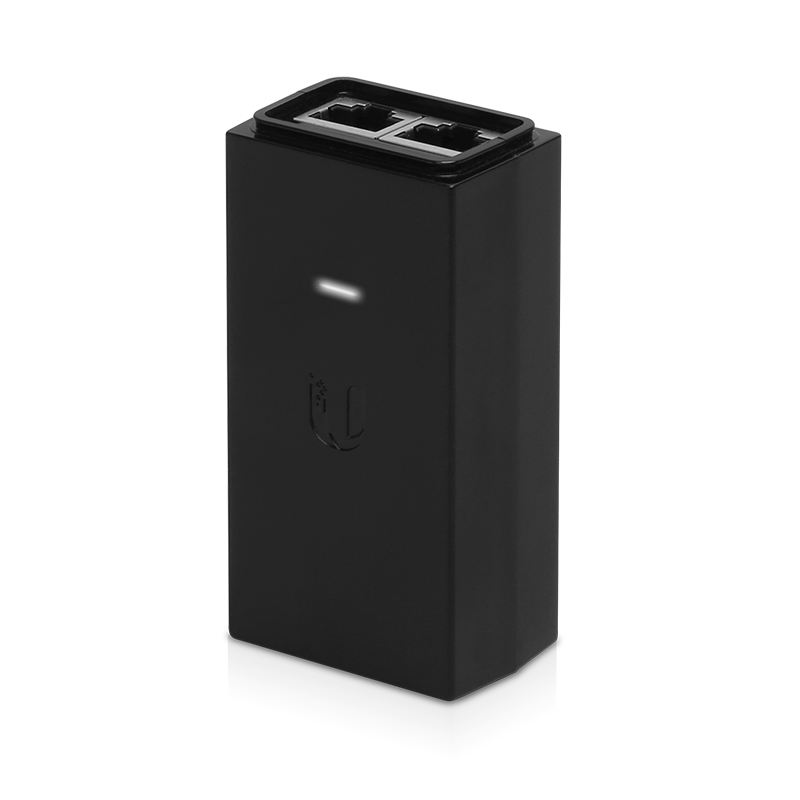

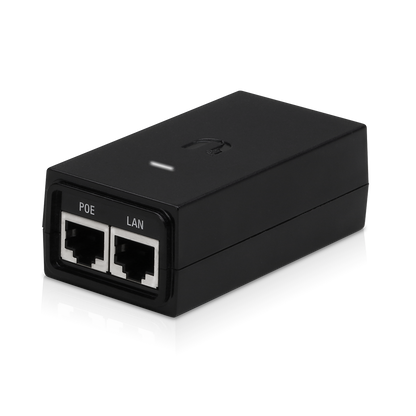

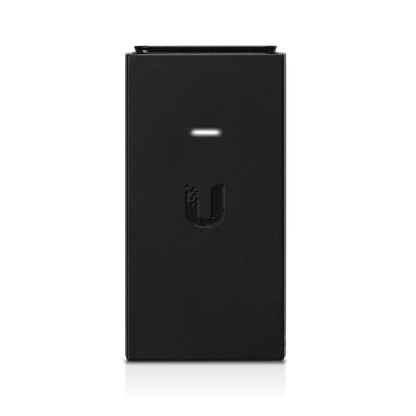

Ubiquiti 24V DC PoE Adapter POE-24-12W-G, Mid-Power 24V 0.5A, Gigabit LAN, Surge Protected

POE-24-12W-G

Condition: NEW

Dhs. 60.45(exc. Vat)
(exc. Vat)
Dhs. 60.45(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Ubiquiti 24V DC PoE Adapter POE-24-12W-G, Mid-Power 24V 0.5A, Gigabit LAN, Surge Protected atomoffice
    Ubiquiti 24V DC PoE Adapter POE-24-12W-G, Mid-Power 24V 0.5A, Gigabit LAN, Surge Protected atomoffice
    Ubiquiti 24V DC PoE Adapter POE-24-12W-G, Mid-Power 24V 0.5A, Gigabit LAN, Surge Protected atomoffice
    Ubiquiti 24V DC PoE Adapter POE-24-12W-G, Mid-Power 24V 0.5A, Gigabit LAN, Surge Protected atomoffice

    Ubiquiti 24V DC PoE Adapter

    Ubiquiti 24V DC PoE Adapter POE-24-12W-G (Mid-Power, Gigabit)

    The Ubiquiti POE-24-12W-G is the Mid-Power model of Ubiquiti's 24V DC PoE Adapter. It supplies 24V DC @ 0.5A over the network cable on pins 4, 5 (+) and 7, 8 (-), passes a Gigabit LAN connection through, and takes 100-240V AC mains input through an IEC-320 C6 connector. Surge and clamping protection, an earthed AC cable and a reset button with remote reset capability help protect the powered device.

    Quick Glance

    Power Output
    24V DC @ 0.5A
    Port Speed
    Gigabit LAN
    Device Type
    24V DC PoE adapter
    Network Interface
    RJ45 shielded socket
    Operating Temperature
    0 to 40° C

    Key Features

    24V DC @ 0.5A over the data cable

    Ubiquiti rates this Mid-Power model at 24V DC @ 0.5A output, using 2-pair powering on pins 4, 5 (+) and 7, 8 (-). It runs from a 100-240V AC, 50/60Hz input through an IEC-320 C6 connector, with 75+% efficiency, 1% maximum output ripple and line and load regulation of 3% and 5% or better.

    Surge, clamping and peak pulse protection

    Difference and common mode surge protection is built in, with a maximum surge discharge of 1500A (8/20 μs) on power, a peak pulse current of 36A (10/1000 μs) on data, clamping at 11V data and 60V power, shunt capacitance under 5 pF and a response time under 1 ns. The AC cable has an earth ground.

    Gigabit pass-through and remote reset

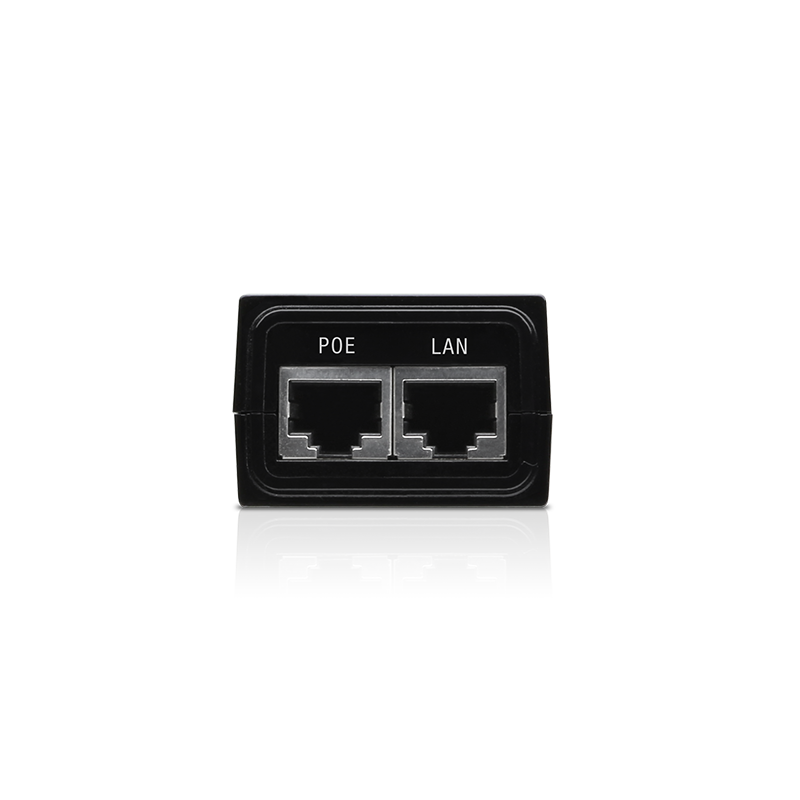

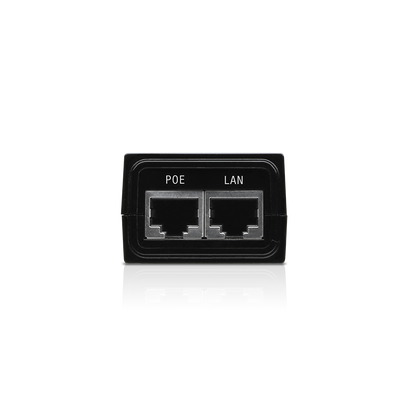

    Data enters on an RJ45 shielded socket and leaves with power on the PoE side over a Gigabit LAN connection. The adapter has a reset button and remote reset capability. Ubiquiti lists no LAN activity indicator on this model. It measures 87 x 44 x 29 mm and weighs 99 g.

    Detailed Specifications

    Output Voltage24V DC @ 0.5A
    Rated Voltage100-240V AC @ 50/60Hz
    Input Current0.3A @ 120V AC, 0.2A @ 240V AC
    Inrush Current<30A peak @ 120V AC, <60A peak @ 230V AC
    Efficiency75+%
    Output Ripple1% Max.
    Switching Frequency50 kHz
    Line Regulation≤ 3%
    Load Regulation≤ 5%
    2-pair PoweringPins 4, 5 (+) and pins 7, 8 (-)
    4-pair Powering–
    AC ConnectorIEC-320 C6
    Gigabit LAN PortYes
    Data IN / PoERJ45 shielded socket
    LAN Activity IndicatorNo
    Reset ButtonYes
    Remote Reset CapabilityYes
    Surge ProtectionDifference and common mode
    Clamping Protection11V data, 60V power
    Max. Surge Discharge1500A (8/20 μs) power
    Peak Pulse Current36A (10/1000 μs) data
    Shunt Capacitance<5 pF data
    Response Time<1 ns
    Dimensions87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
    Weight99 g (3.5 oz)
    ColourBlack
    CertificationsCE, FCC, IC, UL
    Ambient Operating Temperature0 to 40° C (32 to 104° F)
    Ambient Operating Humidity35 to 95% noncondensing
    Storage Temperature-30 to 70°C (-22 to 158° F)

    Specifications are taken from Ubiquiti's official technical specification (the POE-24-12W-G Mid-Power column of the 24V DC PoE Adapter table) and store listing. Ubiquiti does not state the mains plug type; ask AtomOffice before ordering.

    Need-to-Know

    • This adapter outputs 24V DC on pins 4, 5 (+) and 7, 8 (-). Use it only with a device that accepts 24V DC PoE input on those pins, and check the device's power input before connecting.
    • This is the Mid-Power model, 24V DC @ 0.5A. Ubiquiti also makes Low-Power and Hi-Power versions of the 24V DC PoE Adapter, which are not offered on this page.
    • Mains plug: Ubiquiti states the AC input is an IEC-320 C6 connector and the AC cable has an earth ground, but does not state the plug type. Its official store lists this part as the EU-region SKU POE-24-12W-G EU. Ask AtomOffice which plug is supplied before you order.
    • The adapter is rated for 0 to 40° C and 35 to 95% noncondensing humidity. Ubiquiti does not state an outdoor rating; install it indoors.

    Best For / Customer Benefits

    Customer Benefits

    • One network cable carries Gigabit data and 24V DC @ 0.5A to the device.
    • Difference and common mode surge protection with clamping on both data and power.
    • Universal 100-240V AC, 50/60Hz input with an earthed AC cable.
    • Reset button and remote reset capability.

    Best For

    Powering a device that accepts 24V DC PoE input
    Adding power to a single device from a switch port without PoE
    Installations that need surge protection between the switch and the device

    Frequently Asked Questions

    Ubiquiti rates this Mid-Power model at 24V DC @ 0.5A, delivered by 2-pair powering on pins 4, 5 (+) and 7, 8 (-). It runs from 100-240V AC at 50/60Hz, draws 0.3A @ 120V AC or 0.2A @ 240V AC, and is 75+% efficient.

    Only devices that accept 24V DC PoE input on pins 4, 5 (+) and 7, 8 (-). Ubiquiti's specification gives a 24V DC output with no 4-pair powering, so check your device's power input requirements before connecting it to this adapter.

    Yes. Ubiquiti lists a Gigabit LAN port: data comes in on an RJ45 shielded socket and leaves with power on the PoE side, so one cable to the device carries both.

    Ubiquiti states the AC input is an IEC-320 C6 connector and the AC cable has an earth ground, but does not state the plug type in its text. Its official store lists this part as the EU-region SKU POE-24-12W-G EU. Ask AtomOffice which plug is supplied before ordering.

    Need a 24V DC PoE Adapter?

    Tell us which device you need to power and we will confirm it accepts 24V DC PoE, and which mains plug is supplied, before you order.
