TP-Link VIGI C340 4MP Outdoor Full-Color Bullet Network Camera, 2.8 mm Lens, PoE, IP67

VIGI C340(2.8mm)

Condition: NEW

Dhs. 339.65(exc. Vat)
(exc. Vat)
Dhs. 339.65(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    TP-Link VIGI C340(2.8mm) view 1 atomoffice
    TP-Link VIGI C340(2.8mm) view 2 atomoffice
    TP-Link VIGI C340(2.8mm) view 3 atomoffice
    TP-Link VIGI C340(2.8mm) view 4 atomoffice
    TP-Link VIGI C340(2.8mm) view 5 atomoffice

    TP-Link VIGI Network Camera

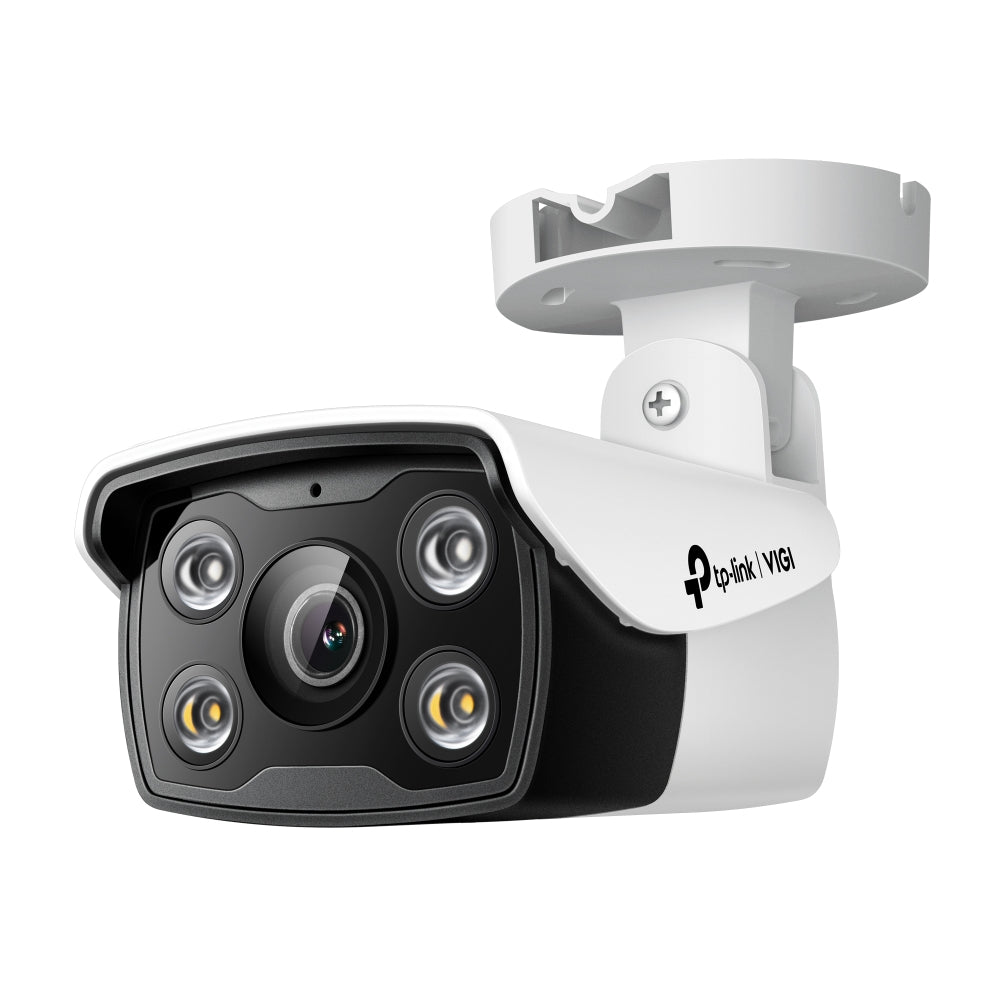

    VIGI C340 4MP Outdoor Full-Color Bullet Network Camera, 2.8 mm

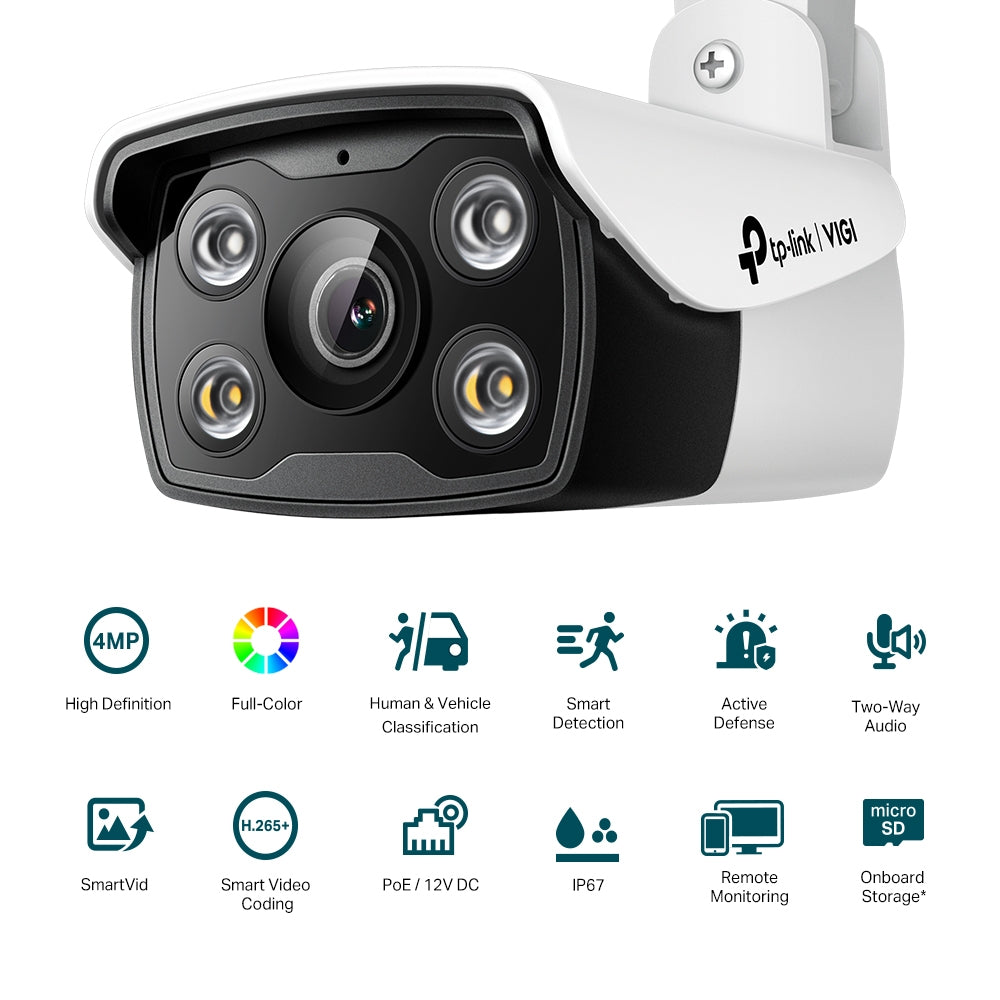

    The TP-Link VIGI C340 is a 4MP outdoor bullet network camera for CCTV systems. This 2.8 mm version has a wide 113.6° diagonal view, full-colour night images from IR and white LEDs up to 30 m, and smart detection that can tell humans and vehicles apart. It is powered by PoE or 12 V DC, is rated IP67, and works with VIGI NVRs, the VIGI app and ONVIF Profile S systems.

    Quick Glance

    Resolution
    4MP (2560 × 1440)
    Night Vision
    IR and white LEDs, 30 m range
    Network Interface
    10/100M RJ45, PoE or 12 V DC
    Local Storage
    microSD up to 256 GB
    Lens Type
    Fixed 2.8 mm, F1.6, M12 mount

    Key Features

    4MP full-colour video, day and night

    A 1/3-inch progressive scan CMOS sensor records up to 2560 × 1440. Minimum illumination is 0.005 Lux, and 0 Lux with IR or white light from two IR LEDs and two white LEDs, each with a 30 m range. SmartVid adds Smart IR, WDR and 3D DNR, and H.265+ compression reduces storage use.

    Smart detection with audio alarms

    Human and vehicle classification, line-crossing, area intrusion, region entering and exiting, object abandoned and removal detection, and video tampering alerts are listed. Alarm linkage includes push messages, an audible warning and white light flashing. Two-way audio uses the built-in microphone and speaker.

    Outdoor-ready, simple to connect

    IP67 protection and an operating range of -30°C to 60°C suit outdoor sites. One RJ45 10/100M port carries PoE (802.3af/at, class 0), or you can use 12 V DC. It supports ONVIF Profile S and works with the VIGI app, VIGI Security Manager, VIGI NVR and a web browser.

    Detailed Specifications

    Image Sensor1/3-inch progressive scan CMOS
    LensFixed focal lens, 2.8 mm, aperture F1.6, M12 lens mount
    Field of View (2.8 mm)Horizontal 96.1°; vertical 52°; diagonal 113.6°
    DORI Distance (2.8 mm)Detect 64 m (209 ft); observe 27 m (87 ft); recognize 13 m (42 ft); identify 6 m (21 ft)
    Minimum Illumination0.005 Lux; 0 Lux with IR/white light
    Illuminators2× IR LED (30 m, 850 nm); 2× white LED (30 m); auto, scheduled, always on or always off
    Max. Resolution2560 × 1440
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264
    Video Bit RateMain stream: 256 Kbps to 4 Mbps; sub-stream: 64 Kbps to 512 Kbps
    Image EnhancementBLC; 3D DNR; HLC; SmartIR; DWDR
    Angle Adjustment (manual)Pan -90° to 90°; tilt -90° to 90°
    Audio CommunicationTwo-way audio
    Built-in MicrophoneYes; records anything within a 16.4 ft (5 m) radius of the camera
    Built-in SpeakerYes
    Environment Noise FilteringYes
    Audio Sampling Rate8 kHz
    Audio Bit Rate64 Kbps (G.711 alaw)
    Smart EventHuman and vehicle classification; area intrusion; line-crossing; people detection; vehicle detection; region entering; region exiting; object abandoned; object removal
    Basic EventMotion detection; video tampering detection; exception (illegal login)
    Alarm LinkageMemory card video recording; message push; audible warning; white light flashing
    ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
    ONVIFYes; Open Network Video Interface (Profile S)
    Simultaneous Live View3 main streams and 3 sub-streams
    ClientVIGI App; VIGI Security Manager; VIGI NVR; web
    Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
    CloudYes
    SecurityPassword protection; HTTPS encryption; IP address filter; digest authentication
    Network Interface1× RJ45 10/100M self-adaptive Ethernet port, PoE
    Power PortDC power port
    On-board StorageBuilt-in memory card slot; supports microSD card up to 256 GB
    Reset ButtonYes
    Power Supply12 V DC ± 5%, 5.5 mm coaxial power plug; or PoE (802.3af/at, class 0)
    Max. Power ConsumptionMaximum 7 W; typical day mode 1.5 W; night mode with IR LED 3.4 W; night mode with white LED 3.0 W
    Product Dimensions (L × W × H)78 × 174 × 70 mm
    Net Weight0.28 kg
    Gross Weight0.42 kg
    MaterialPlastic
    ProtectionIP67
    Operating Temperature-30°C to 60°C
    Storage Temperature-40°C to 60°C
    Operating Humidity95% or less, non-condensing
    Package ContentVIGI network camera; Quick Start Guide; waterproof cable attachments; mounting accessories
    CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

    Figures are taken from TP-Link's official specification for the VIGI C340 (hardware version V2). Lens figures shown are for the 2.8 mm lens. Net weight is the camera alone; gross weight is the packed weight.

    Need-to-Know

    • Specifications are TP-Link's published figures for the VIGI C340, hardware version V2. This page is for the 2.8 mm lens version.
    • The camera can be powered by PoE (802.3af/at, class 0) or 12 V DC. TP-Link's package listing does not include a PoE injector, PoE switch or 12 V power adapter.
    • TP-Link's overview copy marks onboard storage with an asterisk; the memory card is not listed in the package contents.
    • Field of view and DORI distances in this page are the figures TP-Link lists for the 2.8 mm lens.

    Best For / Customer Benefits

    Customer Benefits

    • 4MP video with full-colour night images from IR and white LEDs up to 30 m.
    • Human and vehicle classification, line-crossing and intrusion alerts to cut false alarms.
    • PoE or 12 V DC power, IP67 protection and ONVIF Profile S for outdoor installations.
    • microSD recording up to 256 GB, or record to a VIGI NVR, NAS or PC client.

    Best For

    Shops, offices and warehouses with outdoor entrances
    Sites that already use a VIGI NVR
    Installers running PoE cabling
    Perimeters that need human and vehicle alerts

    Frequently Asked Questions

    Use either PoE over the RJ45 port (802.3af/at, class 0) or a 12 V DC supply with a 5.5 mm coaxial plug. TP-Link's package list names the camera, a Quick Start Guide, waterproof cable attachments and mounting accessories, so plan for a PoE source or a 12 V supply separately.

    TP-Link lists a 96.1° horizontal, 52° vertical and 113.6° diagonal field of view for the 2.8 mm lens. Its DORI distances are 64 m to detect, 27 m to observe, 13 m to recognize and 6 m to identify.

    Yes. The camera has a built-in memory card slot that supports a microSD card up to 256 GB. The card is not included. You can also record to a VIGI NVR, a PC with VIGI Security Manager, a NAS or FTP, as TP-Link describes in its overview copy.

    TP-Link lists ONVIF support through the Open Network Video Interface, Profile S. It also lists the VIGI app, VIGI Security Manager, VIGI NVR and a web browser as ways to view and manage the camera.

    Two IR LEDs (850 nm) and two white LEDs, each with a 30 m range, support the full-colour and IR night images. The illuminators can be set to auto, scheduled, always on or always off.
