TP-Link Gigabit Desktop Switch, 5 or 8 Ports, Unmanaged Plug and Play, Metal Casing, Fanless

TL-SG105

Condition: NEW

Model
Dhs. 63.56(exc. Vat)
(exc. Vat)
Dhs. 63.56(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more

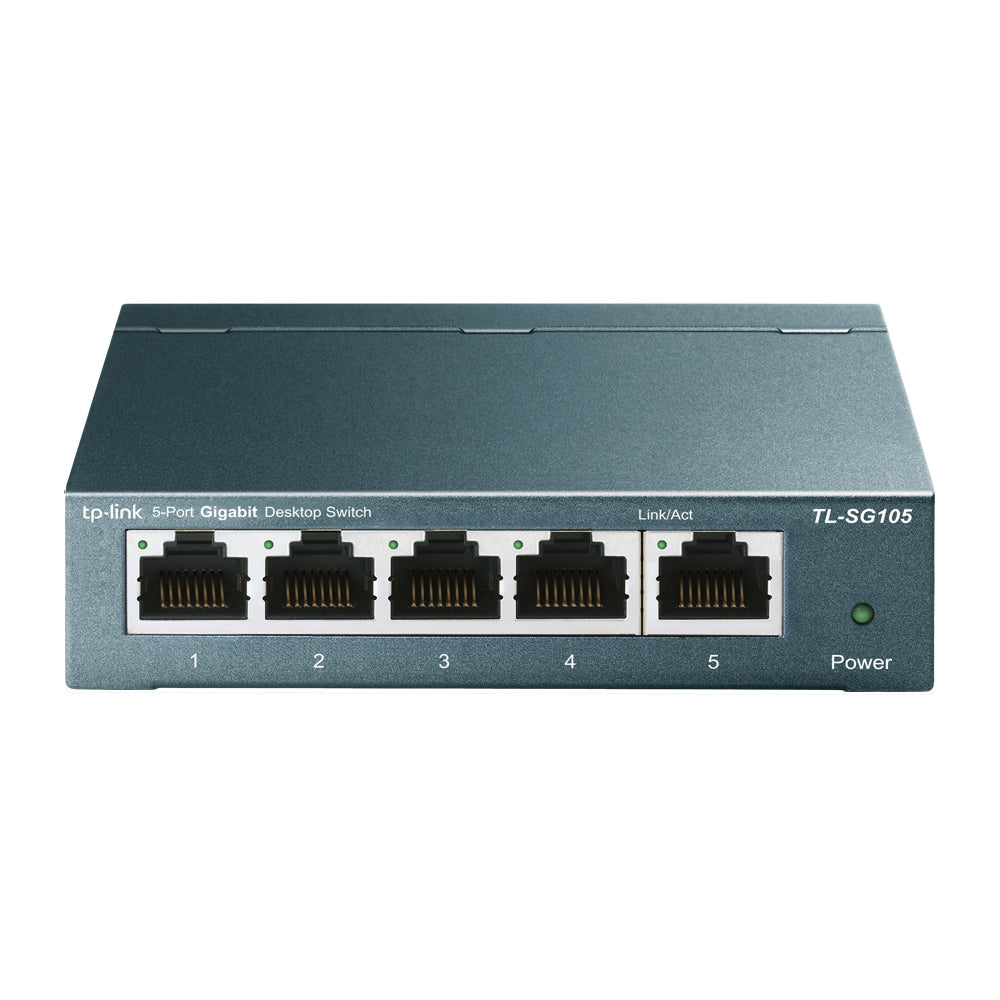

    TP-Link TL-SG105 view 1 atomoffice

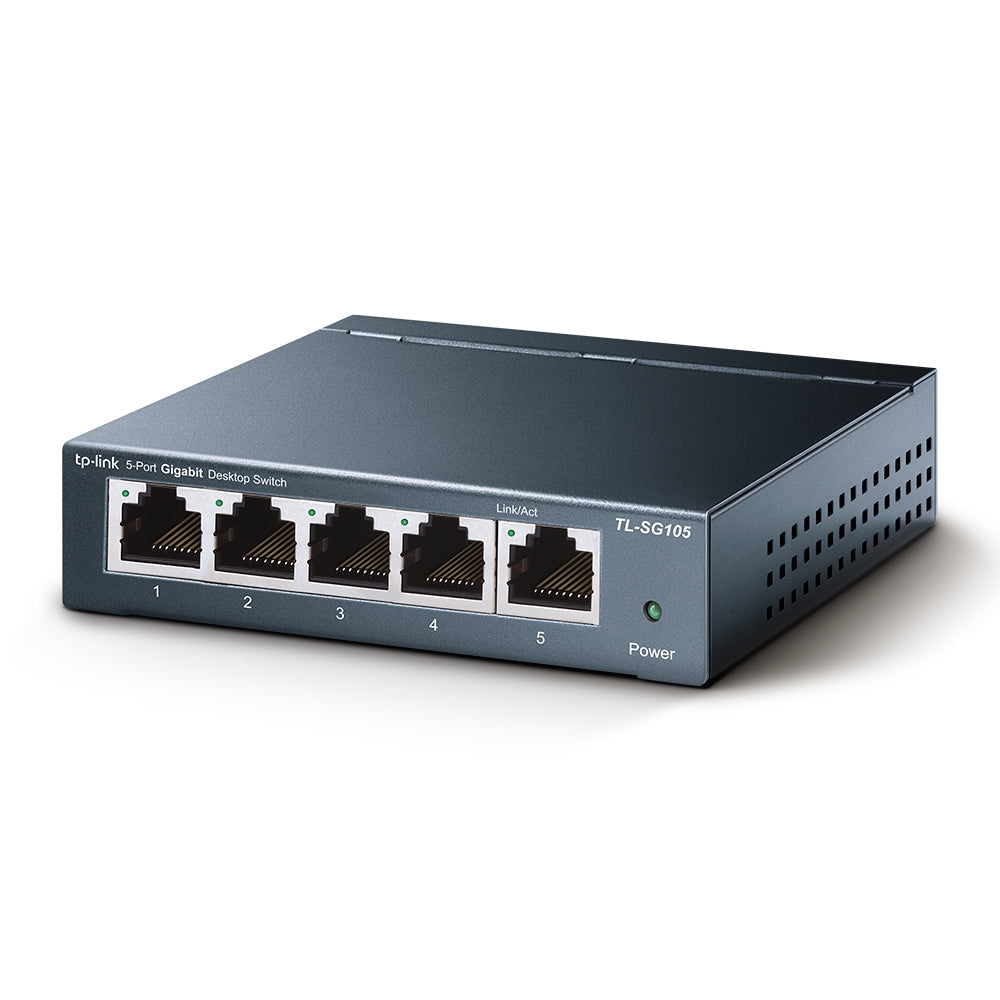

    TP-Link TL-SG105 view 2 atomoffice
    TP-Link TL-SG105 view 3 atomoffice
    TP-Link TL-SG105 view 4 atomoffice
    TP-Link TL-SG105 view 5 atomoffice
    TP-Link TL-SG108 view 1 atomoffice

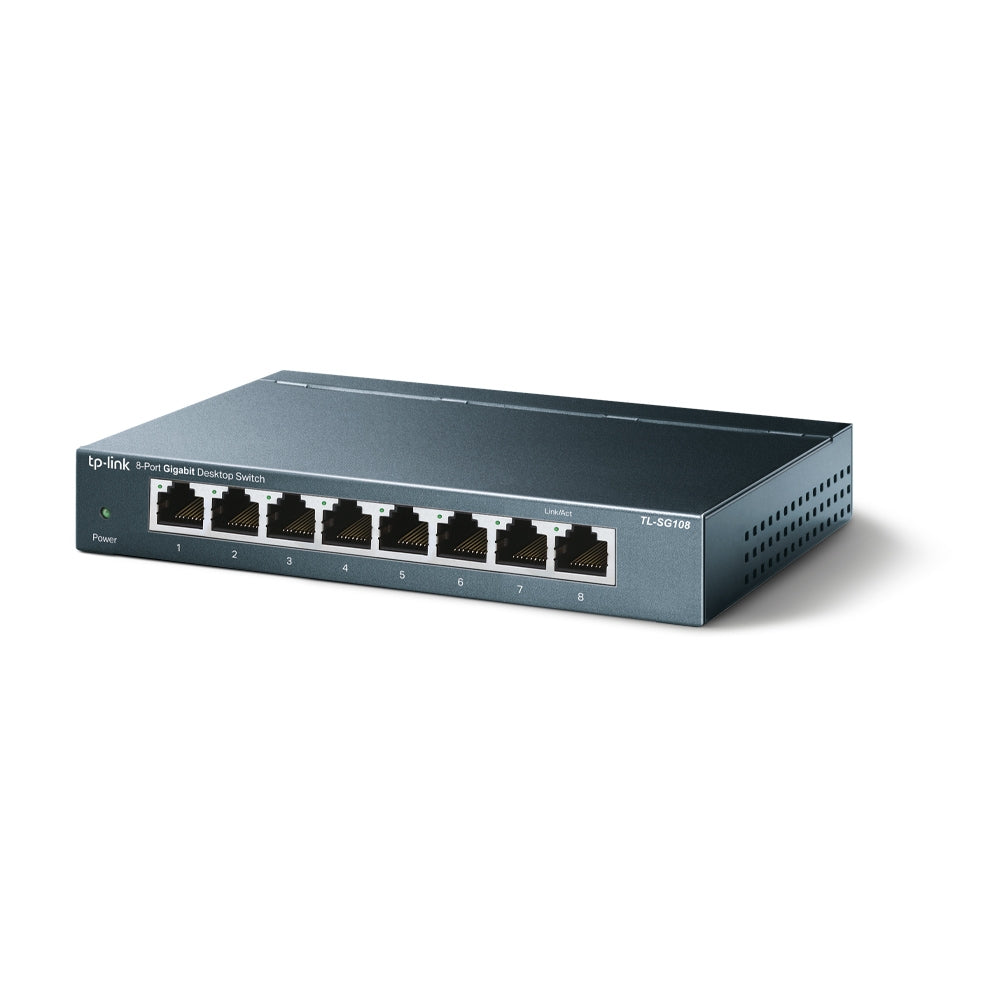

    TP-Link TL-SG108 view 2 atomoffice
    TP-Link TL-SG108 view 3 atomoffice
    TP-Link TL-SG108 view 4 atomoffice

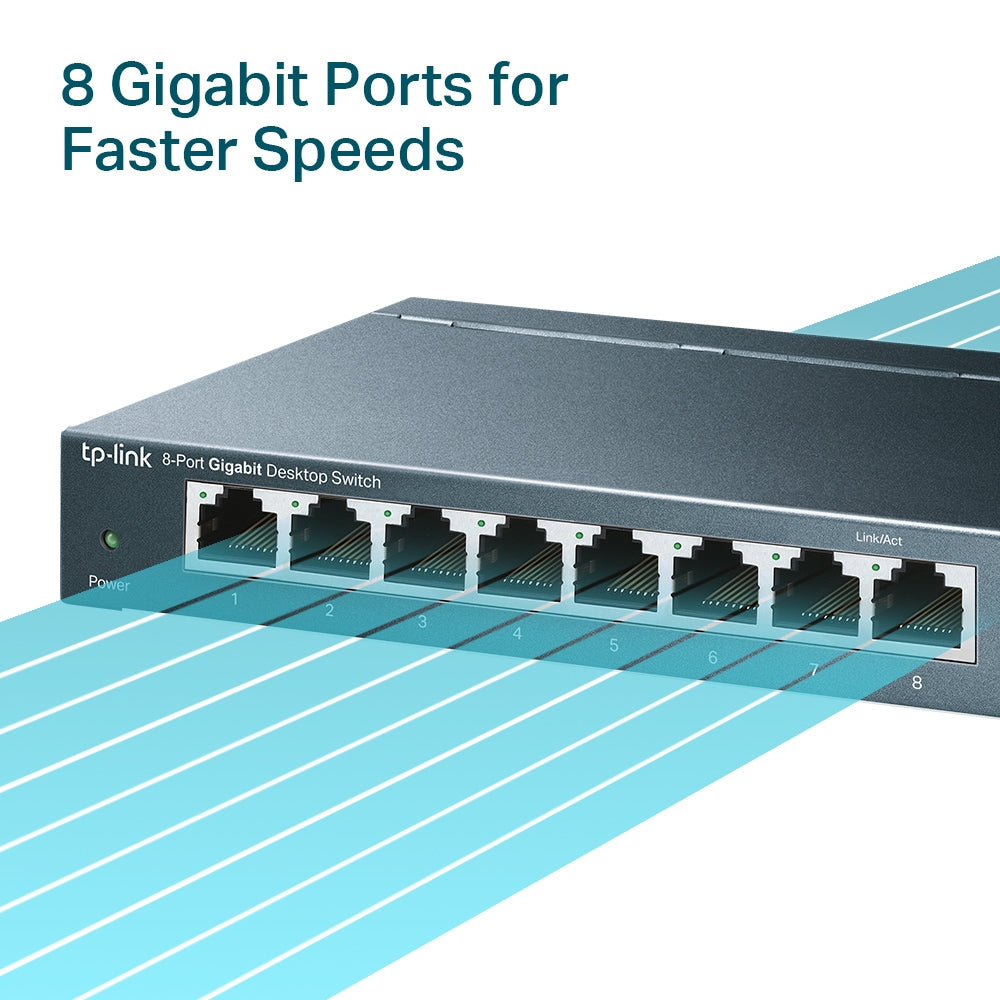

    TP-Link TL-SG108 view 5 atomoffice

    TP-Link unmanaged Gigabit desktop switches

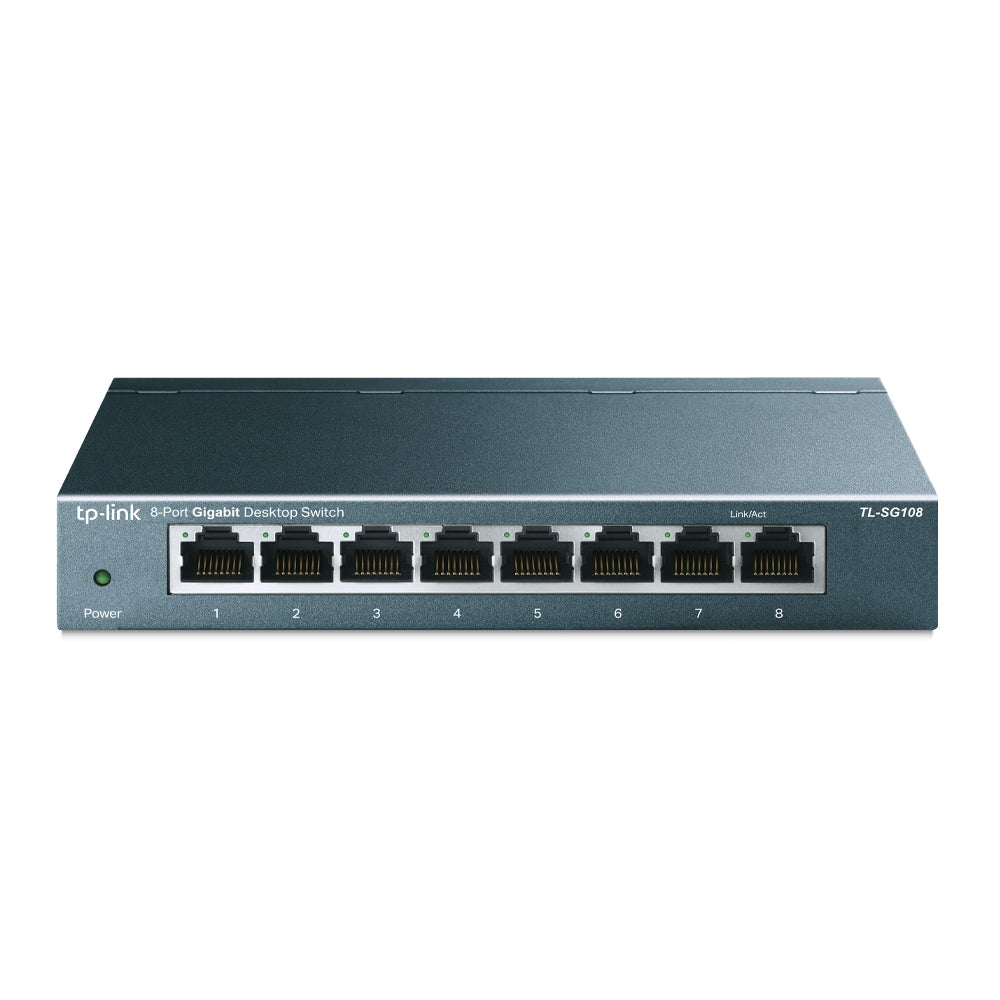

    TP-Link TL-SG105 and TL-SG108 Gigabit Desktop Switches

    TL-SG105 and TL-SG108 are plug-and-play Gigabit desktop switches for home and office networks. TL-SG105 has five 10/100/1000 Mbps ports and TL-SG108 has eight. Both use auto-negotiation on every port, a metal casing and a fanless design, and need no configuration. Use the comparison table to choose the port count and see how the two differ in forwarding rate, MAC address table and packet buffer.

    Quick Glance

    Network Ports
    5 or 8× 10/100/1000 Mbps
    Form Factor
    Desktop, metal casing, fanless
    Management Type
    Unmanaged, plug and play
    Operating Temperature
    0–40 °C (32–104 °F)

    Key Features

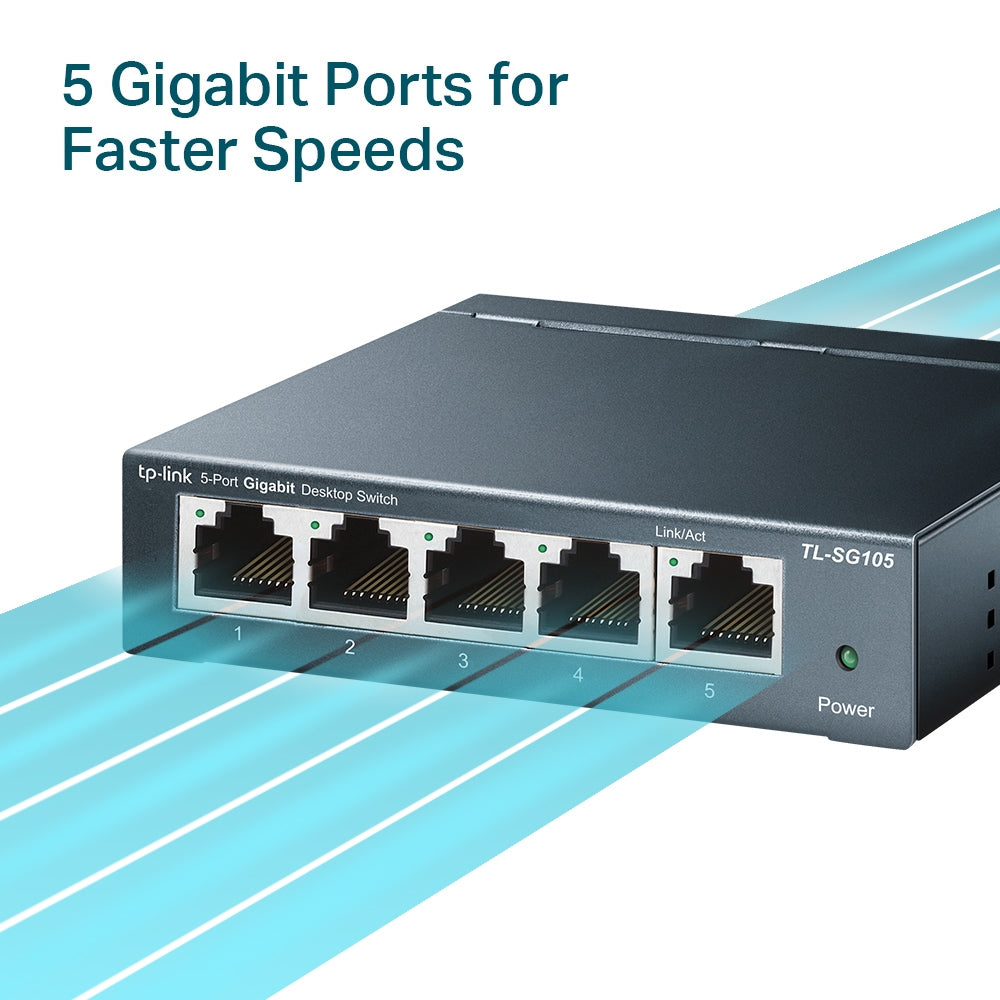

    Plug and play Gigabit ports

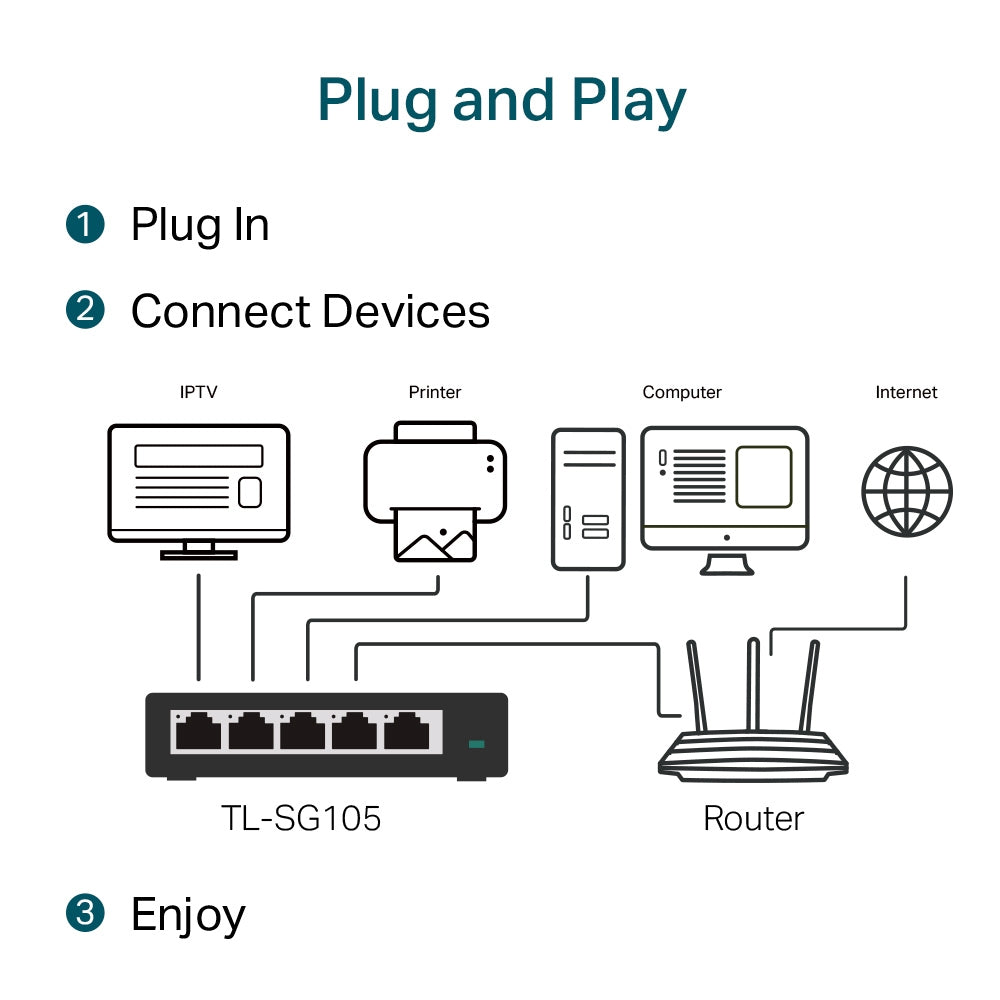

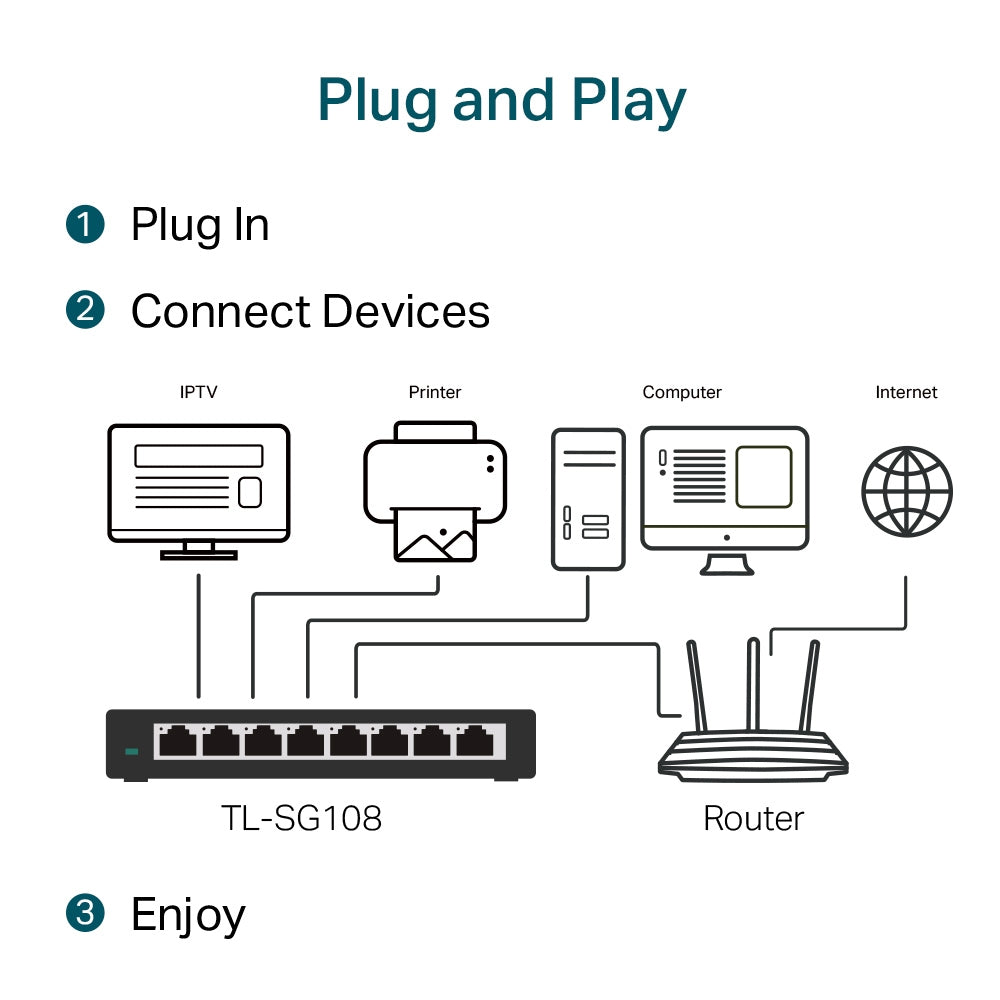

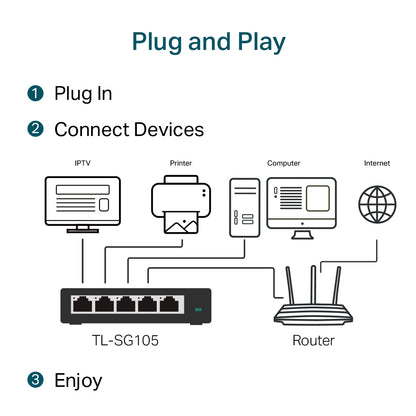

    TL-SG105 has 5 and TL-SG108 has 8 non-blocking 10/100/1000 Mbps ports. Auto-negotiation senses the link speed of each connected device and adjusts to suit, and Auto-MDI/MDIX is listed. Plug in and connect devices, with no configuration and no technician needed.

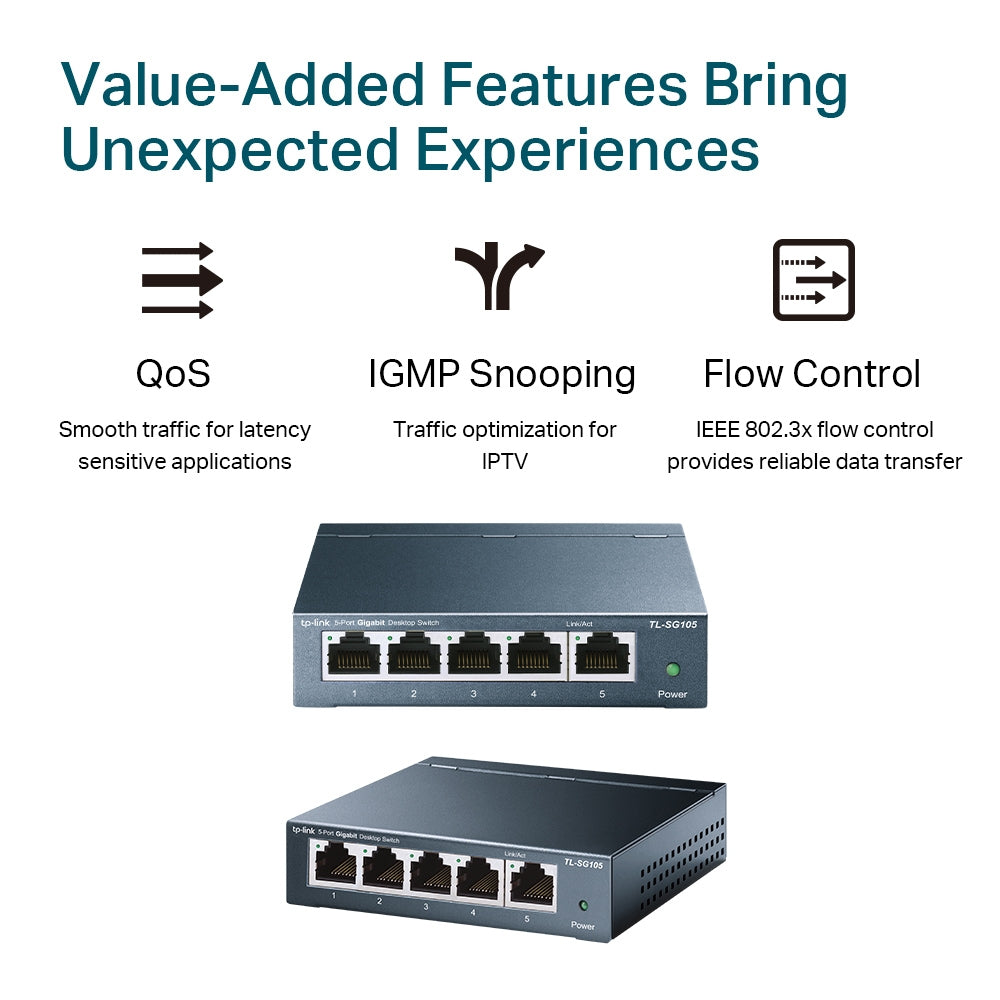

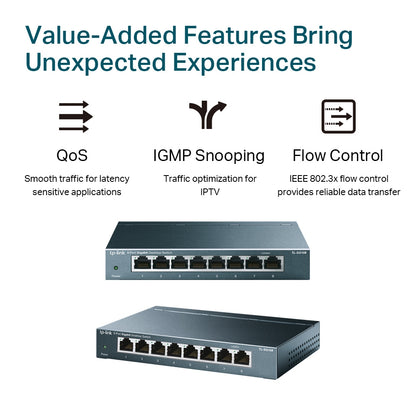

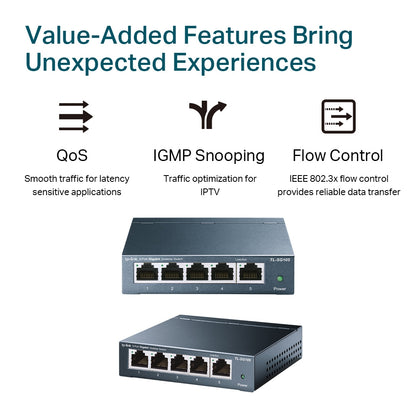

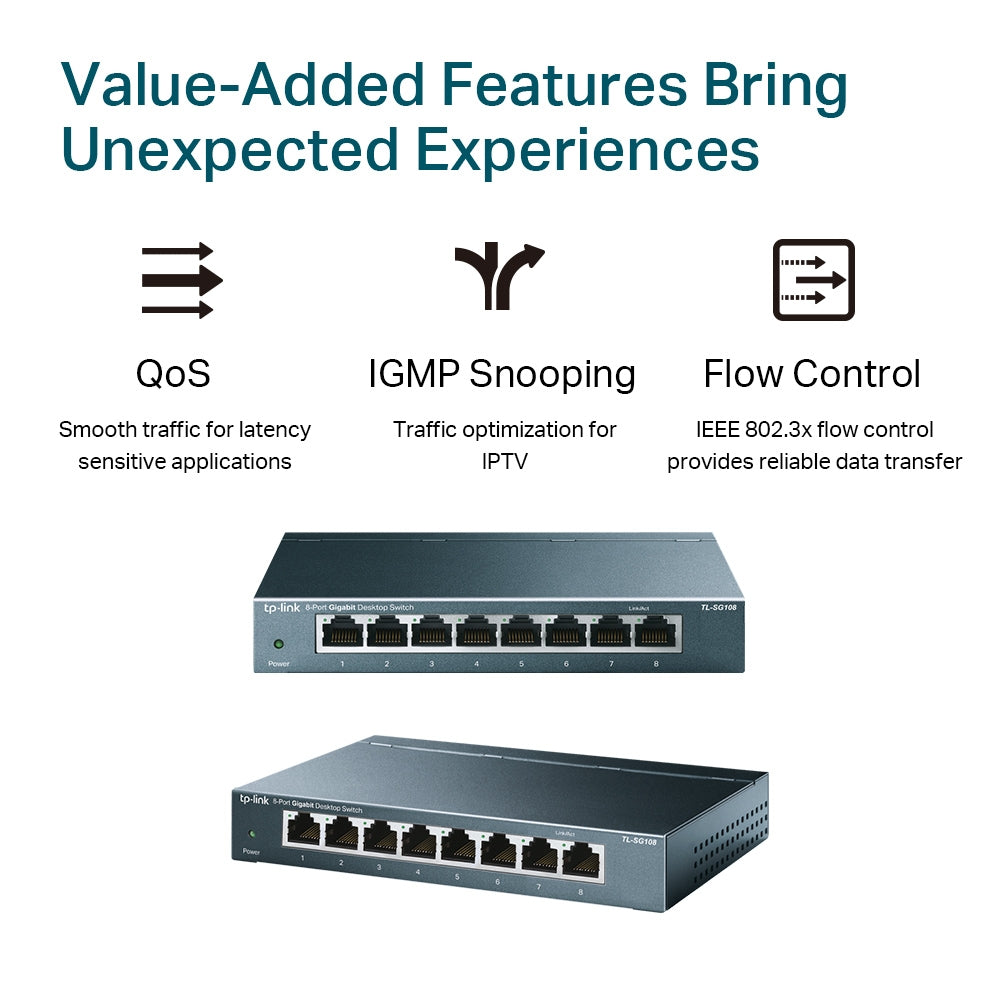

    QoS and IGMP Snooping

    QoS keeps traffic smooth for latency-sensitive uses such as voice and video. IGMP Snooping optimizes multimedia delivery for applications like IPTV. TP-Link lists 802.1p/DSCP QoS for TL-SG108. For TL-SG105 it lists 802.1P/DSCP QoS for V2 and later versions.

    Metal casing, fanless, energy saving

    Interior components sit inside a high-quality metal casing, and the fanless design has no fan to run. Green Technology adjusts power use to link status and cable length. Maximum power consumption is 2.3 W for TL-SG105 and 2.77 W for TL-SG108.

    Detailed Specifications

    InterfaceTL-SG105: 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX ports; TL-SG108: 8× 10/100/1000 Mbps ports, Auto-Negotiation, Auto-MDI/MDIX
    LEDSystem Power / Link/Act indicators per port built into each RJ-45 port
    Fan quantityFanless
    Packet buffer memoryTL-SG105: 1 Mb; TL-SG108: 1.5 Mb
    Jumbo frame16 KB (both models)
    Packet forwarding rateTL-SG105: 7.4 Mpps; TL-SG108: 11.9 Mpps
    MAC address tableTL-SG105: 2K; TL-SG108: 4K
    Transmission methodStore and Forward (both models)
    Standards and protocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.1p (both models)
    Advanced featuresTL-SG105: Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS (for V2 and later version), IGMP Snooping; TL-SG108: Green Technology, 802.3X Flow Control, 802.1p/DSCP QoS, IGMP Snooping
    External power supplyExternal power adapter, output 5 V DC / 0.6 A (both models)
    Max. power consumptionTL-SG105: 2.3 W (220 V/50 Hz); TL-SG108: 2.77 W (220 V/50 Hz)
    Max. heat dissipationTL-SG105: 7.83 BTU/h; TL-SG108: 9.45 BTU/h
    Dimensions (W × D × H)TL-SG105: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm); TL-SG108: 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
    Package contentTL-SG105: 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide; TL-SG108: 8-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
    Operating temperature0–40 °C (32–104 °F) (both models)
    Storage temperature-40–70 °C (-40–158 °F) (both models)
    Operating humidity10–90% RH non-condensing (both models)
    Storage humidity5–90% non-condensing (both models)
    CertificationCE, FCC (both models)

    Specifications are taken from TP-Link's UAE product page for each model. Where a figure differs between the two switches it is shown per model. Rows that TP-Link does not list are left out rather than assumed.

    Need-to-Know

    TL-SG105 is the smaller 5-port switch and TL-SG108 adds three more ports with a higher forwarding rate and larger MAC address table. Choose by how many wired devices you need to connect.

    • These are unmanaged switches: there is nothing to configure, and no management interface is listed.
    • TL-SG105 lists 802.1P/DSCP QoS for V2 and later versions only. TL-SG108 lists 802.1p/DSCP QoS with no version condition.
    • TP-Link's overview copy mentions a wall-mounting design, but the package contents list only the switch, a power adapter and an installation guide. Check your mounting needs before ordering.
    Part NumberGigabit portsForwarding rateMAC address tablePacket bufferMax. powerSize (W × D × H)
    TL-SG1055× 10/100/1000 Mbps7.4 Mpps2K1 Mb2.3 W100 × 98 × 25 mm
    TL-SG1088× 10/100/1000 Mbps11.9 Mpps4K1.5 Mb2.77 W158 × 101 × 25 mm

    Both are fanless, use a metal casing and external power adapter (5 V DC, 0.6 A), and list Green Technology, 802.3X Flow Control, IGMP Snooping and a 16 KB jumbo frame.

    Best For / Customer Benefits

    Customer Benefits

    • Two port counts on one page, so you can compare 5 and 8 Gigabit ports and pick the one that fits.
    • Plug-and-play setup with no configuration and auto-negotiation on every port.
    • Metal casing and a fanless design in a compact desktop size.
    • Our team can help you choose the right switch for your home or office network.

    Best For

    Home networks that need more wired Gigabit ports
    Small offices adding printers, computers and IPTV boxes
    Anyone who wants an unmanaged switch with no setup
    Desktop installs where a fanless metal switch suits

    Frequently Asked Questions

    TL-SG105 has five Gigabit ports and TL-SG108 has eight. TL-SG108 also lists a higher packet forwarding rate (11.9 Mpps against 7.4 Mpps), a larger MAC address table (4K against 2K) and a larger packet buffer (1.5 Mb against 1 Mb).

    No. TP-Link describes both as plug and play with no configuration required. Auto-negotiation on each port senses the link speed of the connected device, so you plug in the power adapter and connect your devices.

    No. TP-Link lists both switches as fanless and built in a metal casing. Maximum power consumption is 2.3 W for TL-SG105 and 2.77 W for TL-SG108.

    Yes. Both list IGMP Snooping. TL-SG108 lists 802.1p/DSCP QoS, and TL-SG105 lists 802.1P/DSCP QoS for V2 and later versions.
