TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch, 8 PoE+ Ports, 123 W Budget, Fanless

ES210GMP

Condition: NEW

Dhs. 274.35(exc. Vat)
(exc. Vat)
Dhs. 274.35(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    TP-Link ES210GMP view 1 atomoffice
    TP-Link ES210GMP view 2 atomoffice
    TP-Link ES210GMP view 3 atomoffice
    TP-Link ES210GMP view 4 atomoffice
    TP-Link ES210GMP view 5 atomoffice

    TP-Link Omada Easy Managed switch

    TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

    ES210GMP is an Omada Easy Managed switch with nine 10/100/1000 Mbps RJ45 ports and one Gigabit SFP/RJ45 combo port. Eight of the RJ45 ports supply PoE+ (802.3at) and PoE (802.3af), sharing a 123 W budget with up to 30 W on each port. It is fanless for silent operation, installs on a desktop or wall, and can be managed through the Omada App with an Omada controller. It suits small offices that need to power access points and cameras from one switch.

    Quick Glance

    Network Ports
    9× Gigabit RJ45, 8× PoE+
    Uplink Speed
    1× Gigabit SFP/RJ45 combo
    Switching Capacity
    20 Gbps
    PoE Budget
    123 W, 30 W max per port
    Management Type
    Easy Managed, Omada

    Key Features

    Ten Gigabit ports, eight with PoE+

    Nine 10/100/1000 Mbps RJ45 ports and one Gigabit SFP/RJ45 combo port, all with Auto-Negotiation and Auto MDI/MDIX. Eight RJ45 ports support 802.3at PoE+ and 802.3af PoE. TP-Link lists 20 Gbps switching capacity, a 14.88 Mpps forwarding rate and an 8K MAC address table.

    123 W budget for powered devices

    The eight PoE+ ports share 123 W, with up to 30 W per port. TP-Link also lists PoE Auto Recovery and up to 250 m PoE transmission distance, marked with a footnote. That lets one switch power access points and cameras without separate power adapters.

    Omada management, fanless and wall-mountable

    Manage it from the Omada App and Cloud Access with an Omada controller, with Zero-Touch Provisioning on the Omada Cloud-Based Controller. It is fanless, measures 209 × 126 × 26 mm, installs on a desktop or wall and has a physical security lock and ±6 kV surge protection.

    Detailed Specifications

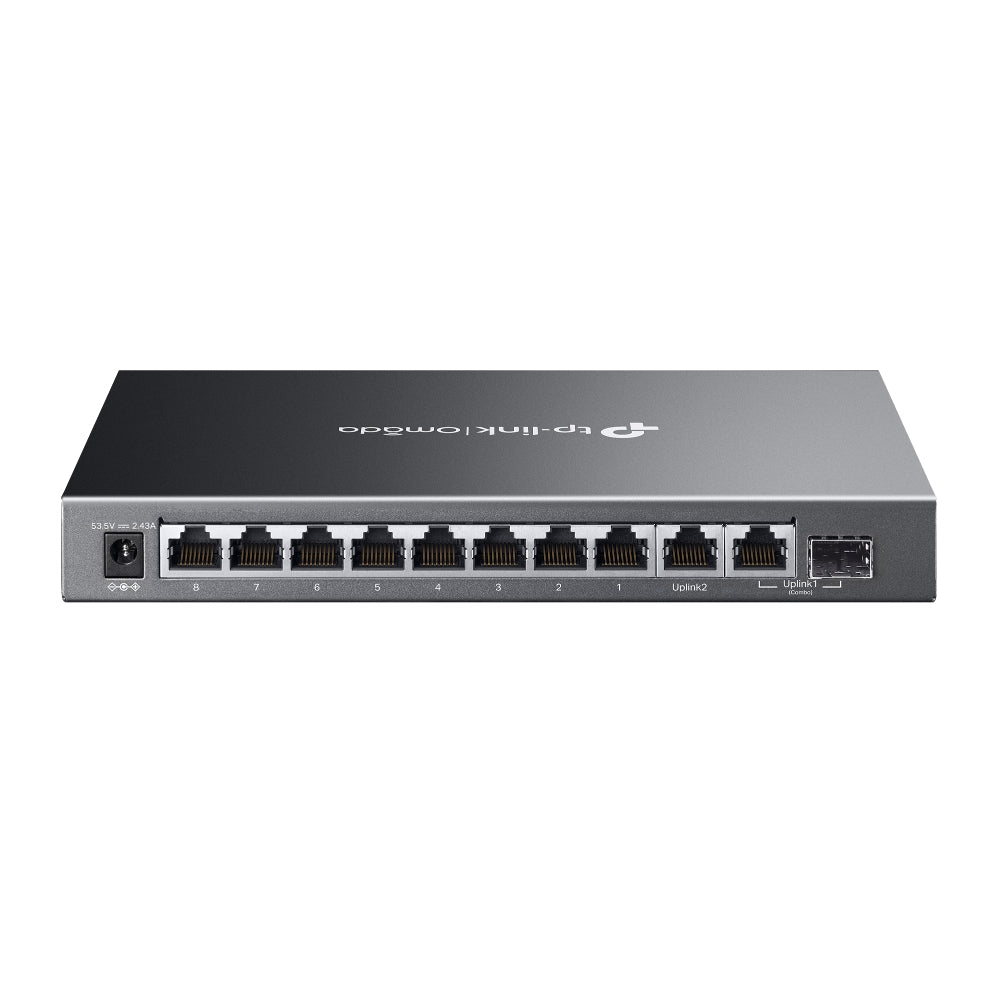

    Interface8× 10/100/1000 Mbps PoE+ RJ45 ports (support 802.3at PoE+ and 802.3af PoE), 1× 10/100/1000 Mbps RJ45 port, 1× Gigabit SFP/RJ45 combo port, Auto-Negotiation/Auto MDI/MDIX
    Fan quantityFanless

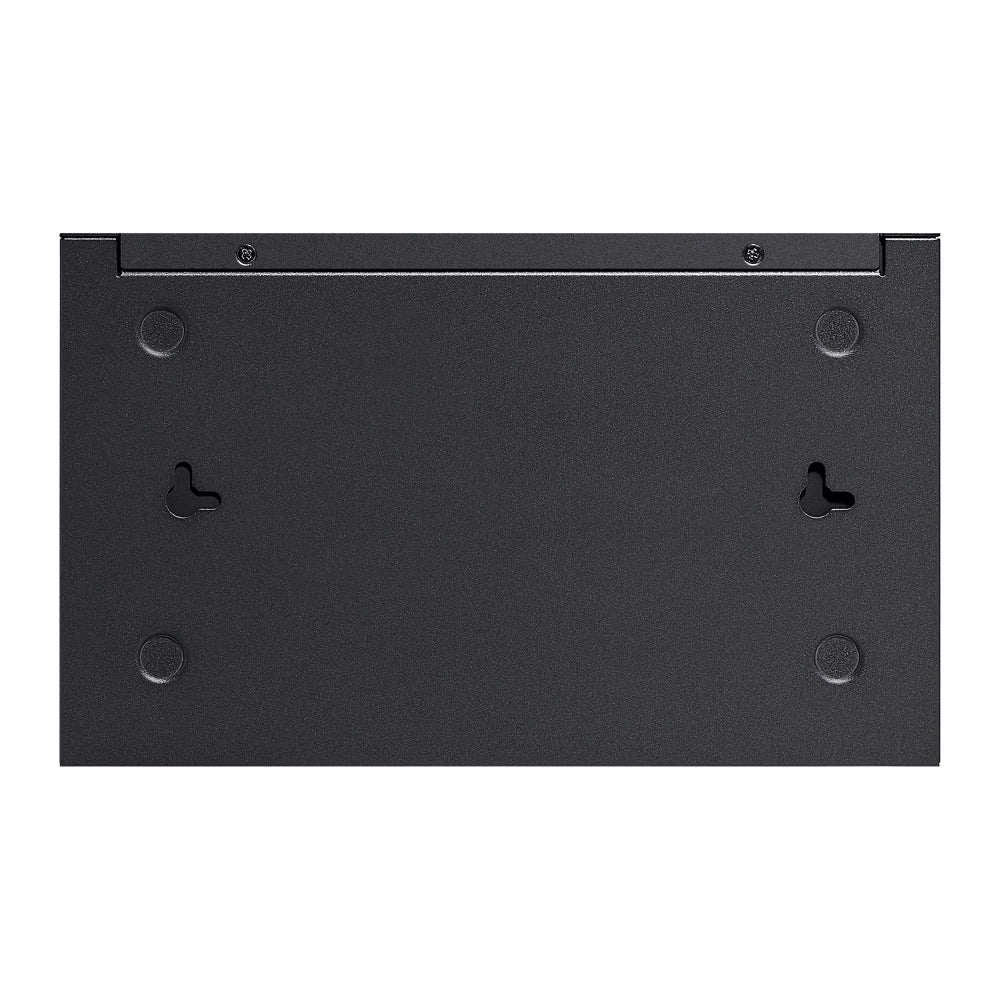

    InstallationDesktop, wall mount
    Physical security lockYes
    Switching capacity20 Gbps
    Packet forwarding rate14.88 Mpps
    MAC address table8K
    Packet buffer memory4 Mbit
    Jumbo frame15 KB
    Transmission methodStore-And-Forward
    Quality of ServicePort-based/802.1p/DSCP QoS, 8 priority queues, priority schedule mode (WRR), queue weight config, bandwidth control (port-based rate limit), storm control (kbps/pps modes; broadcast/multicast/unknown-unicast control)
    L2 featuresStatic Link Aggregation, Loop Prevention/Loopback Detection, 802.3x Flow Control, Port Mirroring (one-to-one, many-to-one, ingress/egress/both), Port Statistics, 802.1ab LLDP
    L2 multicastIGMP Snooping (IGMP v1/v2/v3), Fast Leave
    VLANMTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN (max 32 VLAN groups, 4K VID)
    Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Centralized managementOmada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
    Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller.
    Management featuresWeb-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration
    Power supplyDC Power Adapter (output: 53.5 VDC / 2.43 A)
    PoE standard802.3af PoE and 802.3at PoE+ compliant
    PoE ports8 ports
    PoE budget123 W available for all PoE+ ports, 30 W max per port
    PoE featuresPoE Auto Recovery; up to 250 m PoE transmission distance (TP-Link marks both with a footnote)
    Surge protection±6 kV
    Dimensions (W × D × H)8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
    Package contentES210GMP, Power Adapter, Installation Guide, Rubber Feet
    Operating temperature0–40 ℃ (32–104 ℉)
    Storage temperature-40–70 ℃ (-40–158 ℉)
    Operating humidity10–90% non-condensing
    Storage humidity5–90% non-condensing
    CertificationFCC, CE

    Specifications are taken from TP-Link's UAE product page for ES210GMP (hardware version V1). Rows that TP-Link does not list are left out rather than assumed.

    Need-to-Know

    • The Omada App, Cloud Access and Zero-Touch Provisioning need an Omada controller. TP-Link states that Zero-Touch Provisioning requires the Omada Cloud-Based Controller.
    • The 123 W PoE budget is shared by the eight PoE+ ports. TP-Link lists up to 30 W per port, so eight devices at full 30 W would exceed the budget.
    • TP-Link marks PoE Auto Recovery and the 250 m PoE transmission distance with a footnote. Check TP-Link's conditions before planning long cable runs.

    Best For / Customer Benefits

    Customer Benefits

    • Eight PoE+ ports with a 123 W budget power access points and cameras from one cable each.
    • Nine RJ45 ports and one SFP/RJ45 combo port, all Gigabit, in one compact switch.
    • Fanless desktop or wall-mount design with a physical security lock.
    • Our team can help you size the PoE budget for the devices you plan to connect.

    Best For

    Small offices powering access points and cameras over PoE+
    Omada networks that want an Easy Managed switch
    Quiet spaces where a fanless switch suits
    Desk or wall installs with up to ten Gigabit connections

    Frequently Asked Questions

    Eight of the RJ45 ports support 802.3at PoE+ and 802.3af PoE. They share a 123 W budget, with up to 30 W on each port. The ninth RJ45 port and the Gigabit SFP/RJ45 combo port are not listed as PoE ports.

    Not at the same time. TP-Link lists 30 W as the maximum per port and 123 W as the total available for all PoE+ ports.Eight devices at 30 W each would be more than the 123 W available, so check the power draw of your devices against the budget.

    For the Omada App, Cloud Access and Zero-Touch Provisioning, yes. TP-Link lists the Omada Hardware Controller, Omada Cloud-Based Controller and Omada Software Controller for centralized management. The switch also lists a web-based GUI.

    TP-Link lists one Gigabit SFP/RJ45 combo port, so the same port position offers either an SFP or an RJ45 connection. TP-Link's spec table does not list specific SFP modules, so check module compatibility before you order one.

    Need help planning your PoE network?

    Tell us which access points, cameras or other devices you want to power and we will help you check the 123 W budget against the Omada ES210GMP.
