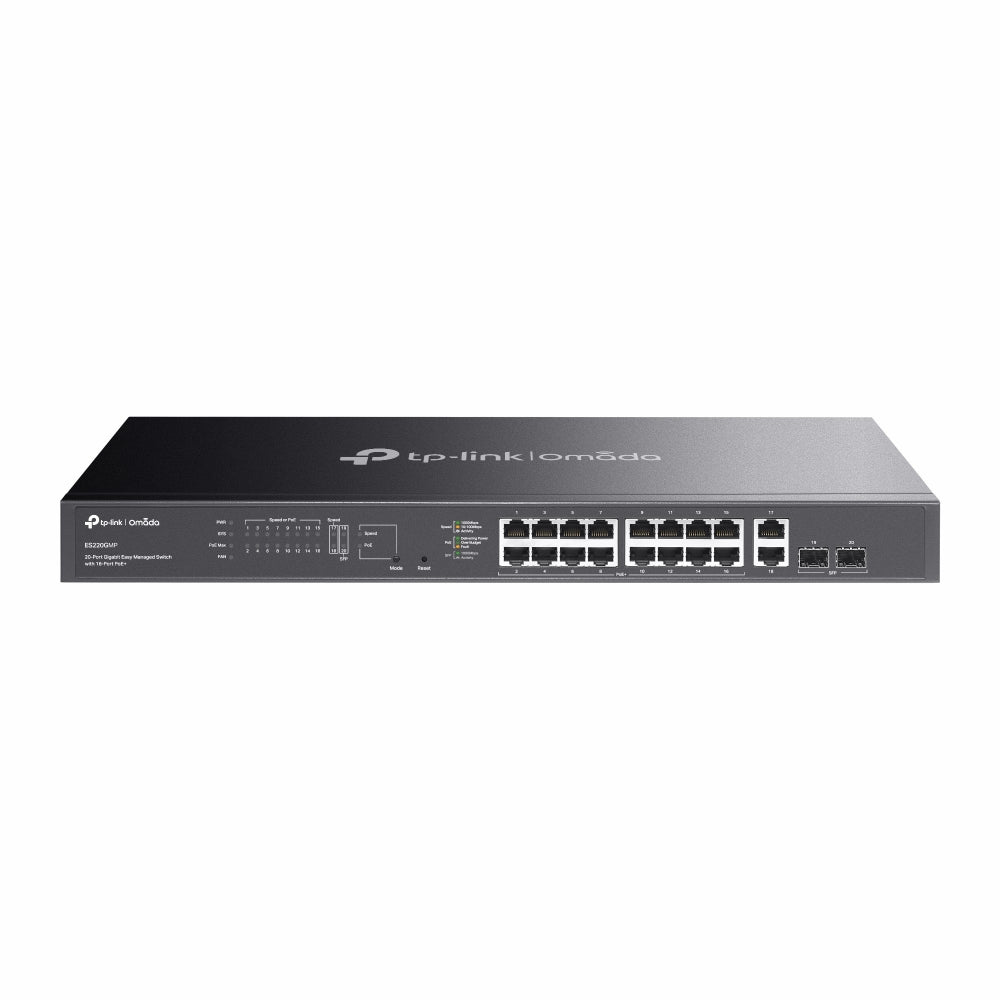

• TP-Link ES220GMP view 1 atomoffice

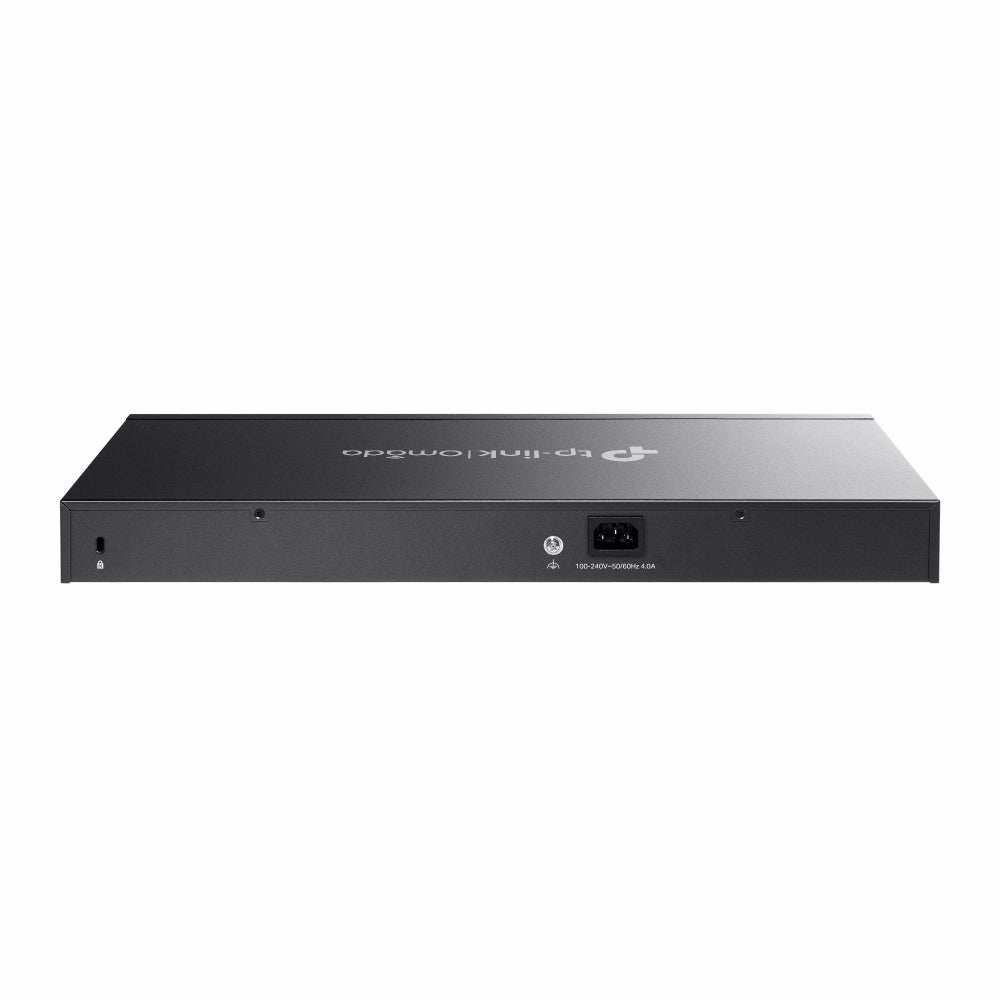

  • TP-Link ES220GMP view 2 atomoffice

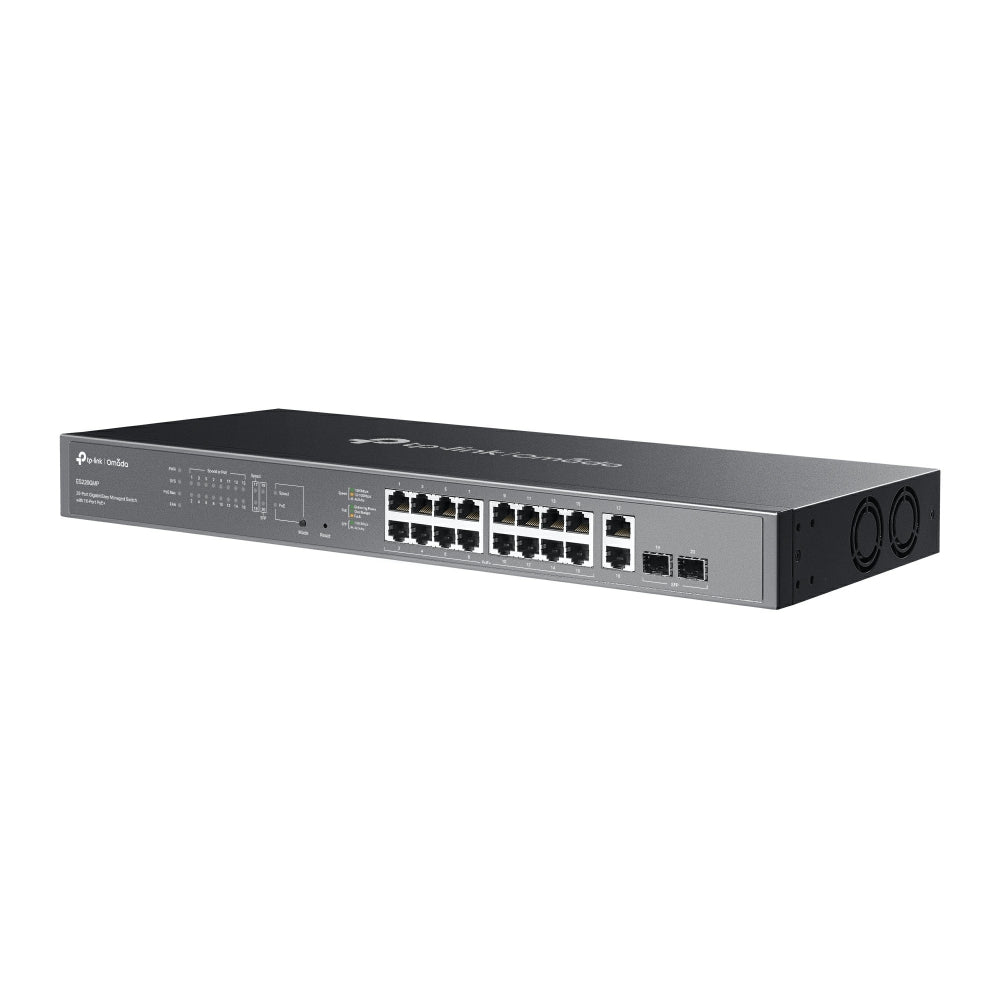

  • TP-Link ES220GMP view 3 atomoffice

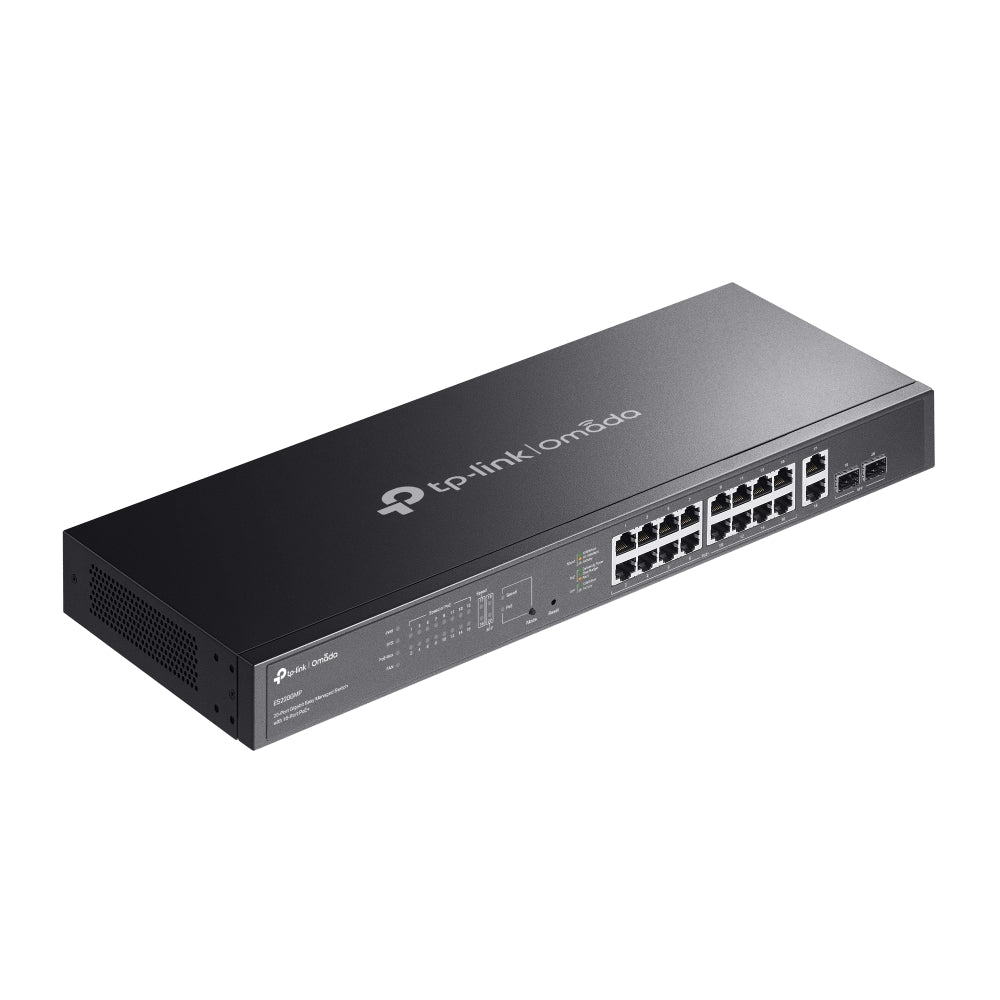

  • TP-Link ES220GMP view 4 atomoffice

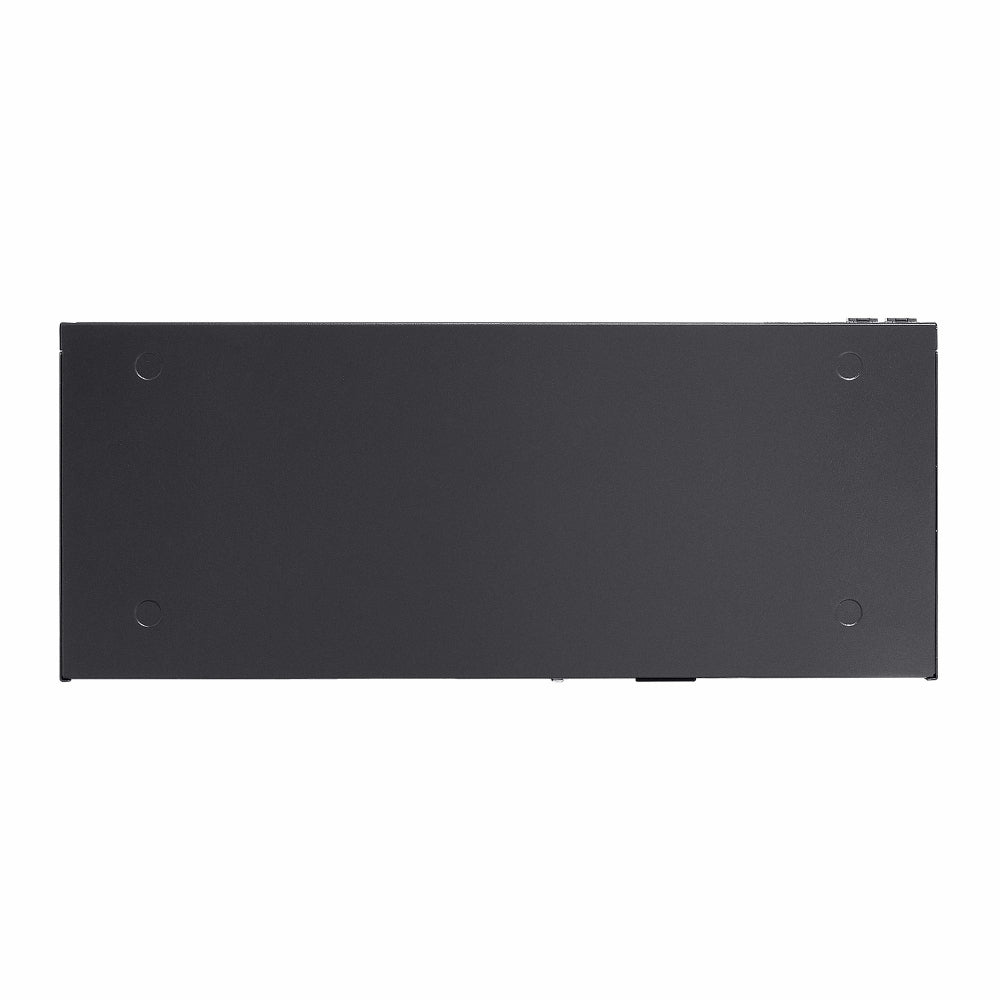

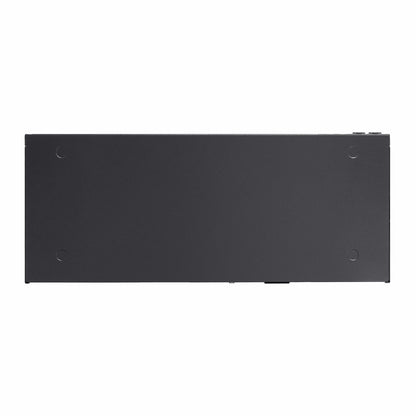

  • TP-Link ES220GMP view 5 atomoffice
  • TP-Link ES228GMP view 1 atomoffice
  • TP-Link ES228GMP view 2 atomoffice

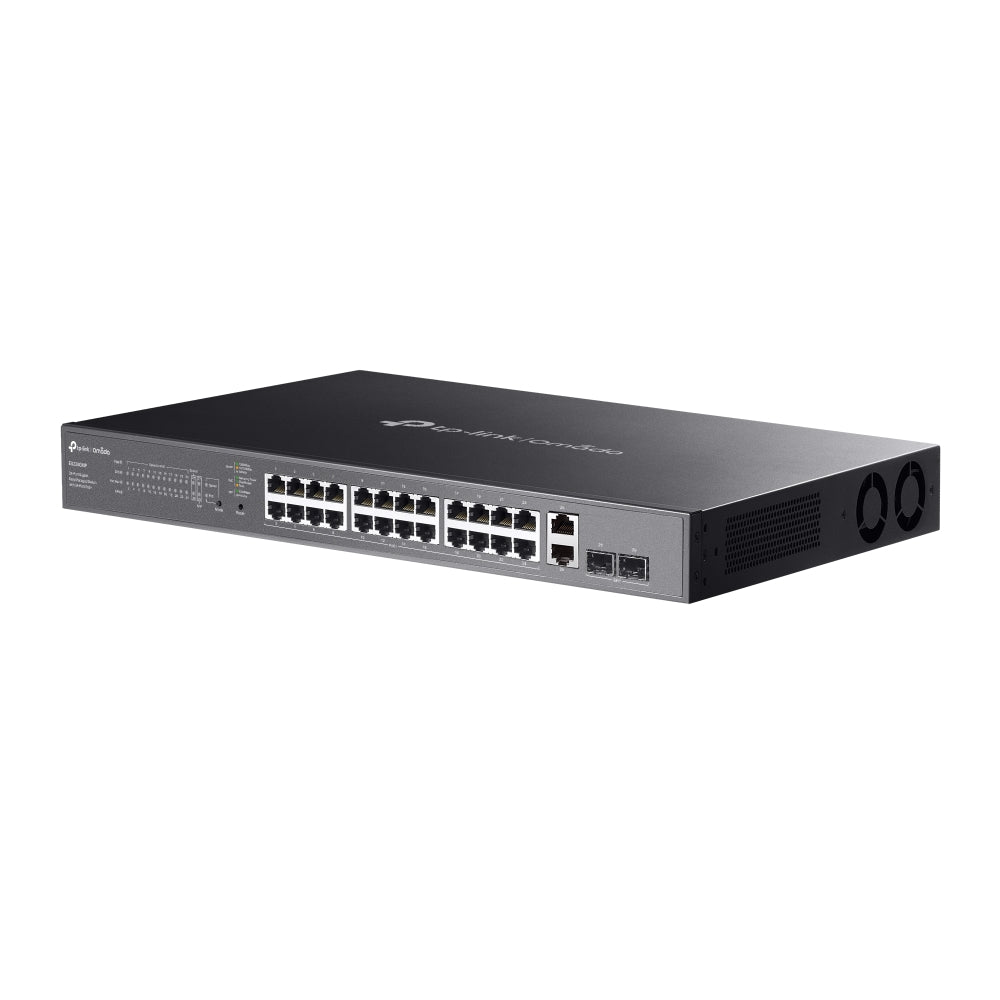

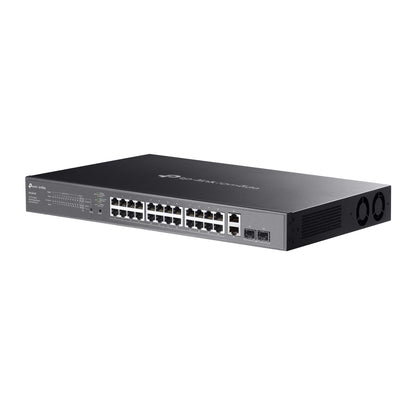

  • TP-Link ES228GMP view 3 atomoffice

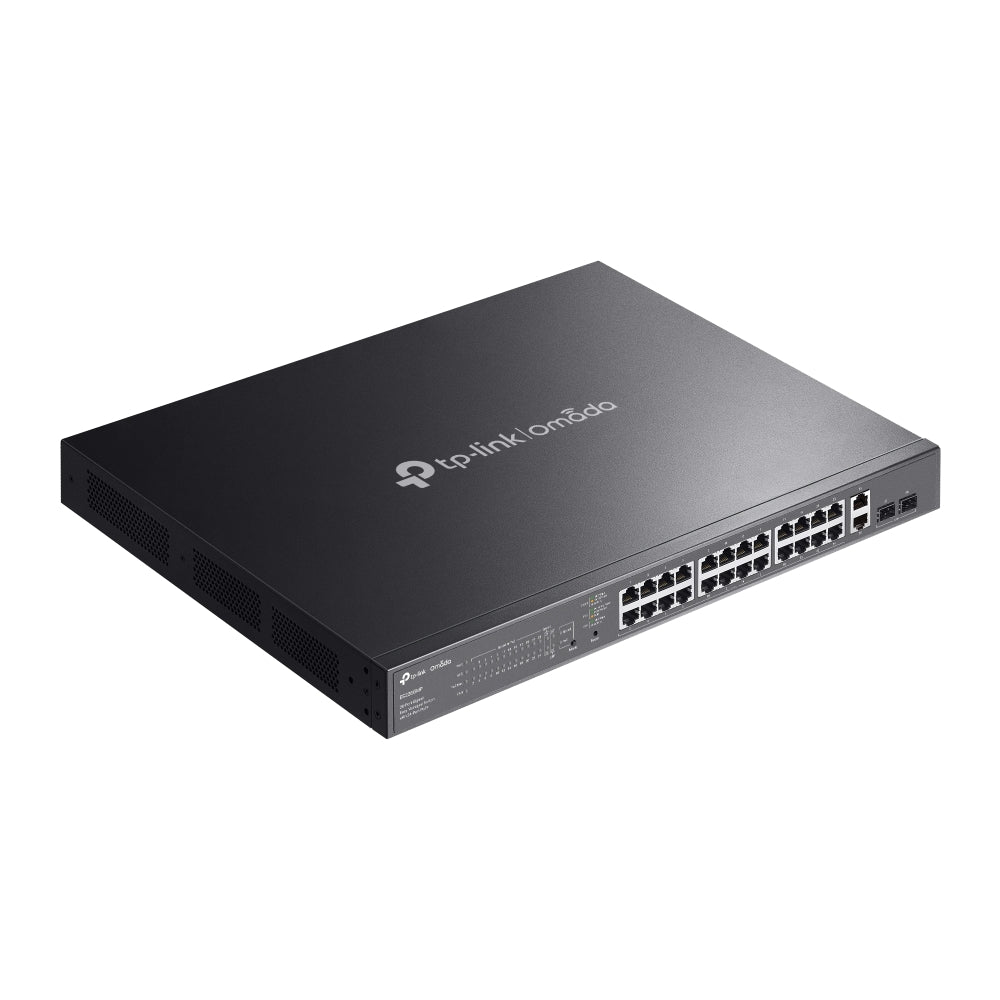

  • TP-Link ES228GMP view 4 atomoffice

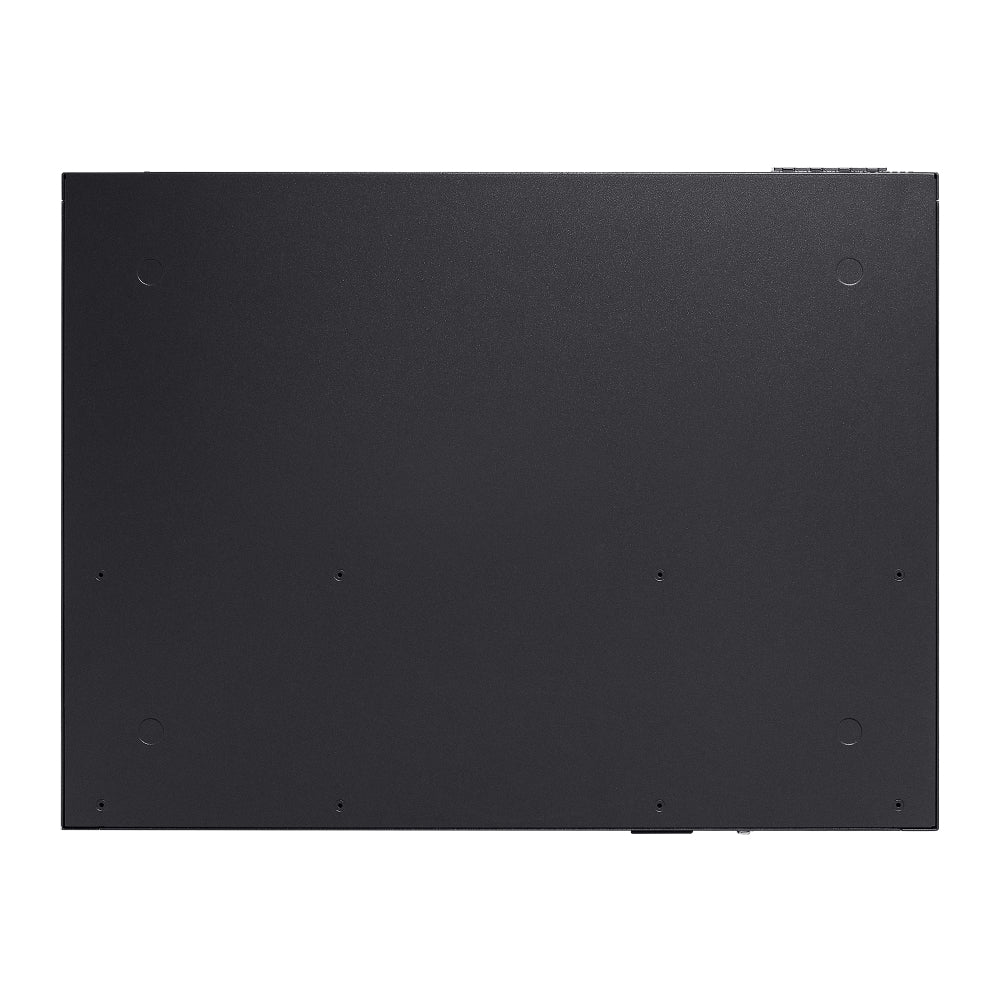

  • TP-Link ES228GMP view 5 atomoffice
1 9

TP-Link Omada Gigabit Easy Managed Rackmount Switch with PoE+, 16 or 24 PoE+ Ports, 250 W or 384 W Budget

ES220GMP

Condition: NEW

Model
Dhs. 539.03(exc. Vat)
(exc. Vat)
Dhs. 539.03(exc. Vat)
Shipping calculated at checkout.
    Live stock status

    Confirm Availability & Best Price

    This model is fulfilled through our verified supplier network. Message us for live stock status and pricing.

    Enquire Now
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    TP-Link ES220GMP view 1 atomoffice
    TP-Link ES220GMP view 2 atomoffice
    TP-Link ES220GMP view 3 atomoffice
    TP-Link ES220GMP view 4 atomoffice
    TP-Link ES220GMP view 5 atomoffice
    TP-Link ES228GMP view 1 atomoffice
    TP-Link ES228GMP view 2 atomoffice
    TP-Link ES228GMP view 3 atomoffice
    TP-Link ES228GMP view 4 atomoffice
    TP-Link ES228GMP view 5 atomoffice

    TP-Link Omada Easy Managed PoE+ rackmount switches

    TP-Link ES220GMP and ES228GMP Omada PoE+ Gigabit Switches

    ES220GMP and ES228GMP are Omada Gigabit Easy Managed rackmount switches that power devices over PoE+. ES220GMP has 16 PoE+ ports with a 250 W budget. ES228GMP has 24 PoE+ ports with a 384 W budget. Both add two more 10/100/1000 Mbps RJ45 ports and two Gigabit SFP slots, and work with the Omada App and Cloud Access through an Omada controller. Use the comparison table to match the PoE port count and power budget to your access points and cameras.

    Quick Glance

    Network Ports
    16 or 24 PoE+ RJ45, 2 RJ45, 2 SFP
    PoE Budget
    250 W or 384 W
    Switching Capacity
    40 or 56 Gbps
    Form Factor
    Rackmount
    Management Type
    Easy Managed (Omada)

    Key Features

    16 or 24 PoE+ ports

    ES220GMP has 16 PoE+ RJ45 ports and ES228GMP has 24, all 802.3af and 802.3at compliant with up to 30 W per port. The budget is 250 W on ES220GMP and 384 W on ES228GMP. Fast PoE, Perpetual PoE, PoE Auto Recovery and up to 250 m PoE transmission distance are listed.

    Extra RJ45 and SFP ports

    Both models add 2× 10/100/1000 Mbps RJ45 ports and 2× Gigabit SFP slots to the PoE+ ports, all with Auto-Negotiation and Auto MDI/MDIX. Switching capacity is 40 Gbps on ES220GMP and 56 Gbps on ES228GMP. Both are rackmountable, include mounting brackets and screws, and have 2 fans.

    Omada Easy Managed

    The Omada App and Cloud Access are listed for both models, and they require an Omada Hardware Controller, Cloud-Based Controller or Software Controller. Zero-Touch Provisioning requires the Cloud-Based Controller. QoS with 8 priority queues, 802.1Q VLAN with up to 32 groups, IGMP Snooping and link aggregation are also listed.

    Detailed Specifications

    InterfaceES220GMP: 16× 10/100/1000 Mbps PoE+ RJ45 ports, 2× 10/100/1000 Mbps RJ45 ports, 2× Gigabit SFP slots; ES228GMP: 24× 10/100/1000 Mbps PoE+ RJ45 ports, 2× 10/100/1000 Mbps RJ45 ports, 2× Gigabit SFP slots; both with Auto-Negotiation and Auto MDI/MDIX
    Fan quantity2 (both models)
    Physical security lockYes (both models, listed by TP-Link)
    PoE standard802.3af PoE and 802.3at PoE+ compliant (both models)
    PoE ports and budgetES220GMP: 16 ports, 250 W available for all PoE+ ports; ES228GMP: 24 ports, 384 W available for all PoE+ ports; 30 W maximum per port on both
    PoE featuresFast PoE and Perpetual PoE; PoE Auto Recovery; up to 250 m PoE transmission distance (both models)
    Power supply100–240 V AC, 50/60 Hz (both models); a power cord is in the package
    Surge protection±6 kV (both models)
    Switching capacityES220GMP: 40 Gbps; ES228GMP: 56 Gbps
    Packet forwarding rateES220GMP: 29.76 Mpps; ES228GMP: 41.67 Mpps
    MAC address table8K (both models)
    Packet buffer memory4 Mbit (both models)
    Jumbo frame15 KB (both models)
    Transmission methodStore-And-Forward (both models)
    Quality of ServicePort-based, 802.1p and DSCP QoS; 8 priority queues; WRR (Weighted Round Robin) priority scheduling; queue weight configuration; port-based rate limiting (bandwidth control); storm control with multiple control modes (kbps/pps) for broadcast, multicast and unknown-unicast traffic (both models)
    L2 featuresStatic link aggregation; loop prevention and loopback detection; 802.3x flow control; port mirroring (one-to-one, many-to-one, ingress/egress/both); port statistics; 802.1ab LLDP (both models)
    L2 multicastIGMP Snooping (IGMP v1/v2/v3 Snooping) and Fast Leave (both models)
    VLANMTU VLAN, port-based VLAN and 802.1Q tag VLAN (maximum 32 VLAN groups, 4K VID) (both models)
    Omada AppYes (both models). Requires an Omada Hardware Controller, Omada Cloud-Based Controller or Omada Software Controller.
    Centralized managementOmada Cloud-Based Controller, Omada Hardware Controller and Omada Software Controller
    Cloud AccessYes (both models). Requires an Omada Hardware Controller, Omada Cloud-Based Controller or Omada Software Controller.
    Zero-Touch ProvisioningYes (both models). Requires the Omada Cloud-Based Controller.
    Management featuresWeb-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration
    Dimensions (W × D × H)ES220GMP: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm); ES228GMP: 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
    InstallationRackmountable (both models)
    Package content: ES220GMPES220GMP, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation Guide
    Package content: ES228GMPES228GMP, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation Guide
    Operating temperatureES220GMP: -5–50 °C (23–122 °F); ES228GMP: -5–45 °C (23–113 °F)
    Storage temperature-40–70 °C (-40–158 °F) (both models)
    Operating humidity10–90% non-condensing (both models)
    Storage humidity5–90% non-condensing (both models)
    CertificationFCC, CE (both models)

    Specifications are taken from TP-Link's UAE product page for each model (hardware version V1). Where a figure differs between the two switches it is shown per model. Rows that TP-Link does not list are left out rather than assumed, and no weight is stated.

    Need-to-Know

    ES220GMP suits smaller PoE+ installs with 16 powered ports and a 250 W budget. ES228GMP gives 24 powered ports and a 384 W budget, and is deeper at 330 mm. Choose by how many PoE devices you run and their combined power draw.

    • The PoE budget is shared across all PoE+ ports. Add up the rated draw of the devices you plan to power and keep it within 250 W (ES220GMP) or 384 W (ES228GMP).
    • TP-Link marks the 250 m PoE transmission distance and PoE Auto Recovery with footnotes that are not in our source. Check TP-Link's product page for the conditions.
    • Both models list 2 fans, so they are not fanless. The Omada App, Cloud Access and Zero-Touch Provisioning need an Omada controller, and Zero-Touch Provisioning needs the Cloud-Based Controller.
    Part NumberPoE+ RJ45 portsPoE budgetSwitching capacitySize (W × D × H)Operating temperature
    ES220GMP16× 10/100/1000 Mbps250 W (30 W max per port)40 Gbps440 × 180 × 44 mm-5–50 °C (23–122 °F)
    ES228GMP24× 10/100/1000 Mbps384 W (30 W max per port)56 Gbps440 × 330 × 44 mm-5–45 °C (23–113 °F)

    Both add 2× 10/100/1000 Mbps RJ45 ports and 2× Gigabit SFP slots, are rackmountable with 2 fans, and list an 8K MAC address table, 4 Mbit packet buffer and 100–240 V AC power.

    Best For / Customer Benefits

    Customer Benefits

    • Two PoE+ sizes on one page, so you can compare 16 and 24 powered ports and the 250 W and 384 W budgets.
    • Two Gigabit SFP slots and two extra RJ45 ports on top of the PoE+ ports.
    • Works with the Omada App and Cloud Access through an Omada controller.
    • Our team can help you total your PoE load and choose the right switch.

    Best For

    Offices powering access points and IP cameras over PoE+
    Installers who need up to 24 PoE+ ports in a rack
    Sites with a high combined PoE power draw
    Networks managed from Omada with SFP uplinks

    Frequently Asked Questions

    ES220GMP has 16 PoE+ ports with a 250 W budget and ES228GMP has 24 PoE+ ports with a 384 W budget. ES228GMP also lists 56 Gbps switching capacity against 40 Gbps and is 330 mm deep against 180 mm. Both add 2 RJ45 ports and 2 Gigabit SFP slots.

    TP-Link lists up to 30 W per port on both models, within a shared budget of 250 W on ES220GMP and 384 W on ES228GMP. Both are 802.3af and 802.3at compliant, so they can power standard PoE and PoE+ devices.

    No. TP-Link lists 2 fans on both ES220GMP and ES228GMP. Plan the rack location with fan noise in mind, or ask us about quieter options.

    Yes. TP-Link lists both as rackmountable, and the package for each includes mounting brackets and screws. Both are 440 mm wide and 44 mm high, and the depth is 180 mm on ES220GMP and 330 mm on ES228GMP.

    Need help sizing a PoE+ switch?

    Tell us how many access points and cameras you need to power and we will help you choose between ES220GMP and ES228GMP.
