IRIScan Desk 7 Pro — A3 4K Document Camera and Book Scanner
The IRIScan Desk 7 Pro is a short-arm A3 document camera built around an 18 MP CMOS sensor, with software interpolation up to 85 MP and 4K video output. Anti-reflective lighting cuts glare from glossy pages, and Book Curve Flattening straightens the image when scanning bound books without unbinding them. It exports to searchable PDF, PDF-A, Word, Excel and e-book formats, connects over USB-C, and ships with both a hand button and a foot pedal for hands-free scanning.
Quick Glance
Key Features

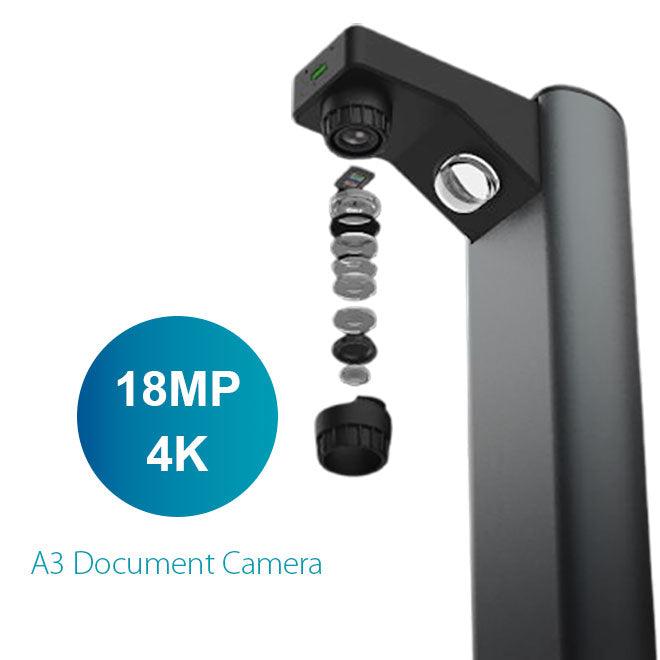

18 MP sensor, 85 MP interpolated, 4K video
An 18-megapixel CMOS sensor captures at 4912 x 3680 pixels natively, with software interpolation extending output to 10680 x 8010 pixels (85 MP) at 600 dpi. The same camera records Full HD video at up to 30 FPS and is UVC-compliant for use as a webcam in Zoom, Microsoft Teams or Google Meet.
Anti-reflective lighting for glossy pages
Asymmetric lighting minimises direct reflections off glossy paper, making scans of laminated or glossy-finish documents more comfortable to read and reducing hotspots that a flat overhead light would create.
Book Curve Flattening for bound books
IRIS's Book Curve Flattening technology straightens the captured image of a bound book automatically, so thick books can be scanned flat and single pages digitised without unbinding either kind of source.
Detailed Specifications
Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.
Need-to-Know
All five IRIS document cameras in this range share the same scanning software; the difference is sensor resolution, maximum page size and, on the Desk 7 models, video and lighting features.
- There is no Wi-Fi or wireless connection on the Desk 7 Pro — it connects only by USB-C to a PC or Mac.
- This is a document camera, not a flatbed or ADF scanner, so it has no optical scan-head resolution rating in the printer sense; sharpness depends on the 18 MP sensor and 85 MP interpolated output, both already in Quick Glance.
- IRIS does not publish a warranty term on this product page — ask us to confirm the warranty before you order.
- Both a hand-operated USB capture button and a USB foot pedal are included in the box.
| Model | Camera resolution | Max scan size | Scan speed |
|---|---|---|---|
| IRIScan Desk 6 | 8 MP sensor, 12 MP interpolated | Up to A4 | Less than 1 sec / page |
| IRIScan Desk 6 Pro | 13 MP sensor, 21 MP interpolated | Up to A3 | Less than 1 sec / page |
| IRIScan Desk 7 Pro (this page) | 18 MP sensor, 85 MP interpolated | Up to A3 | 1 sec / page |
| IRIScan Desk 7 Business | 24 MP sensor, 85 MP interpolated | Up to A3 | 1 sec / page |
| IRIScan Visualizer 7 | 13 MP sensor | A3 (440 x 330 mm) | 1 sec / capture |
The Desk 7 Pro and Desk 7 Business share the same body, lighting and Book Curve Flattening; the Business step adds a higher-resolution sensor and cloud export destinations.
Best For / Customer Benefits
Customer Benefits
- 18 MP sensor with 85 MP interpolated output captures fine text and detail on a full A3 page in one shot.
- Anti-reflective lighting keeps glossy and laminated pages readable instead of washed out by glare.
- Book Curve Flattening scans bound books flat without needing to remove the binding.
- A hand button and a foot pedal are both included, so scanning can be hands-free either way.
Best For
Frequently Asked Questions
An 18-megapixel CMOS sensor at 4912 x 3680 pixels natively, extended to 10680 x 8010 pixels (85 MP) by software interpolation at 600 dpi.
Yes — anti-reflective lighting uses asymmetric illumination to cut direct reflections from glossy paper, which reduces the hotspots a plain overhead light would cause.
Yes. Book Curve Flattening straightens the captured image of a bound book automatically, so thick books can be digitised without cutting the spine.
Yes. It records Full HD video at up to 30 FPS and is UVC-compliant, so it works directly with Zoom, Microsoft Teams and Google Meet without extra drivers.
138 languages, powered by IRIS's own OCR technology, converting scans into searchable PDF or editable Word, Excel and text files.
Need a high-resolution A3 document camera?
Tell us whether you are scanning books, glossy documents or presenting remotely, and we will confirm whether the IRIScan Desk 7 Pro fits or whether the Desk 7 Business suits you better.
