Genuine HP LaserJet Service Part

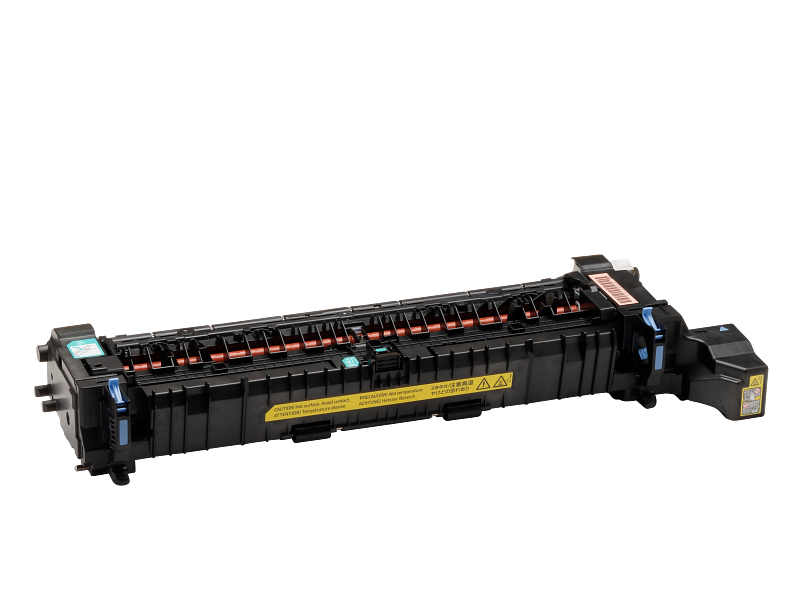

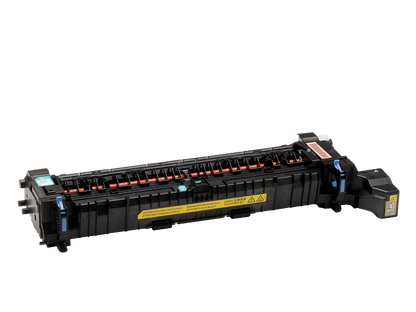

HP LaserJet Fuser Kit 220V (4YL17A)
The genuine HP 4YL17A fuser kit replaces the fuser assembly on the HP Color LaserJet Enterprise M776 and M856 series — the part that bonds toner to the page, and the one your printer asks for when print starts smudging or the maintenance counter runs out. Rated for approximately 150,000 pages, in the 220 V version that is correct for UAE mains.
Key Features
Genuine HP Service Part
Built and tested by HP for the M776 and M856, so fusing temperature, pressure and timing are what the printer is calibrated to expect.
220 V — Correct for the UAE
UAE mains is 220–240 V, so this is the version your printer needs. The 110 V kit is a different part number and will not do the job here.
Rated for 150,000 Pages
One scheduled replacement covers roughly 150,000 pages, so the kit can be planned into a service interval rather than fitted in a hurry after a fault.
Detailed Specifications
- HP Color LaserJet Enterprise MFP M776dn (T3U55A)
- HP Color LaserJet Enterprise Flow MFP M776z (3WT91A)
- HP Color LaserJet Enterprise Flow MFP M776zs (T3U56A)
- HP Color LaserJet Enterprise M856dn (T3U51A)
- HP Color LaserJet Enterprise M856x
* Manufacturer-rated service life. Actual life varies with media type, coverage, duty cycle and operating environment.
Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.
Need-to-Know
The M776 and M856 take several different service parts and they are not interchangeable — your printer names the one it wants in its control-panel message. Note that this fuser kit is the one part on this list that does NOT also fit the M751: the M751 takes a different fuser.
| Service part | Part number | What it covers | Rated life |
|---|---|---|---|
| Fuser Kit — 220V (this page) | 4YL17A | Fuser assembly (M776 and M856 only) | ≈150,000 pages |
| Image Transfer Belt Kit | 3WT89A | Intermediate transfer belt, secondary transfer roller and paper feed rollers | ≈150,000 pages |
| Toner Collection Unit | 3WT90A | Waste toner collection unit | ≈90,000 pages |
| Imaging Drum (HP 660A) | W2004A | Imaging drum | ≈65,000 pages |
Check the voltage before ordering: 4YL16A is the 110 V version of this kit and is not the right part for UAE mains. Toner (HP 659A / 659X) is a separate consumable and is not part of any of these kits.
What's in the Box

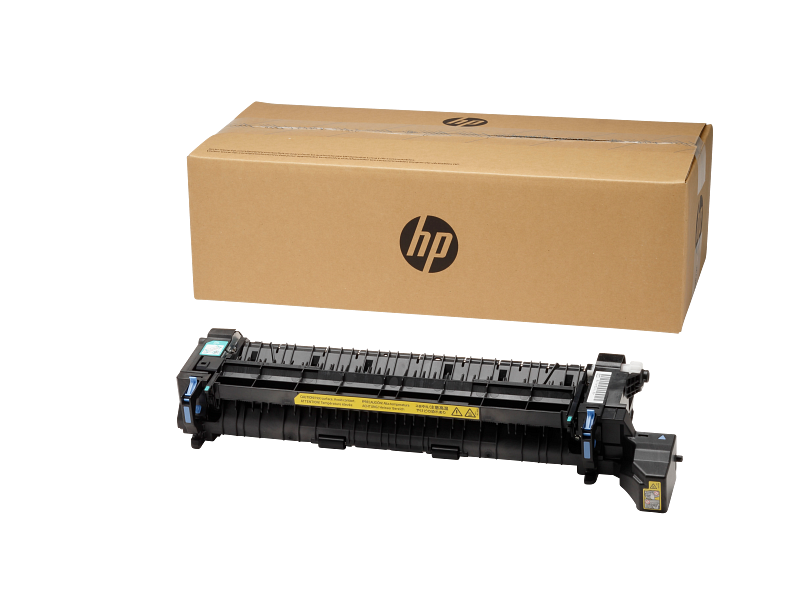

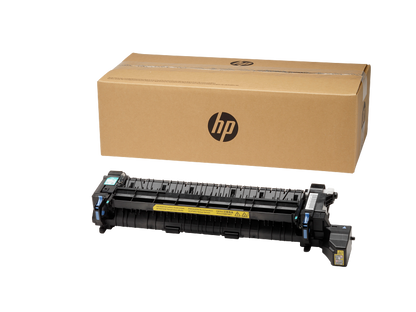

- HP 220 V fuser assembly
Why Buy From AtomOffice?
- 100% genuine HP service parts, sourced through official HP channels
- Better-price policy for competitive, real value
- UAE-based customer support — happy to help confirm the right part for your printer
- Fast, secure delivery to Dubai, Abu Dhabi, Sharjah and across the UAE
- VAT invoice included with every order
Frequently Asked Questions
Your HP Color LaserJet M776 or M856 tracks the fuser kit's life internally and raises a control-panel message as it approaches end of life. You can check it at any time from the printer's Supplies Status page — print it from the control panel, or open the supplies section of the printer's Embedded Web Server. If the alert has been dismissed for a while, the usual signs are toner that smudges or rubs off the page, repeated jams at the fuser, or fusing error codes.
No. This is the one M776/M856 service part that does not carry over to the HP Color LaserJet Enterprise M751 — the M751 takes a different fuser. The image transfer belt kit (3WT89A) and the toner collection unit (3WT90A) do fit all three machines, which is why the M751 appears on those products and not on this one. If you run a mixed fleet, send us your model numbers and we will confirm the right part for each.
In the UAE you need this 220 V kit — mains here is 220–240 V. The 110 V equivalent is a different HP part number (4YL16A) intended for 100–127 V markets, and fitting the wrong one is not a repair. If your printer was imported and you are unsure which supply it was built for, check the rating label on the back of the machine or send us the serial number and we will confirm before you order.
Yes. HP supplies the fuser kit as a user-replaceable part and most in-house IT teams fit it themselves during a quiet period. The fuser runs hot, so power the printer down and let it cool fully before you start, and reset the fuser kit counter from the control panel once the new kit is in — otherwise the printer will keep reporting the status of the old one.
Yes. AtomOffice supplies genuine HP 4YL17A kits through official HP channels — not refurbished fusers or third-party equivalents. HP tests its genuine replacement parts against the M776 and M856 to its own quality and compatibility standards. A VAT invoice is included with every order.
Not Sure Which M776 or M856 Part You Need?
Send us the message your printer is showing, or its product code, and our UAE team will confirm the right part and get it to you.
