Epson WorkForce DS-530II Sheetfed Document Scanner

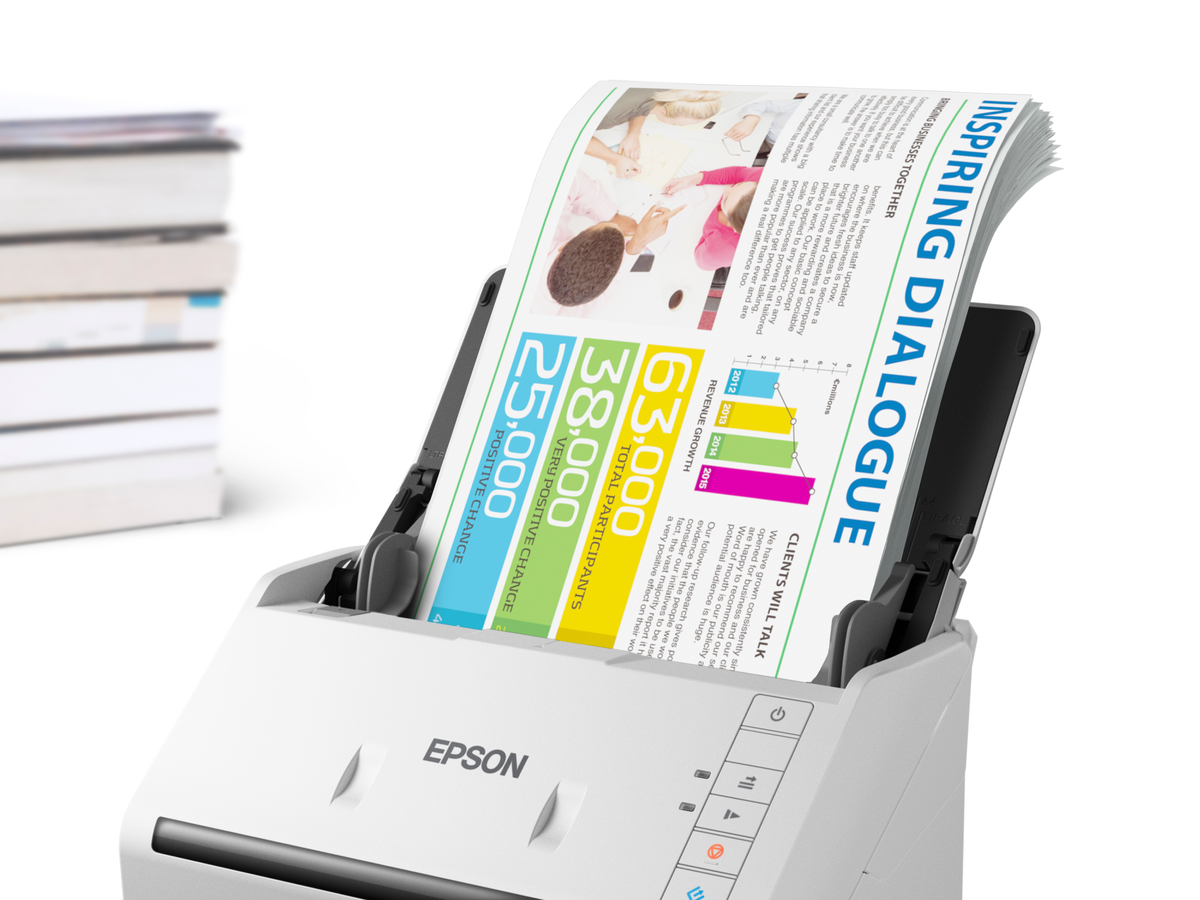

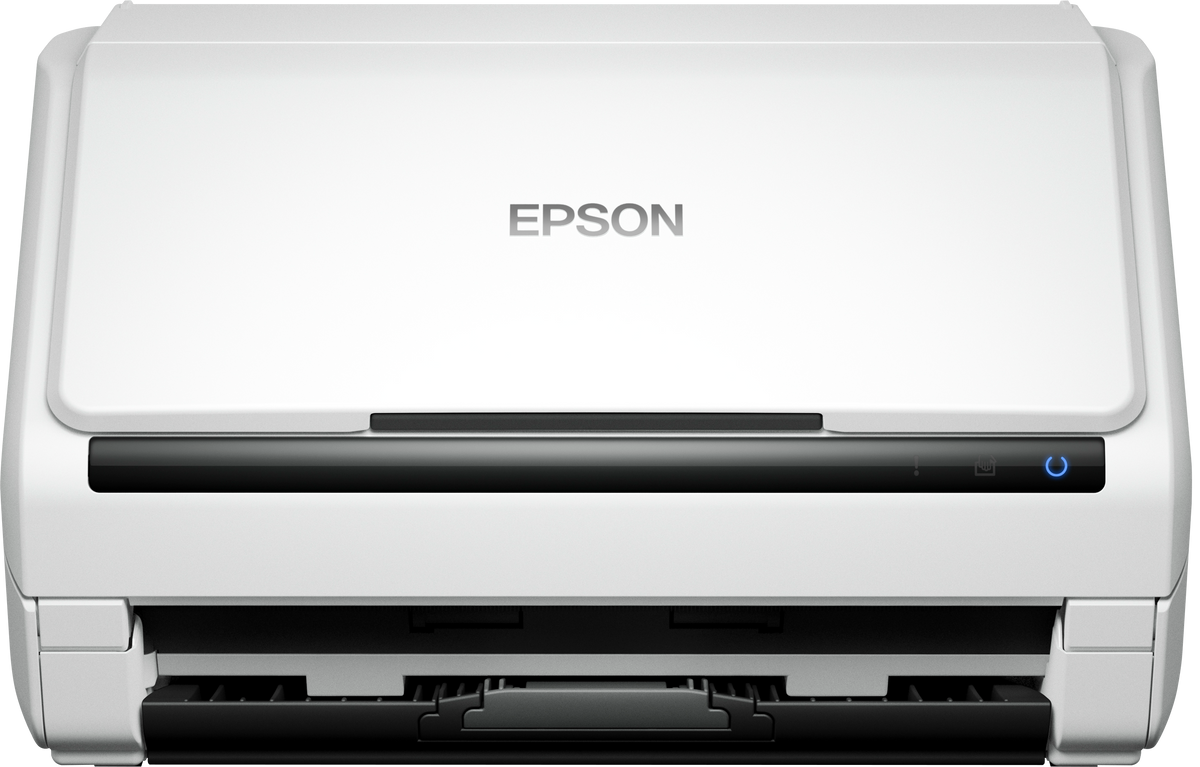

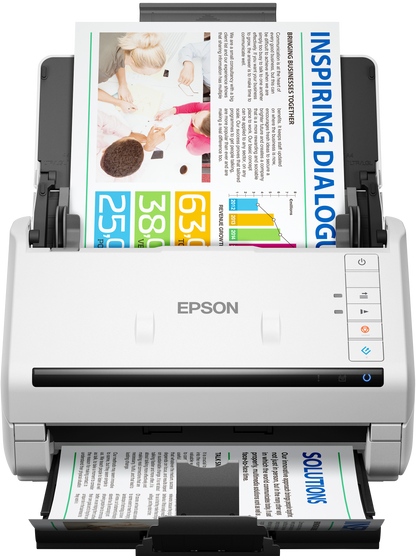

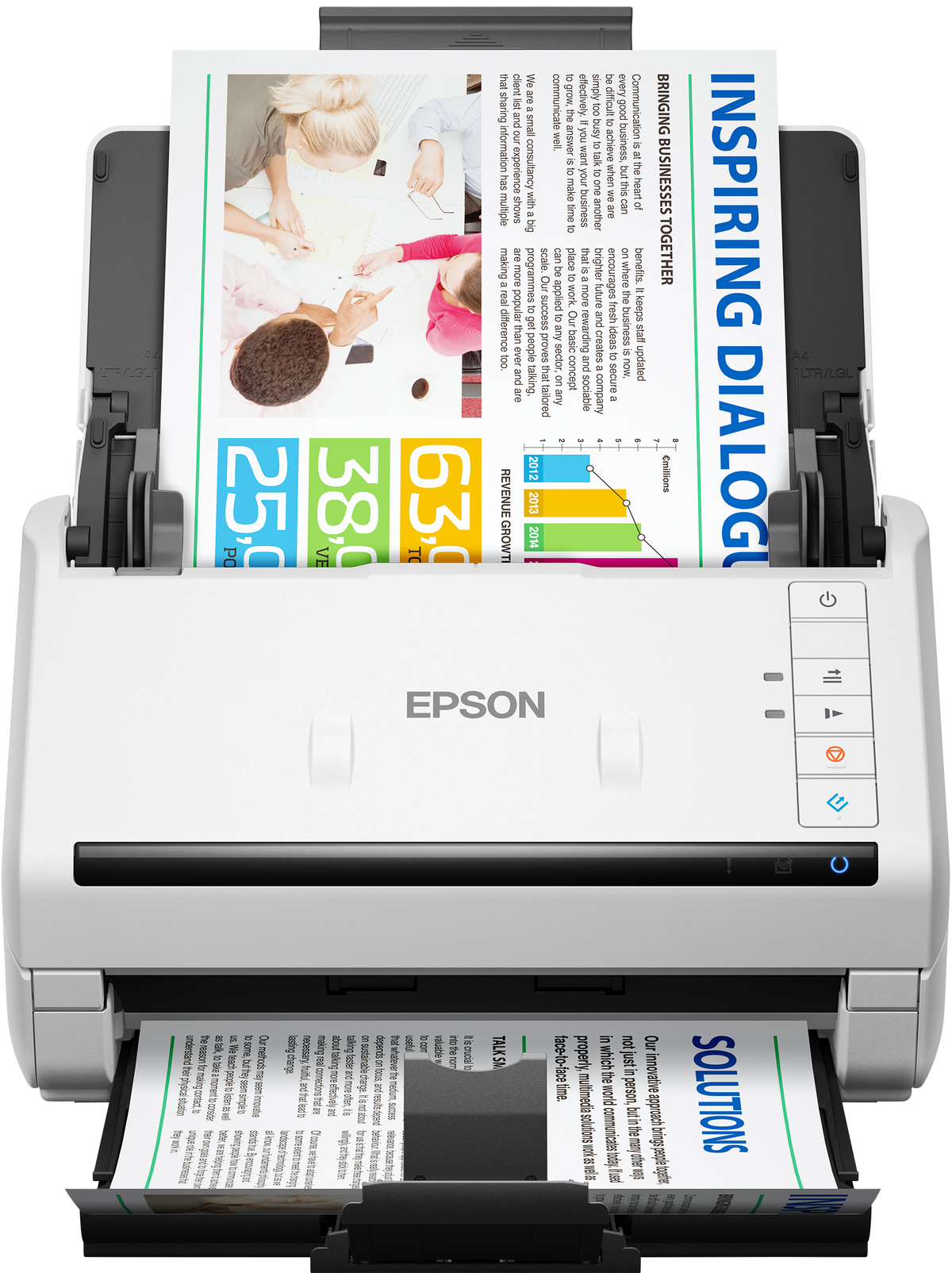

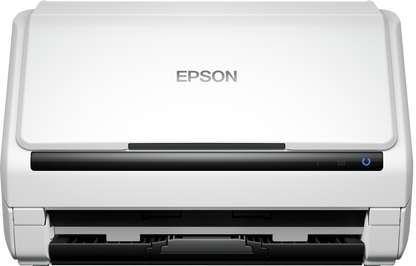

The Epson WorkForce DS-530II is a sheetfed document scanner with smart features for capturing a wide range of documents. It scans both sides in a single pass at 600 x 600 dpi optical resolution, uses Slow Mode for crumpled, long or fragile documents and an Active Separation Roller System to prevent double feeds, and can be converted with an optional flatbed kit for passports and books. Epson rates it for 5,500 pages a day.
Quick Glance
Key Features
Slow Mode and no double feeds

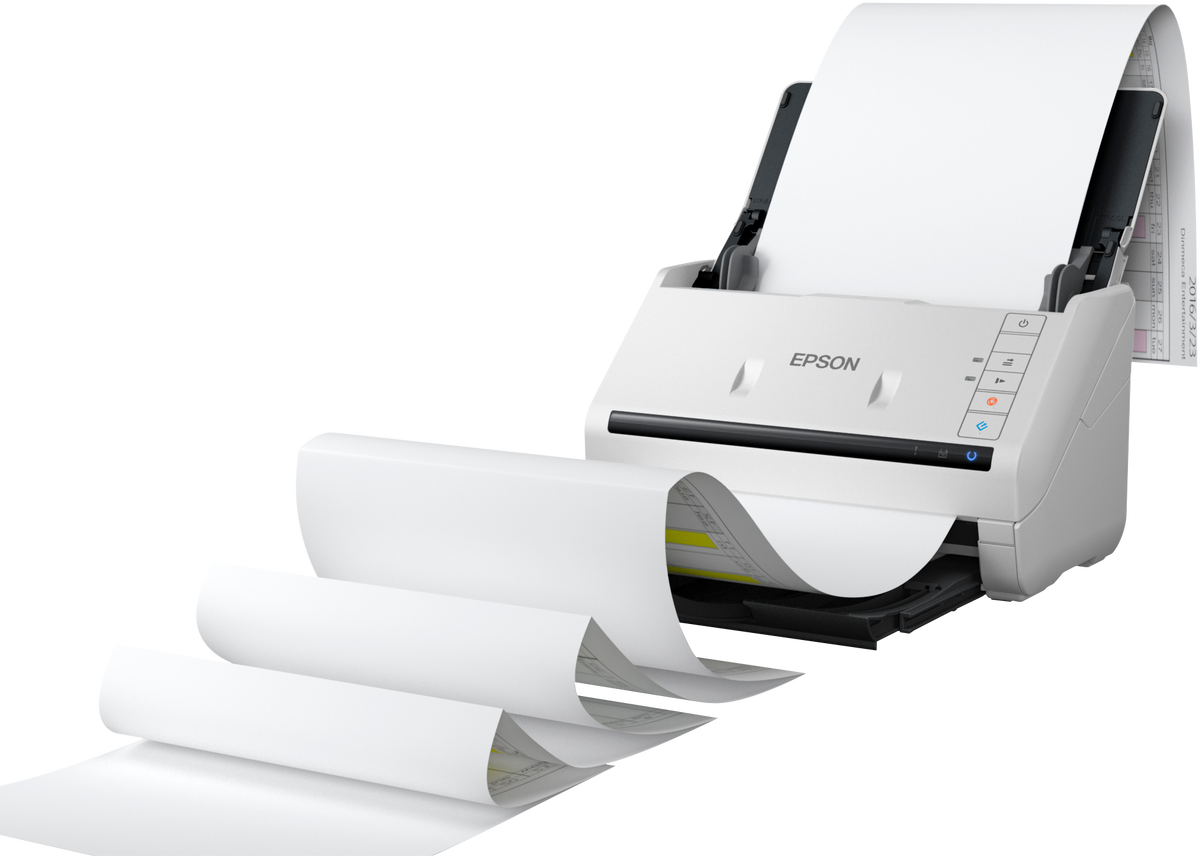

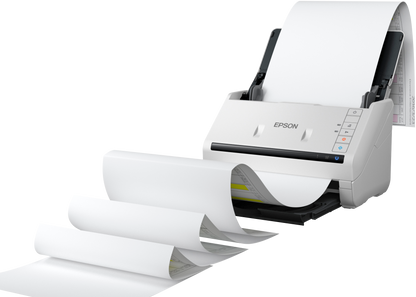

Slow Mode scans crumpled, long or fragile documents without increasing file sizes, and the Active Separation Roller System prevents tedious double feeds so every piece of paper gets scanned. Epson also lists an ultrasonic sensor, and paper from 27 to 413 g/m² up to 6096 mm long.
Optional flatbed kit and Auto Scan Mode

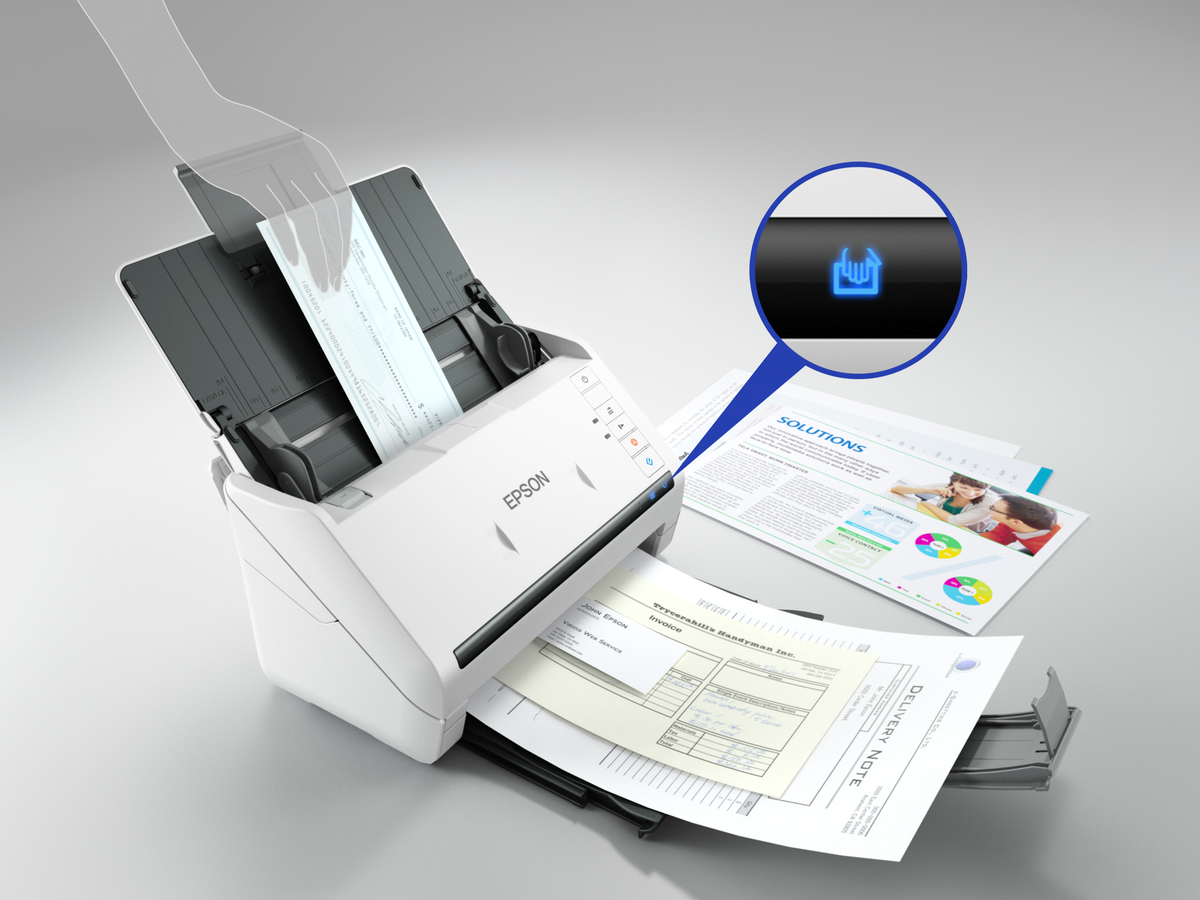

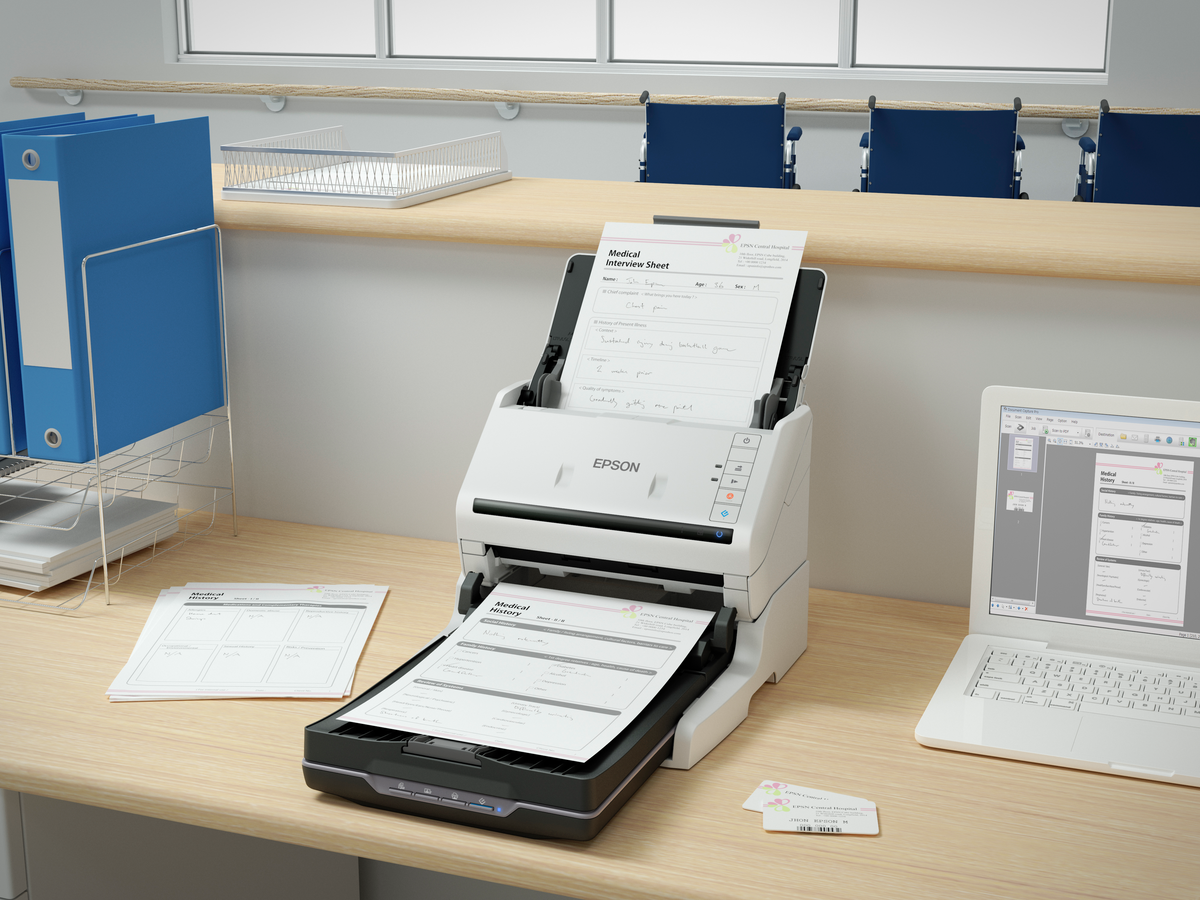

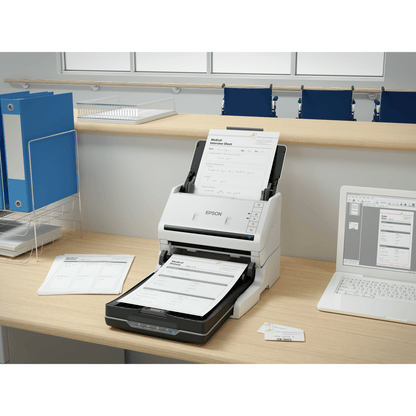

An optional flatbed scanner conversion kit enables scanning of items from stamps to passports, books and more. Auto Scan Mode lets staff process physical documents in manageable amounts, and A3 pages can be scanned using A3 stitching.
Capture software with OCR and barcodes
Document Capture Pro, Epson Document Capture (Mac), Epson Scan 2 and Presto! BizCard 5.6 are included, and Document Capture Pro Server is a free download. Epson lists barcode recognition, full zonal OCR, automatic folder creation, blank page skipping and punch hole removal, with output to searchable PDF, secure PDF and PDF/A.
Detailed Specifications
Specifications are taken from Epson's WorkForce DS-530II product page on epson.ae. Epson's page states no scanning speed, no feeder sheet capacity, no interfaces and no weight, so none is shown. Units for document size, paper weight and operating temperature follow Epson's standard measures where the table gives the figure alone.
Need-to-Know
- Epson's UAE specification does not state a scanning speed or the feeder's sheet capacity, so neither is given here. Ask us if throughput matters for your workload.
- Epson's UAE table names no interfaces; a USB cable is in the box. Ask us to confirm connection options before ordering.
- The flatbed scanner conversion kit is optional and sold separately; it is not in the box.
- Epson's UAE table lists Windows 11 as the compatible operating system, with Document Capture for Mac included; ask us about other systems.
Best For / Customer Benefits
Customer Benefits
- Single-pass duplex scanning at 600 x 600 dpi optical resolution.
- Slow Mode and the Active Separation Roller System for difficult originals and fewer double feeds.
- Optional flatbed conversion kit for stamps, passports and books.
- Barcode recognition, full zonal OCR and automatic folder creation for sorted output.
- Epson rates it for a daily duty cycle of 5,500 pages.
Best For
Frequently Asked Questions
Yes. Epson's Slow Mode scans crumpled, long or fragile documents without increasing file sizes, and the Active Separation Roller System prevents double feeds so every piece of paper gets scanned.
With the optional flatbed scanner conversion kit, yes. Epson states the kit enables scanning of items from stamps to passports, books and more. The kit is sold separately.
Yes. Epson lists duplex scanning with a single pass dual scanning feeder, so both sides are captured in one pass at 600 x 600 dpi optical resolution.
Epson rates the DS-530II for a daily duty cycle of 5,500 pages and lists it under General Office and High Capacity scanners.
Document Capture Pro, Epson Document Capture (Mac only), Epson Scan 2 and Presto! BizCard 5.6, with Epson Document Capture Pro Server on free download. Epson lists barcode recognition, full zonal OCR and automatic folder creation, and scan to email, FTP, Microsoft SharePoint, print and web folders.
