Epson SureColor Photo and Proofing Printer

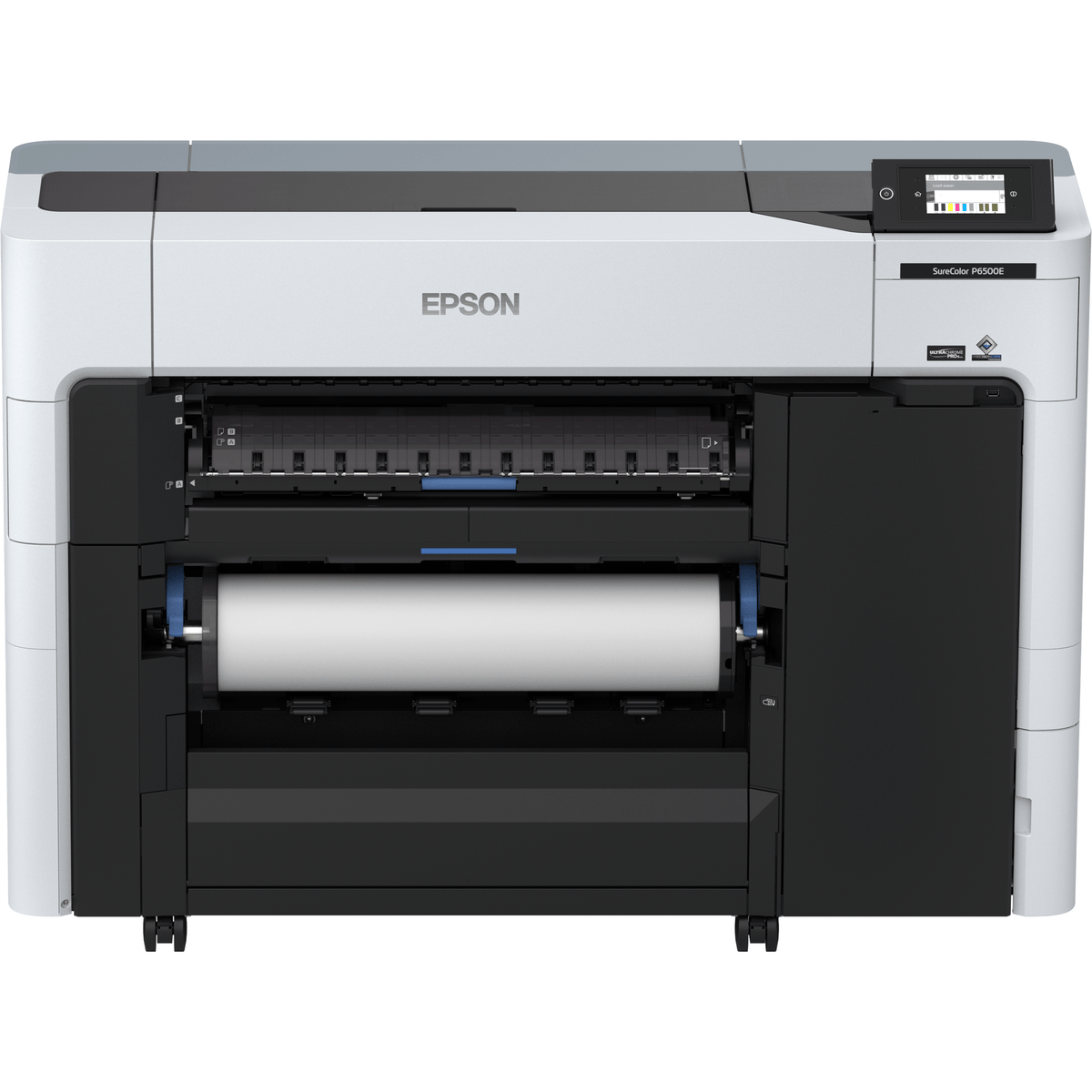

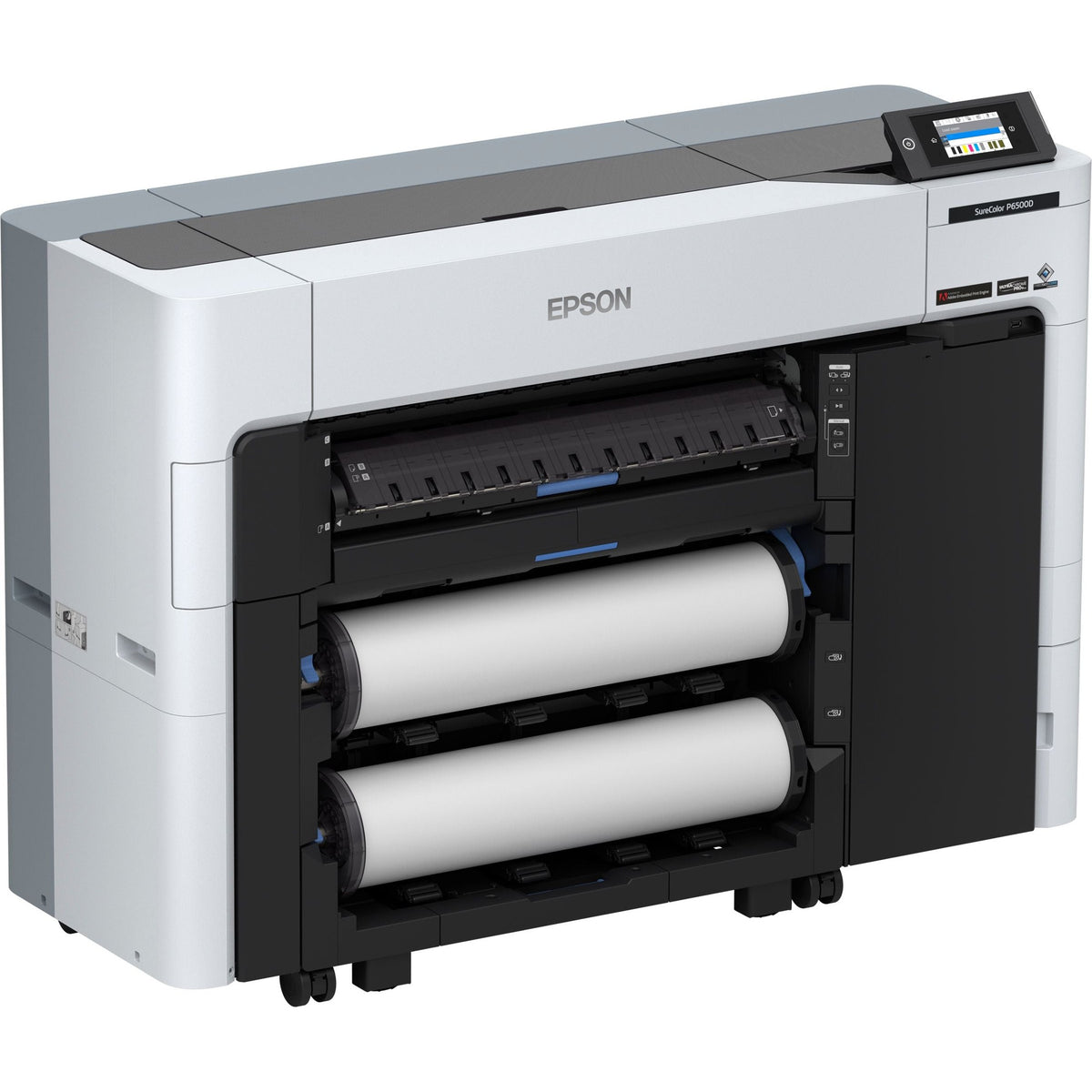

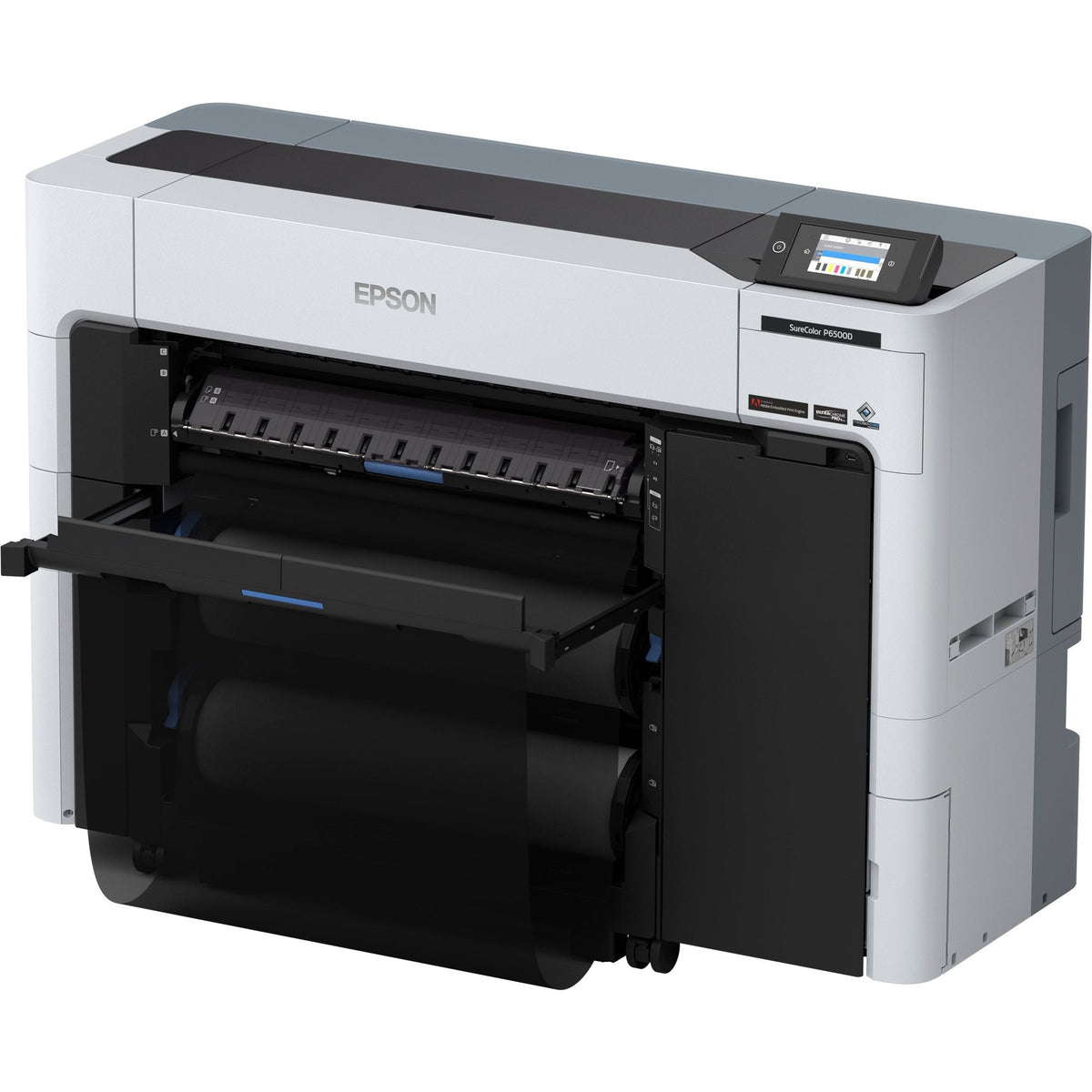

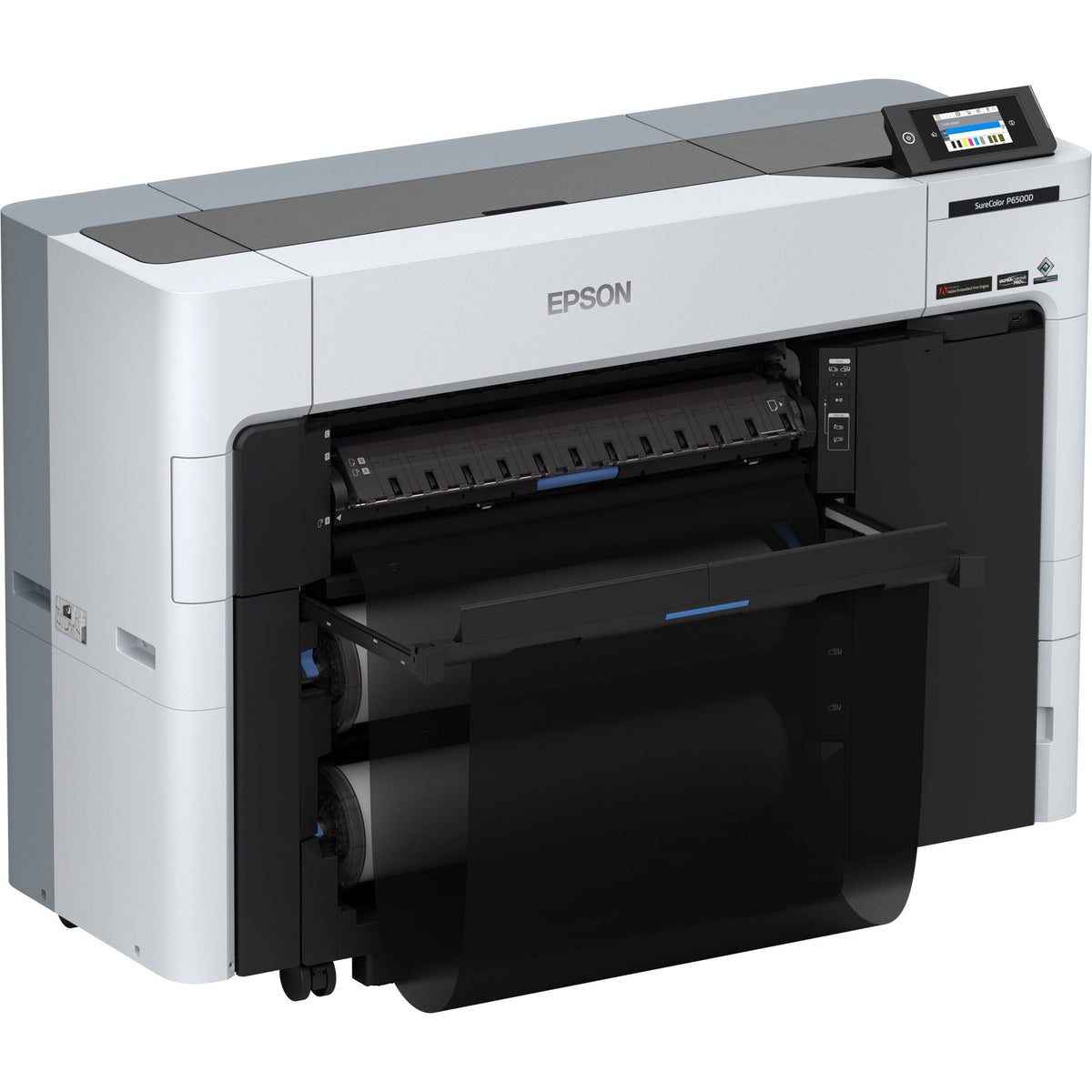

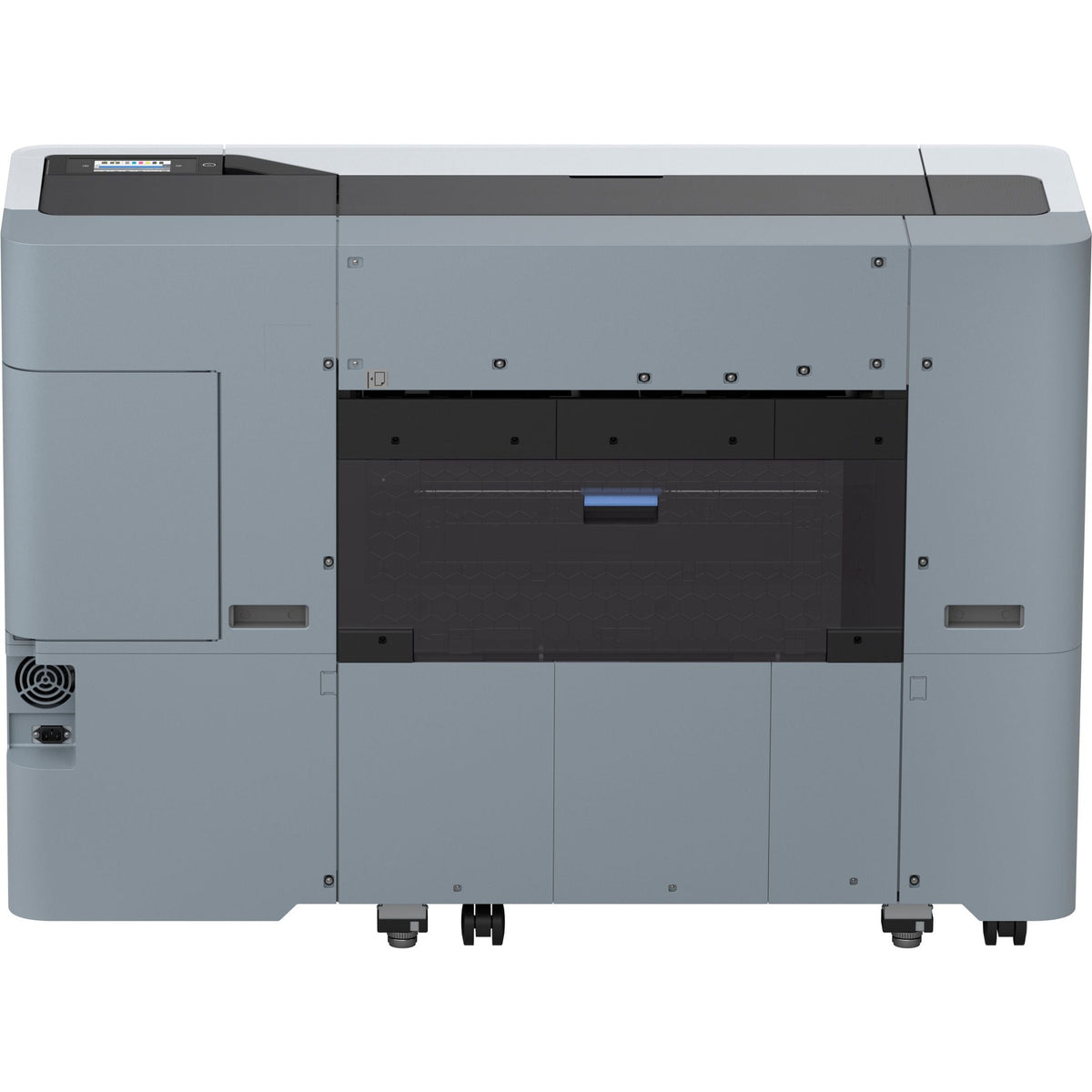

Epson SureColor SC-P6500E / SC-P6500DE 24-inch Photo and Proofing Printer
The Epson SureColor SC-P6500E family is a 24-inch photo and proofing printer for photographers, fine-art studios, poster producers and commercial photo labs, in two models: the SC-P6500E is the single roll version, and the SC-P6500DE is the dual roll version with an auto take-up reel. Both use a PrecisionCore Micro TFP printhead with UltraChrome Pro6 ink, which Epson describes as 8-colour quality from a 6-colour printer, print at up to 1200 x 2400 dpi and are rated at up to 18 m²/hr in photo quality.
Quick Glance
Key Features
8-colour quality from a 6-colour printer
A PrecisionCore Micro TFP printhead with 1600 nozzles per colour prints UltraChrome Pro6 ink at up to 1200 x 2400 dpi, with a 0.02 mm minimum line width and LUT and ICC profile support. Epson rates both models at up to 18 m²/hr in photo quality, with ink in 350 or 700 ml cartridges.
Single roll or dual roll, up to 24"
The SC-P6500E holds one roll and the SC-P6500DE holds two, each up to 170 mm in diameter, and only the SC-P6500DE has an auto take-up reel. Both take 17" and 24" rolls and A5 to A1 sheets, with borderless printing on 10", 17" and 24" rolls.
Compact design, managed from the cloud
Epson lists 1365 x 499 x 975 mm (W x D x H) for both models, a compact design that fits into most working environments. They connect over wired and wireless networks with SSL/TLS, and Epson Cloud Solution PORT and Epson Device Admin handle management.
Detailed Specifications
Specifications are Epson's own, from the Epson UAE product pages for C11CJ48301A1 and C11CJ49302A1. Rows Epson's pages state without a unit or with an internal code (power consumption, sound power, ink tank capacity, paper and rigid board thickness, line accuracy, A1 print speed, roll weight, panel size) are left out rather than guessed.
Need-to-Know
The two models share the same printhead, ink, resolution, speed and paper formats; what separates them is the roll configuration: the SC-P6500E is the single roll version, the SC-P6500DE the dual roll version with an auto take-up reel.
- The SC-P6500E is the single roll version and has no auto take-up reel; the SC-P6500DE is the dual roll version with an auto take-up reel. Everything else on Epson's two specification tables is the same.
- Epson's UAE specification lists only macOS 11 or later under operating systems for both models; ask us to confirm Windows support for your setup.
- The print speed of up to 18 m²/hr is Epson's figure for photo quality; actual speed depends on the print mode and media.
- Epson's UAE pages do not publish either model's weight, interface ports, or units for their power and sound figures, so check with us if you need a specific figure or connection.
- An SSD and a production stacker are optional extras, not standard on either model. The Roll Feed Spindle 24" can also be ordered separately.
| Part Number | Model | Epson product name | Roll configuration | Roll capacity diameter | Auto take-up reel |
|---|---|---|---|---|---|
| C11CJ48301A1 | SC-P6500E | SureColor SC-P6500E STD | Single roll version | 170 mm (one roll) | No |
| C11CJ49302A1 | SC-P6500DE | SureColor SC-P6500DE STD | Dual roll version | 170 mm (Roll 1), 170 mm (Roll 2) | Yes |
From Epson UAE's own product pages for C11CJ48301A1 and C11CJ49302A1: product names, highlights and the Paper / Media Handling and product features rows.
Best For / Customer Benefits
Customer Benefits
- 8-colour quality from a 6-colour UltraChrome Pro6 ink set, as Epson describes it.
- Up to 18 m²/hr in photo quality for poster and photo runs.
- A choice of single roll or dual roll with auto take-up reel, same print engine.
- Expert advice from AtomOffice on choosing the right SureColor P-Series model, media and options.
Best For
Frequently Asked Questions
The roll configuration. The SC-P6500E (C11CJ48301A1) is the single roll version, holding one roll of up to 170 mm diameter, with no auto take-up reel. The SC-P6500DE (C11CJ49302A1) is the dual roll version, holding two rolls of up to 170 mm diameter each, with an auto take-up reel. Printhead, ink, resolution, speed, paper formats and dimensions are the same on both Epson pages.
Both take 17" and 24" rolls, and Epson lists sheet formats from A5 to A1. Borderless printing is supported on 10", 17" and 24" (60.9 cm) rolls.
Epson UltraChrome Pro6 ink in 350 ml or 700 ml cartridges. Epson describes it as 8-colour quality from a 6-colour printer, and both models support LUT and ICC colour profiles.
Epson rates both models at up to 18 m²/hr in photo quality. Actual speed depends on the print mode and the media you use.
Need the Epson SureColor SC-P6500E for your studio?
Ask us for a quote on the single roll SC-P6500E or the dual roll SC-P6500DE, or for help choosing media and options such as the production stacker.
