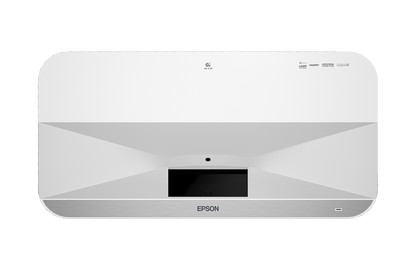

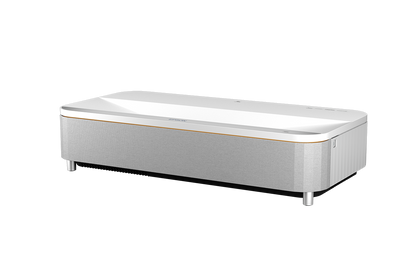

Epson EH-QS100 4K PRO-UHD Super-Short-Throw Laser Projector
The Epson EH-QS100 is a super-short-throw 3LCD laser projector for home cinema, sport, streaming and box sets. Placed close to the wall on a table or TV cabinet, or wall mounted, it projects from 60 to 160 inches with a 0.16 to 0.22 throw ratio, gives 4,500 lumens of colour light output with Epson's 4K PRO-UHD enhancement, and its laser light source is rated at 20,000 hours. It is offered in White (V11HB49040) and Black (V11HB49140).
Quick Glance
Key Features
A big picture from close to the wall
A super-short-throw lens with a 0.16 to 0.22 throw ratio lets the EH-QS100 project from 60 up to 160 inches while sitting close to the projection surface. Epson lists a 90-inch picture from 0.32 m. It can be table mounted, wall mounted or placed on a TV cabinet, and Quick Corner and digital zoom help line the picture up.
4K PRO-UHD picture with 3LCD colour
Three 0.62-inch C2 Fine LCD panels with Epson's 4K enhancement give a 4K PRO-UHD picture (4,147,200 dots, 1920 x 1080 x 2). Epson lists 4,500 lumens of colour light output, a 5,000,000:1 contrast ratio, 1,800:1 native contrast, 10-bit colour processing and up to 1.07 billion colours, with ISF certification and frame interpolation.
Laser light source and home-control integration
The laser light source is rated at 20,000 hours in High, Medium and Eco modes, so there is no lamp to replace. The EH-QS100 is CEC compatible and works with Crestron, AMX Device Discovery and Control4 Simple Device Discovery Protocol, with ESC/VP.net, PJLink and IPv6 network protocols.
Detailed Specifications
Specifications are Epson's own, from Epson's product pages for the EH-QS100W and EH-QS100B, whose spec tables match. Colours per part number are from the same Epson pages.
Need-to-Know
The EH-QS100 comes in two chassis colours. Epson lists the same specification for both; choose by the colour that suits the room.
- 4K PRO-UHD is Epson's 4K enhancement: Epson lists the pixel count as 1920 x 1080 x 2 (4,147,200 dots).
- Epson lists Android TV and Google TV as not built in, so a streaming device or other source is needed.
- Epson's specification does not list the video inputs (such as HDMI ports), a built-in speaker, the HDR format or a weight for this model. Ask us before ordering if any of these matter.
- The supply voltage Epson lists for this model is 220 V to 240 V.
| Part Number | Colour | Epson model name |
|---|---|---|

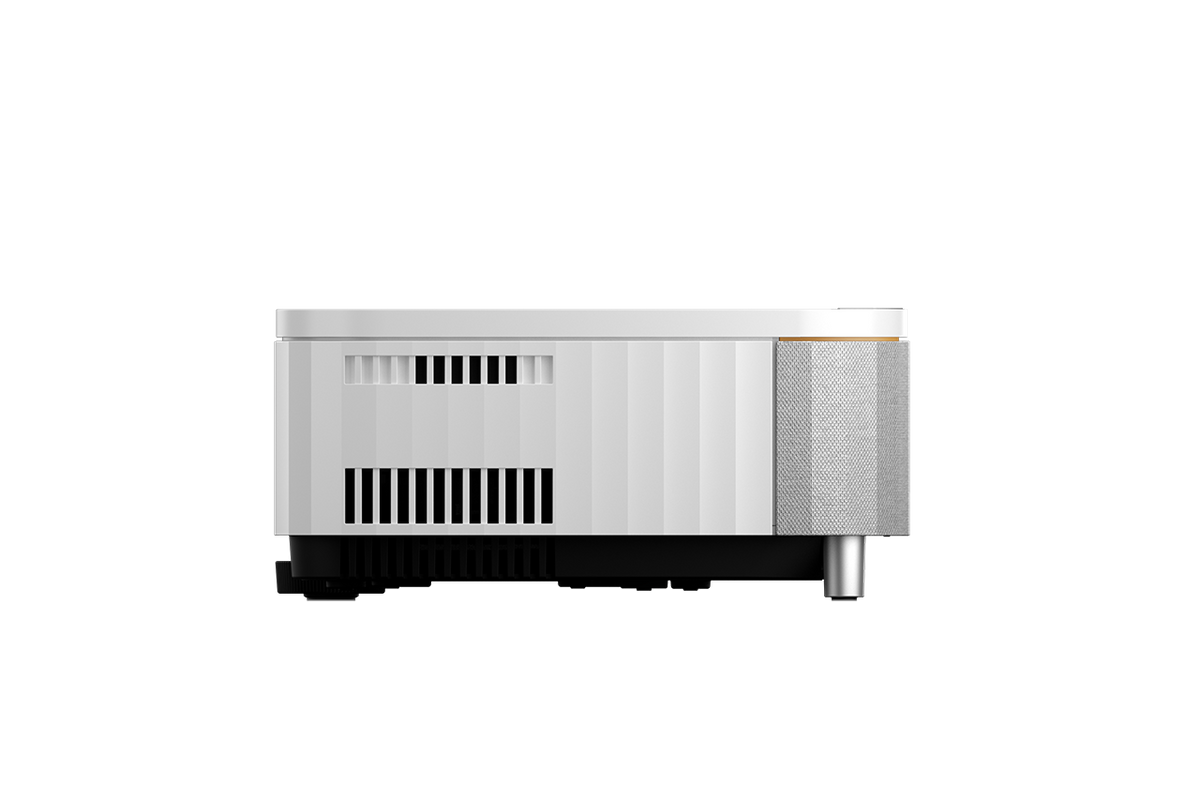

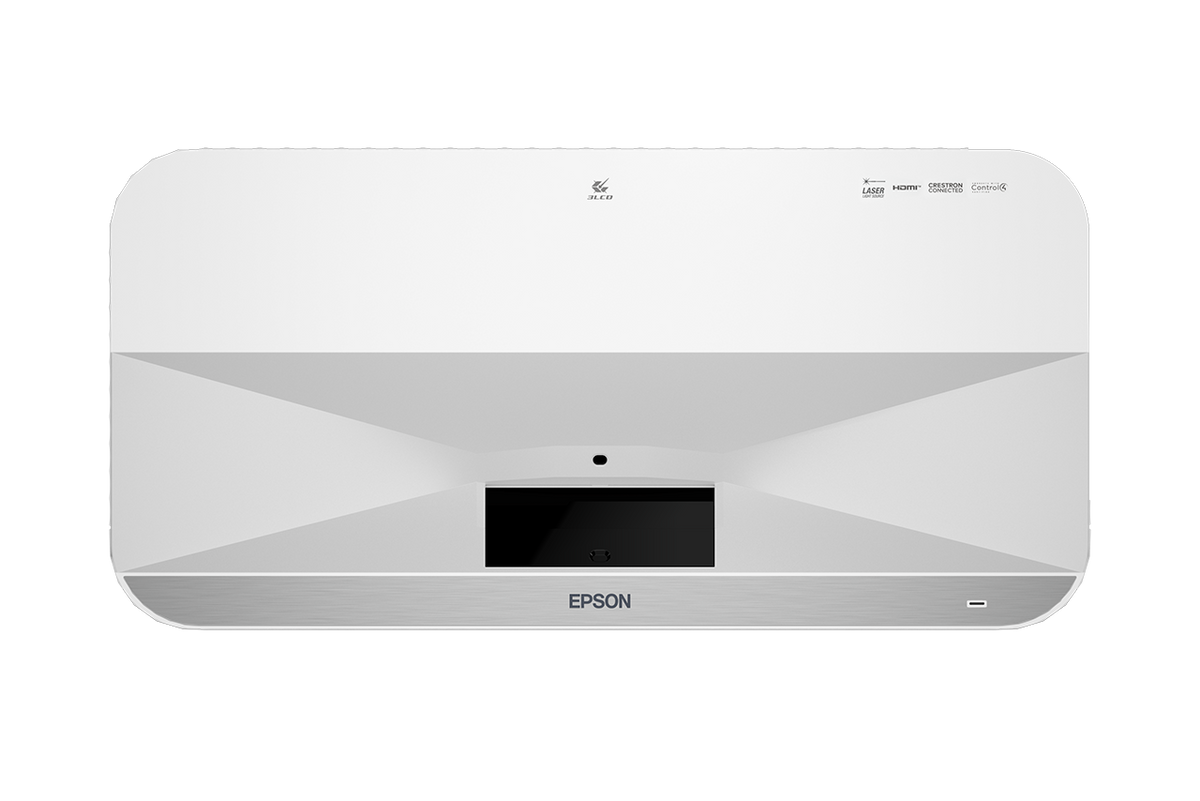

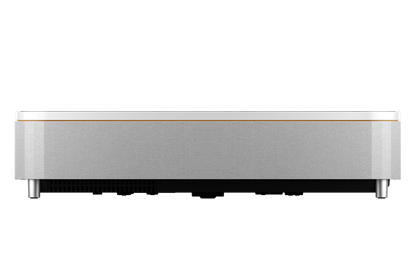

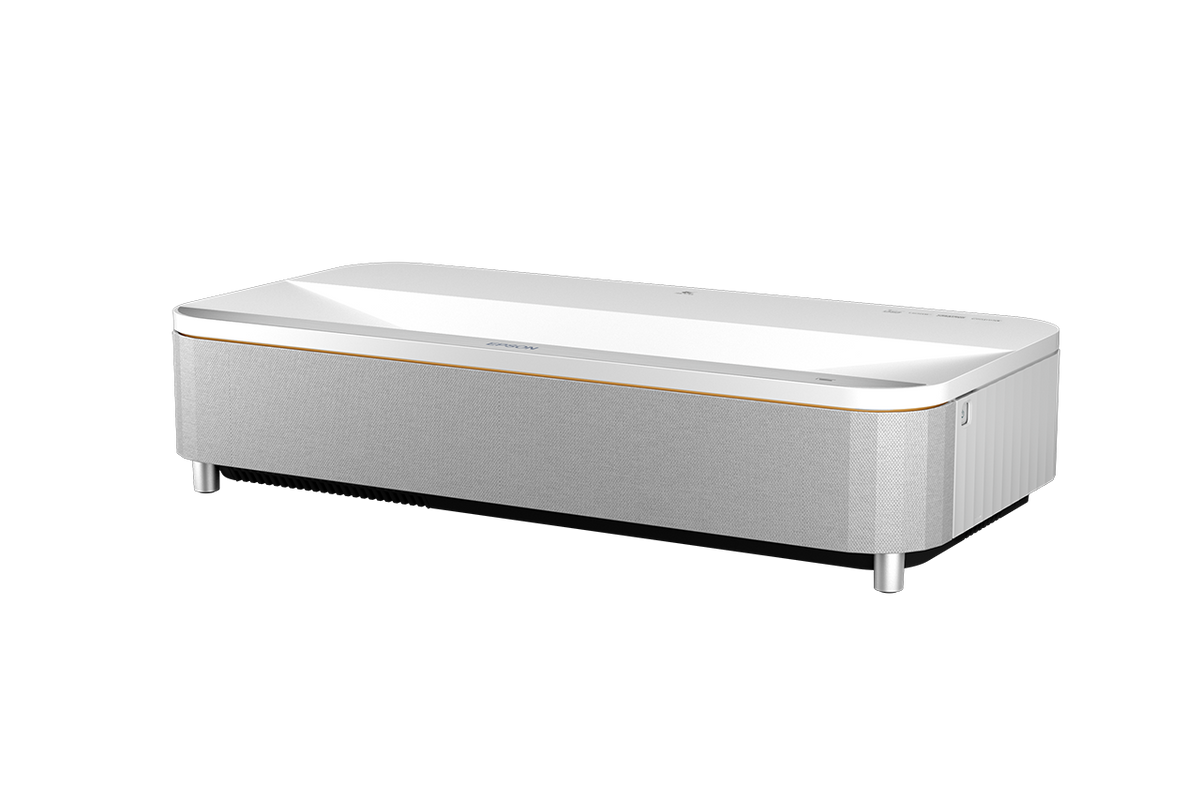

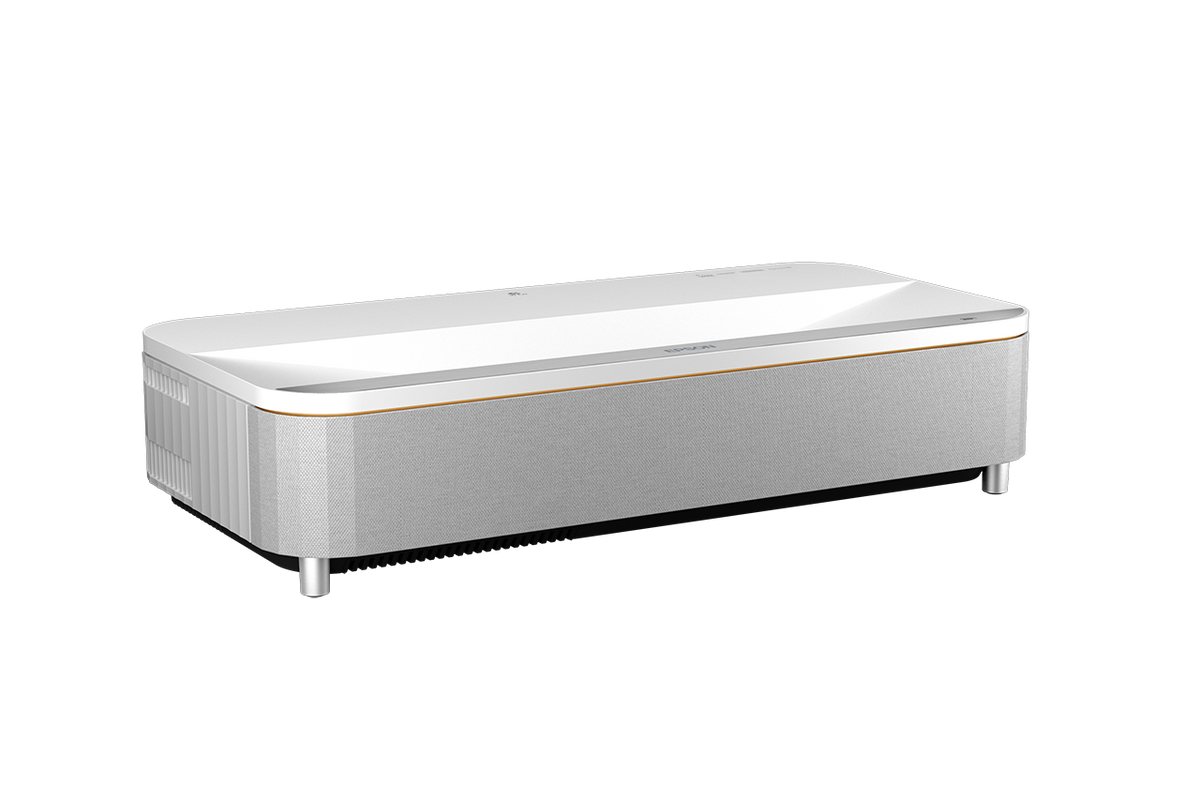

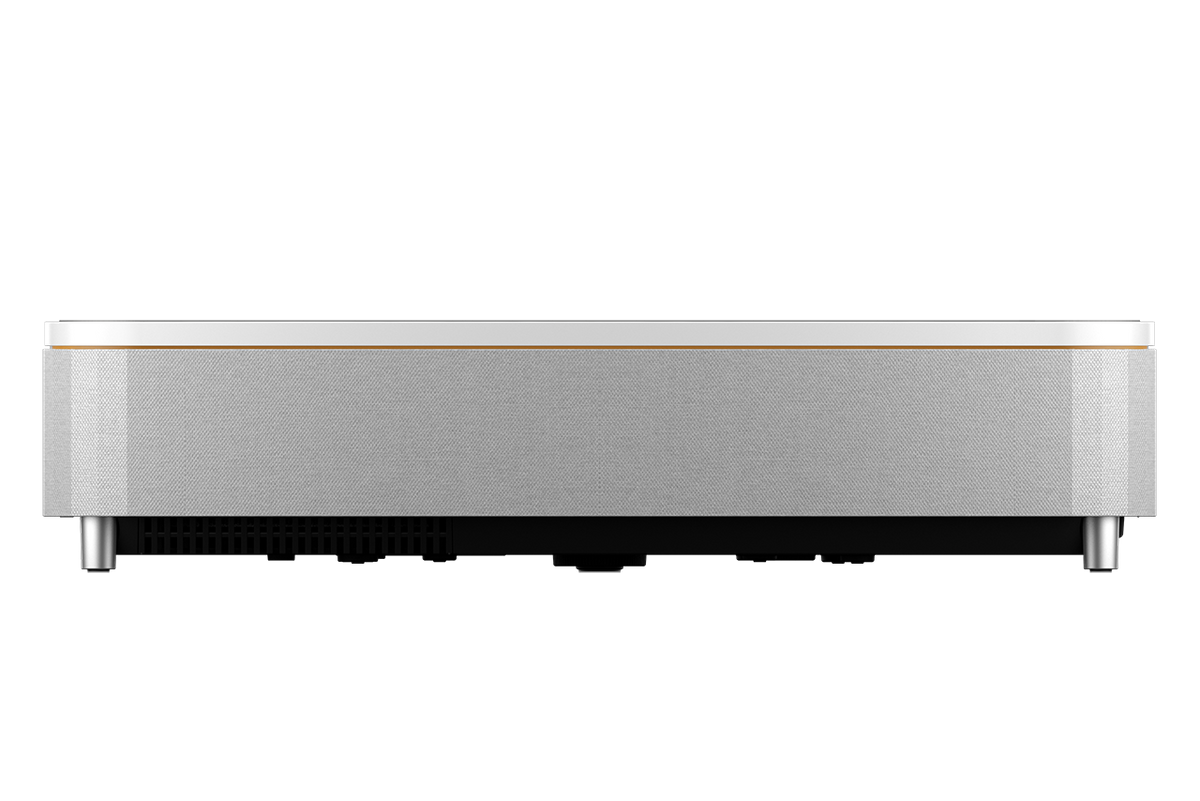

| V11HB49040 | White | EH-QS100W |

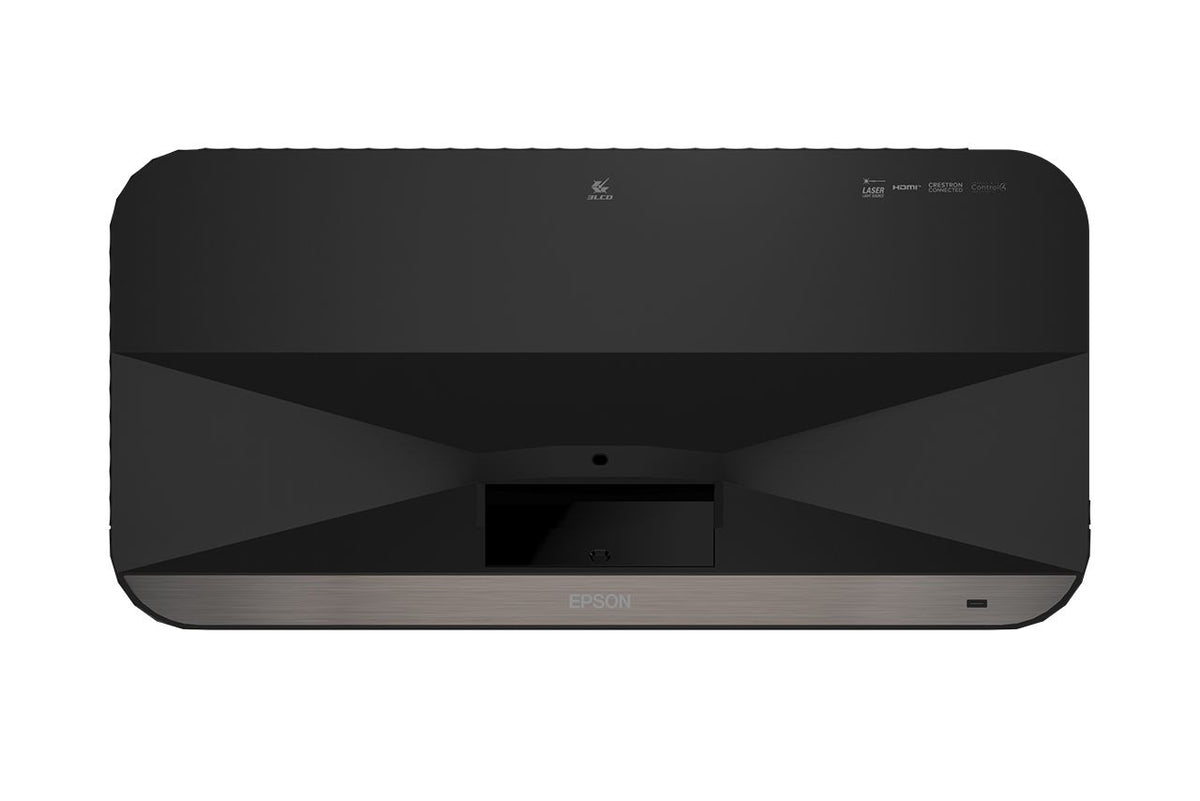

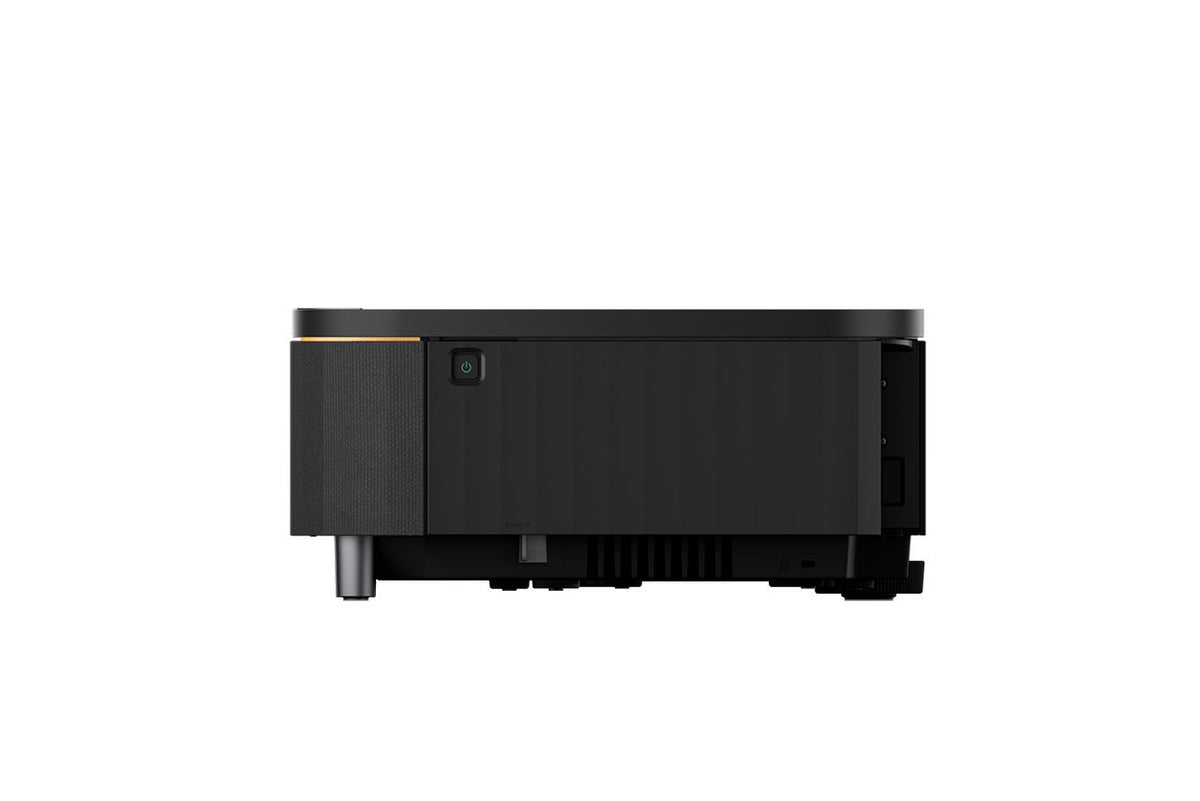

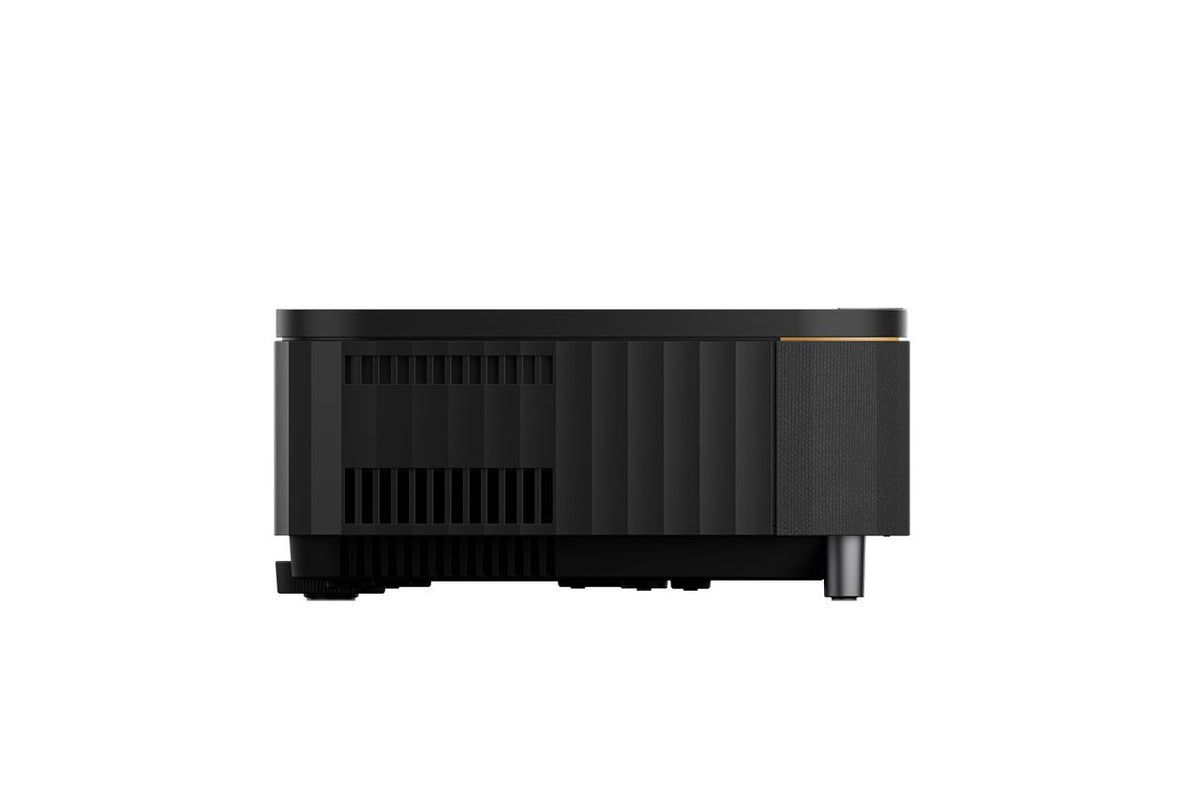

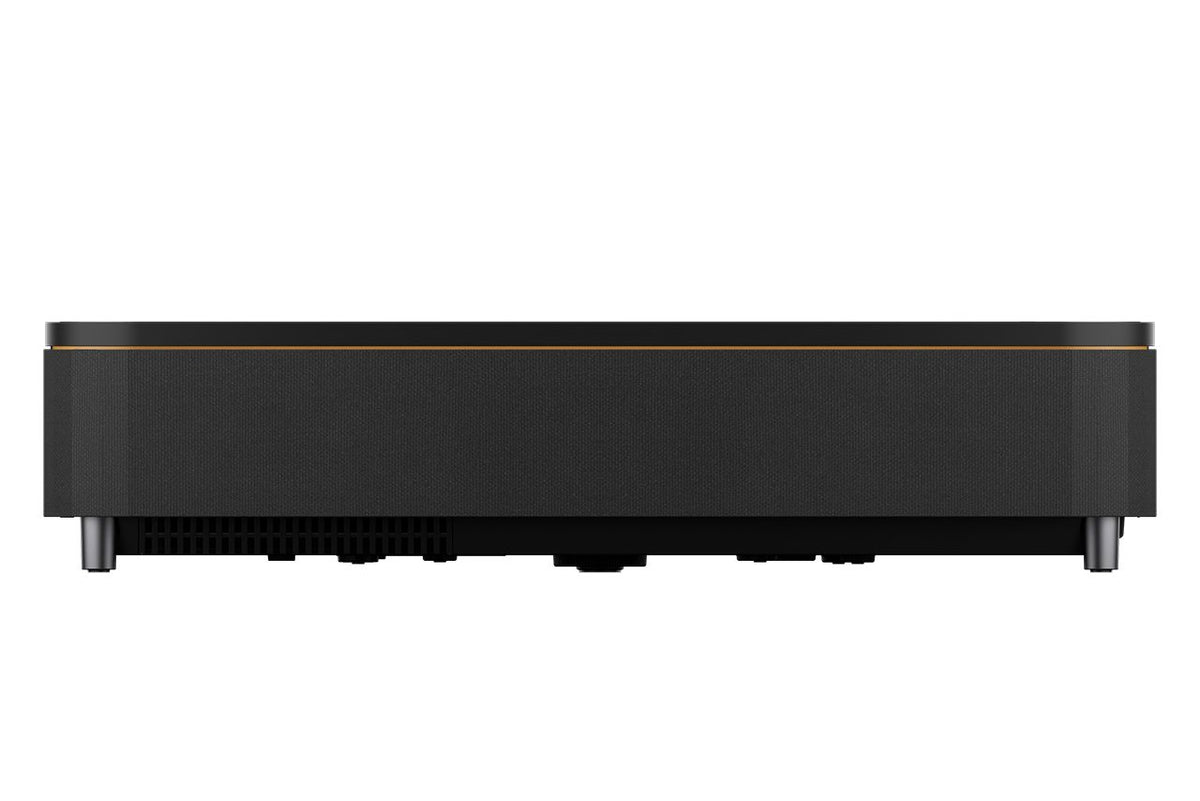

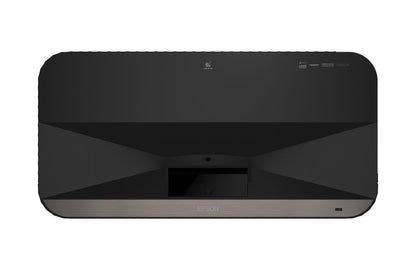

| V11HB49140 | Black | EH-QS100B |
Colours are taken from Epson's own product pages for each part number.
Best For / Customer Benefits
Customer Benefits
- A picture of up to 160 inches from a projector that sits close to the wall.
- 4,500 lumens of colour light output for viewing in brighter rooms.
- A laser light source rated at 20,000 hours, with no lamp to replace.
- Crestron, AMX and Control4 discovery for integration into a home-control system.
- White and Black versions with the same specification, to match the room.
Best For
Frequently Asked Questions
It is a super-short-throw projector with a throw ratio of 0.16 to 0.22. Epson lists a 90-inch picture from a projection distance of 0.32 m, and a supported screen size of 60 to 160 inches.
Epson calls it 4K PRO-UHD, using its 4K enhancement technology. The pixel count Epson lists is 4,147,200 dots (1920 x 1080 x 2).
No. Epson lists both Android TV and Google TV as not built in, so connect a streaming device, games console or other source. It is CEC compatible and has auto source search.
Epson rates the laser light source at 20,000 hours in High, Medium and Eco modes. There is no lamp to replace.
Only the chassis colour. V11HB49040 is the White EH-QS100W and V11HB49140 is the Black EH-QS100B; Epson lists the same specification for both.
Ask about the Epson EH-QS100
Tell us your room, the screen size you want and whether you want the White or Black version, and we will confirm the right part number and quote.
