Epson large-venue 4K laser projector
Epson EB-PQ2213B 4K 3LCD Laser Projector, 13,000 Lumens
The Epson EB-PQ2213B is a compact 4K 3LCD laser projector for large venues: auditoriums, rental and staging, projection mapping, signage and visitor attractions. Epson lists 13,000 lumens of colour light output (ISO 21118:2012), a 4K 3840 x 2160 picture with 4K Crystal Motion technology, a sealed IP5X optical engine and light source module, and interchangeable lenses. The projector is sold without a lens, so it can be matched to the throw distance of the room. Part number V11HB03880DA.
Quick Glance
Key Features
13,000 lumens of 4K 3LCD colour
Epson lists 13,000 lumens of colour light output (9,100 in economy mode, ISO 21118:2012), a 4K 3840 x 2160 picture using 4K Crystal Motion technology, a 5,000,000:1 contrast ratio, HLG HDR, 10-bit colour processing and up to 1.07 billion colours.
Built for any lens and any mounting
The lens is interchangeable and sold separately, with a throw ratio range of 0.34 to 7.16 listed by Epson, motorised focus, lens position memory and a mechanical shutter. It can be ceiling, wall, floor, table or flying-frame mounted, and supports edge blending, point correction and Quick Corner for multi-projector and mapping work.
Filter-free, sealed laser engine
The laser light source is rated at 20,000 hours in High mode and 30,000 hours in Eco mode. The design is filter-free, and the optical engine and light source module are sealed and IP5X certified to IEC Standard 60529 for dust resistance.
Detailed Specifications
Specifications are Epson's own, from Epson's product page for the EB-PQ2213B. Colour light output is measured in accordance with ISO 21118:2012. Lens-dependent figures vary by the lens fitted.
Need-to-Know
- The EB-PQ2213B is supplied without a lens. Projection distance, screen size, lens shift, F number and focal length depend on the Epson lens chosen; tell us the throw distance and screen size and we will help match one.
- Epson states that 4K (3840 x 2160) is the maximum physical resolution achieved using 4K Crystal Motion technology.
- The IP5X dust-resistance certification is to IEC Standard 60529 and applies to the optical engine and light source module.
- Epson's specification does not list the video inputs (such as HDMI or HDBaseT ports) or a weight for this model. Ask us before ordering if either matters for your installation.

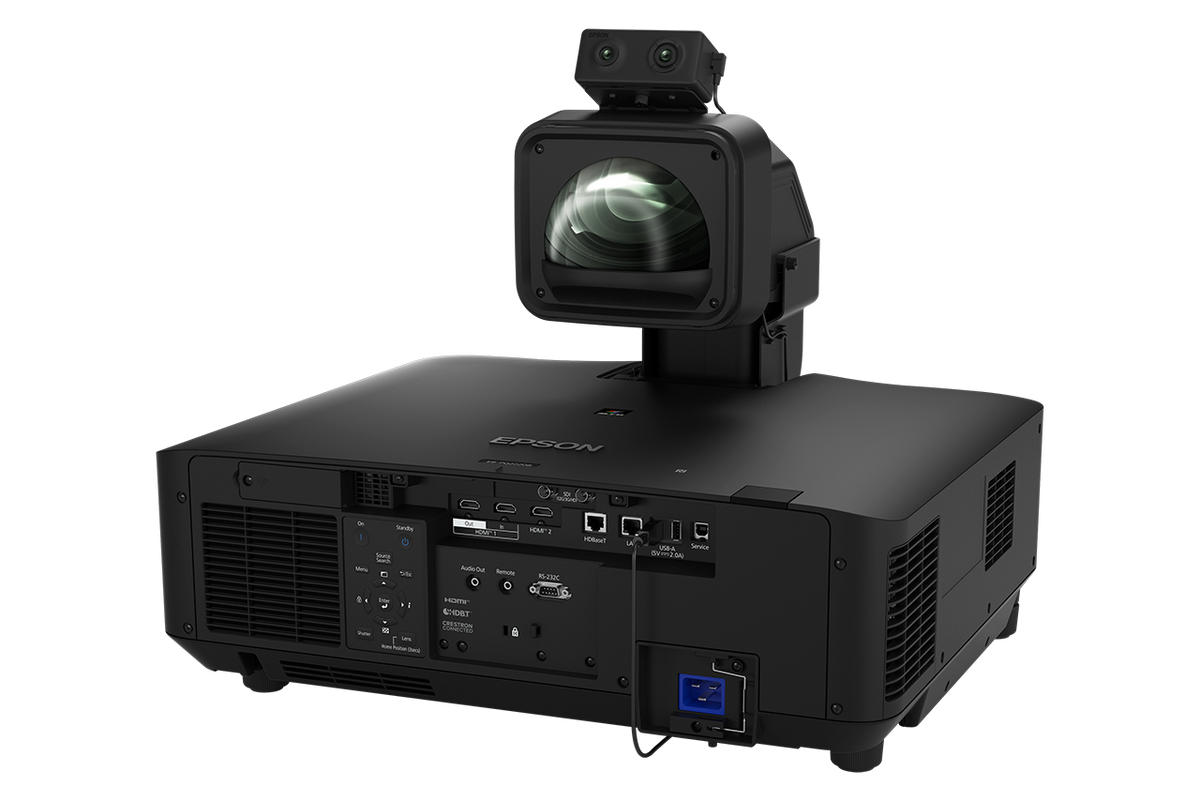

- The camera module, Wireless LAN unit and ceiling mount are options and are not part of the projector.
Best For / Customer Benefits
Customer Benefits
- 13,000 lumens of colour light output in a compact 586 x 492 x 218 mm body.
- An interchangeable lens, so one projector model can serve short and long throw installations.
- A filter-free design with a sealed IP5X optical engine and light source module, for less routine maintenance.
- Edge blending, point correction and Quick Corner for multi-projector and projection-mapping set-ups.
- Control-system support for Extron, AMX and Crestron, with remote management software included.
Best For
Frequently Asked Questions
No. Epson lists the standard lens as not included; the lens is interchangeable and bought separately. Epson gives a throw ratio range of 0.34 to 7.16 and says projection distance, screen size and lens shift vary by lens, so the lens is chosen for the room.
Epson lists 13,000 lumens of colour light output in accordance with ISO 21118:2012, and 9,100 lumens in economy mode. Portrait colour light output is also listed at 13,000 lm.
Epson lists the resolution as 4K 3840 x 2160, 8.3m pixels, 16:9, and states that 4K is the maximum physical resolution achieved using its 4K Crystal Motion technology. HLG HDR and 10-bit colour processing are supported.
Epson describes a filter-free design. The optical engine and the light source module are sealed and IP5X certified to IEC Standard 60529, and the laser light source is rated at 20,000 hours in High mode and 30,000 hours in Eco mode.
Epson lists Extron XTP, AMX Device Discovery, Crestron Integrated Partner and Extron IP Link, with HTTPS, SNMP, PJLink, IPv6 and ESC/VP.net network protocols, plus Web Control, a schedule function and Epson Projector Management software.
Ask about the Epson EB-PQ2213B
Tell us the venue, throw distance and screen size and we will help choose the lens and options and send a quote.
