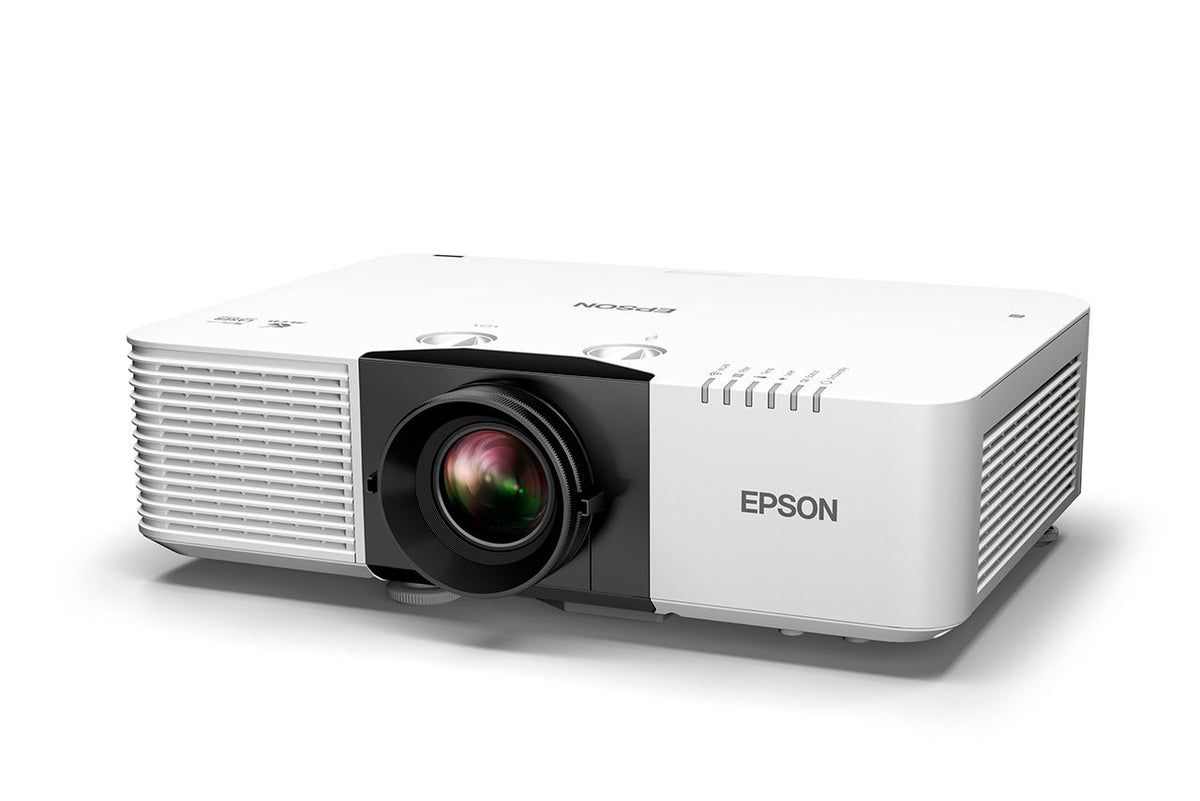

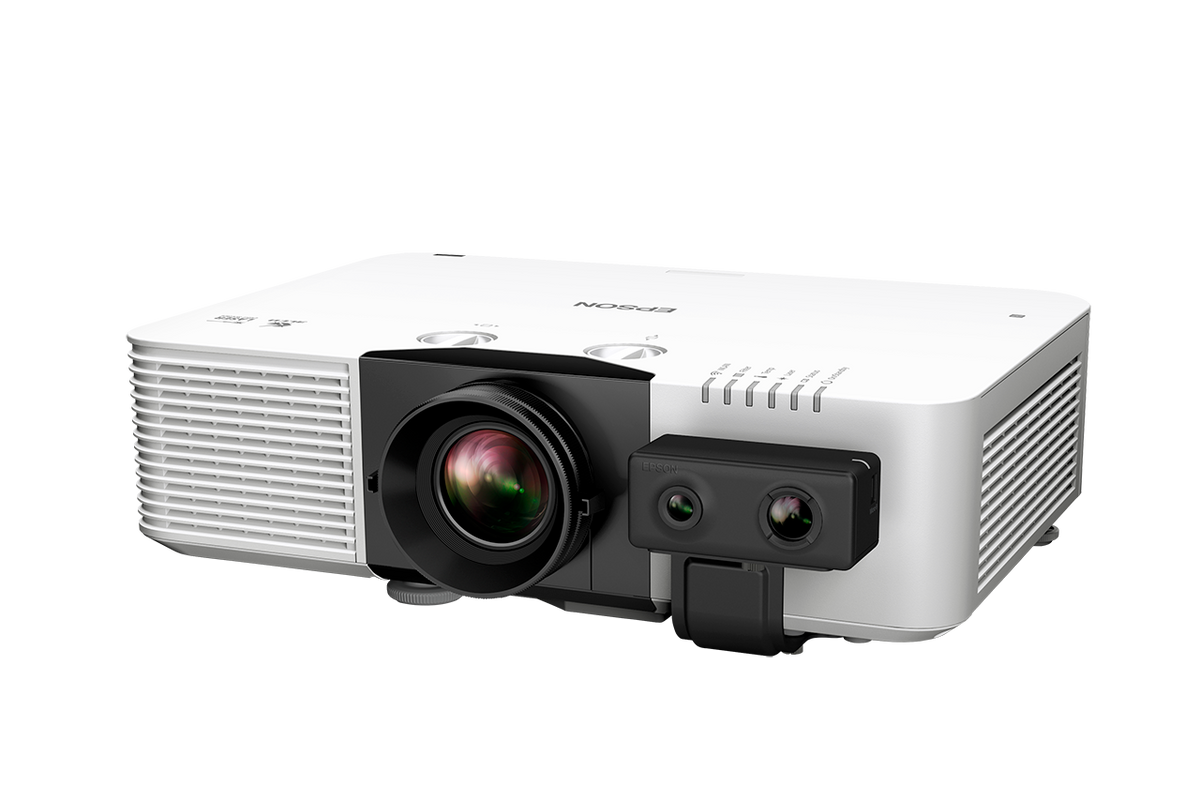

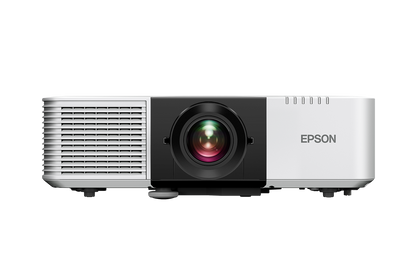

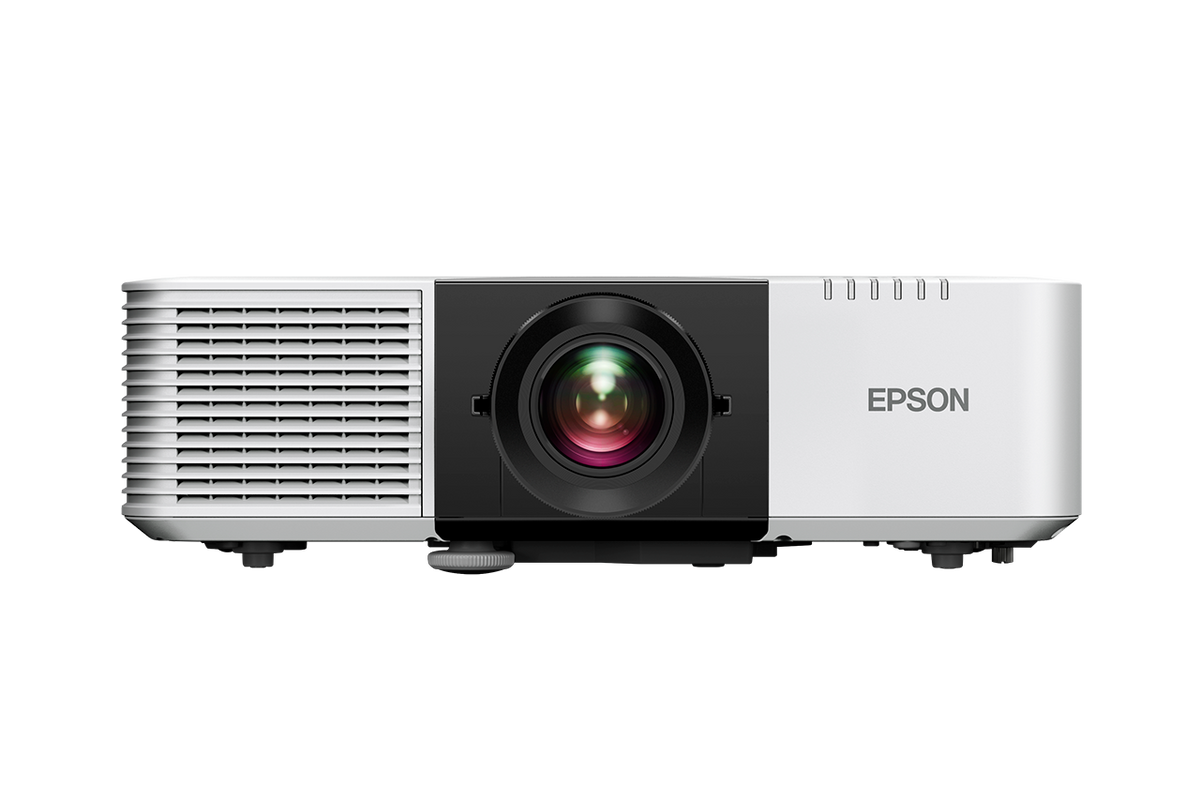

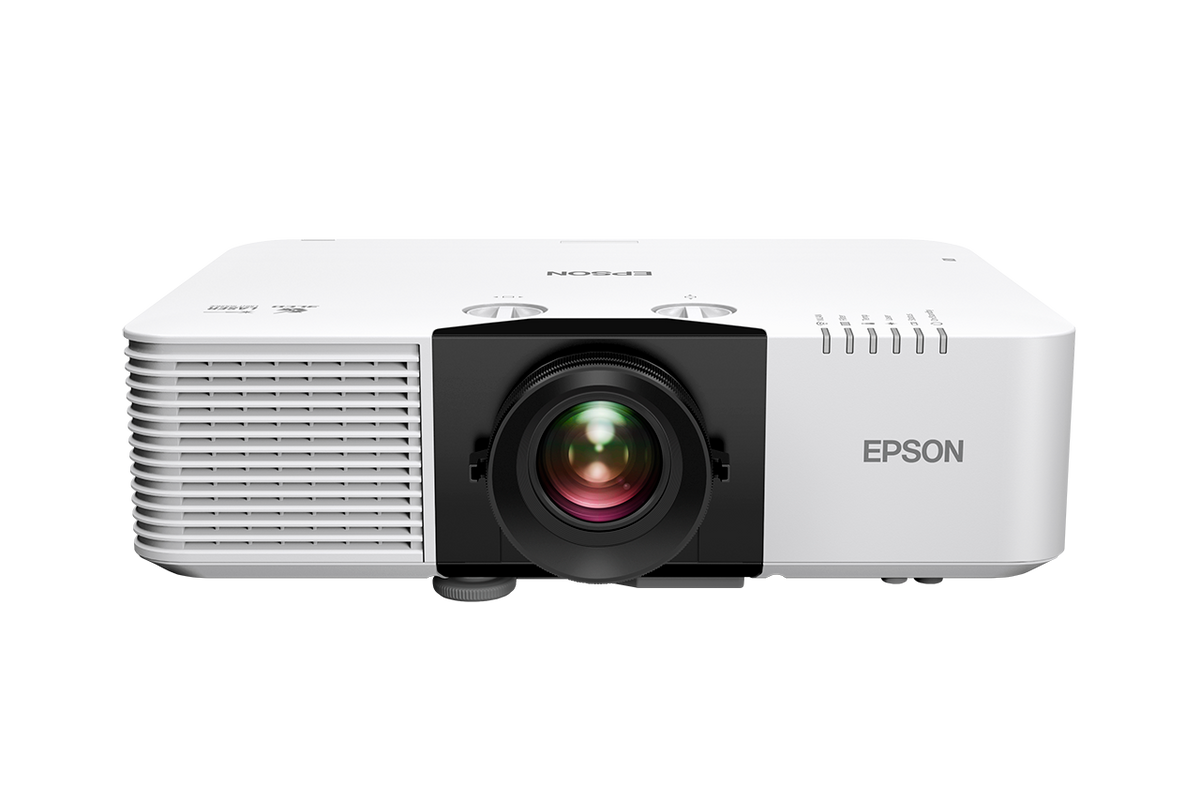

Epson EB-L690U 3LCD Laser Projector, WUXGA, 6,500 Lumens (V11HB29080DA)

V11HB29080DA

Condition: NEW

Get a tailored quote

Tap Request a Quote below to reach our team on WhatsApp.

  • Genuine, brand-new stock with full manufacturer warranty
  • Pricing based on quantity, with volume rates for bulk orders
  • Help choosing the right option for your office or team
  • Delivery anywhere in the UAE

IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY

Shipping calculated at checkout.
    Request a Quote
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more

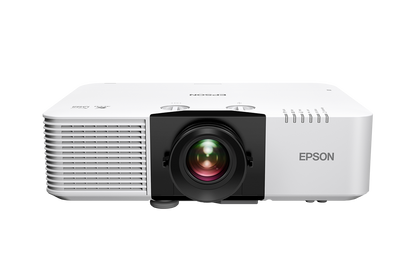

    Epson EB-L690U V11HB29080DA view 1 atomoffice
    Epson EB-L690U V11HB29080DA view 2 atomoffice

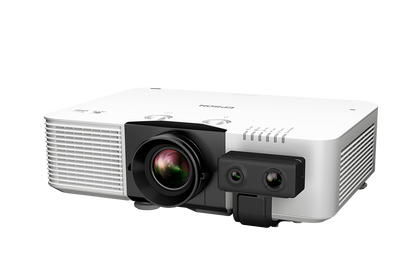

    Epson EB-L690U V11HB29080DA view 3 atomoffice
    Epson EB-L690U V11HB29080DA view 4 atomoffice
    Epson EB-L690U V11HB29080DA view 5 atomoffice
    Epson EB-L690U V11HB29080DA view 6 atomoffice

    Epson business and education laser projector

    Epson EB-L690U 6,500-Lumen WUXGA Laser Projector

    The Epson EB-L690U is a 3LCD laser projector for meeting rooms, lecture halls, auditoriums, retail signage and visitor attractions. It gives 6,500 lumens of colour light output at WUXGA resolution, projects from 50 to 500 inches with a 1.35 to 2.2 throw ratio and 1.6x zoom, has a fixed centre lens with wide manual lens shift, and its laser light source is rated at 20,000 hours in normal mode and 30,000 hours in Eco mode.

    Quick Glance

    Brightness
    6,500 lumens colour light output
    Resolution
    WUXGA
    Display Type
    3LCD, laser light source
    Light Source Life
    20,000 h normal, 30,000 h Eco
    Screen Size
    50 to 500 inches

    Key Features

    Flexible installation with wide lens shift

    A fixed centre lens with wide manual lens shift, a 1.35 to 2.2 throw ratio and 1.6x zoom make it easier to place the EB-L690U in an existing room, ceiling mounted or on a desk. It projects from 50 up to 500 inches, and Quick Corner and point correction help square the picture.

    6,500 lumens of 3LCD colour at WUXGA

    Epson lists 6,500 lumens of colour light output (4,550 lumens in economy), measured in accordance with ISO 21118:2012. Three 0.67-inch C2 Fine LCD panels give WUXGA resolution with 10-bit colour processing, up to 1.07 billion colours and a 5,000,000:1 contrast ratio.

    Laser light source and room-system control

    The laser light source is rated at 20,000 hours in normal mode and 30,000 hours in Eco mode, with noise levels of 32 dB(A) normal and 25 dB(A) Eco. It works with Crestron, Extron XTP and AMX Device Discovery, has a 10 W built-in speaker, supports edge blending and scheduling, and is made from 19% recycled plastics.

    Detailed Specifications

    ModelEB-L690U
    Manufacturer Part NumberV11HB29080DA
    Projector ColourWhite
    Projection System3LCD Technology, RGB liquid crystal shutter

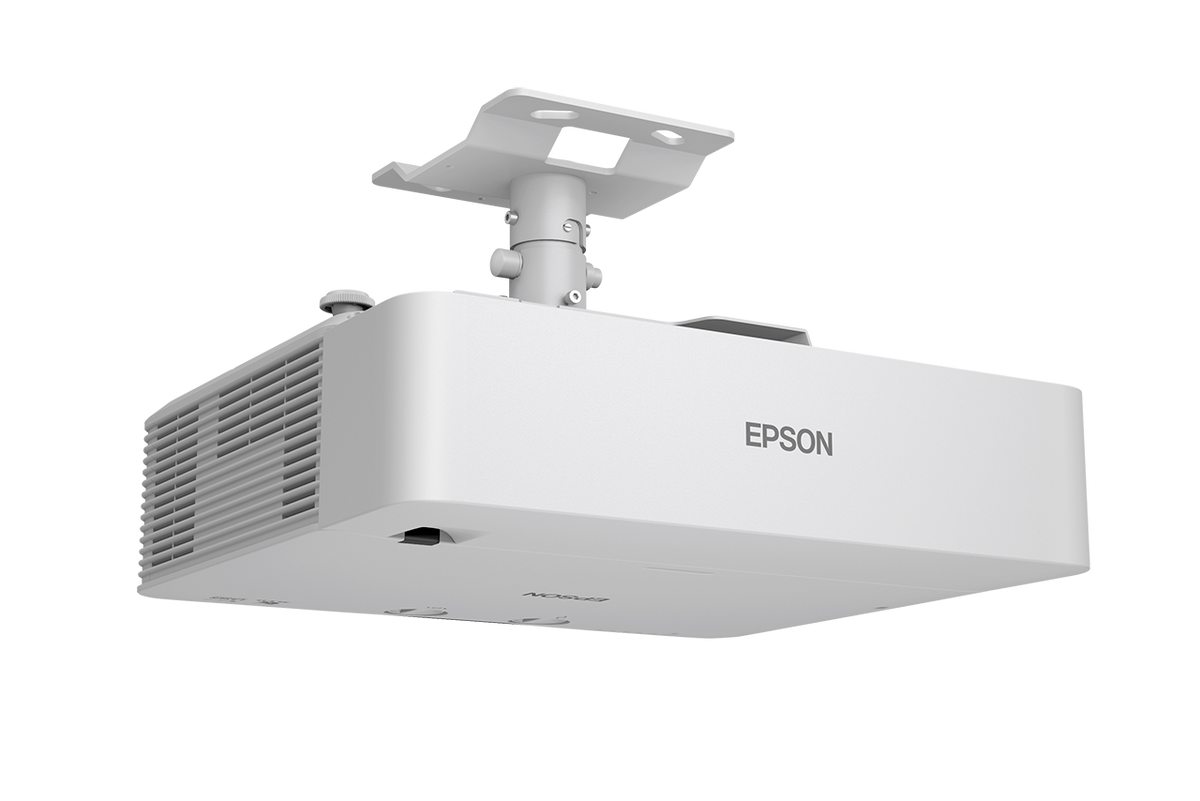

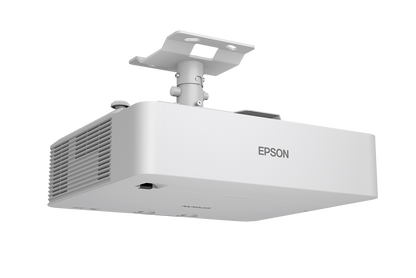

    PositioningCeiling Mounted, Desktop
    Room Type / ApplicationBoardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
    Optional accessoriesSuspension adapter (sold separately)
    ResolutionWUXGA
    LCD Panel0.67 inch, C2 Fine
    Colour Light Output6,500 lumens (in accordance with ISO 21118:2012)
    Colour Light Output (economy)4,550 lumens
    Contrast Ratio5,000,000:1, Absolute black
    Colour ReproductionUp to 1.07 billion colours
    Colour Video Processing10 bits
    Screen Size50 in to 500 in
    Throw Ratio1.35 to 2.2
    Zoom factor1 to 1.6
    Projection LensF 1.5 to 1.7, focal length 20 mm to 31.8 mm, manual focus, not interchangeable
    Lens ShiftManual
    Keystone CorrectionManual, horizontal and vertical
    Light SourceLaser
    Laser Light Source Life (High)20,000 hours
    Laser Light Source Life (Eco)30,000 hours
    Network ProtocolSNMP, HTTPS, PJLink, ESC/VP.net
    Epson iProjection AppAd-Hoc / Infrastructure
    Projector controlExtron XTP, AMX Device Discovery, Crestron Integrated Partner
    Network featuresNetwork projection, Web Control, Web Remote, Screen Mirroring, Wireless LAN capable
    Loudspeaker10 W
    2D Colour ModesDynamic, Natural, Cinema, Presentation, DICOM SIM
    Video Colour ModesCinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
    Other features21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6)
    SecurityKensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
    Supply Voltage100 V - 240 V, 50 Hz - 60 Hz
    Power Consumption (Normal, on-mode)336 W
    Power Consumption (Eco, on-mode)233 W
    Power Consumption (Normal, peak)399 W
    Power Consumption (Eco, peak)295 W
    Power Consumption (energy saving standby)0.4 W
    Dimensions (W x D x H)440 x 340 x 138 mm
    Noise Level (Normal)32 dB (A)
    Noise Level (Economy)25 dB (A)
    Operating Humidity20 % to 80 %
    Storage Humidity10 % to 90 %
    Storage Temperature-10 °C to 60 °C

    Specifications are Epson's own, from Epson's product page for the EB-L690U (V11HB29080DA). Colour light output is measured in accordance with ISO 21118:2012.

    Need-to-Know

    • Epson rates the laser light source at 20,000 hours in normal mode and 30,000 hours in Eco mode.
    • Epson's specification does not list the video inputs (such as HDMI or HDBaseT ports) or a weight for this model. Ask us before ordering if either matters for your installation.
    • Epson lists the EB-L690U as wireless LAN capable; ask us which wireless option suits your room before ordering.
    • The suspension adapter is the only option Epson lists for this model, and it is sold separately.

    Best For / Customer Benefits

    Customer Benefits

    • 6,500 lumens of colour light output for a bright WUXGA picture in lit rooms.
    • Wide manual lens shift and a 1.35 to 2.2 throw ratio to fit existing mounting positions.
    • A laser light source rated at 20,000 hours normal and 30,000 hours Eco, with no lamp to replace.
    • Quiet running at 32 dB(A) normal and 25 dB(A) in Eco mode, with Crestron, Extron XTP and AMX control.

    Best For

    Meeting rooms and boardrooms
    Lecture halls and auditoriums
    Retail signage and visitor attractions
    Installations needing lens shift flexibility

    Frequently Asked Questions

    Epson lists 6,500 lumens of colour light output, measured in accordance with ISO 21118:2012, and 4,550 lumens of colour light output in economy mode.

    No. It has a throw ratio of 1.35 to 2.2 with 1.6x zoom and a supported screen size from 50 to 500 inches. Wide manual lens shift and a fixed centre lens give room to adjust where it is mounted.

    Epson rates the laser light source at 20,000 hours in normal (High) mode and 30,000 hours in Eco mode. There is no lamp to replace.

    Yes. Epson lists Crestron Integrated Partner, Extron XTP and AMX Device Discovery, plus HTTPS, SNMP, ESC/VP.net and PJLink network protocols, Web Control and a Schedule Function.

    Epson's specification for the EB-L690U does not list its video inputs. Tell us the sources you need to connect and we will confirm with Epson before you order.
