Epson EB-L30000U WUXGA Laser Projector for Large Venues
The Epson EB-L30000U is a compact 3LCD laser projector for demanding large-venue installations: auditoriums, rental and staging, projection mapping and visitor attractions. It delivers 30,000 lumens of colour light output at WUXGA resolution with Epson's 4K enhancement technology, takes interchangeable lenses with motorised lens shift, and projects from 100 to 1000 inches depending on the lens. The standard lens is not included. Part number V11H944840DA.
Quick Glance
Key Features
30,000 lumens in a compact chassis

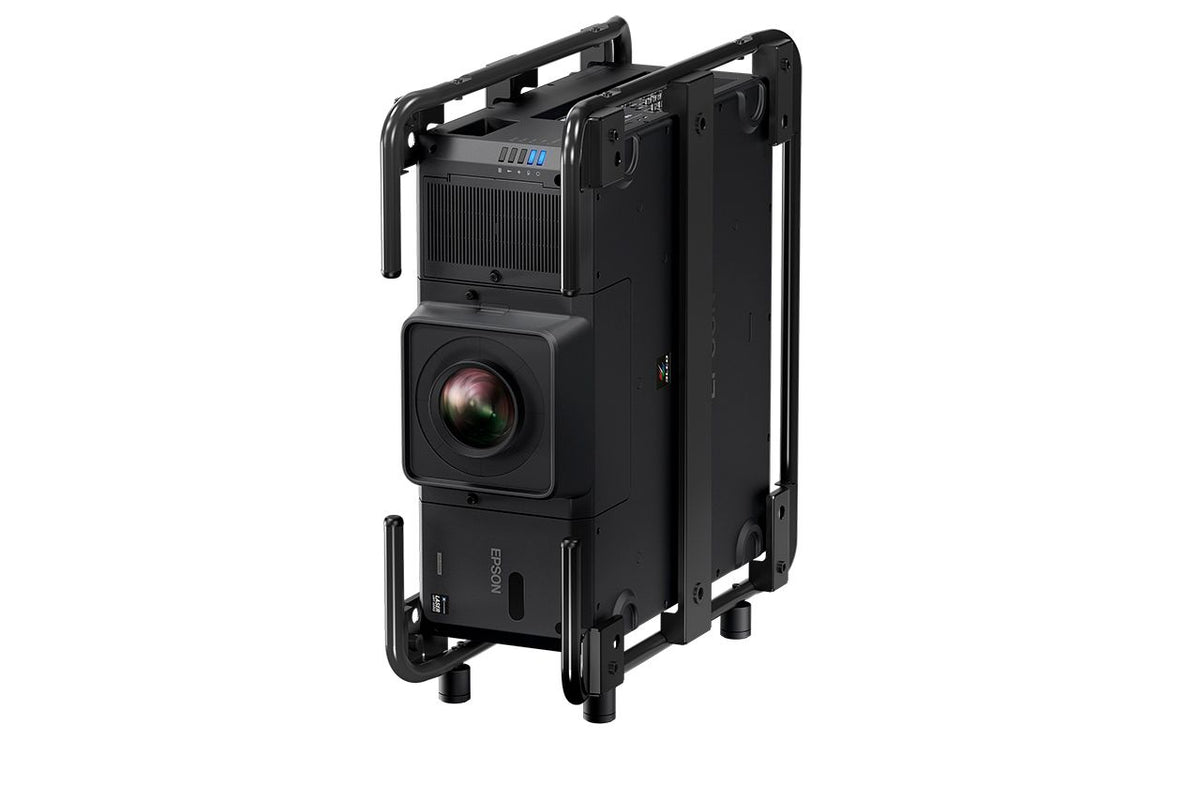

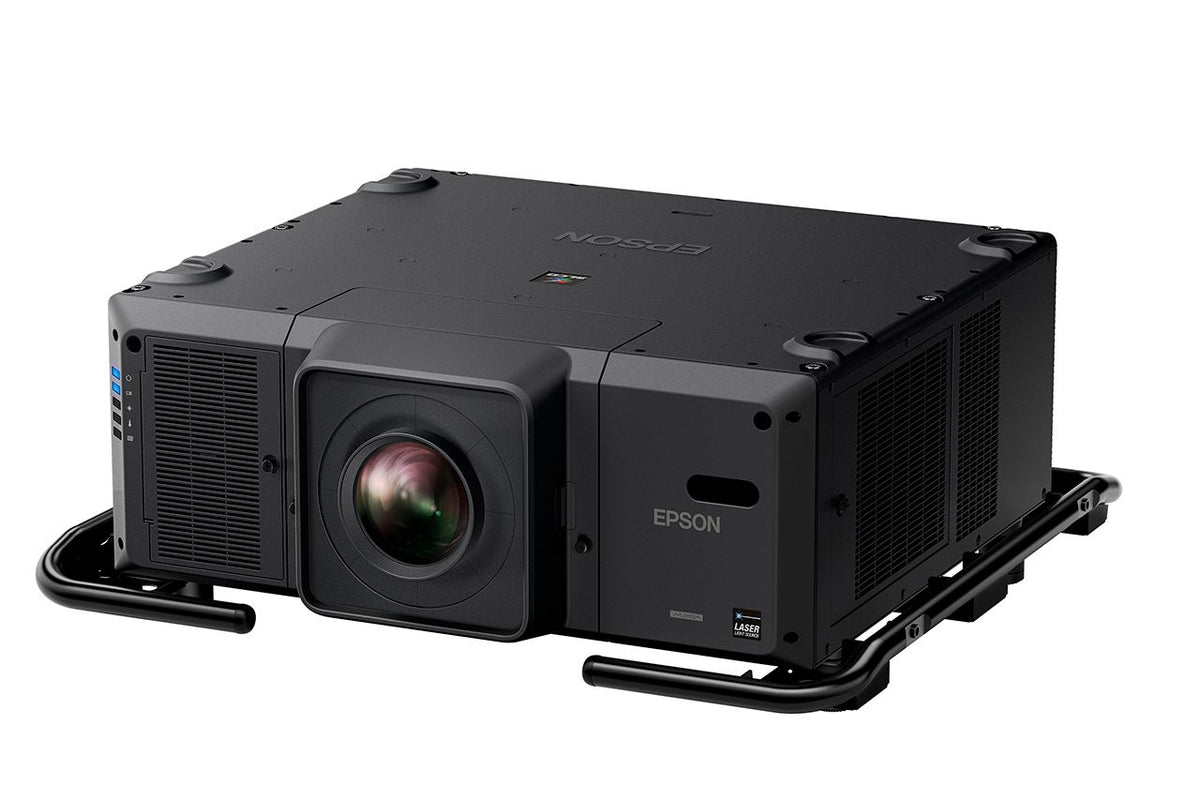

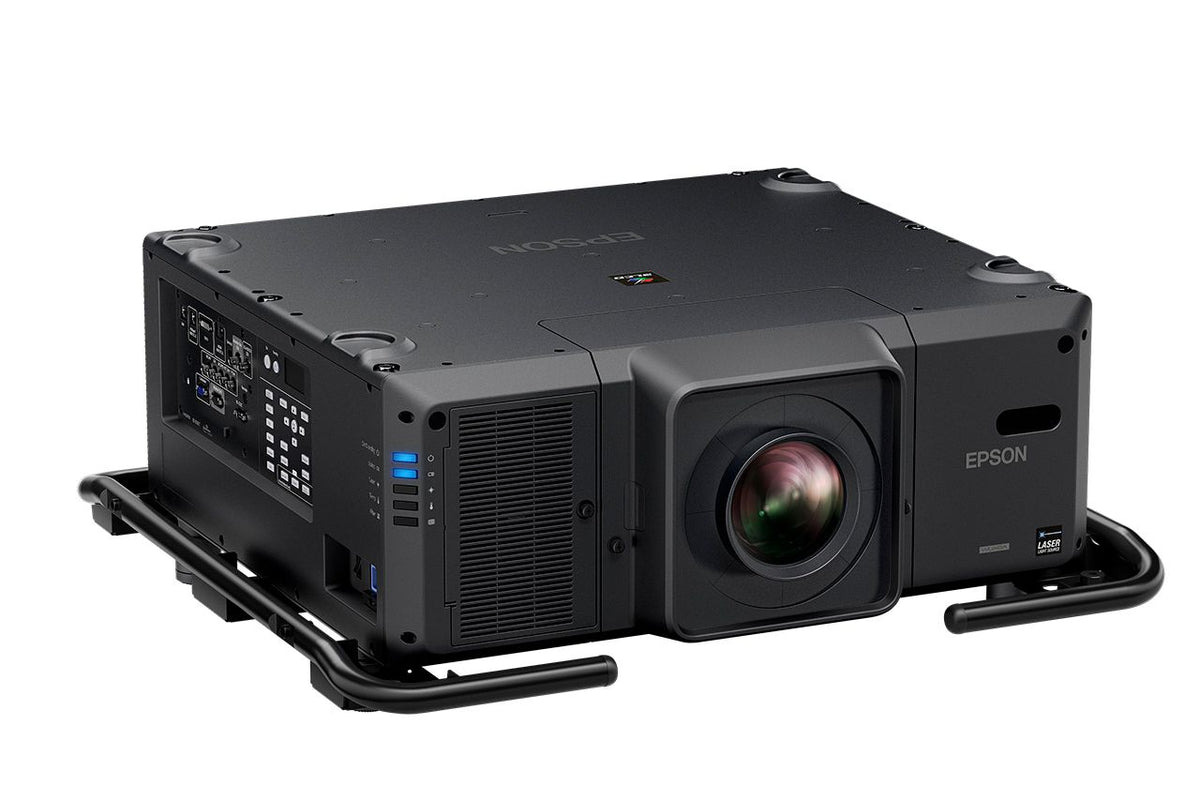

Epson lists 30,000 lumens of colour light output (ISO 21118:2012) and a 2,500,000:1 contrast ratio from a 790 x 710 x 299 mm body that Epson describes as easy to transport, install and store. It can be ceiling mounted or used in a flying frame, which suits rental and staging work as well as fixed installs.
Interchangeable lenses with motorised shift
The EB-L30000U takes interchangeable lenses so the right lens can be chosen for each project; the standard lens is not included and is ordered separately. Lens shift, focus and zoom are motorised, and lens position memory stores 10 positions. Screen size runs from 100 to 1000 inches, varying by lens.
4K enhancement and multi-projector tools
Three 1.43-inch C2 Fine LCD panels give WUXGA resolution, and Epson's 4K enhancement technology, super resolution and frame interpolation sharpen the picture. Edge blending, point correction, auto calibration, Quick Corner and OSD copy support multi-projector and projection-mapping setups. The laser is rated at 20,000 hours in High mode and 30,000 hours in Eco mode.
Detailed Specifications
Specifications are Epson's own, from Epson's product page for the EB-L30000U (V11H944840DA). Colour light output is measured in accordance with ISO 21118:2012. The standard lens is not included.
Need-to-Know
- The standard lens is not included. A lens must be chosen and ordered for the throw distance and screen size of your venue; ask us which lens fits.
- Epson's specification does not list the video inputs, the power consumption figures in a usable form, or a weight for this model. Ask us before ordering if any of these matters for your installation.
- Light output is Epson's colour light output figure, measured in accordance with ISO 21118:2012.
- The wireless LAN unit is an optional accessory and is not part of the projector.
Best For / Customer Benefits
Customer Benefits
- 30,000 lumens of colour light output for large screens and bright venues.
- Interchangeable lenses with motorised lens shift, focus and zoom, and lens position memory for 10 positions.
- A laser light source rated at 20,000 hours in High mode and 30,000 hours in Eco mode, with no lamp to replace.
- Edge blending, point correction and auto calibration for multi-projector and projection-mapping work.
- Control through AMX, Crestron and Extron XTP for integration into existing AV systems.
Best For
Frequently Asked Questions
No. Epson lists the standard lens as not included. The projector takes interchangeable lenses, so the lens is chosen for the throw distance and screen size of each project and ordered separately. Screen size runs from 100 to 1000 inches, varying by lens.
It uses three 1.43-inch C2 Fine LCD panels at WUXGA resolution, with Epson's 4K enhancement technology and super resolution to sharpen the picture. It supports up to 1.07 billion colours with 10-bit colour processing.
Epson rates the laser light source at 20,000 hours in High mode and 30,000 hours in Eco mode. There is no lamp to replace.
Epson lists Projection Mapping and Rental / Staging among its applications, and its features include edge blending, point correction, auto calibration, Quick Corner and OSD copy for setting up several projectors alike.
Plan your EB-L30000U installation with us
Tell us the venue, throw distance and screen size, and we will help choose the lens and send a quote for the projector and lens together.
