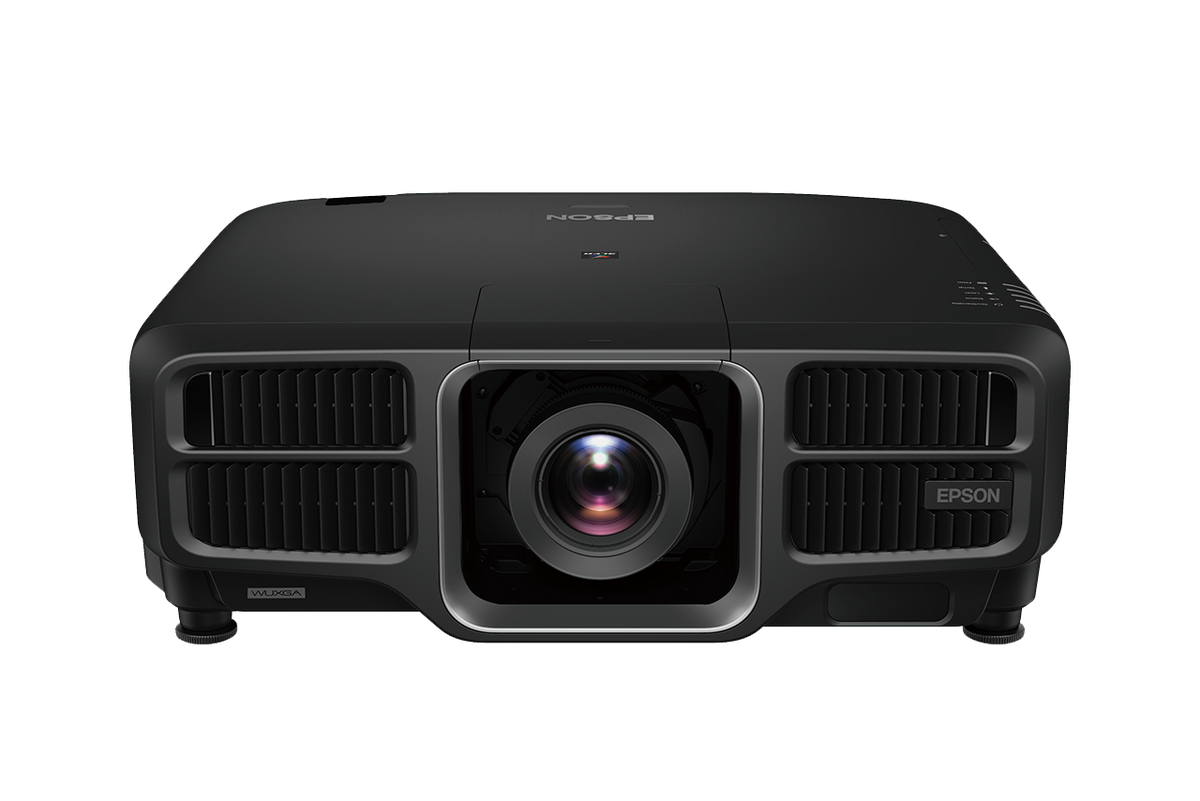

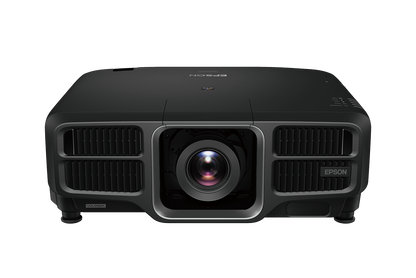

Epson EB-L1755U WUXGA 3LCD Laser Projector for Large Venues

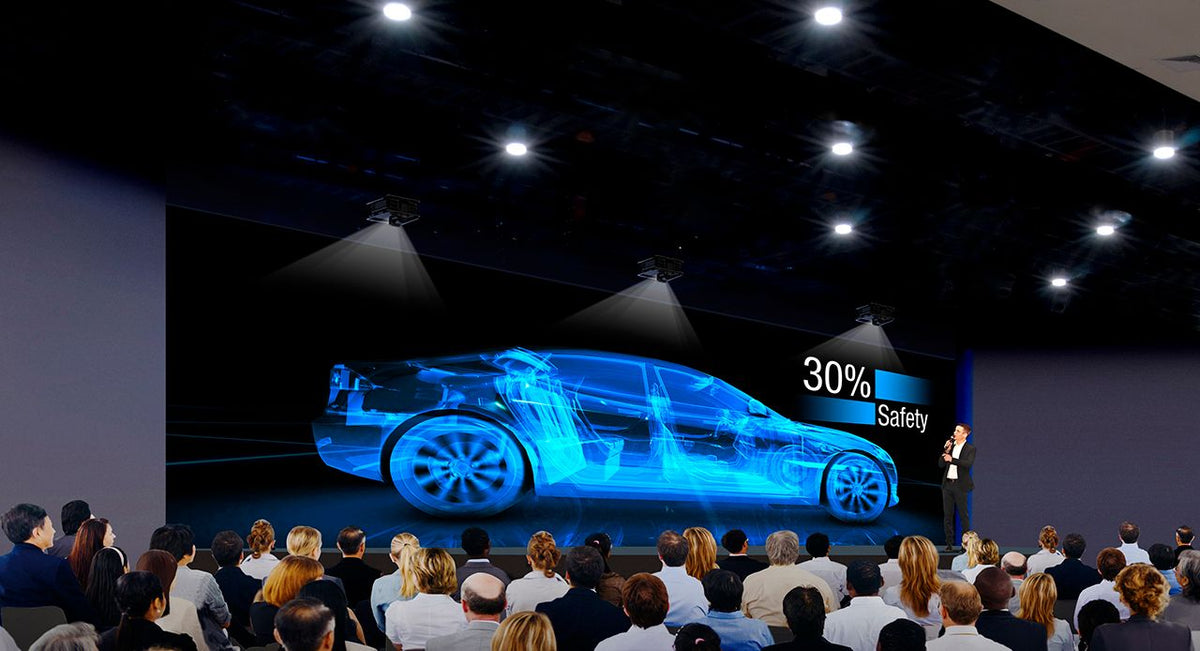

The Epson EB-L1755U is a high-brightness 3LCD laser projector for auditoriums, large meeting rooms, rental and staging, projection mapping, signage and visitor attractions. It delivers 15,000 lumens of colour light output at WUXGA resolution with Epson's 4K enhancement, takes interchangeable lenses with motorised lens shift and focus, and can be installed at any angle through 360 degrees.
Quick Glance
Key Features
15,000 lumens from a laser light source
Epson lists 15,000 lumens of colour light output (ISO 21118:2012), 10,500 lumens in economy, with a 2,500,000:1 contrast ratio and up to 1.07 billion colours. The laser light source is rated at 20,000 hours in High mode and 30,000 hours in Eco, with up to 83,000 hours in custom mode.
WUXGA with 4K enhancement
Three 1.03-inch C2 Fine LCD panels give a WUXGA picture, and Epson's 4K enhancement adds sharpness and detail for crisp images and legible text. Absolute Black, frame interpolation, an integrated camera for image calibration and auto calibration support multi-projector work.
Flexible installation for large venues

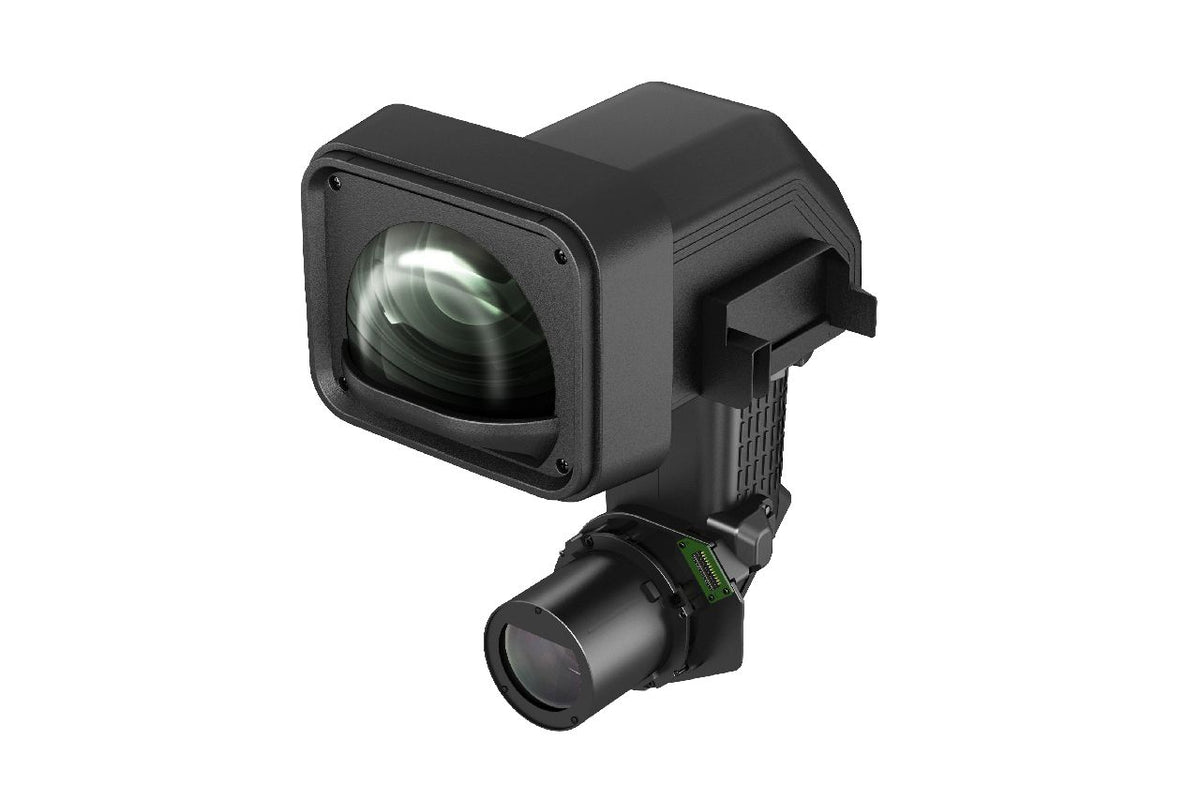

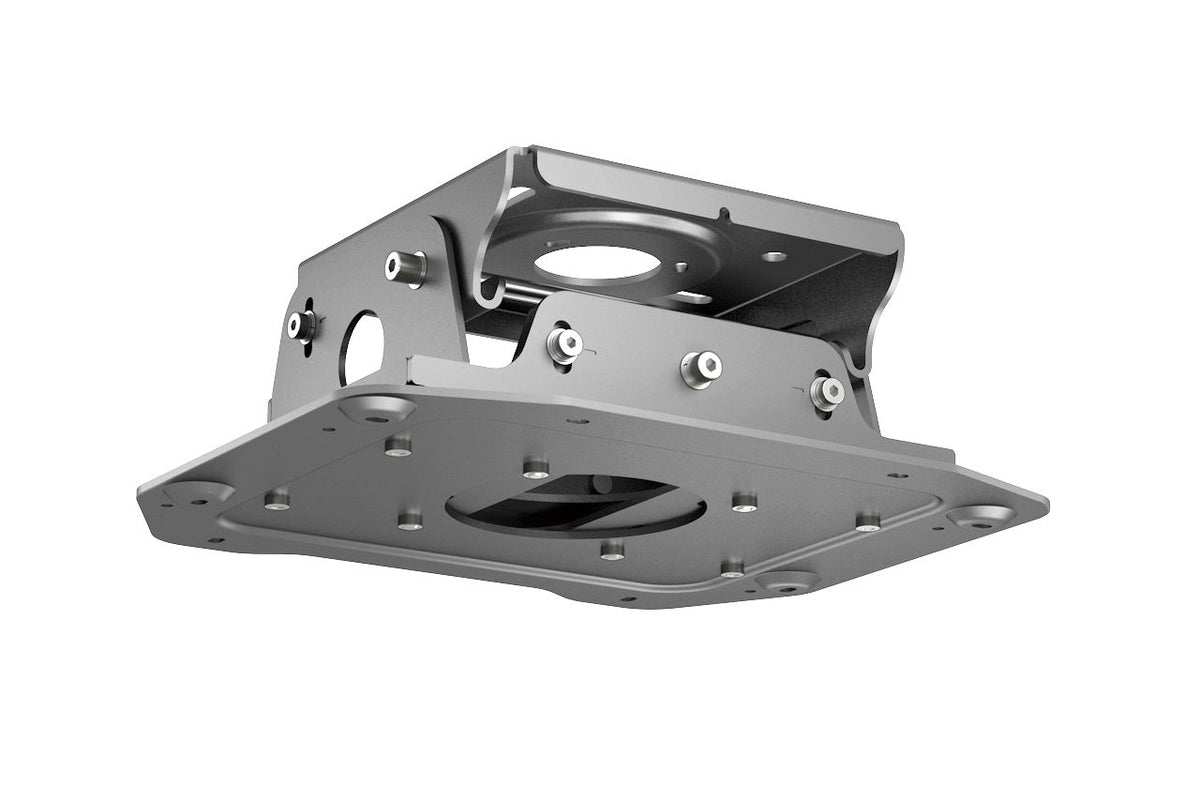

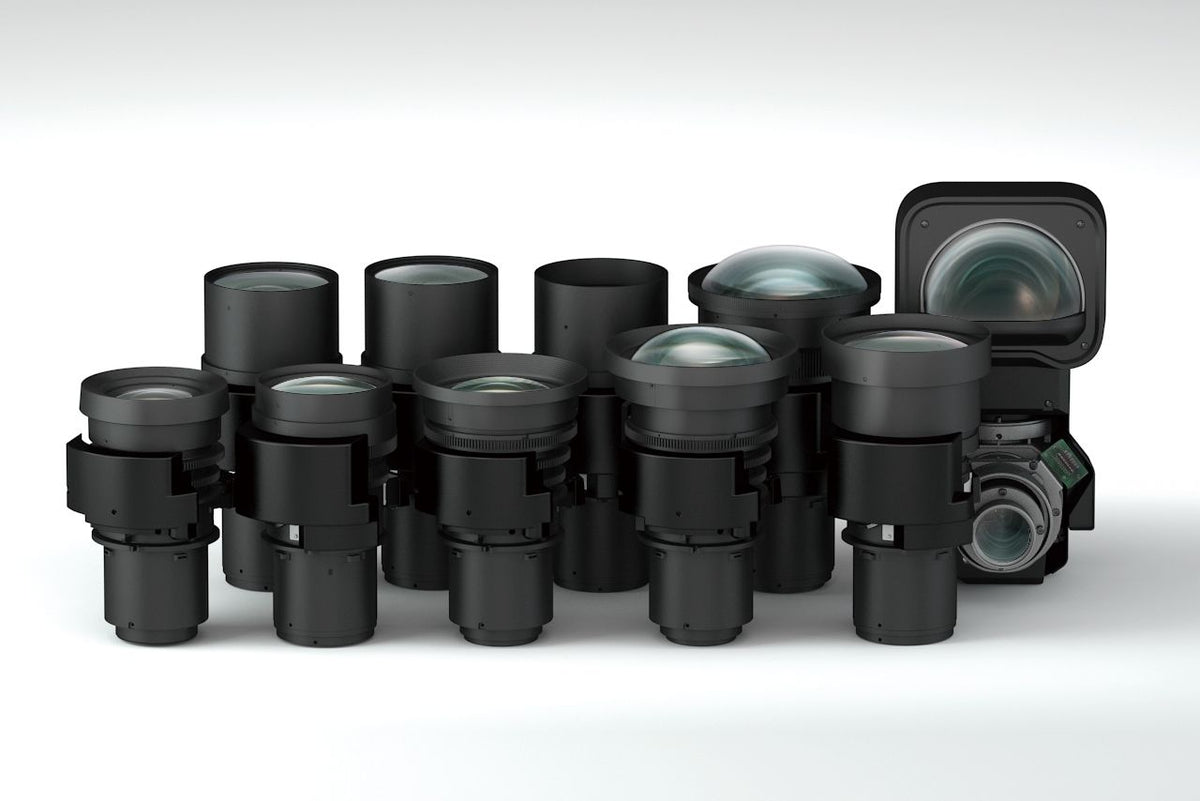

Interchangeable lenses with motorised lens shift and focus, and lens position memory for 10 positions, suit fixed installs and rental use. The projector can be installed at any angle through 360 degrees, ceiling mounted or in a flying frame, and is controlled through Crestron, AMX or Extron.
Detailed Specifications
Specifications are Epson's own, from Epson's UAE product page for the EB-L1755U (V11H892140DA). Colour light output is measured in accordance with ISO 21118:2012. Rows in Epson's table that contradict each other are not shown.
Need-to-Know
- Epson's figure of up to 83,000 hours of laser life applies in custom mode; the standard ratings are 20,000 hours (High) and 30,000 hours (Eco).
- Epson's specification does not list the video inputs (such as HDMI or HDBaseT ports) or a weight for this model. Ask us before ordering if either matters for your installation.
- Epson lists the lens as interchangeable. The throw ratio and projection figures on this page are Epson's figures for this model; ask us which lens suits your throw distance.
- The Wireless LAN unit, Quick wireless USB key and HDBaseT Transmitter are optional accessories, sold separately.
Best For / Customer Benefits
Customer Benefits
- 15,000 lumens of colour light output for large screens in bright, large rooms.
- A laser light source rated at 20,000 hours, or 30,000 hours in Eco, with no lamp to replace.
- Interchangeable lenses with motorised lens shift, motorised focus and lens position memory for 10 positions.
- 360-degree installation, an integrated calibration camera and Crestron, AMX and Extron control for multi-projector and fixed installs.
Best For
Frequently Asked Questions
Epson lists 15,000 lumens of colour light output, measured in accordance with ISO 21118:2012, and 10,500 lumens of colour light output in economy mode. The contrast ratio is 2,500,000:1, with a native contrast of 2,000:1.
The EB-L1755U is a WUXGA projector using three 1.03-inch C2 Fine LCD panels, with Epson's 4K enhancement technology for extra sharpness and detail.
Epson rates the laser light source at 20,000 hours in High mode and 30,000 hours in Eco mode. Epson also states laser life of up to 83,000 hours in custom mode.
Yes. Epson describes flexible 360-degree installation and lists ceiling mounting and flying frame positioning. Epson also lists a portrait colour light output of 15,000 lm.
Epson lists Crestron, AMX and Extron projector control, and includes EasyMP Multi PC Projection and EasyMP Monitor software. The Epson iProjection app is supported in Ad-Hoc and Infrastructure modes.
Ask about the Epson EB-L1755U
Tell us about your venue, screen size and throw distance, and we will confirm the right set-up and send a quote.
