Epson EB-685W Ultra-Short-Throw 3LCD Projector, WXGA, 3,500 Lumens (V11H744041)

V11H744041

Condition: NEW

Get a tailored quote

Tap Request a Quote below to reach our team on WhatsApp.

  • Genuine, brand-new stock with full manufacturer warranty
  • Pricing based on quantity, with volume rates for bulk orders
  • Help choosing the right option for your office or team
  • Delivery anywhere in the UAE

IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY

Shipping calculated at checkout.
    Request a Quote
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Epson EB-685W V11H744041 view 1 atomoffice

    Epson ultra-short-throw classroom projector

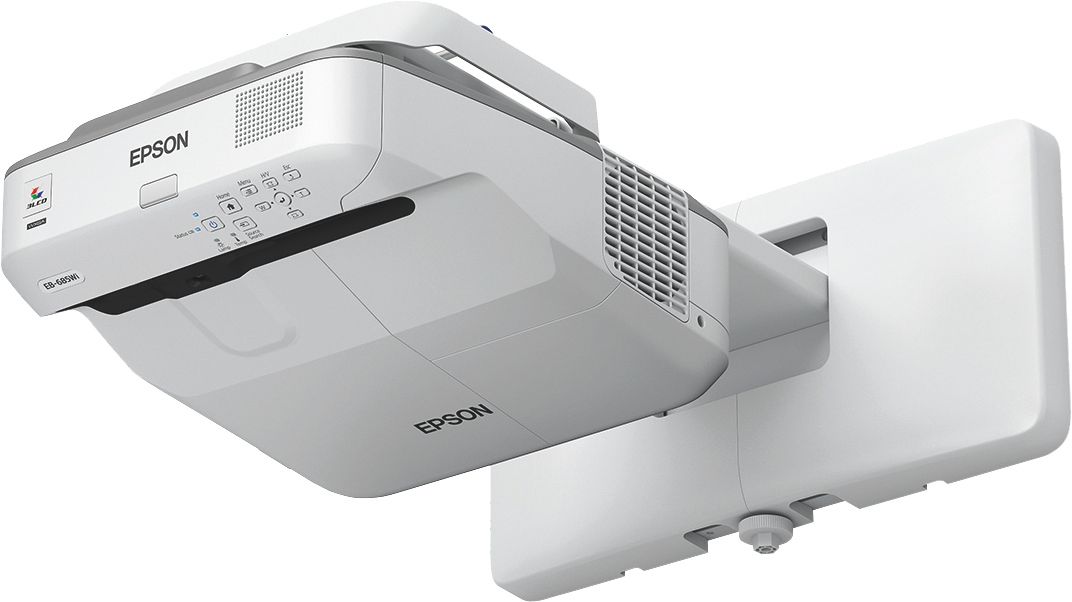

    Epson EB-685W WXGA Ultra-Short-Throw 3LCD Projector

    The Epson EB-685W is an ultra-short-throw 3LCD projector for meeting rooms and classrooms. Wall mounted close to the screen with the bracket supplied, it projects an HD-ready WXGA picture of 60 to 100 inches with 3,500 lumens of colour light output, a 16 W built-in speaker and a lamp rated at up to 10,000 hours in Eco mode. Wireless presenting is available with Epson's optional Wireless LAN unit.

    Quick Glance

    Brightness
    3,500 lumens colour light output
    Resolution
    WXGA (HD ready)
    Display Type
    3LCD ultra-short-throw
    Light Source Life
    5,000 h lamp, 10,000 h Eco
    Screen Size
    60 to 100 inches

    Key Features

    A 100-inch picture from close to the wall

    An ultra-short-throw lens (throw ratio 0.28 to 0.37) projects 60 to 100 inches from close to the wall. Epson lists a projection distance of 0.4 m for a 60-inch screen and 0.6 m for 100 inches, and a wall hanging bracket, safety wire set and template sheet are in the box.

    Bright WXGA picture and long lamp life

    Three 0.59-inch D9 LCD panels give an HD-ready WXGA picture with 3,500 lumens of colour light output (ISO 21118:2012), a 14,000:1 contrast ratio and 10-bit colour processing. The lamp is rated at 5,000 hours, 10,000 hours in Eco and 9,000 hours in Eco 2.

    Built for meeting rooms and classrooms

    A 16 W built-in speaker, split screen, document camera compatibility and CEC are built in, with control through AMX, Crestron or Control4. The optional Wireless LAN unit adds wireless presenting with the iProjection app on Android and iOS devices and Google Chromebooks.

    Detailed Specifications

    ModelEB-685W
    Manufacturer Part NumberV11H744041
    Projector ColourWhite / Grey
    Projection System3LCD Technology
    PositioningWall Mounted
    Room Type / ApplicationMeeting room / Classroom
    InteractivityNo
    Optional accessoriesConnection and control box, Document camera, USB extension cable, Wireless LAN unit, Air filter ELPAF38, External Speaker (sold separately)
    ResolutionWXGA (HD ready)
    LCD Panel0.59 inch, D9
    Colour Light Output3,500 lumens (in accordance with ISO 21118:2012)
    Colour Light Output (economy)2,900 lumens
    Contrast Ratio14,000:1
    Colour ReproductionUp to 1.07 billion colours
    Colour Video Processing10 bits
    Screen Size60 in to 100 in
    Throw Ratio0.28 to 0.37
    Projection Distance0.4 m (60 inch screen), 0.6 m (100 inch screen)
    Projection LensManual focus, not interchangeable
    Keystone CorrectionHorizontal and vertical, manual
    Light SourceLamp
    Lamp Life5,000 hours
    Lamp Life (Eco)10,000 hours
    Lamp Life (Eco 2)9,000 hours
    WirelessWireless LAN capable, with the optional Wireless LAN unit
    USB Display Function3 in 1: Image / Mouse / Sound
    Epson iProjection AppAd-Hoc / Infrastructure (Android, iOS and Google Chromebooks)
    Included SoftwareEasyMP Multi PC Projection, Epson Projector Management
    Projector ControlAMX, Crestron, Control4
    Android TV / Google TVNo
    Loudspeaker16 W
    2D Colour ModesDynamic, Cinema, Presentation, sRGB, Blackboard
    Video Colour ModesBlackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
    Other featuresAuto brightness adjustment, Automatic input selection, Built-in speaker, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dynamic lamp control, Easy OSD pre-setting, Wireless LAN capable, CEC compatible, Home Screen, Long lamp life, Split-Screen-Function
    SecurityKensington lock, Wireless LAN unit lock, Wireless LAN security, Password protection, Security cable hole, Password lock
    Supply Voltage100 V - 240 V, 50 Hz - 60 Hz
    Power Consumption (Normal, on-mode)309 W
    Power Consumption (Eco, on-mode)258 W
    Power Consumption (Normal, peak)354 W
    Power Consumption (Eco, peak)301 W
    Power Consumption (energy saving standby)0.37 W
    Dimensions (W x D x H)367 x 400 x 149 mm
    Noise Level (Normal)35 dB (A)
    Noise Level (Economy)30 dB (A)
    Noise Level (Eco 2)29 dB (A)
    Operating Temperature5 °C to 40 °C
    Operating Humidity20 % to 80 %
    Storage Temperature-10 °C to 60 °C
    Storage Humidity10 % to 90 %

    Specifications are Epson's own, from Epson's UAE product page for the EB-685W (V11H744041). Colour light output is quoted as Epson's spec table states it, in accordance with ISO 21118:2012.

    Need-to-Know

    • Wireless presenting needs Epson's optional Wireless LAN unit, which is sold separately, as are the connection and control box, document camera and external speaker.
    • Epson's specification table does not list the wired video inputs (such as HDMI ports) or a weight for this model. Ask us before ordering if either matters for your installation.
    • This is not an interactive projector: Epson lists Interactivity as No.
    • The iProjection app is available on Android and iOS devices and Google Chromebooks.

    Best For / Customer Benefits

    Customer Benefits

    • A 60 to 100 inch picture from an ultra-short-throw lens, wall mounted close to the screen with the bracket supplied.
    • 3,500 lumens of colour light output and a 14,000:1 contrast ratio for clear slides in lit rooms.
    • A lamp rated at up to 10,000 hours in Eco mode, with a 16 W built-in speaker.
    • Wall hanging bracket supplied, with AMX, Crestron and Control4 control for managed rooms.

    Best For

    Classrooms
    Meeting rooms
    Rooms with little space in front of the screen

    Frequently Asked Questions

    It is an ultra-short-throw projector with a throw ratio of 0.28 to 0.37. Epson lists a projection distance of 0.4 m for a 60-inch screen and 0.6 m for a 100-inch screen, and it is designed to be wall mounted using the wall hanging bracket supplied.

    Epson lists 3,500 lumens of colour light output, measured in accordance with ISO 21118:2012, and 2,900 lumens of colour light output in economy mode, with a 14,000:1 contrast ratio.

    Wireless connectivity is optional. The EB-685W is wireless LAN capable with Epson's Wireless LAN unit, sold separately, which allows content to be shown from a range of devices using the iProjection app.

    Epson rates the lamp at 5,000 hours in normal mode, 10,000 hours in Eco mode and 9,000 hours in Eco 2 mode. Dynamic lamp control and auto brightness adjustment are among its features.

    No. Epson lists Interactivity as No for the EB-685W. It is a standard ultra-short-throw projector for presenting in meeting rooms and classrooms.
