Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder

Condition: NEW

Variation

Get a tailored quote

Tap Request a Quote below to reach our team on WhatsApp.

  • Price for your exact configuration — trays, finisher, fax, cabinet
  • Delivery and installation anywhere in the UAE
  • Toner and service plan sized to your monthly print volume
  • Volume pricing for multiple units

IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY

Shipping calculated at checkout.

Authorised Canon Platinum Partner

Since 2021 · View our Canon Partnership Certificate

Buy Canon products with a 100% genuine guarantee.

Experience Canon printing solutions at the Print & Imaging Lab, our experience centre in Dubai.

    Request a Quote
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice
    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder atomoffice

    Canon imagePROGRAF Large-Format Printer

    Canon imagePROGRAF TC20 Large Format Desktop Plotter - 24" Roll, A3/A4 Feeder

    The Canon imagePROGRAF TC-20 is a 4 Colour 24" large-format printer from Canon — Pigment inks: 4 colour BK/C/M/Y, 2,400 x 1,200 dpi. Supplied by AtomOffice across Dubai, Abu Dhabi and the wider UAE — contact us for a quotation.

    Quick Glance

    Printer type
    4 Colour 24"
    Print resolution
    2,400 x 1,200 dpi
    Ink
    Pigment inks: 4 colour BK/C/M/Y
    Media width
    Roll paper: 297mm - 610mm

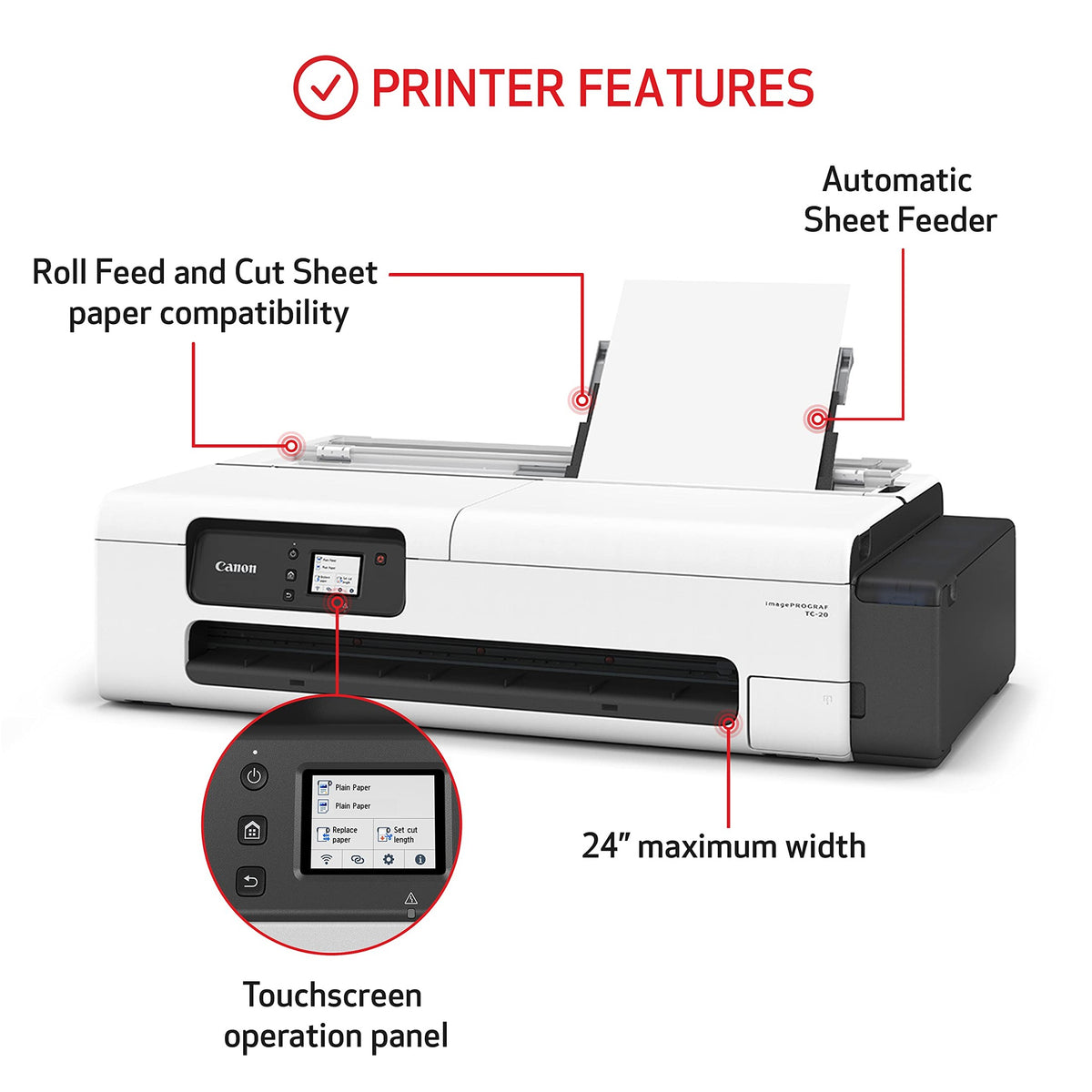

    Key Features

    4 Colour 24" large-format printer

    Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head). Print resolution: 2,400 x 1,200 dpi.

    Ink

    Pigment inks: 4 colour BK/C/M/Y. Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) / Sales Ink: 70ml (BK, C, M, Y).

    Media

    Roll paper: 297mm - 610mm / Cut sheet: 210mm - 297mm. Maximum roll diameter: 110mm.

    Detailed Specifications

    Printer Type4 Colour 24"
    Print TechnologyCanon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
    Print Resolution2,400 x 1,200 dpi
    Number of NozzlesTotal: 4352 nozzles BK: 1280 nozzles C, M, Y: 1024 nozzles each
    Line Accuracy±0.1% or less / User adjustments necessary. Printing environment and media must match those used for the adjustments.
    Printer LanguagesSGRaster
    Ink TypePigment inks: 4 colour BK/C/M/Y
    Ink CapacityBundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y) / Sales Ink: 70ml (BK, C, M, Y)
    User Replaceable ItemsInk Tank: PFl-050 (70ml) / Print Head: PF-08 / Maintenance Cartridge: MC-32
    CAD DrawingPlain paper (A1, B&W): / 0:33 (Standard) / Plain Paper (A1, Colour): / 1:03 (Standard)
    PosterPlain Paper (A1): / 1:10 (Fast) / 2:08 (Standard) / Coated Paper (A1): / 3:10 (Fast) / 6:05 (Standard)
    Media Feed and OutputRoll Paper: One Roll, Front-loading, Front Output / Cut Sheet: Auto sheet feeder
    Media WidthRoll paper: 297mm - 610mm / Cut sheet: 210mm - 297mm
    Media ThicknessRoll / Cut: 0.08mm - 0.28mm
    Maximum Printable LengthRoll paper: 4m / Cut sheet: 432mm
    Maximum Media Roll Diameter110mm
    Media Core SizeInternal diameter of roll core: 2"
    Media Feed CapacityRoll Paper: One roll / Cut Sheet: 100 sheets(A4), 50 sheets (A3)
    Standard InterfacesUSB A Port: N/A/USB B Port: Hi-Speed USB / Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) / Wireless LAN: IEEE802.11n / IEEE802.11g / IEEE802.11b / *Please refer to user manual how to activate / deactivate the wireless LAN
    Standard Memory1GB / Expansion slot: No
    Physical Dimensions and WeightW x D x H / Main Unit / 968 x 545 x 395 mm (ASF Opened) / 968 x 525 x 245 mm (ASF Closed) / 32 kg (exclude ink bottle, include print head) / Main Unit + Desktop Basket (BU-06) / 968 x 825 x 965* mm (Basket Opened) / 968 x 595 x 965* mm (Basket Closed) / 33 kg (exclude ink bottle, include print head) / *Height above which cloth does not touch the floor when opening the desktop basket / Main Unit + Stand + Basket (SD-24) / 968 × 870 × 874 mm (Basket Opened) / 968 × 707 × 874 mm (Basket Closed) / 40 kg (exclude ink bottle, include print head)
    Packaged Dimensions and WeightPrinter (Main unit): 1120 x 726 x 406 mm, 43kg / Desktop Basket (BU-06): 798 x 301 x 111 mm, 1.8kg / Stand + Basket (SD-24): 1055 x 824 x 268 mm, 16kg
    Power SupplyAC 100-240V (50-60Hz)
    Power ConsumptionOperation: 28W or less / Sleep mode: 2.4W or less (using all ports) / Default setting for the time to enter the Sleep mode: Approx. 5 minutes / Power off: 0.3W or less
    Optional ItemsDesktop Basket: BU-06 / Printer Stand + Basket: SD-24

    Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.

    Frequently Asked Questions

    Canon lists: Roll paper: 297mm - 610mm / Cut sheet: 210mm - 297mm. Full media details are in the Media tab above.

    Pigment inks: 4 colour BK/C/M/Y. Replaceable items: Ink Tank: PFl-050 (70ml) / Print Head: PF-08 / Maintenance Cartridge: MC-32.

    Canon gives these times for a CAD drawing: Plain paper (A1, B&W): / 0:33 (Standard) / Plain Paper (A1, Colour): / 1:03 (Standard). Poster times are in the Print Speed tab above.

    Yes — message us what you print, the widths you need and your volumes, and we will recommend the right Canon model and quote it.
