    Canon imageFORMULA A3 Departmental Document Scanner

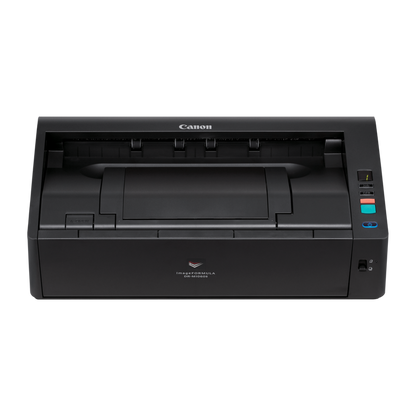

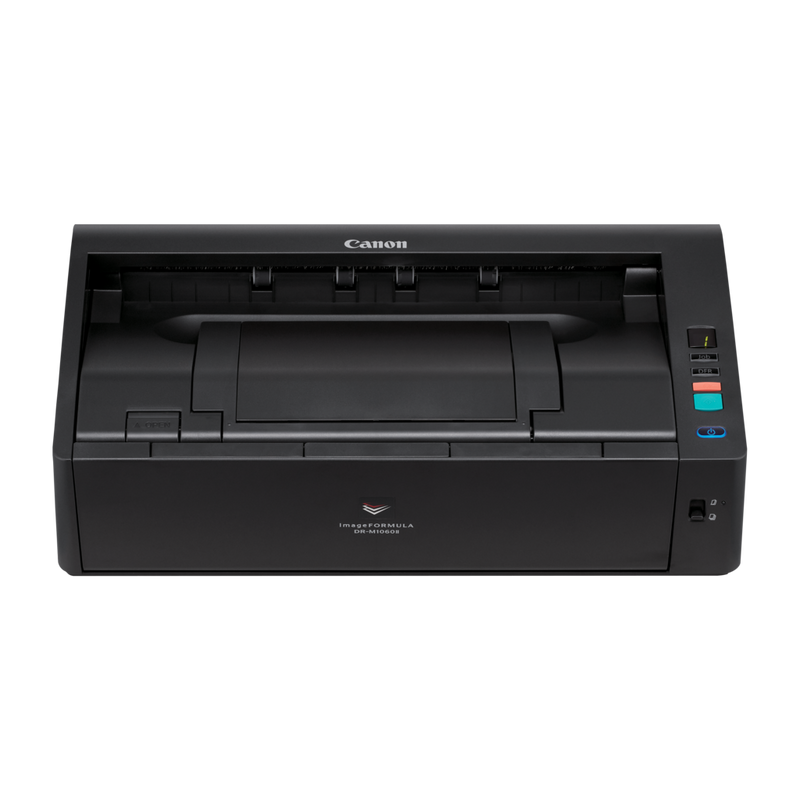

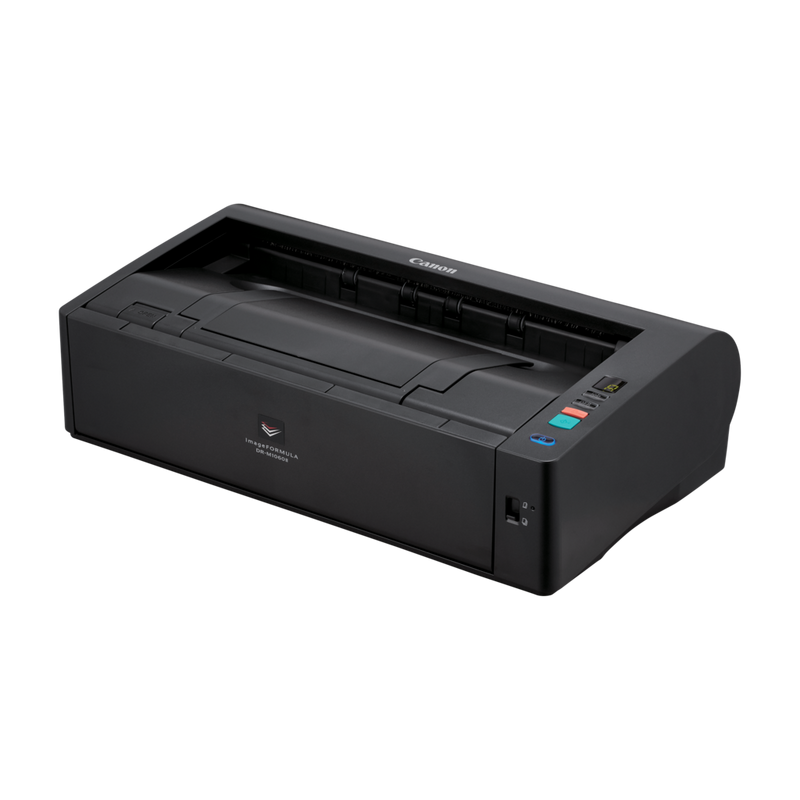

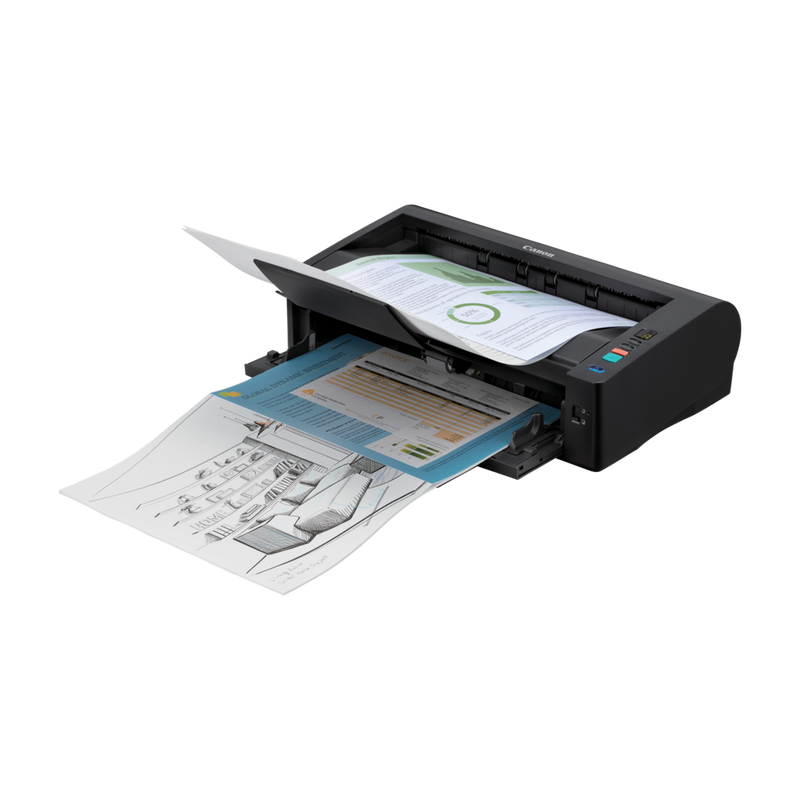

    Canon imageFORMULA DR-M1060II — Compact A3 Desktop Scanner

    The only A3 model in Canon's desktop DR-M range, built for offices that occasionally need to scan larger documents without a full production scanner. The DR-M1060II scans at 60 ppm / 120 ipm (landscape) in colour and mono from an 80-sheet feeder, and Canon rates it for 7,500 to 13,000 scans a day. It takes documents up to 300 x 432 mm, embossed and plastic cards on the straight-feeding path, and long documents up to 3000 mm.

    Quick Glance

    Scan speed
    60 ppm / 120 ipm (landscape), colour/mono
    Feeder capacity
    80 sheets (A4, 80 g/m²)
    Document size
    Up to 300 x 432 mm; long mode 3000 mm
    Connectivity
    USB 2.0 (USB 3.2 Gen 1 compatible)
    Daily duty cycle
    From 7,500 to 13,000 scans/day

    Key Features

    A3 scanning in a uniquely compact body

    The DR-M1060II is the only A3 model in Canon's desktop DR-M line, taking documents up to 300 x 432 mm while staying small enough for a normal desk — Canon calls it a 'uniquely compact A3' design.

    60 ppm / 120 ipm landscape speed

    Colour and mono scan at the same rated landscape speed from an 80-sheet feeder, with Canon suggesting 7,500 to 13,000 scans a day for departmental workloads.

    U-turn and straight-through paths for cards and long documents

    Switch to the straight-feeding path for embossed and plastic cards (54 x 86 x 1.4 mm) and documents up to 3000 mm long. The U-turn path handles everyday office paper.

    Detailed Specifications

    TypeDesktop Type Sheet Fed Scanner
    SensorCIS — one-line contact image sensor
    Light sourceRGB LED
    Optical resolution600 dpi
    Output resolution100 x 100, 150 x 150, 200 x 200, 240 x 240, 300 x 300, 400 x 400, 600 x 600 dpi
    Speed, black and white60 ppm / 120 ipm (landscape speed)
    Speed, colour60 ppm / 120 ipm (landscape speed)
    Scanning sideSimplex / Duplex / Skip Blank Page / Folio
    Output modeBinary: Black & White, Error Diffusion, Advanced Text Enhancement I, Advanced Text Enhancement II, Auto Colour Detection, 8-bit Greyscale (256-Level), 24-bit Colour
    Daily duty cycleFrom 7,500 to 13,000 scans/day
    Feeder capacity80 sheets (A4, 80 g/m²)
    Document width50.8 – 300 mm
    Document length70 – 432 mm
    Paper thicknessU-turn: 0.04 – 0.15 mm (27 – 128 g/m²); straight-through: 0.04 – 0.3 mm (27 – 255 g/m²)
    Long document modeUp to 3000 mm (straight feeding)
    Business card scanning86 x 54 x 1.4 mm
    Plastic card scanning54 x 86 x 1.4 mm; embossed cards supported via straight feeding
    Paper separationRetard roller and pre-separation method
    Image qualityAutomatic Page Size Detection, Deskew, Colour Dropout (RGB), Colour Enhance (RGB), Colour Elimination, Auto Colour Detection, Text Orientation, Staple Detection, Skew Detection, Moire Reduction, Prevent Bleed Through / Remove Background, Character Emphasis, Background Smoothing, Remove Shadow, Auto Resolution Setting, Erase Dot, Erase Notch
    Processing and recoveryMultiStream, Prescan, Batch Separation (Patch Code / Blank Page / Counter / Barcode / Zonal OCR / Front page), Image Rotation, Skip Blank Page, Folio, Imprinter Add-on, Rapid Recovery, Double Feed Detection (Ultrasonic Sensor / By Length), Double Feed Release (DFR), Barcode and 2D code recognition
    WindowsISIS / TWAIN Driver, CaptureOnTouch Pro
    MacNot published — Canon's specification page for the DR-M1060II lists Windows software only.
    Power requirementsAC 100 – 240 V (50/60 Hz)
    Power consumptionScanning: 32.5 W or less; sleep mode: 1.9 W; powered off: 0.1 W or less
    Operating environment10 – 32.5 °C (50 – 90.5 °F); humidity 20 – 80% RH
    Environmental complianceRoHS
    Tray closed (W x D x H)424 x 246 x 120 mm
    Tray opened (W x D x H)424 x 440 x 210 mm
    WeightApprox. 6.1 kg
    InterfaceUSB 2.0 (USB 3.2 Gen 1 port compatible)
    ConsumablesExchange Roller Kit
    AccessoriesA4 Flatbed Scanner Unit 102, A3 Flatbed Scanner Unit 202

    Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.

    Need-to-Know

    The DR-M1060II is the A3 model in Canon's departmental DR-M line, matching the DR-M260's speed while scanning larger pages.

    • This is the only A3 model in Canon's desktop DR-M range — the DR-M140II, DR-M160II and DR-M260 are A4-only. Document width goes up to 300 mm and length up to 432 mm.
    • USB only — there is no network or Wi-Fi connection on this model. It scans to the single computer it is plugged into.
    • Canon's specification page lists Windows software only (ISIS / TWAIN Driver, CaptureOnTouch Pro) — no Mac driver is published for this model.
    • The 60 ppm / 120 ipm rating is a landscape-orientation speed; check with us if your workflow scans mainly in portrait.
    ModelScan speed (mono)FeederDaily duty cycle
    imageFORMULA DR-M26060 ppm / 120 ipm90 sheets7,500 – 13,000 scans
    imageFORMULA DR-M1060II (this page)60 ppm / 120 ipm80 sheets7,500 – 13,000 scans
    imageFORMULA DR-G2090100 ppm / 200 ipm300 sheets20,000 – 55,000 scans
    imageFORMULA DR-S250N50 ppm / 100 ipm60 sheetsNot published

    Choose the DR-M1060II for occasional A3 scanning on a normal desk; the DR-G2090 is the step up for sustained high-volume A3 production work.

    Best For / Customer Benefits

    Customer Benefits

    • Scans A3 documents up to 300 x 432 mm — the only model in the DR-M range that does.
    • Scans both sides of a page in one pass at 60 ppm / 120 ipm landscape speed.
    • Handles embossed and plastic cards on the straight-feeding path, alongside everyday A4 paper.
    • Stays compact for a desktop A3 scanner, at 424 x 246 x 120 mm closed.

    Best For

    Offices needing occasional A3 scanning without a full production scanner
    Departments digitising drawings, spreadsheets and other oversized pages
    Windows-only environments — no Mac driver is published for this model

    Official & Recommended Options

    Exchange Roller Kit

    Canon's replacement feed and retard rollers for the DR-M1060II. Worn rollers are the usual cause of misfeeds on a scanner used every day.

    Flatbed Scanner Unit 102 / 202

    Canon's optional A4 (102) and A3 (202) flatbed units for bound books, passports and fragile originals that cannot go through a sheet feeder.

    Need a roller kit, a carrier sheet or a flatbed unit? Contact us — we can confirm what fits your scanner before you order.

    Frequently Asked Questions

    Yes — it is the only A3 model in Canon's desktop DR-M line, taking documents up to 300 x 432 mm, while the DR-M140II, DR-M160II and DR-M260 are limited to A4.

    Canon rates it at 60 ppm / 120 ipm landscape speed, in both colour and black and white, from an 80-sheet feeder.

    Yes, via the straight-feeding path: cards of 54 x 86 x 1.4 mm, including embossed cards. The same path takes long documents up to 3000 mm.

    Canon's specification page for the DR-M1060II lists Windows software only — no Mac driver is published. Ask us to confirm before ordering if Mac support matters to you.

    Canon gives a daily duty cycle of 7,500 to 13,000 scans, the same suggested range as the DR-M160II and DR-M260.
