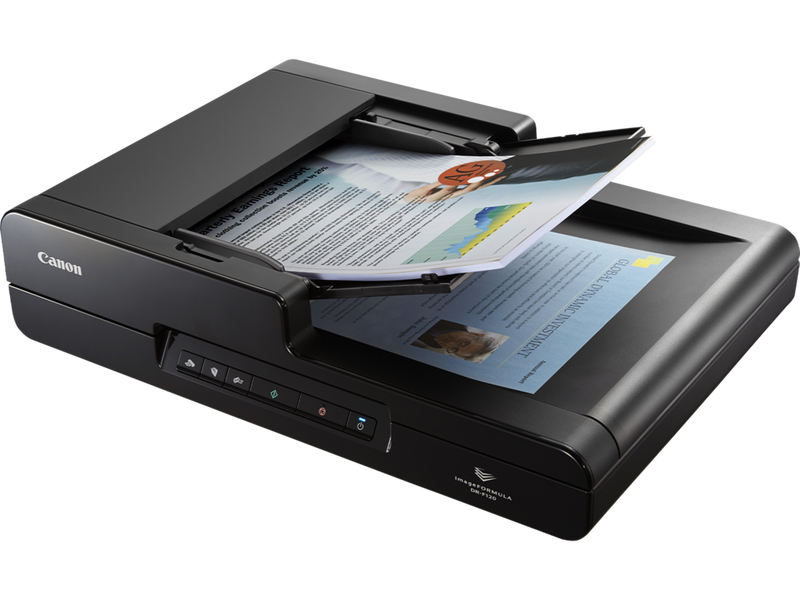

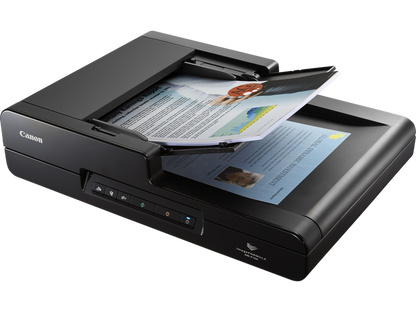

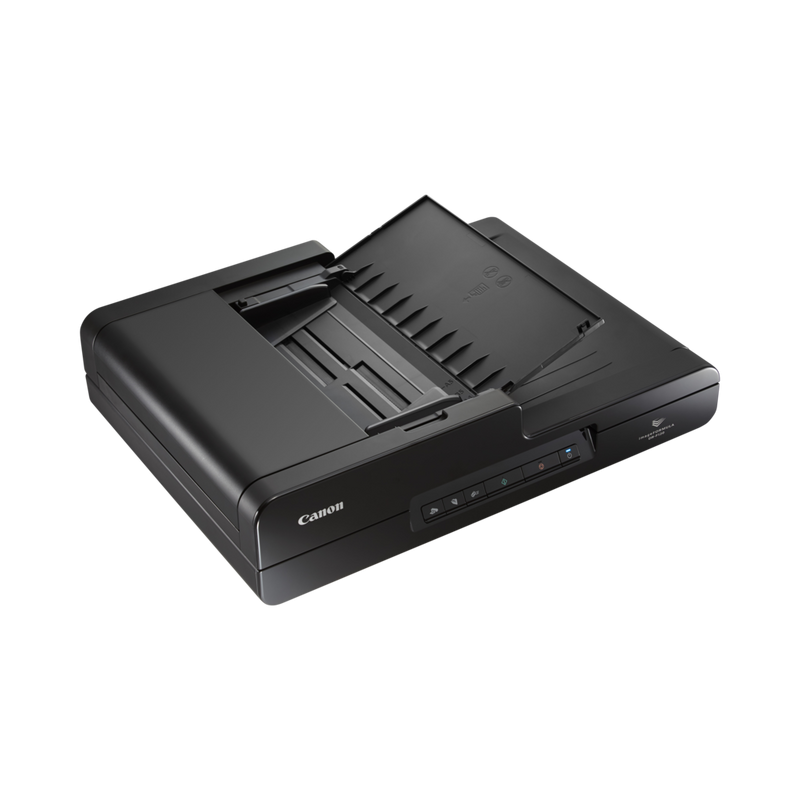

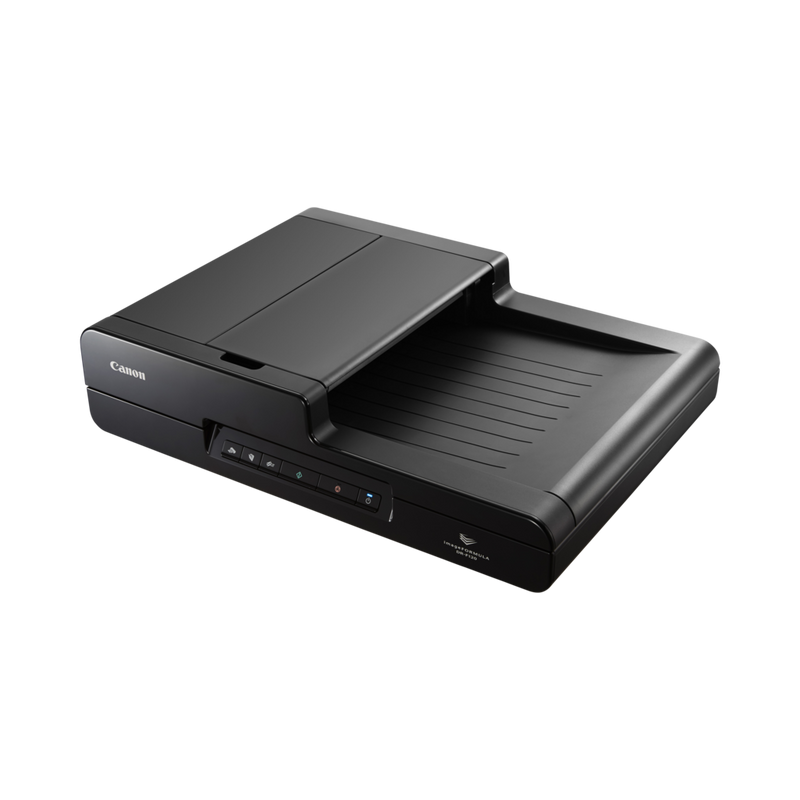

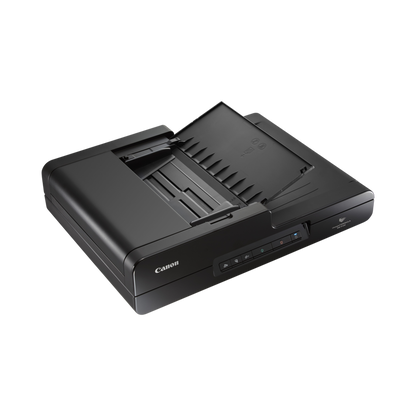

Canon imageFORMULA DR-F120 Flatbed and ADF Document Scanner

DR-F120

Condition: NEW

Get a tailored quote

Tap Request a Quote below to reach our team on WhatsApp.

  • Price for your exact configuration — trays, finisher, fax, cabinet
  • Delivery and installation anywhere in the UAE
  • Toner and service plan sized to your monthly print volume
  • Volume pricing for multiple units

IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY

Shipping calculated at checkout.

Authorised Canon Platinum Partner

Since 2021 · View our Canon Partnership Certificate

Buy Canon products with a 100% genuine guarantee.

Experience Canon printing solutions at the Print & Imaging Lab, our experience centre in Dubai.

    Request a Quote
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    Canon imageFORMULA DR-F120 Flatbed and ADF Document Scanner atomoffice
    Canon imageFORMULA DR-F120 Flatbed and ADF Document Scanner atomoffice
    Canon imageFORMULA DR-F120 Flatbed and ADF Document Scanner atomoffice

    Canon imageFORMULA Flatbed & ADF Scanner

    Canon imageFORMULA DR-F120 — Flatbed Scanner with Automatic Document Feeder

    A desktop scanner that pairs a 50-sheet automatic document feeder with a built-in flatbed, for offices that need both. The ADF scans both sides of a page at 20 ppm / 36 ipm in mono and 10 ppm / 18 ipm in colour, while the flatbed takes books, passports and fragile originals that cannot go through a feeder. Automatic Feeder/Flatbed detection switches between the two without you selecting a mode, and a Long Document Mode on the ADF handles printouts up to 1,000 mm.

    Quick Glance

    Scan speed
    ADF 20ppm/36ipm mono, 10ppm/18ipm colour
    Feeder capacity
    50 sheets (80g/m²)
    Document size
    Up to 216 x 356mm (ADF and flatbed)
    Connectivity
    High Speed USB 2.0
    Daily duty cycle
    500 to 1,500 scans per day

    Key Features

    One scanner for loose pages and bound originals

    The DR-F120 pairs a 50-sheet automatic document feeder with a built-in flatbed, so everyday paperwork goes through the ADF at 20 ppm / 36 ipm mono while books, passports and fragile originals go on the flatbed instead. Canon's Automatic Feeder/Flatbed detection switches between the two without you choosing a mode.

    Long documents and a higher-resolution flatbed

    The ADF handles ordinary paper plus a Long Document Mode up to 1,000 mm, while the flatbed scans at up to 1200 dpi optical resolution for finer detail than the 600 dpi ADF path — useful for photos, certificates and detailed originals.

    Automatic image clean-up on every scan

    Border removal, punch-hole removal, erase dot and erase notch, plus bleed-through prevention and shadow removal, run automatically so scanned pages come out clean without manual editing afterwards.

    Detailed Specifications

    TypeDesktop type flatbed scanner with ADF
    SensorCMOS CIS 1-line sensor
    Light sourceRGB LED
    Optical resolution600 dpi ADF; 1200 dpi flatbed
    Output resolution150 / 200 / 240 / 300 / 400 / 600 / 1200 / 2400 dpi
    Output modeBlack & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-level), 24-bit Colour
    Scanning sideFront / Back / Duplex (ADF)
    Speed, black and white (ADF)20 ppm / 36 ipm
    Speed, colour (ADF)10 ppm / 18 ipm
    Daily duty cycle500 to 1,500 scans/day
    Feeder capacity50 sheets (80g/m²)
    ADF document width51 – 216 mm
    ADF document length89 – 356 mm
    Flatbed document widthUp to 216 mm
    Flatbed document lengthUp to 356 mm
    Paper thickness (ADF)35 – 128 g/m² (0.05 – 0.15 mm)
    Long document modeUp to 1,000 mm
    Business card scanningWidth 51 mm; length 89 mm; thickness 128 – 209 g/m²
    Paper separationRetard roller method
    Automatic detectionAutomatic page size detection; automatic feeder/flatbed detection; Rapid Recovery System
    Cleanup featuresBorder removal, erase dot, erase notch, punch-hole removal, remove shadow, prevent bleed-through/remove background
    Colour handlingColour dropout (RGB), colour enhancement (RGB), moiré reduction, character emphasis
    DriverISIS / TWAIN driver
    SoftwareCaptureOnTouch
    Power requirementsAC220 – 240V (50/60Hz)
    Power consumptionScanning: 19.9W or less; sleep mode: 2.3W or less; powered off: 0.2W or less
    Operating environment10 – 32.5°C; humidity 20 – 80% RH
    Environmental complianceRoHS
    Tray closed (W x D x H)469 x 335 x 120 mm
    Tray opened (W x D x H)495 x 335 x 201 mm
    WeightApprox. 4.6 kg
    InterfaceHigh Speed USB 2.0

    Specifications are provided by the manufacturer and may be updated or changed without prior notice. AtomOffice is not responsible for any discrepancies between the information shown here and the manufacturer's official documentation.

    Need-to-Know

    The DR-F120 is the only scanner in this trio with a built-in flatbed. The R30 and RS40 are ADF-only but faster for pure document throughput.

    • USB only — there is no Wi-Fi or network connection on the DR-F120. It connects to one Windows computer over USB.
    • Canon's driver list for the DR-F120 names Windows only (ISIS/TWAIN driver, CaptureOnTouch); no Mac software is listed for this model.
    • The ADF and flatbed have different optical resolutions: 600 dpi through the feeder and 1200 dpi on the flatbed. Use the flatbed for finer detail or fragile originals.
    • Documents longer than the ADF's standard range need Long Document Mode, which supports up to 1,000 mm.
    ModelScan speed (mono)FeederDaily duty cycle
    imageFORMULA R3025 ppm / 50 ipm60 sheetsNot published
    imageFORMULA RS4040 ppm / 80 ipm60 sheets / 40 photosNot published
    imageFORMULA DR-F120 (this page)20 ppm / 36 ipm50 sheets500 – 1,500 scans

    Choose the DR-F120 when you need an occasional flatbed for books or IDs alongside everyday ADF scanning; the R30 and RS40 are ADF/photo-only but faster for pure document throughput.

    Best For / Customer Benefits

    Customer Benefits

    • Combines a 50-sheet ADF with a built-in flatbed, so everyday paper and bound originals go through the same scanner.
    • Automatic Feeder/Flatbed detection switches modes for you — no manual setting to remember.
    • Scans documents up to 1,000 mm long through the ADF's Long Document Mode.
    • Automatic border, punch-hole and shadow removal clean up scans without manual editing.

    Best For

    Home offices that need both everyday paper scanning and an occasional flatbed for books or IDs
    Small offices digitising mixed batches of documents, business cards and long printouts
    Windows users who want ADF and flatbed scanning without buying two devices

    Official & Recommended Options

    Exchange Roller Kit

    Canon's replacement feed and retard rollers for the DR-F120's ADF path. Recommended once misfeeds start after heavy daily use.

    Need a roller kit, a carrier sheet or a flatbed unit? Contact us — we can confirm what fits your scanner before you order.

    Frequently Asked Questions

    Yes. It has a 50-sheet automatic document feeder for everyday paper plus a built-in flatbed for books, passports and originals that cannot go through a sheet feeder. Canon's Automatic Feeder/Flatbed detection switches between them without you selecting a mode.

    Through the ADF, Canon rates it at 20 pages per minute / 36 images per minute in black and white, and 10 pages per minute / 18 images per minute in colour.

    Canon's software list for the DR-F120 names Windows only (ISIS/TWAIN driver and CaptureOnTouch); no Mac driver is published for this model, so it should be treated as a Windows-only scanner.

    Yes, through the ADF's Long Document Mode, which handles documents up to 1,000 mm long — useful for printouts and long forms that a standard feeder cannot manage.

    Canon gives a suggested daily duty cycle of 500 to 1,500 scans for the DR-F120, one of the higher figures among Canon's desktop scanners in this range.
