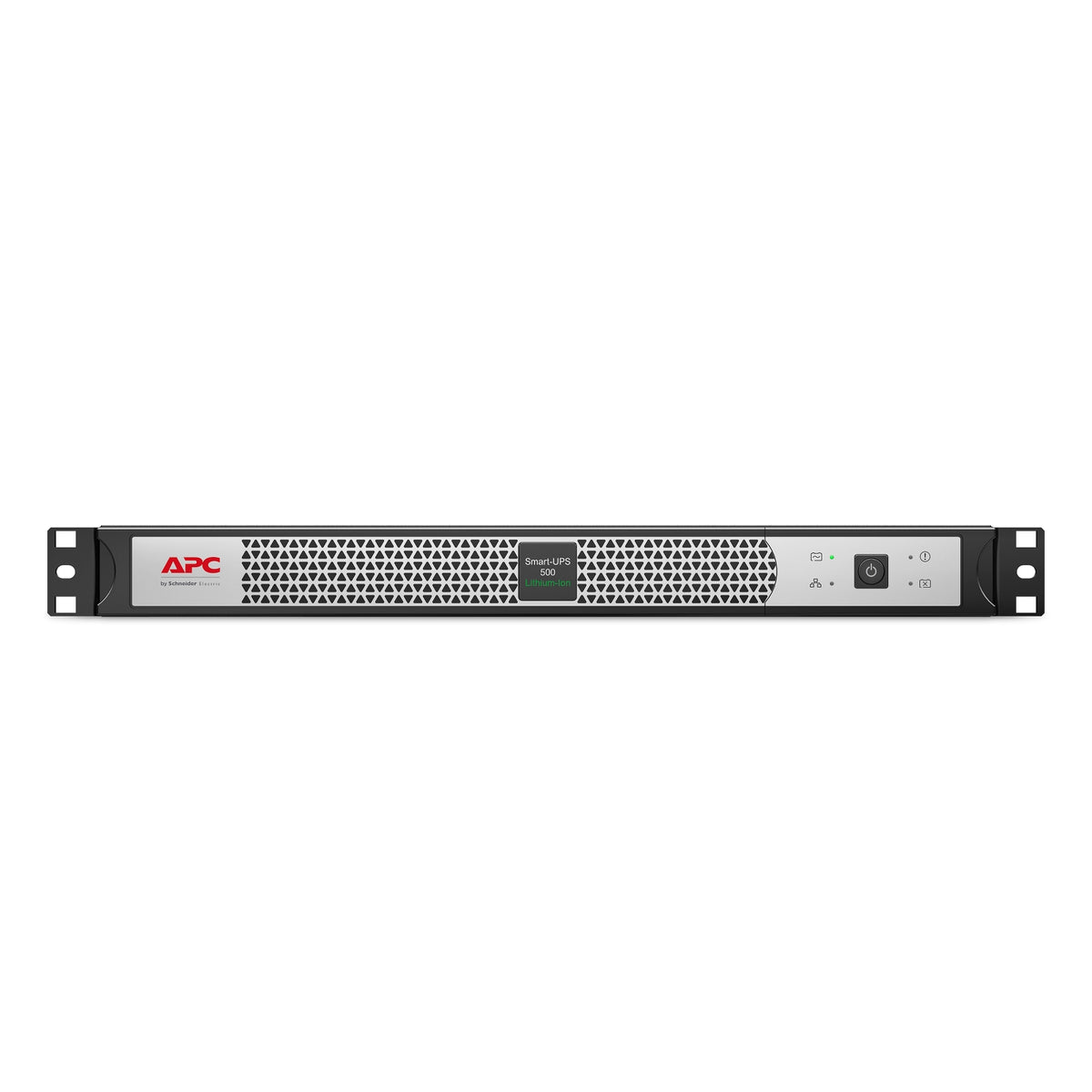

APC Smart-UPS Lithium-ion 500VA — Rackmount 1U, Short Depth, 230V

SCL500RMI1UC

Condition: NEW

Management

Get a tailored quote

Tap Request a Quote below to reach our team on WhatsApp.

  • Genuine, brand-new stock with full manufacturer warranty
  • Pricing based on quantity, with volume rates for bulk orders
  • Help choosing the right option for your office or team
  • Delivery anywhere in the UAE

IMAGES ARE FOR ILLUSTRATIVE PURPOSES ONLY

Shipping calculated at checkout.
    Request a Quote
    Genuine Guarantee

    Shop with Confidence: Authentic IT Products from Major Brands.
    Shipping information

    We offer FREE DELIVERY for order over AED 200. Also no additional Cash on Delivery (COD) fee.

    Click here to know more
    Returns information

    No longer required or changed you mind ?

    We have a 7 days return policy

    Click here to know more
    APC Smart-UPS Lithium-ion 500VA — Rackmount 1U, Short Depth, 230V atomoffice

    APC Smart-UPS · SCL Lithium-ion 500VA

    APC Smart-UPS Lithium-ion 500VA — Rackmount 1U, Short Depth, 230V

    A 500VA/400W line-interactive Smart-UPS in a short-depth 1U rackmount body, with a lithium-ion battery that APC says minimizes the need to replace the battery during the life of the UPS. Two SKUs: SCL500RMI1UC with a SmartConnect port, and SCL500RMI1UNC with a Network Management Card 3 preinstalled. USB and serial connectivity for graceful shutdown via PowerChute Serial Shutdown. APC suggests it for small edge environments, back offices, network infrastructure and IDF/MDF closets. Supplied across Dubai and the wider UAE.

    Quick Glance

    Capacity
    500VA / 400W
    Output
    230V, line-interactive
    Topology
    Line-interactive, lithium-ion
    Outlets
    4 × IEC 60320 C13
    Monitoring
    SmartConnect port (C) · Network Management Card 3 (NC)

    Key Features

    Short Depth, 1U

    A 1U rackmount body, 44 mm high, 432 mm wide and 232 mm deep. APC says the short depth provides extra space for cable management.

    Lithium-ion Battery

    APC states the lithium-ion battery minimizes the need to replace the battery during the life of the UPS, and lists a battery design life of 8 to 10 years.

    SmartConnect or Network Card

    SCL500RMI1UC has a SmartConnect Ethernet port for cloud monitoring (feature availability varies by terms of use). SCL500RMI1UNC has a Network Management Card 3 preinstalled.

    Detailed Specifications

    RangeSmart-UPS
    Capacity500VA / 400W
    UPS topologyLine interactive
    Output voltage230 V AC 1 phase
    Waveform typeSine wave
    Output frequency50/60 Hz +/- 3 Hz sync to mains
    Outlets4 × IEC C13
    Transfer time6 ms typical : 10 ms maximum
    Harmonic distortionLess than 5 %
    Surge energy rating510 J
    Input voltage230 V AC 1 phase
    Input connectionIEC 60320 C14
    Input frequency50/60 Hz +/- 3 Hz auto sensing
    Battery typeLi-Ion (Lithium-Ion)
    Extendable runtimeNo
    Management optionsSCL500RMI1UC: SmartConnect; SCL500RMI1UNC: Network Management Card
    UPS connectivitySCL500RMI1UC: Serial port · USB port · SmartConnect port; SCL500RMI1UNC: Serial port · USB port · Embedded network management card 3
    Control panelLED status display with on line : on battery : replace battery and building wiring fault
    AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
    Free slot0
    Form factorRack 1U
    Rack units1U
    Dimensions (H × W × D)44 × 432 × 232 mm
    WeightSCL500RMI1UC: 4.06 kg; SCL500RMI1UNC: 4.1 kg
    ColourBlack with silver front bezel
    MountingRack-mounted · Rack-mounted
    Operating temperature0…40 °C
    Storage temperature-15…45 °C
    Relative humidity0…95 % non-condensing
    Operating altitude0...10000 ft
    Acoustic level45 dBA
    Heat dissipation41.61 Btu/h
    IP protectionIP20

    Where variants differ, every value is listed in the same order as the compare table above. Tell us the SKU and we will confirm the exact figure.

    Product certificationsSCL500RMI1UC: C-Tick · CE · EAC · RCM · UK PSTI; SCL500RMI1UNC: C-Tick · CE · EAC · UK PSTI
    StandardsEN/IEC 62040-2:2006/AC:2006 · EN/IEC 62040-2:2018
    Warranty60 months on the UPS

    Specifications from Schneider Electric’s product data for each SKU on this page (se.com, UAE). No efficiency figure is quoted because Schneider’s published row for it could not be read unambiguously. Where a row lists several values, they are the different values across the models on this page. Ask us and we will confirm any value against the unit.

    Need-to-Know

    Two SKUs at the same 500VA/400W capacity in a short-depth 1U body. SCL500RMI1UC has a SmartConnect port; SCL500RMI1UNC has Network Management Card 3 preinstalled.

    • Rated 500VA/400W — confirm your total load in watts is within 400 W before ordering.
    • APC's data lists the SmartConnect port on SCL500RMI1UC only; SCL500RMI1UNC lists a preinstalled Network Management Card 3 instead. Ask us to confirm if you need both.
    • APC lists a 60-month warranty on both models. Ask us to confirm the exact terms.
    ModelManagement
    SCL500RMI1UCSmartConnect
    SCL500RMI1UNCNetwork Management Card

    Choose by the management route you need: the SmartConnect port on SCL500RMI1UC or the preinstalled Network Management Card 3 on SCL500RMI1UNC.

    Best For / Customer Benefits

    Customer Benefits

    • Short-depth 1U body, which APC says leaves extra space for cable management.
    • SCL500RMI1UC includes a SmartConnect port; SCL500RMI1UNC comes with Network Management Card 3 preinstalled.
    • Lithium-ion battery that APC says minimizes the need to replace the battery during the life of the UPS.
    • USB and serial connectivity for graceful shutdown via PowerChute Serial Shutdown.

    Best For

    Small edge environments
    Back offices
    Network infrastructure
    IDF/MDF closets

    Official & Recommended Options

    2 Post Rail Kit (AP9625)

    APC lists AP9625, the SmartUPS/SmartUPS RT 2 Post Rail Kit, as compatible mounting for both models. Rack mounting support rails are also listed in the box.

    Secure NMC Subscription

    APC lists Secure NMC Subscriptions (SWNMC3SU, 1 to 6 year terms) as compatible with SCL500RMI1UNC. Ask us to confirm the right term.

    Not sure which battery, rail kit or management card fits your unit? Send us the model on WhatsApp and we will confirm before you order.

    Frequently Asked Questions

    It is rated 500VA/400W. APC describes it as ideal for small edge environments, back offices, network infrastructure and IDF/MDF closets. Tell us your equipment's wattage and we will confirm whether this capacity is enough or point you to a larger Smart-UPS.

    APC says the short depth provides extra space for cable management. The body is 232 mm deep, 44 mm high and 432 mm wide (1U). Tell us your cabinet depth and we will confirm it before you order.

    SCL500RMI1UC has a SmartConnect port for cloud monitoring (availability varies by terms of use). SCL500RMI1UNC has a Network Management Card 3 preinstalled, and APC's data for it lists no SmartConnect port. Both have USB and serial ports. Ask us which suits you.

    APC lists a battery design life of 8 to 10 years and says the lithium-ion battery minimizes the need to replace the battery during the life of the UPS. Tell us your usage and we will confirm what to expect for your site.
