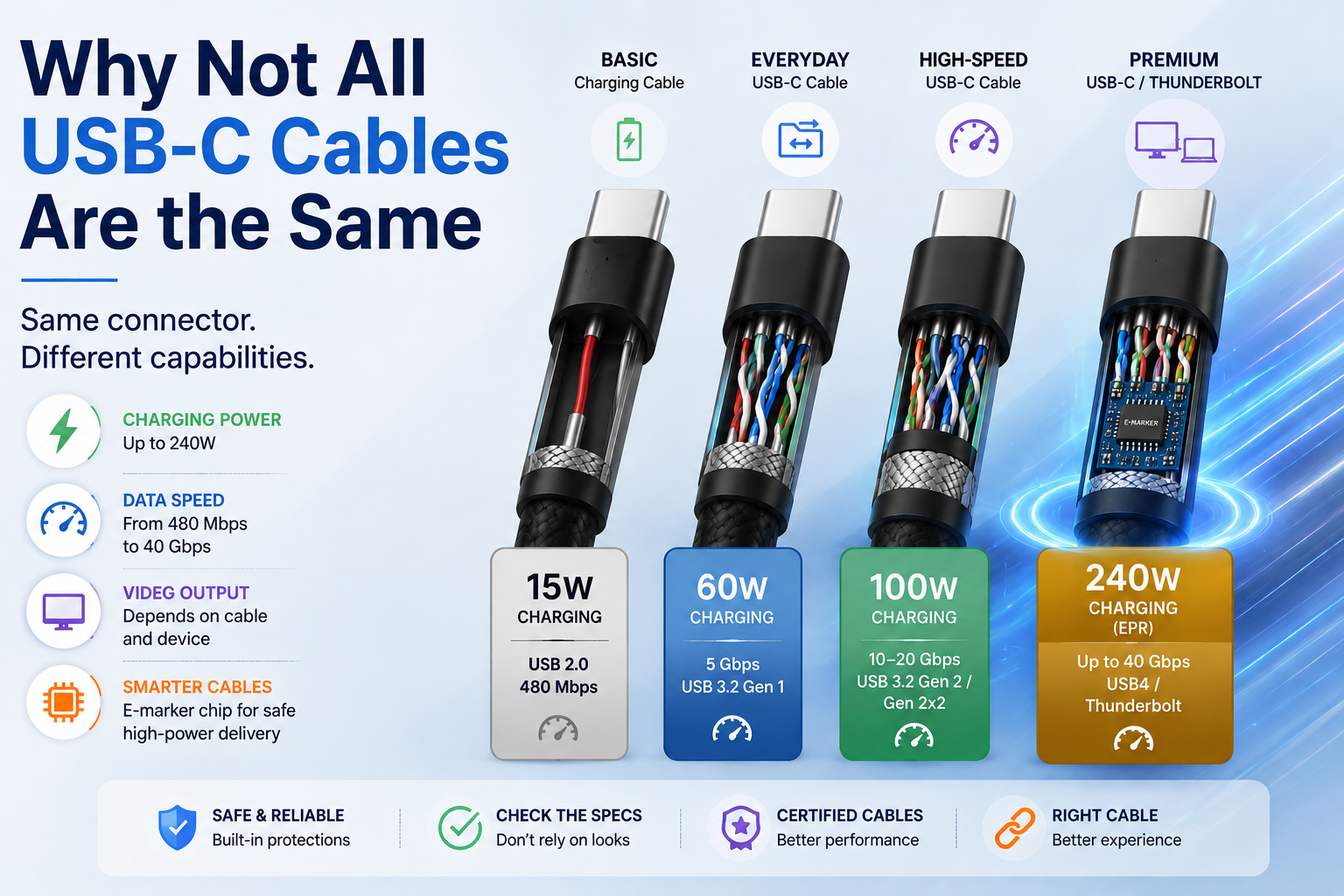

Same tip, different guts. USB-C cables can look identical yet vary wildly in speed, power, and video features. Here’s a clear, visual guide.
Speed bar thickness hints throughput; color hints power capability. Visual only — check real specs on the label/listing.
1) Connector shape ≠ cable capability
“USB-C” is just the plug shape. Capability depends on the wires and chips inside the cable. Two USB-C cables can look the same yet differ in data lanes, shielding, power rating, and whether they carry video reliably.
Higher speeds use more complex wiring & signaling. Some cables only carry USB 2.0 even though they have USB-C ends.
2) Power Delivery: 60W vs 100W vs 240W (EPR)
USB Power Delivery (USB-PD) negotiates how much power a device can draw. 3A cables support up to 60W. 5A cables support up to 100W (legacy 20V) and up to 240W with Extended Power Range (EPR). Cables that can carry 5A must include an e-marker chip advertising safe limits to the charger.
3) Video over USB-C (Alt Modes)
Many USB-C cables can carry video (e.g., DisplayPort Alt Mode), but not all. High-resolution/refresh setups (like 4K/144 Hz or ultra-wide) may need better cables to avoid flicker or drop-outs — especially with hubs/monitors acting as USB hubs.
If your monitor’s USB-A ports (webcam, etc.) aren’t working, the USB-C “upstream” link might be missing or the cable only supports USB 2.0.
4) Thunderbolt & USB4
- Thunderbolt 3/4 & USB4 commonly run up to 40 Gbps. Many such cables are active (electronics inside) to maintain speed at longer lengths.
- Thunderbolt cables are usually backward-compatible with USB-C/USB4, but basic USB-C cables are not guaranteed to support Thunderbolt.
- For docks, 4K/120, fast SSDs, or dual displays, choose a certified TB/USB4 cable.
5) Length, active vs passive, and build quality
- Longer cables drop signal quality; high-speed often needs active cables (with repeaters).
- Good shielding & thicker conductors reduce interference and heat — critical for stable video and 5A charging.
- Avoid “charge-only” when you need data/video; some listings hide that they’re USB 2.0 (480 Mbps) only.
Use-case → Minimum cable spec
| Use case | Minimum spec to look for |
|---|---|
| Phone charging + basic data | USB 2.0, 3A (up to 60W) |
| Fast SSD transfers (10 Gbps) | USB 3.2 Gen 2 (10 Gbps) cable |
| Docking station + 4K/60 monitor | USB-C with DisplayPort Alt Mode + 10 Gbps data (or USB4/TB) |
| Dual 4K displays / Premium docks | USB4 or Thunderbolt 3/4 (40 Gbps) |
| Charging big laptops (gaming/workstation) | 5A e-marked cable: 100W or 240W (EPR) |
| Ultrawide/High-refresh (e.g., 4K/120, 5K/60) | High-quality USB4/TB cable; keep length short or use active |
How to read labels (and avoid bad buys)
- Look for speed (5/10/20/40 Gbps), power (60/100/240W), and words like USB4 or Thunderbolt 4.
- For 5A/240W charging, the cable must say 5A or e-marked.
- For displays via USB-C, check for DisplayPort Alt Mode support.
- Beware “charging cable” listings with no speed listed — often USB 2.0 only.
Quick troubleshooting cheatsheet
- Webcam not detected via monitor? Ensure the monitor’s upstream USB-C/B is connected with a data-capable cable (not charge-only).
- Display flickers/drops? Try a shorter or certified USB4/Thunderbolt cable; avoid adapters; check monitor refresh/resolution.
- Laptop not charging fast? You likely need a 5A e-marked cable and a charger that supports the required wattage.
Naming footnote: USB 3.0 vs 3.1 vs 3.2
Bottom line
Pick the cable for your job: USB4/TB for docks & big displays, 10–20 Gbps for fast SSDs, 5A e-marked for high-watt charging. When in doubt, buy one certified, short, high-quality cable and label it.
